Cross Technologies 2009-2425-1750 Manuale utente

Instruction Manual

Model 2009-2425-1750

Downconverter

September 2019, Rev. 0

2009 TEST DOWNCONVERTER

CROSS TECHNOLOGIES, INC.

DC ALARM J1 J2

RF IN

IF OUT

DC POWER

CROSS TECHNOLOGIES, INC.

••

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB: www.crosstechnologies.com

E-MAIL: [email protected]

MODEL 2009-2425-1750 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Mechanical 5

2.2 Front Panel Indicators 5

2.3 Rear Panel Inputs and Outputs 6

2.4 Accessing the PC Card 6

2.5 Installation/Operation 6

3.0 Environmental Use Information 7

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There

are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB: www.crosstechnologies.com

E-MAIL: [email protected]

2009-2425-1750 Manual, Rev. 0 Page 2 09/05/19

Model 2009-2425-1750 Downconverter

2.40 - 2.50 GHz to 1700 - 1800 MHz

1.0 General

1.1 Equipment Description

The 2009-2425-1750 Downconverter converts a 2.40 - 2.50 GHz signal to 1700 - 1800 MHz

with a low side local oscillator (LO) (non-inverted spectrum). Featuring low phase noise and

high stability, this unit down converts 2.40 - 2.50 GHz signals to 1700 - 1800 MHz. The 2.40 -

2.50 GHz input is mixed with a synthesized local oscillator (LO) signal to 1700 - 1800 MHz.

The mixer output is applied to the output amplifier providing a nominal gain of +10 dB.

Connectors are 75Ωtype-F (female) for the 1700 - 1800 MHz output and 50Ωtype-N (female)

for the RF input. Front panel LEDs light when DC power is applied (green) and when a PLL

alarm occurs (red). DC power is provided by the LNB voltage from the receiver under test or by

an external wall mount power supply (option -P4). The 2009 can be mounted on an 1 3/4” X

19” rack mount panel (option -R)

2009 TEST DOWNCONVERTER

CROSS TECHNOLOGIES, INC.

DC ALARM J1 J2

RF IN

IF OUT

DC POWER

CROSS TECHNOLOGIES, INC.

••

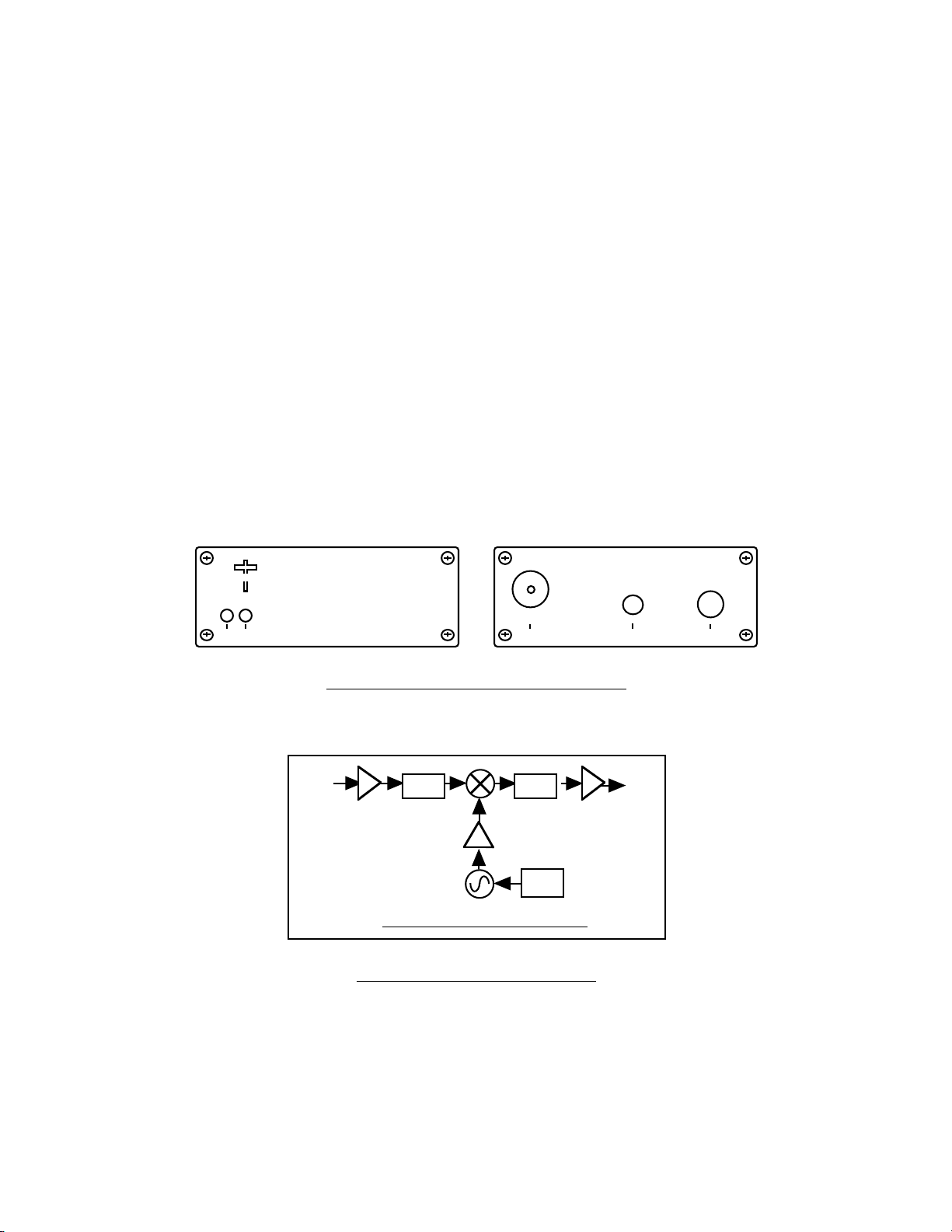

FIGURE 1.1 Front and Rear Panels

1700

1800

MHz

OUT

2.40

2.50

GHz

0.700 GHz PLL

2009-2425-1750 Block Diagram

1.75 G

2.45 G

FIGURE 1.2 Block Diagram

2009-2425-1750 Manual, Rev. 0 Page 3 09/05/19

1.2 Technical Characteristics

TABLE 1.1 Model 2009-59 Equipment Specifications*

Input Characteristics

Impedance/Return Loss 50 Ω/12 db

Frequency 2.40 - 2.50 GHz

Level -40 to -20 dBm

Output Characteristics

Impedance/Return Loss 75 Ω/12 db

Frequency 1700 - 1800 MHz

Level -30 to -10 dBm

Output 1 dB compression 0 dBm

Channel Characteristics

Gain at band center +10 dB ±2 dB

Spurious Response < -40 dBC, 1700 - 1800 MHz

Spectrum Sense Non-inverting

Frequency Response ±2 dB, 1700 - 1800 MHz; ±0.5 dB, any 10 MHz increment

Synthesizer Characteristics

LO Frequency 0.700 GHz

Frequency Accuracy ± 1.0 ppm maximum

-110-100-85-75-60

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

Indicators

DC Power Green LED

Alarm Red LED

Other RF Connector Type N (female), 50 Ω

IF Connector Type F (female)

Size, Bench Top 4.7” wide X 1.75” high X 6.5” deep.

Size, Rack Mount (-R) 19-inch Standard Chassis, 1.75” high x 7.0” deep (optional).

Power +15 to +18 VDC, 250 ma on RF Out,

Wall mount power supply unit optional)

Options

-M Type N RF, 50Ω

-P4 100-240 ±10% VAC Wall Power Supply, +15 VDC

-R 1RU Rack Mounting.

-C Power Supply not included. Requires Cross 2000-01 Power Supply.

*+10˚C to +40˚C; 2000 meters max elevation; 80% max humidity; Specifications subject to change without notice.

2009-2425-1750 Manual, Rev. 0 Page 4 09/05/19

2.0 Installation

2.1 Mechanical

The 2009-59 is packaged in an aluminum extrusion. The -R option is mounted on a 1 3/4” X 19” panel that can

be mounted to a rack using the 4 holes at the ends (See Figure 2.1).

2.1.1 Cleaning Instructions

Wipe the exterior with a dry, soft cloth. Use no detergent or cleaning chemicals.

EXTRUSION

FRONT SCREWS (4EA)

FRONT PANEL

RACK MOUNT PANEL (FOR -R MODELS ONLY)

ROSS

ECHNOLOGIES, INC.

2009 TEST DOWNCONVERTER

DC ALARM

REAR SCREWS (4EA)

REAR PANEL

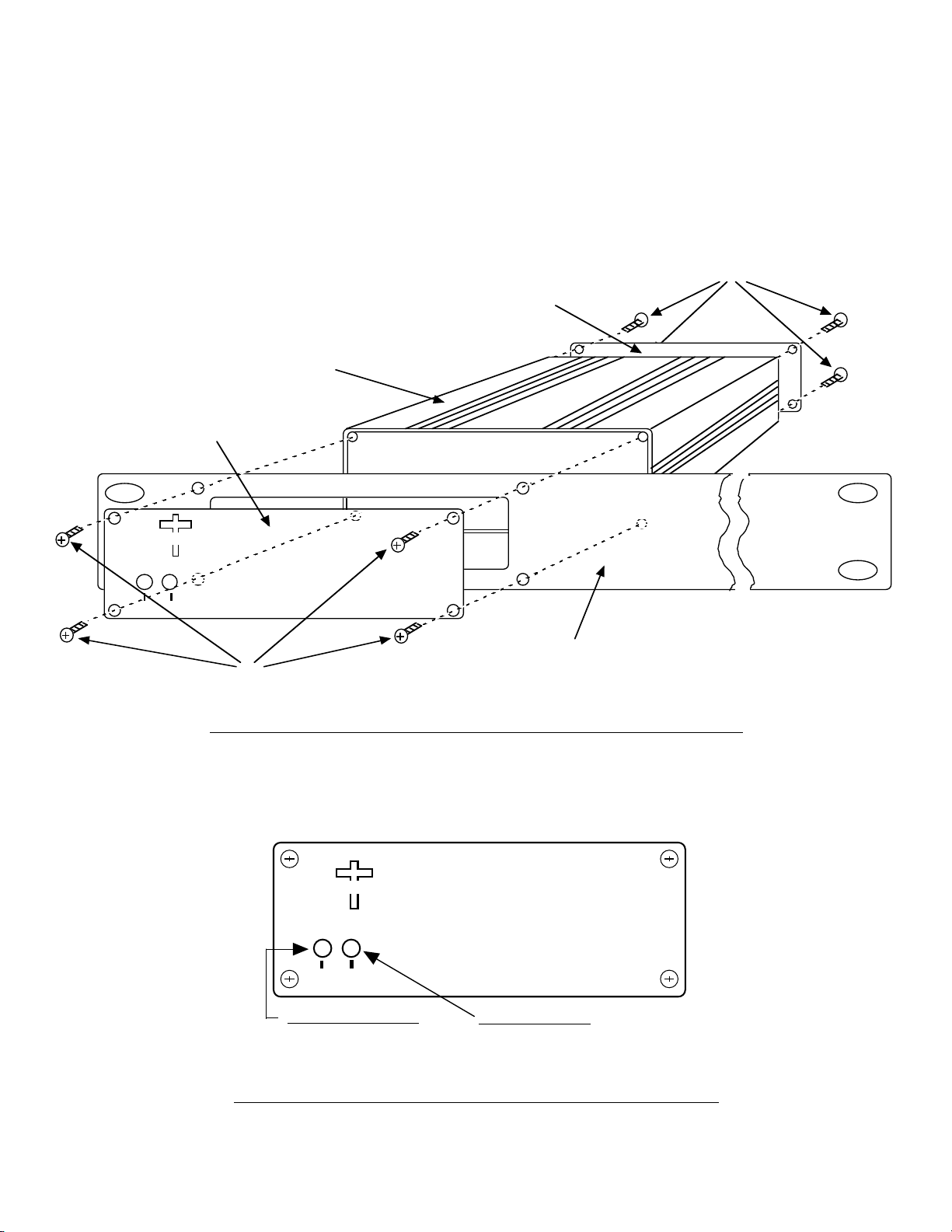

FIGURE 2.1 Model 2009-2425-1750 Assembly (-R option shown)

2.2 Indicators

Figure 2.2 shows front panel indicators.

DS1 - DC POWER LED

Lights green when DC

power is present.

DS2 - ALARM LED

Lights red when PLL

comes out of lock.

CROSS TECHNOLOGIES, INC.

DC ALARM

2009 TEST CONVERTER

FIGURE 2.2 Model 2009-2425-1750 Front Panel Indicators

2009-2425-1750 Manual, Rev. 0 Page 5 09/05/19

2.3 Input / Output Signals

Figure 2.3 shows the input and output signals to the 2009-2425-1750.

J1 - RF IN

The 2..40 to 2..50 GHz input .

This must be a “clean” input with no

image or other frequency present.

The max input level is -20 dBm.

This is a 50Ω, Type N, female

connector.

J3 - DC POWER

The +15 VDC unregulated DC voltage from

the wall power supply. -P models ONLY.

J2 - IF OUT

The 1700 -1800 to 1450

MHz output at -10 dBm

max level with -20 dBm in.

This is a 75Ω, Type F,

female connector. May

also contain +15 to +18

GND +15

DC POWER

RF IF

J1 J3 J2

CROSS TECHNOLOGIES, INC.

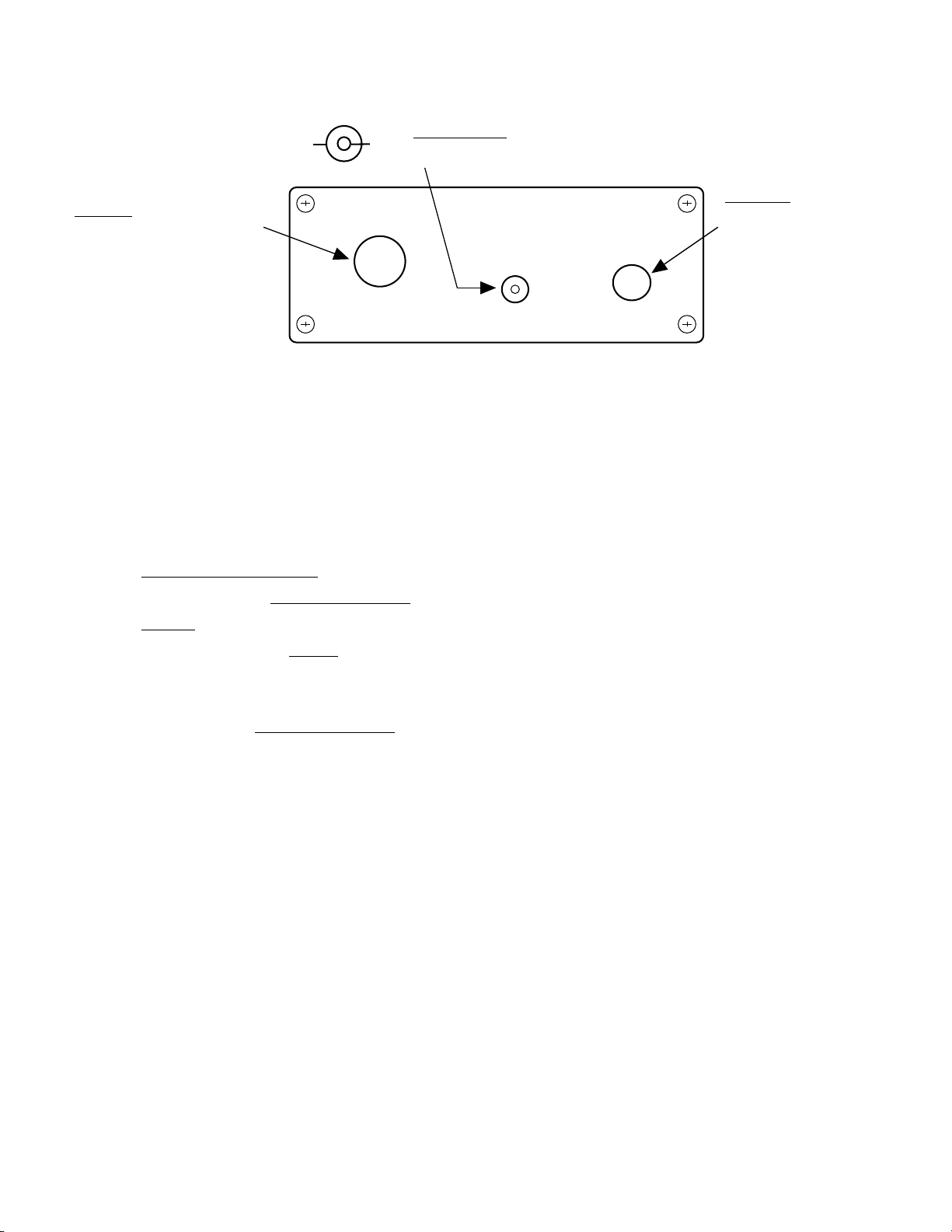

FIGURE 2.3 Model 2009-2425-1750 Rear Panel Inputs and Outputs

2.4 Accessing the PC Card

There are NO USER JUMPERS or other on-card controls. ALTHOUGH IT IS NOT RECOMMENDED AND

MAY VOID THE WARRANTY the following shows how to remove the printed circuit board (PCB) from the

extrusion:

1. Always remove power when installing or removing the PCB from the extrusion

2. Remove four (4) rear panel screws (see Figure 2.1).

3. Gently pull the rear panel and PCB assembly completely out of the extrusion.

4. To install the PCB, gently push the rear panel and PCB assembly completely into the extrusion

(make sure the shield goes in the lower channel and the PCB in the next channel above that) and that

the front panel indicators line up with the front panel holes.

5. Install four (4) rear panel screws.

2.5 Installation / Operation

2.5.1 Installing and Operating the 2009-2425-1750:

1. For -P4 models, connect one end of the Wall Power Supply to the 2009-2425-1750 DC

Power In, J3, and the other end to 115 VAC, 60 Hz (Figure 2.3).

2. Connect a -20 dBm, maximum, signal to RF IN, J1 (Figure 2.3).

3. Connect the IF OUT, J2, to the receiver under test (For models powered from the LNB be sure that

the LNB voltage is +15 to +18 VDC, 250 ma) (Figure 2.3).

4. Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

3.0 Environmental Use Information

2009-2425-1750 Manual, Rev. 0 Page 6 09/05/19

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2009-2425-1750 Manual, Rev. 0 Page 7 09/05/19

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB: www.crosstechnologies.com

E-MAIL: [email protected]

Printed in USA

2009-2425-1750 Manual, Rev. 0 Page 8 09/05/19
