Cross Technologies 2015-24 Manuale utente

Instruction Manual

Model 2015-24

Upconverter

May 2013, Rev. G

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=1525.000

G=+00.0

MUTEREMOTE POWER ALARM

UPCONVERTER

IF MONITOR RF MONITOR

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2015-24 Upconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

2.0 Installation 8

2.1 Mechanical 8

2.2 Rear Inputs & Outputs 9

2.3 Front Panel Controls & Indicators 10

2.4 Operation 11

2.5 Menu Settings 12

3.0 Environmental Use Information 17

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There are

not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2015-24 Manual_Rev.G Page 2 05/28/13

MODEL 2015-24 Upconverter

1.0 General

1.1 Equipment Description

The 2015-24 L-band Upconverter converts 140 ± 36 MHz to 950 to 2150 MHz in 1kHz, 10kHz, 100kHz, or

125kHz steps (user selectable) with low group delay and flat frequency response. Synthesized local oscillators

(LO) provide very low phase noise and ±0.01 ppm stability frequency selection. Multifunction push button

switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC

power (green), PLL alarm (red), remote operation (yellow) or the TX carrier is muted (yellow). Variable

attenuators for the IF input and output provide a gain range of -10 to +30 dB as adjusted by the front panel

multifunction push-button switches. Remote operation allows selection of frequency and gain. Parameter

selection and frequency and gain settings appear on the LCD display. Connectors are BNC (female) for IF and

the optional external reference input and output, and Type F (female) for the RF output. SSPB +24 VDC, 2.5

Amps and 10 MHz reference can be inserted on the RF line as added options. The 10 MHz option also includes

a 10 MHz output connector, which contains either the internal or external 10 MHz reference signal. The unit is

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=1525.000

G=+00.0

MUTEREMOTE POWER ALARM

UPCONVERTER

IF MONITOR RF MONITOR

FRONT

RF OUT

SSPB

FUSE

GND

J4 J5J3J18

10 MHZ REF 10 MHZ IF IN

EXT REF

OUTPUT INPUT

DS7

VDC on RF

J10

AND

MONITOR

CONTROL

5 23

678

J20

REAR

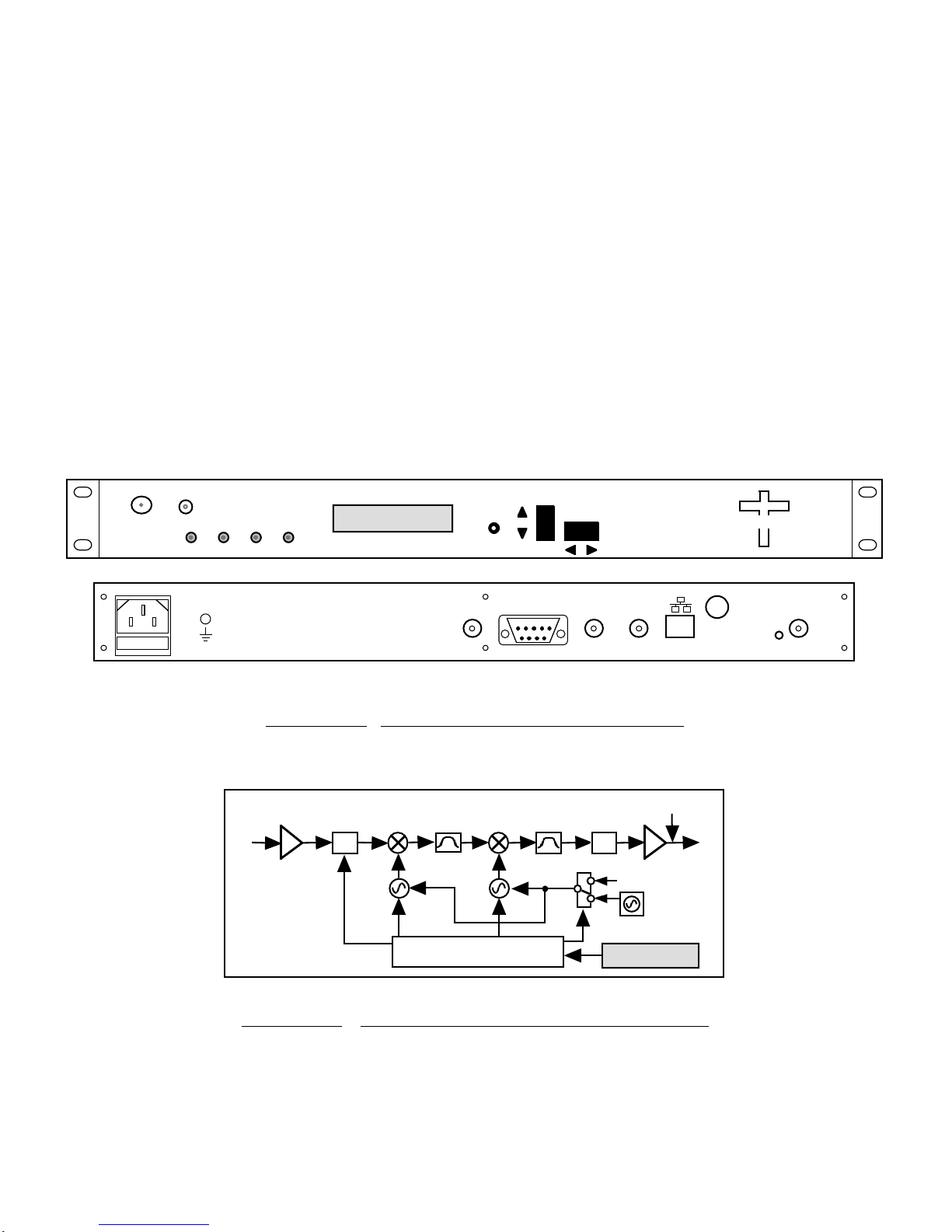

FIGURE 1.1 Model 2015-24 Front and Rear Panels

950

2150

MHz

OUT

140

MHz

CONTROLLER F=1425.000

G=+10.0

VAR

ATT

EXT

10 MHz*

VAR

ATT

INT

10 MHz

10MHz*

+24VDC*

* = OPTIONAL

FIGURE 1.2 Model 2015-24 Upconverter Block Diagram

2015-24 Manual_Rev.G Page 3 05/28/13

1.2 Technical Characteristics

TABLE 1.1 2015-24 Upconverter Specifications*

Input Characteristics (IF)

Impedance 75 Ω

Return Loss 18 dB

Frequency 140 ± 36 MHz

Level -40 to -10 dBm

Output Characteristics (RF)

Impedance 75 Ω

Return Loss 12 dB

Frequency 950 to 2150 MHz

Level -20 to 0 dBm

1dB compression +5 dBm

Channel Characteristics

Gain range -10 to +30 dB (adjustable)

Frequency Response ±1.5 dB, 950-2150 MHz ; ± 0.5 dB, 72 MHz BW

Spurious Response <-50 dBC

Group Delay, max 0.0035 ns/MHz2, parabolic, 0.035 ns/MHz, linear, 1 ns ripple

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ±0.01 ppm internal reference; external reference input

Frequency Step 1kHz, 10kHz, 100kHz, or 125kHz (user selectable)

10 MHz In/Out Level +3 dBm ± 3 dB (option -E)

-120-110-88-85-72

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

Controls, Indicators

Freq/Gain Selection Direct readout LCD; pushbutton switches or remote selection

Power Green LED

Alarm Red LED

Mute Yellow LED

Remote Yellow LED

Remote RS232C, 9600 baud (RS485, option Q)

Other

RF Connector Type F (female)

IF Connector BNC (female)

10 MHz Connectors BNC (female), 50Ω/75Ω(option E)

Alarm/Remote Conn. DB9 - NO or NC contact closure on Alarm

Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep

Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max

Options

Available Options E - External 10 MHz ref in & out w/ RF insertion

V - SSPB Voltage, +24VDC, 2.5 amps

Q - RS485 Remote Interface

Z - Attenuator 0.1 dB on Upconverter

X or X1 - 125 or 100 KHz steps

W7 - RF (SMA) and IF (BNC) 50ΩMonitor Ports

W8 - Ethernet M&C Remote Interface

W18 - Ethernet M&C Remote Interface with SNMP

W28 - Provides Web Browser; allows direct TCP/IP and/or Telnet®addressability

W31 - Extended Temperature - 0C to +50C

Connectors/Impedance: B - 75ΩBNC (RF), 75ΩBNC (IF)

C - 50ΩBNC (RF), 75ΩBNC (IF)

D - 50ΩBNC (RF), 50ΩBNC (IF)

N - 50ΩN-type (RF), 75ΩBNC (IF)

M - 50ΩN-type (RF), 50ΩBNC (IF)

S- 50ΩSMA (RF), 50ΩBNC (IF)

*+10˚C to +40˚C; Specifications subject to change without notice.

2015-24 Manual_Rev.G Page 4 05/28/13

1.3 Monitor and Control Interface

A) Remote Serial Interface

Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

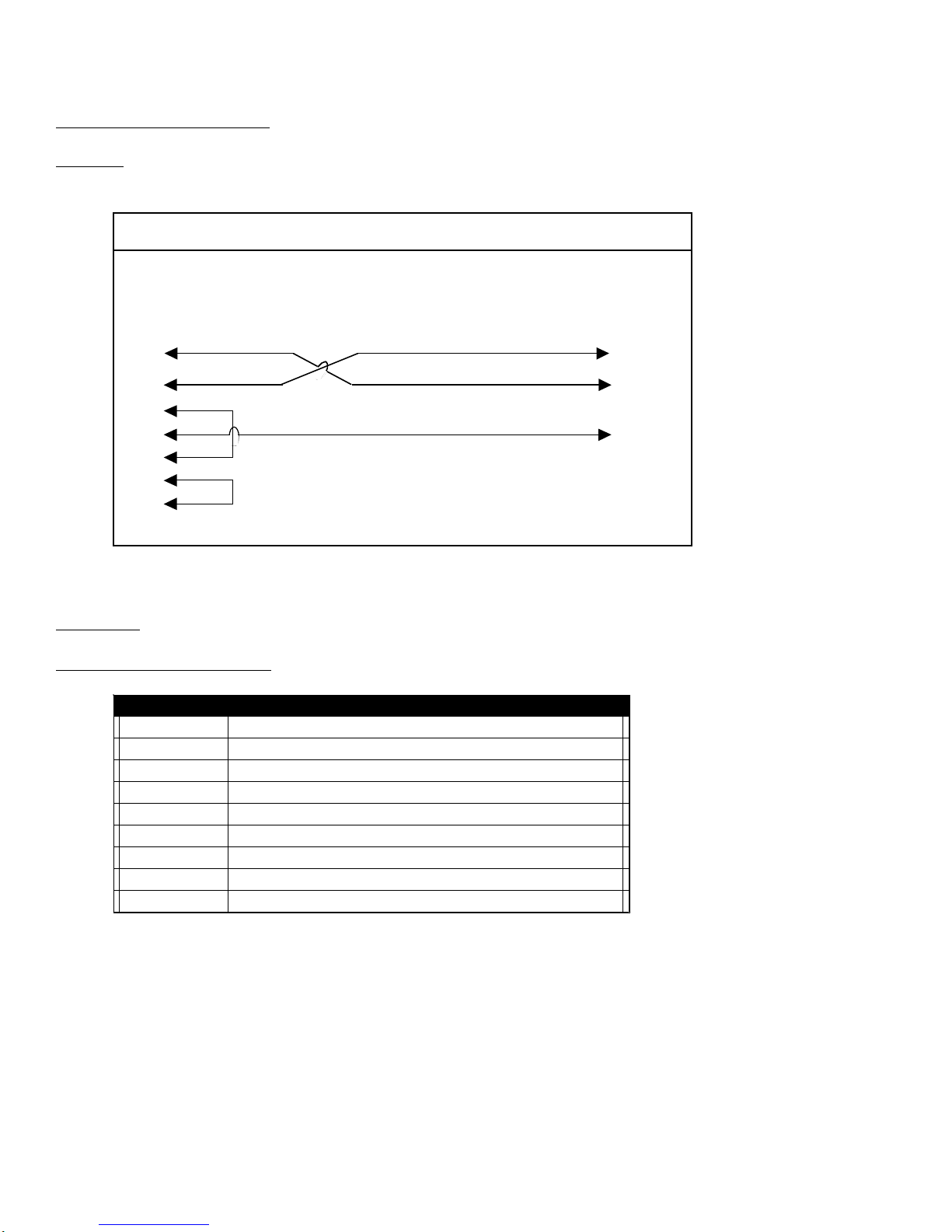

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector - Rear panel, DB-9 female

Pinouts (RS-485/422/232C)

Pin Description

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5 Ground

6 Alarm Relay - Common

7 Alarm Relay - Normally Open

8 Not Used

9 Alarm Relay - Normally Closed

2015-24 Manual_Rev.G Page 5 05/28/13

B) Status Requests

Table 1.2 lists the status requests for the 2015-24 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 2015-24 Status Reequests

Status Requests

Command Syntax * Description

Command Status {aaS1} Returns {aaS1bbbbbbbcccddAM} where:

• bbbbbbb = Tx frequency in kHz (0950000 to 2150000)

4 characters - standard (7 characters - Option-X)

• ccc = Tx gain (-10 to 30 dB)

• dd = Tx input level (10 to 40 => -10 to -40 dBm)

• A = 0 - summary alarm

• M = Tx RF Status (1 = Normal, 0 = Muted)

10 MHz Reference Status {aaS2} Returns {aaS2ER} where:

(option E ONLY)

• E = Ext 10MHz Status (1 = on, 0 = off)

• R = 10MHz RF insertion status (1 = inserted, 0 = NOT inserted)

SSPB Current {aaS4} Returns {aaS4bbb} where:

(option V ONLY)

• bbb = SSPB current, range 000 to 250 (0 to 2500 mA)

2015-24 Manual_Rev.G Page 6 05/28/13

C) Commands

Table 1.3 lists the commands for the 2015-24 and briefly describes them. After a command is sent the

2015-24 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = Address (RS-485 only)

C = 1 character, either C (command) or S (status)

N = 1 character command of status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2015-24 Comman

Commands

Command Syntax* Description

Set Transmitter Frequency {aaC1xxxxxxx} where:

4 characters - standard (7 characters - Option-X)

• Range: 0950000 to 2150000 kHz

Set Input Level {aaCIxx} where:

• xx = 2 characters

• Range: 10 to 40 (-10 to -40 dBm, in 1 dB steps)

Set Transmit Gain {aaC3xxx} where:

• xxx = 3 characters (0 to 30dB), 3 characters (-10 to -1dB)

• Range: -10 to 30 (-10 dB to +30 dB, in 1 dB steps)

Enable 10MHz RF Insertion {aaC5x} where x =:

(option E ONLY)

• 0 to disable 10MHz RF insertion

• 1 to enable 10MHz RF insertion

Enable Tx {aaCAx} where x =:

• 0 to disable (mute) Tx signal

• 1 to enable Tx signal

Enable External 10MHz {aaCEx} where x =:

(option E ONLY)

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2015-24 Manual_Rev.G Page 7 05/28/13

2.0 Installation

2.1 Mechanical

The 2015-24 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch deep

chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly. The 2015-24 can be

secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2015-24 is assembled.

POWER

SUPPLY

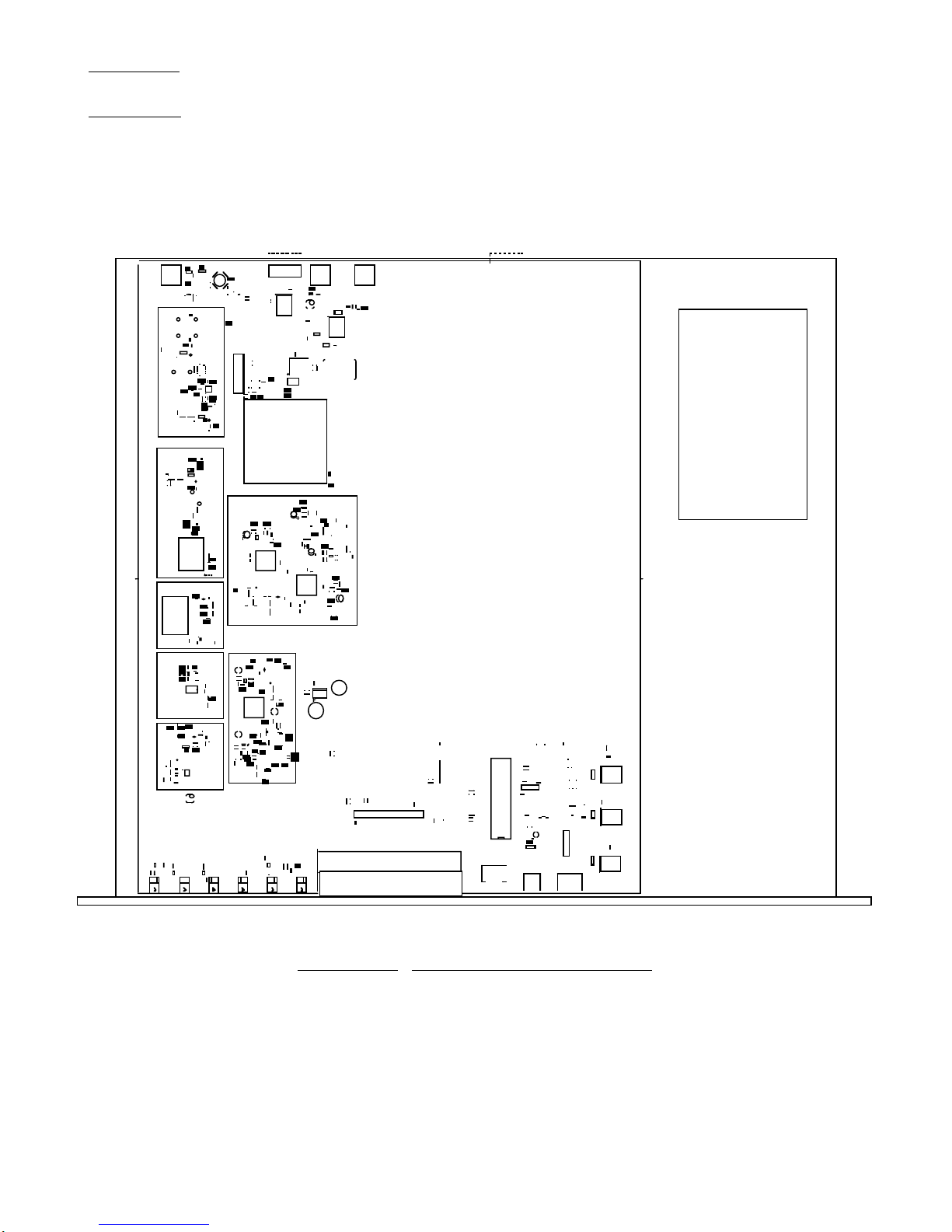

FIGURE 2.1 2015-24 Mechanical Assembly

2015-24 Manual_Rev.G Page 8 05/28/13

2.2 Rear Panel Input / Output Signals

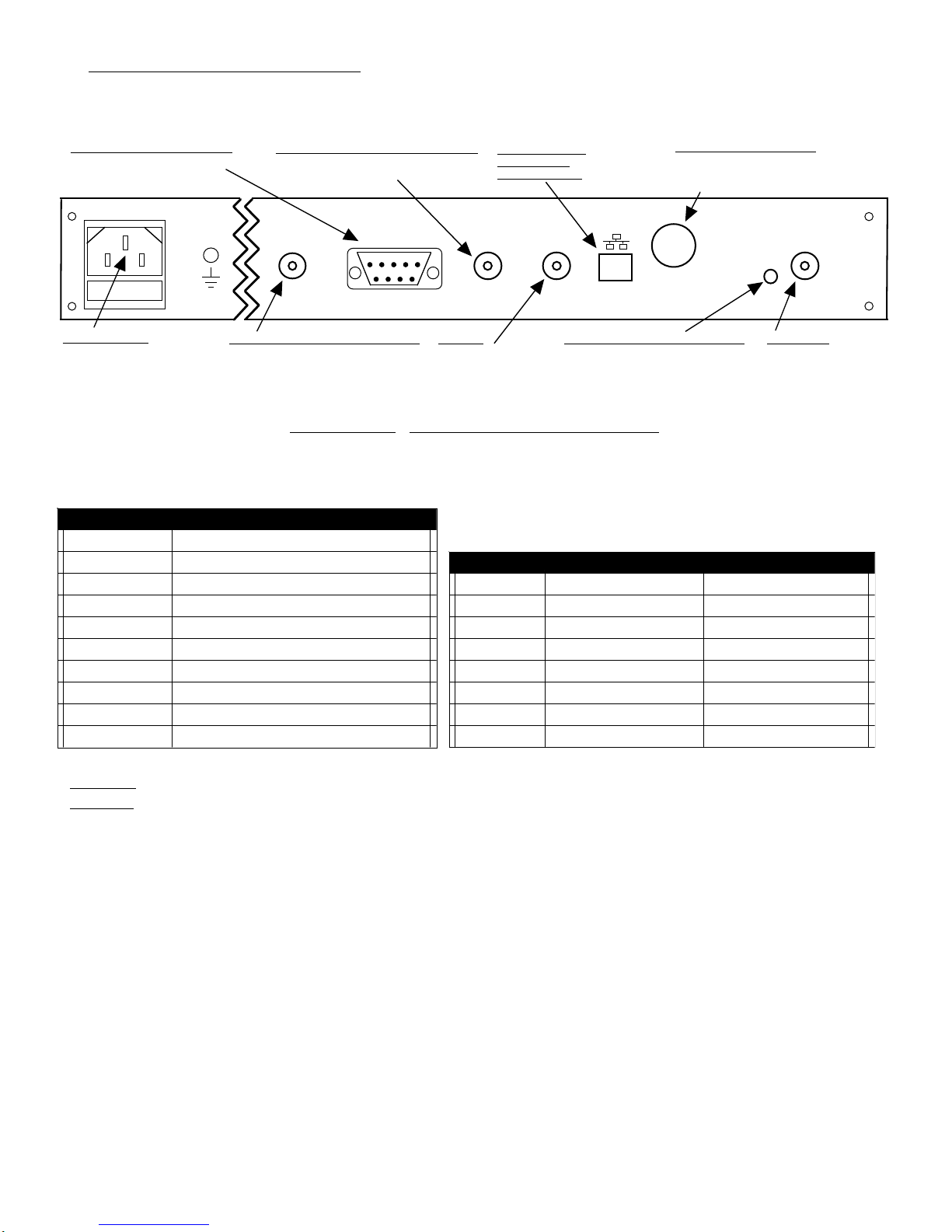

Figure 2.2 shows the input and output connectors on the rear panel.

GND

J18

10 MHZ REF

OUTPUT

AC1 - POWER IN

AC input for switching power

supply. 100-240 ±10% VAC,

47-60 Hz.

J10

AND

MONITOR

CONTROL

J10 - MONITOR AND CONTROL

DB9 female connector. see Table 2.1.

RF OUT

J4 J5J3

10 MHZ IF IN

EXT REF

J3 - 10 MHz EXT REF INPUT (Option -E)

10 MHz external reference input,

+3 ± 3 dBm, 50Ω/75Ω,

BNC female connector.

J5 - RF OUT

950-2150 MHz,

-20 to 0 dBm output

see Table 2.2.

J4 - IF IN

140 MHz,

-40 to -10 dBm input

See Table 2.2.

SSPB

FUSE

F2 - SSPB FUSE (option -V)

2.5A, Fast Blo, 1/4” Fuse;

installing fuse places +24 VDC, 2.5 amp,

max on the RF OUT (J5 center pin).

DS7

VDC on RF

INPUT

DS7 - SSPB ALARM LED (option V)

Lights yellow when +24 VDC SSPB

voltage is present on RF OUT, J5,

center pin.

J18 - 10 MHz REF OUTPUT (option E)

10 MHz reference output. 50Ω/75Ω

BNC female connector.

15 23

J20

J20 - ETHERNET

CONNECTOR

(option W8/W28)

FIGURE 2.2 Rear Panel Inputs and Outputs

Table 2.1 J10 Pinouts

J10 Pinouts (RS485/RS-232C)*

Pin Description

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5 Ground

6 Alarm Relay - Common

7 Alarm Relay - Normally Open

8 Not Used

9 Alarm Relay - Normally Closed

Table 2.2 I

F/RF

2.2 IF/RF Connector Options

Options

Option IF RF

STD BNC, 75ΩType F, 50Ω

BNC, 75ΩBNC, 75Ω

BNC, 75ΩBNC, 50Ω

BNC, 50ΩBNC, 50Ω

BNC, 75ΩType N, 50Ω

BNC, 50ΩType N, 50Ω

BNC, 50ΩSMA, 50Ω

* Interface: DB-9 Female;

Protocol: RS485, RS422, or RS232C (selectable),

9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit

2015-24 Manual_Rev.G Page 9 05/28/13

2.3 Front Panel Controls and Indicators

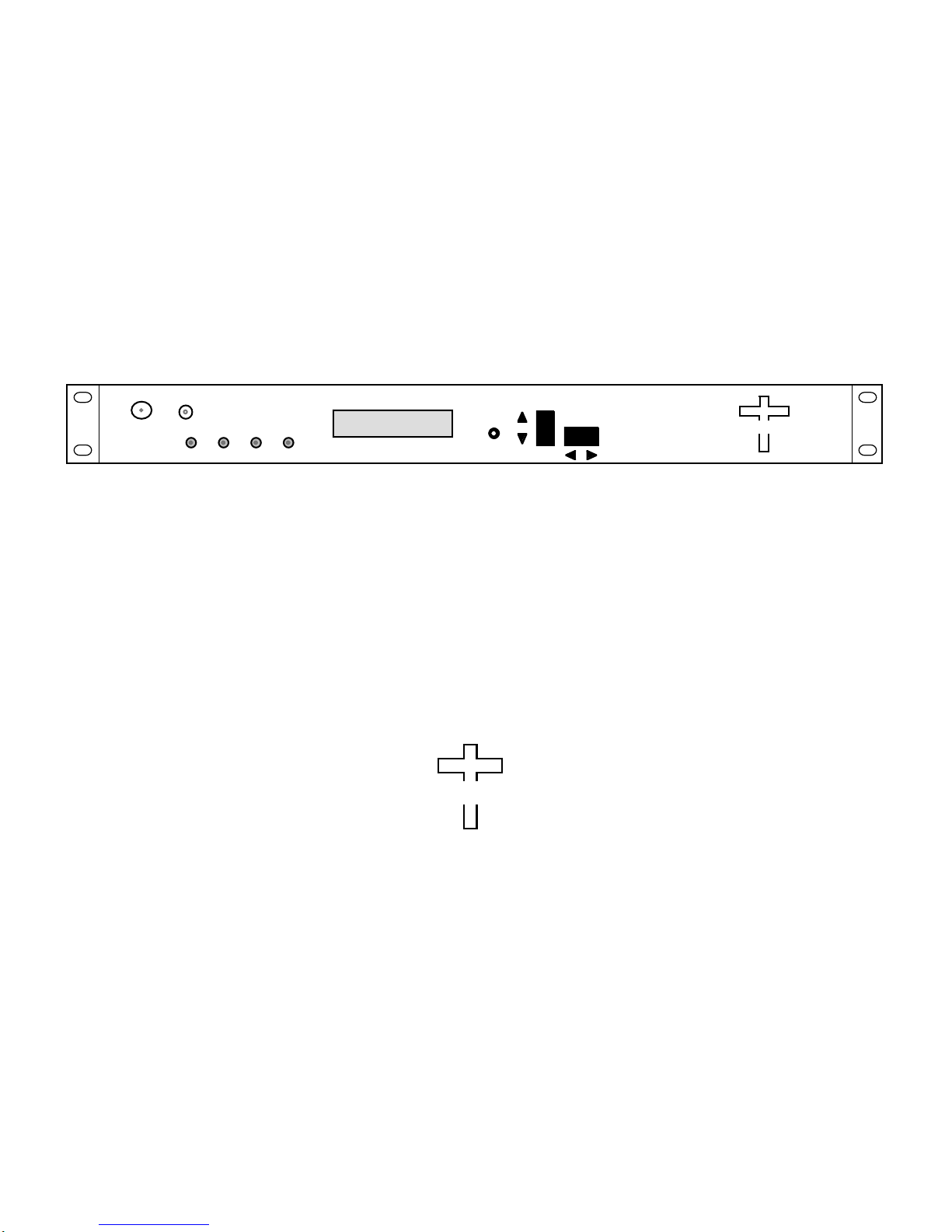

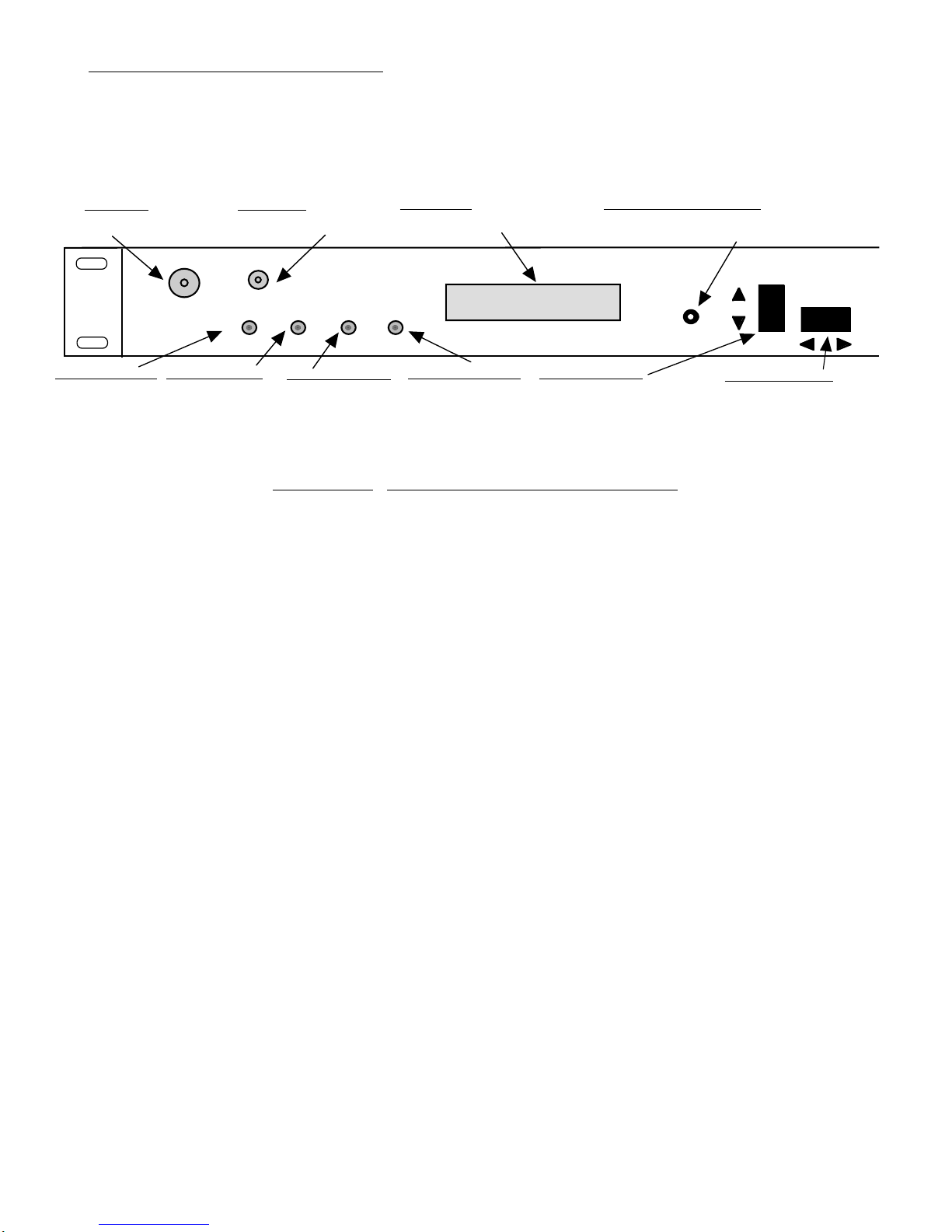

Figure 2.3 shows the front panel controls and indicators.

LCD DISPLAY

Display shows frequency in MHz

and Gain in dB

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED

indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in

the normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode

DS5 - UP MUTE LED

Yellow LED indicates

upconverter mute.

DS2 - UP ALARM LED

Red LED indicates

upconverter alarm.

EXECUTE

F=1450.000

G=+10.0

MUTEREMOTE POWER ALARM

IF MONITOR RF MONITOR

IF MONITOR

IF, 50Ω

BNC Monitor Port

RF MONITOR

RF, 50Ω

SMA Monitor Port

FIGURE 2.3 Front Panel Controls and Indicators

2015-24 Manual_Rev.G Page 10 05/28/13

Indice

Altri manuali Cross Technologies Convertitore multimediale

Cross Technologies

Cross Technologies 3116-22-23 Manuale utente

Cross Technologies

Cross Technologies 2016-75-213 Manuale utente

Cross Technologies

Cross Technologies 2015-26 Manuale utente

Cross Technologies

Cross Technologies 2117-8485 Manuale utente

Cross Technologies

Cross Technologies 2017-0923 370 Series Manuale utente

Cross Technologies

Cross Technologies 2116-140T120 Manuale utente

Cross Technologies

Cross Technologies 3016-1520-1200 Manuale utente

Cross Technologies

Cross Technologies 2016-8085 Manuale utente

Cross Technologies

Cross Technologies 2015-03A Manuale utente

Cross Technologies

Cross Technologies 2416 02I Series Manuale utente

Cross Technologies

Cross Technologies 3116-192 Manuale utente

Cross Technologies

Cross Technologies 2009-2425-1750 Manuale utente

Cross Technologies

Cross Technologies 2415-02 Series Manuale utente

Cross Technologies

Cross Technologies 3016-2124 Manuale utente

Cross Technologies

Cross Technologies 2116-184 Manuale utente

Cross Technologies

Cross Technologies 3115-21-109 Manuale utente

Cross Technologies

Cross Technologies 4116-31-184 Manuale utente

Cross Technologies

Cross Technologies 2017-93 Manuale utente

Cross Technologies

Cross Technologies 3116-7786-2150 Manuale utente

Cross Technologies

Cross Technologies 4115-41-212 Manuale utente

Cross Technologies

Cross Technologies 2415-x02 Manuale utente

Cross Technologies

Cross Technologies 4116-285-2450 Manuale utente

Cross Technologies

Cross Technologies 2017-03 Manuale utente

Cross Technologies

Cross Technologies 2416 25 Series Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
