Cross Technologies 4116-285-2450 Manuale utente

Instruction Manual

Model 4116-285-2450

Block Downconverter

Weather Resistant Unit

February 2021, Rev. 0

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be

reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating

the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 • FAX (770) 886-7964 • Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

••

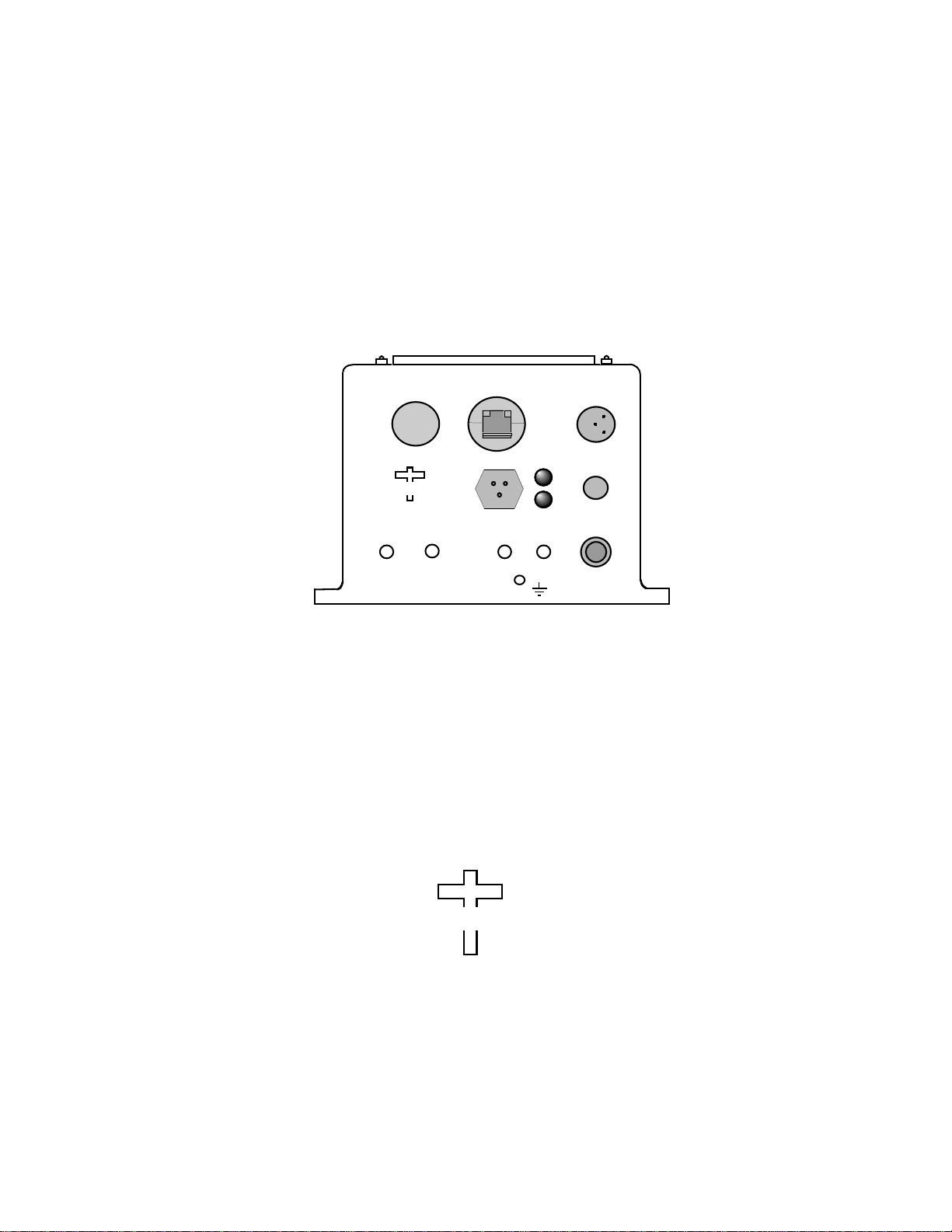

L-BAND OUT

10M IN

STATUS /

CONTROL ETHERNET

POWER

ALARM

J3 J4

10M OUT

FUSE

AC IN

RF INPUT

••

•• J6

CROSS TECHNOLOGIES INC.

....

.....

....

...

MODEL 4116 Downconverter

RF MON

INSTRUCTION MANUAL

MODEL 4116-285-2450 Block Downconverter, Weather Resistant Unit

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Message Protocol 6

2.2 M&C Commands 6

2.3 M&C Queries 8

2.4 Ethernet Interface Installation 9

2.4.1 Methods of Connection 9

2.4.2 Ethernet Configuration 9

2.4.3 Web page M&C 11

2.4.4 SNMP Configuration 11

2.5 Downconverter Outline Drawings 14

2.6 Physical Interface 15

2.7 Installation/Operation 16

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 • FAX (770) 886-7964 • Toll Free 888-900-5588

WEBSITE www.crosstechnologies.com • E-MAIL [email protected]

4116-285-2450 Manual, Rev. 0 Page 2 02/11/21

MODEL 4116-285-2450 Block Downconverter, Weather Resistant

1.0 General

1.1 Equipment Description

The 4116-285-2450 Block Downconverter converts 28.5 - 30.0 GHz to 0.95 - 2.45 GHz. Front panel LEDs

indicate DC Power and PLL Alarms. The RF to L-band gain is +30 ± 3 dB maximum at Fc and is adjustable in

0.5 ± 0.5 dB steps. Connectors are 2.92 mm for RF In, RF Monitor and SMA for the external reference input

and output, and Type N, female for L-band out. Gain and internal 10 MHz frequency are controlled by the

Ethernet M&C. In AUTO, the 10 MHz reference stays in external if the external level is in the +2 to +8 dBm

range. The unit is powered by a 100-400 ±10% VAC power supply, and is mounted in a 8”W X 6”H X 16”D

Weather Resistant* enclosure.

NOTE: *Weather Resistant enclosures are designed to be water resistant for installation in an outdoor enclosure/antenna hut OR mounted

outdoors on an antenna assembly at their specified temperature ranges. They are designed to be located “out in the elements” (water, sleet, snow,

etc.) but they are not designed to be “submerged under water”. If an extended temperature range is required, there is an Extended Temperature

Option (Option W21; -30˚C to +60˚C) available at an additional cost. Contact Cross for quote.

••

L-BAND OUT

10M IN

STATUS /

CONTROL ETHERNET

POWER

ALARM

J3 J4

10M OUT

FUSE

AC IN

RF INPUT

••

•• J6

CROSS TECHNOLOGIES INC.

....

.....

....

...

MODEL 4116 Downconverter

RF MON

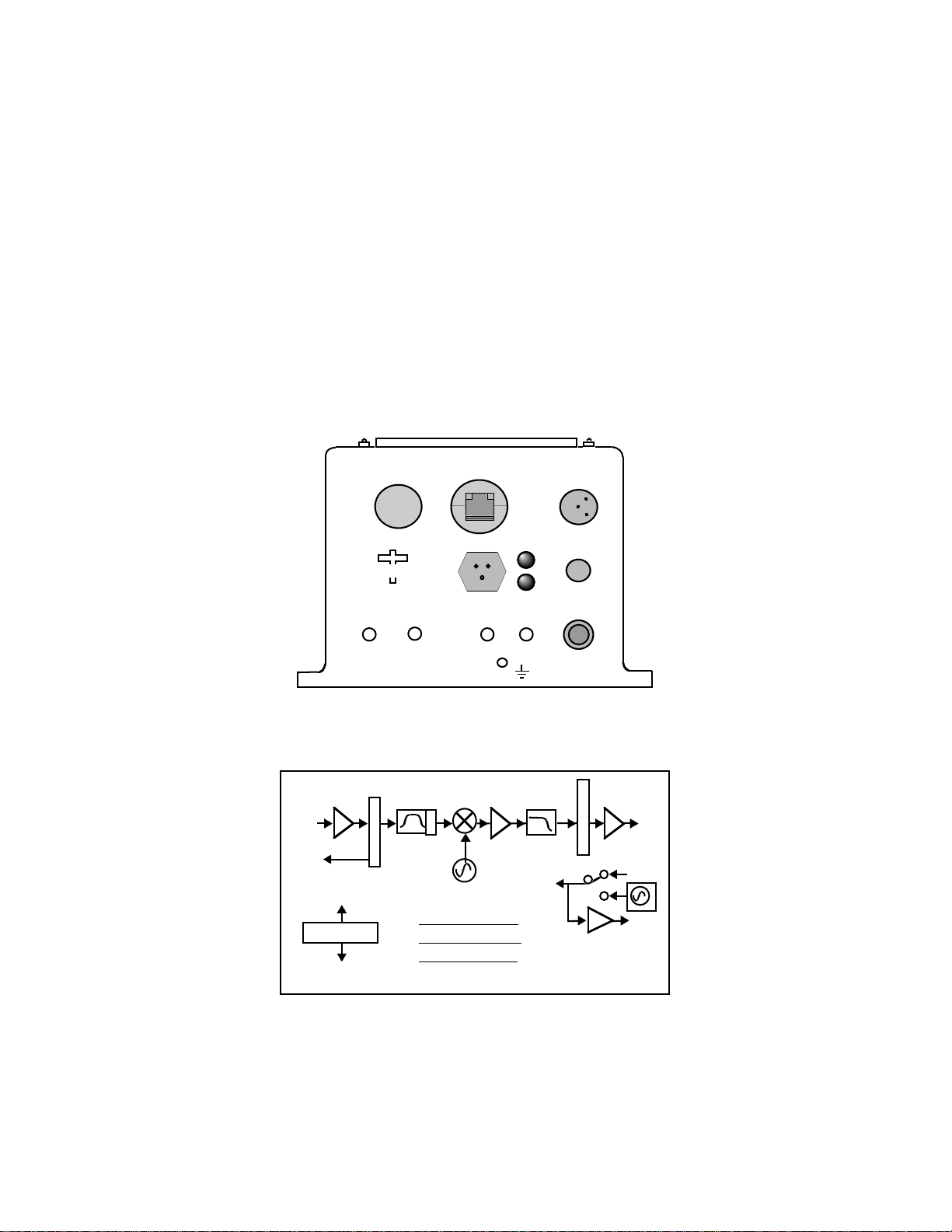

Model 4116-285-2450 Block Downconverter, Front Panel

0.95 -

2.45

GHz

OUT

EXT

10 M

PLLS

28.5 - 30.0

GHz BP

27.55

GHz

SW,PLL,ATT,VCC CONTROL

M&C

CONTROLLER 10 M

MON

2.450 GHz

28.5 -

30.0

GHz

0 dB

MON

4116-285-2450

Downconverter

Block Diagram

(**Shown with W74M KA

0 dB In

ut Monitor

)

- OPTION W74MKA

FIGURE 1. Model 4116-285-2450 Block Downconverter, Block Diagram

4116-285-2450 Manual, Rev. 0 Page 3 02/11/21

1.2 Technical Characteristics

CL1F1101

CL1M1102

AC In

ut Connector**

RJF6G

RJF21B

Ethernet Connector/RJ45

MS3116F14-18P

MS3112E14-18S

Status/Control Connector

Matin

Connector Part #Connector Part #Connectors*

(

Female

50Ω

(

Female

)

50ΩFemale

;

50Ω

2.92

SMA

10MHzL-BandRF In

RF Mon.

Additional Connector Specifications*

4116-285-2450 Manual, Rev. 0 Page 4 02/11/21

±2.0 dB, 0.95 - 2.45 GHz; ±0.5 dB 40 MHz bandwidth out

Frequency Response

Output Characteristics

LO Characteristics

Channel Characteristics

Input Characteristics

TABLE 1.0 4116-285-2450 Block Downconverter Specifications*

± 0.05 ppm max. over temp internal reference; external reference inputFrequency Accuracy 27.55 GHzLO Frequency

Non-invertingFrequency Sense

<-50 dBc for two carriers at 4 MHz spacing centered on Fc,

each at -5 dBm out; at Gmax

Intermodulation

<-55 dBm, 0.5 - 0.95 GHz and 2.45 - 3.0 GHz; at Gmax

Spurious, Out of band

SIG. REL. <-50 dBC, -20 to 0 dBm out; 2XFo <-45 dBc;

SIG INDEP., <-60 dBm; 0.95 - 2.45 GHz out, Gmax

Spurious, Inband

> 60 dB, minimumImage Rejection +30 ±3 dB, (+30 to 0 dB variable in 0.5 ±0.5 dB steps)Gain, max. at Fc

+10 dBm, maximum gain, at Fc, GmaxOutput 1 dB Comp. -20 to 0 dBmOutput Level Range 0.95 to 2.45 GHzFrequency 50Ω/14 dBImpedance/Return Loss

-50 to -30 dBmInput Level Range

20 dB maximum gainNoise Figure, Max. 28.5 to 30.0 GHzFrequency (GHz) 50Ω/14 dBImpedance/Return Loss

100-400 ±10% VAC, 47 - 63 Hz, 25 watts maximumPower

Other

Controls, Indicators

0 dB Input MonitorOption W74MKA

8” Wide X 6” High X 16” Deep Weather Resistant* EnclosureSize

Green LEDPower Red LED, External contact closure

PLL Alarm

Gain and internal 10 MHz frequency via Ethernet M&C or

Status/Control Connector.

Gain, 10M Frequency

+2 to +8 dBm in; Monitor Output = input level ± 1.0 dB, 50 ohms10 MHz Level In/Mon.

-100

MHz

-90-80-70-60

100

kHz10

kHz1

kHz100

MHz

dBC/Hz

Phase

Noise

Fre

q (

)

*All Connectors are Weather Resistant

2.0 Installation

The 4116-285-2450 Block Downconverter consists of a 8”W X 6”H X 16”D Weather Resistant*enclosure.

A switching, ±12, +24, +5 VDC power supply provides power for the internal assemblies.

The 4116-285-2450 can be secured to a mounting plate using the 4 holes on the bottom of the

front and rear panels.

(See Figure 2.5 for mounting dimensions.)

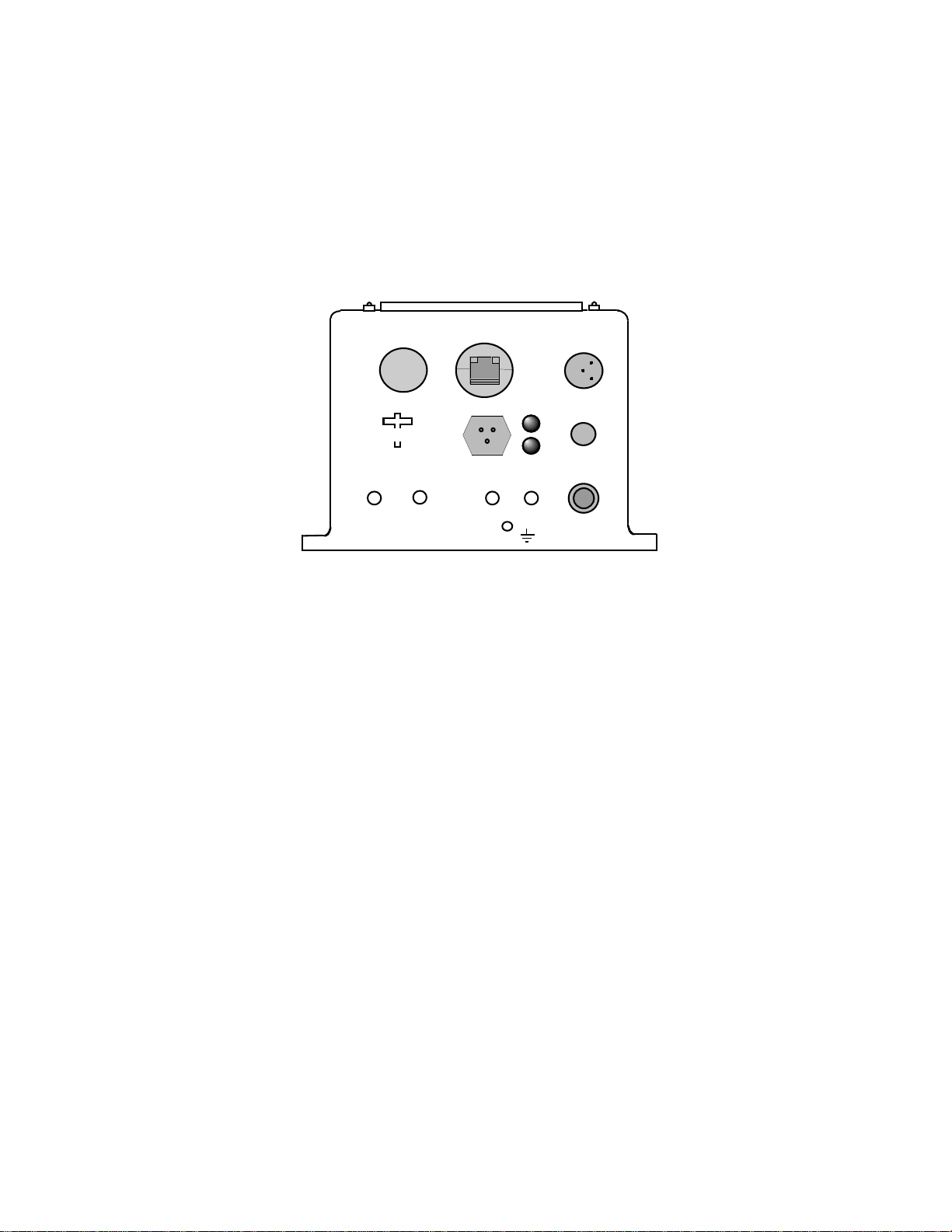

Figure 2. 4116-285-2450 Block Downconverter Front Panel Configuration

4116-285-2450 Manual, Rev. 0 Page 5 02/11/21

••

L-BAND OUT

10M IN

STATUS /

CONTROL ETHERNET

POWER

ALARM

J3 J4

10M OUT

FUSE

AC IN

RF INPUT

••

•• J6

CROSS TECHNOLOGIES INC.

....

.....

....

...

MODEL 4116 Downconverter

RF MON

2.0.1 Connection to AC Input Power

The 4116-285-2450 is furnished with a pre-assembled AC power input cable as described below.

4116-

4116-285-2450 Power Input Connector, FCI Clipper Series

Matin

Mating Connector FCI Clipper Series, CL1F1101, Crimp Pins

and CCL101021

and CL101021 Backshell

Pin Input Connector Pin Description

1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.

2 Neutral

3 Ground

2.1 Message Protocol

The serial format for the RS232/RS422/RS485 port is 9600 baud, 8 data bits, no parity, and 1 stop bit.

All messages consist of ASCII printable characters so standard terminals and terminal emulator programs may

be used to control and monitor the unit. All messages begin with the open bracket character “{”(ASCII 0x7B)

and end with the close bracket character “}” (ASCII 0x7D). Messages consisting of commands to set or change

operating parameters and modes of the unit begin with “C” (ascii 0x43) followed by a command specific

character. Messages consisting of queries to report operating parameters and modes begin with “S”

(ASCII 0x53) followed by a parameter specific character.

2.2 M&C Commands

The following tables summarize the commands and status queries applicable to the

4116-285-2450 frequency converter.

*PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected.

4116-285-2450 Manual, Rev. 0 Page 6 02/11/21

Table 2.0 - Model 4116-285-2450 Block Downconverter M&C Commands

select

auto

reference

x = 2 to select external reference

x = 1 to select internal reference

where:{aaCEx}Set 10 MHz reference mode

Range: +2000 to -2000

x = 1 to select RS422

xxxxx = 5 characters

where:{aaCOxxxxx}Set Int. 10 MHz reference offset

Range: 00 to 31

xx = 2 characters

where:{aaCRxx}Set RS485 address

x = 2 to select RS485

x = 0 to select RS232

where:

{aaCIx}

Set Serial Interface

Range: 000 to 300 (00.0 to 30.0 in 0.5 dB steps)

xxx = 3 characters

where:

{

aaCGxxx

}

Set

Gain

DescriptionSyntaxCommand

Table 2.0: Model 4116-285-2450 M&C Commands

4116-285-2450 Manual, Rev. 0 Page 7 02/11/21

2.3 M&C Queries

Table 2.1 - Model 4116-285-2450 Block Downconverter M&C Queries

yyyy = unit firmware rev.

xxxxxxxx = unit model number

returns

{

aaSVxxxxxxxx

yyyy}

where:

{aaSV}

Model

and

firmware

revision

Range (-99 to +99) degrees Celsius

xxx = 3 characters

Returns {aaSTxxx} where:{aaST}

Internal Temperature

y = 0 if unit is using internal 10 MHz ref,

unit

usin

external

reference

x = 0 if no summary alarm, x = 1 if summary alarm

Returns {aaSAxy} where:

{

aaSA

}

Unit

Status

Ran

-2000

2000

xxxxx

characters

Returns {aaSOxxxxx} where:

{

aaSO

}

Int.

MHz

reference

offset

RS422

selected

Example: {aaSG245} indicates the current

ain

settin

24.5

Range: 00 to 31

RS485

selected

xx = 2 characters

Returns {aaSAxx} where:

{

aaSR

}

RS485 address

x = 0 if RS232 is selected

Returns {aaSIx} where:{aaSI}

Serial Interface

Range: 300 to 000 (+30 to 0 dB)

xxx = 3 characters

Returns {aaSGxxx} where:

{

aaSG

}

Gain

DescriptionSyntaxQueries

Table 2.1: Model 4116-285-2450 M&C Queries

4116-285-2450 Manual, Rev. 0 Page 8 02/11/21

2.4 ETHERNET Interface Installation and Operation

The 4116-285-2450 Block Downconverter is equipped with a 10/100 Base-T compatible Ethernet interface for

control and monitoring of its operating parameters. An HTML script interface allows the user to monitor and

control the converter using a standard web browser. SNMP (Simple Network Management Protocol) is also

supported. Contact Cross Technologies for the SNMP MIB file.

2.4.1 Methods of Connection

Directly Connected to a PC:

For control from a local PC, attach the 4116-285-2450’s Ethernet port to the Ethernet network connector on the

PC using a crossover RJ-45 cable.

LAN Connection:

For LAN connections, attach the 4116-285-2450 Ethernet port to the LAN using a normal RJ-45 cable.

Use any PC on the LAN to connect to the 4116-285-2450.

2.4.2 Ethernet Configuration

Each 4116-285-2450 must be configured with an appropriate IP address, Netmask, and Gateway assigned by

your network manager. The 4116-285-2450 is set at the factory with a static address of 192.168.123.2. The

device server in the 4116-285-2450 has a built in HTTP based configuration manager that is used to configure

network settings. To access the configuration manager, open a web browser and enter the IP address of the

4116-285-2450 in the browser's address field. The window shown in Figure 2-A will appear. As delivered,

there is no password set. Choose your user name and password here or leave those fields blank and click OK to

proceed to the configuration manager web page.

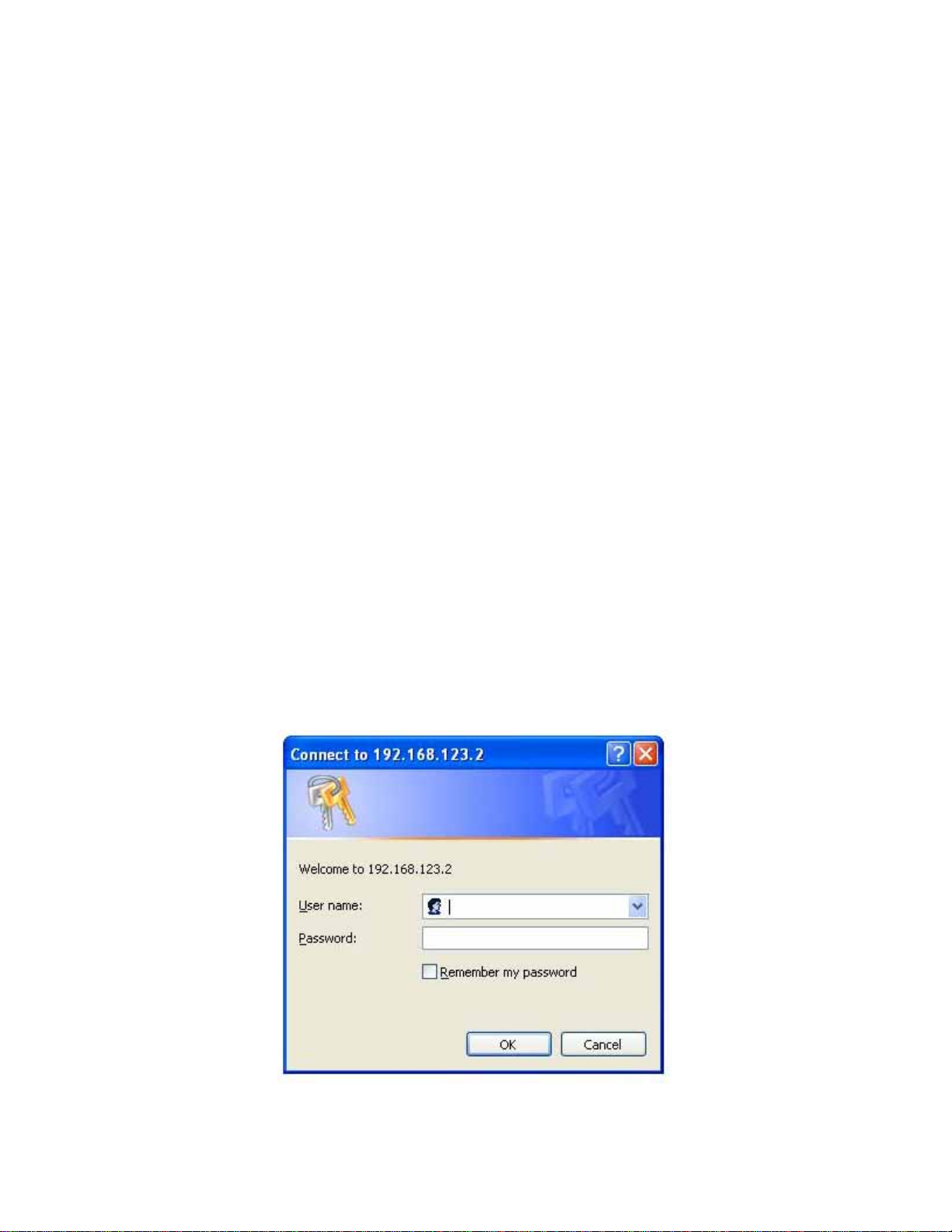

Figure 2-A: Password Screen

4116-285-2450 Manual, Rev. 0 Page 9 02/11/21

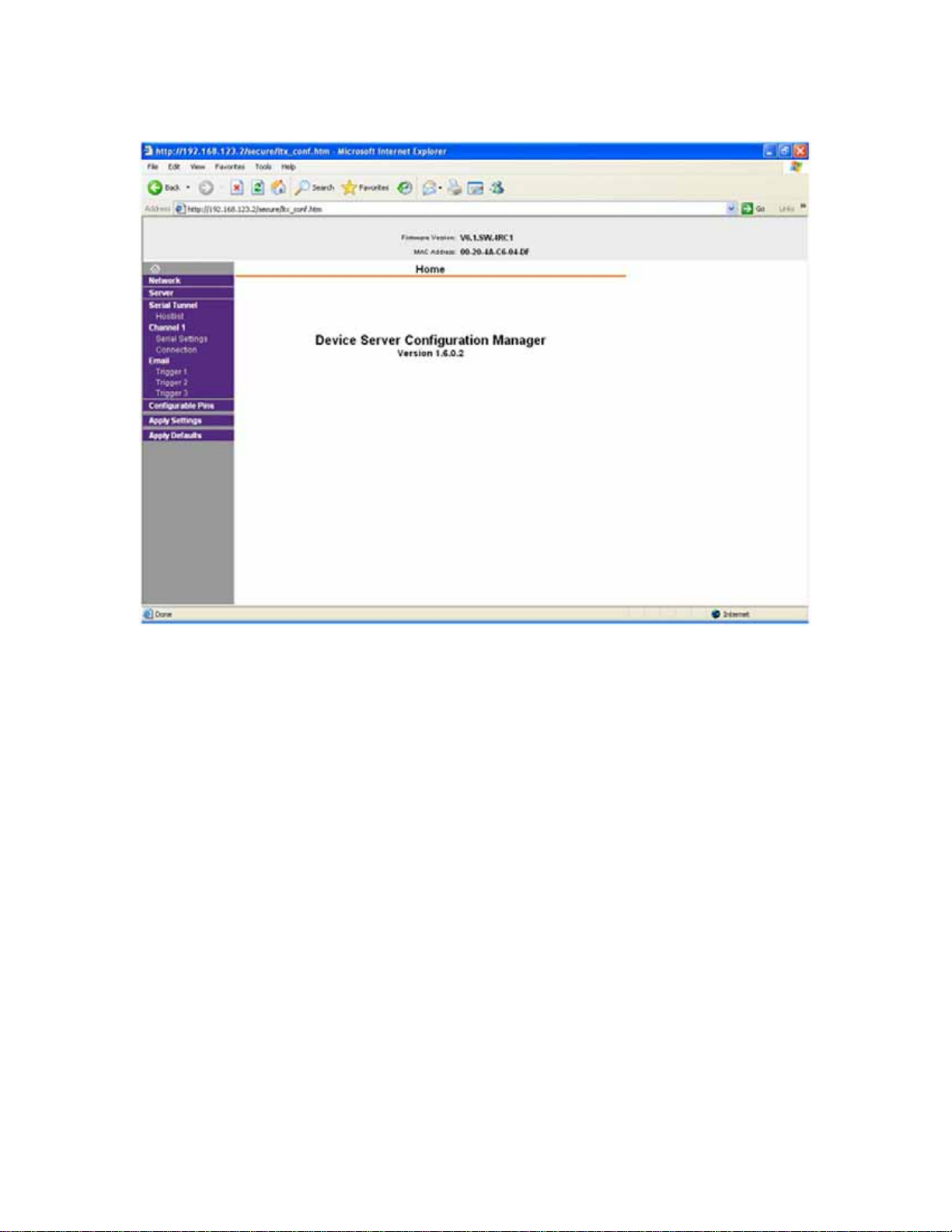

Figure 2-B: Configuration Manager Screen

In the left frame of the configuration manager, click on Network to display the Network Settings screen.

Enter the IP address, Subnet mask, and Gateway address with delimiter dots (example: 192.168.192.47).

Click on apply settings to apply the new settings in the device server.

4116-285-2450 Manual, Rev. 0 Page 10 02/11/21

Indice

Altri manuali Cross Technologies Convertitore multimediale

Cross Technologies

Cross Technologies 2416 02I Series Manuale utente

Cross Technologies

Cross Technologies 2116-21-1014 Manuale utente

Cross Technologies

Cross Technologies 3115-21-109 Manuale utente

Cross Technologies

Cross Technologies 4115-300 Manuale utente

Cross Technologies

Cross Technologies 2015-24 Manuale utente

Cross Technologies

Cross Technologies 2016-25-01 Manuale utente

Cross Technologies

Cross Technologies 2016-26 Manuale utente

Cross Technologies

Cross Technologies 2117-9395 Manuale utente

Cross Technologies

Cross Technologies 2415-02 Series Manuale utente

Cross Technologies

Cross Technologies 2017-03 Manuale utente

Cross Technologies

Cross Technologies 2016-02-1200 Manuale utente

Cross Technologies

Cross Technologies 2099-10 Manuale utente

Cross Technologies

Cross Technologies 2116-116 Manuale utente

Cross Technologies

Cross Technologies 2016-57 Manuale utente

Cross Technologies

Cross Technologies 4117-14 Manuale utente

Cross Technologies

Cross Technologies 3116-7786-2150 Manuale utente

Cross Technologies

Cross Technologies 2017-93 Manuale utente

Cross Technologies

Cross Technologies 2015-7075 Manuale utente

Cross Technologies

Cross Technologies 3116-192 Manuale utente

Cross Technologies

Cross Technologies 2115-122 Manuale utente

Cross Technologies

Cross Technologies 2009-2425-1750 Manuale utente

Cross Technologies

Cross Technologies 2116-140T120 Manuale utente

Cross Technologies

Cross Technologies 3117-3338 720 Series Manuale utente

Cross Technologies

Cross Technologies 2016-25 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
