Instruction Manual

Model 2015-26

Upconverter

December 2010 Rev. 0

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=2475 G=+10.0

MUTEREMOTE POWER ALARM

UPCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2015-26 Upconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Environmental Use Information 8

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear Panel Inputs & Outputs 10

2.3 Front Panel Controls & Indicators 11

2.4 Operation 12

2.5 Menu Settings 14

2.6 Availabe Options 18

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies,

Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies,

Inc. shall not be liable for any special, indirect, or consequential damages. This warranty

does not cover parts or equipment which have been subject to misuse, negligence, or

accident by the customer during use. All shipping costs for warranty repairs will be

prepaid by the customer. There are not other warranties, express or implied, except as

stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2015-26 Manual, Rev. 0 Page 2 12/09/10

MODEL 2015-26 Upconverter

1.0 General

1.1 Equipment Description

The 2015-26 Upconverter converts 140 ± 36 MHz to 2000 to 2500 MHz in 1.0 MHz steps (0.5 MHz steps

optional) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide

frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters.

Front panel LEDs provide indication of DC power (green), PLL alarm (red), Remote operation (yellow) or the

TX carrier is Muted (yellow). Variable attenuators for the IF input and output provide a gain range of -10 to +30

dB as adjusted by the front panel multi-function pushbutton switches. Remote operation allows selection of

frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display.

Connectors are BNC female for IF input, external reference input, and RF output. The 2015-26 is powered by a

100-240 ± 10% VAC power supply, and is housed in a 1 3/4” X 19” X 16” rack mount chassis.

EXECUTE

MODEL 2015

CROSS TECHNOLOGIES INC.

F=2475 G=+10.0

MUTEREMOTE POWER ALARM

UPCONVERTER

FRONT PANEL

RF OUT

GND

J4 J5J3J18

10 MHZ REF 10 MHZ IF IN

EXT REF

OUTPUT INPUT

J10

AND

MONITOR

CONTROL

15 234 6789

REAR PANEL

FIGURE 1.1 Model 2015-26 Front and Rear Panels

FIGURE 1.2 Model 2015-26 Upconverter Block Diagram

2015-26 Manual, Rev. 0 Page 3 12/09/10

2.0

2.5

GHz

OUT

140

MHz

1.0 to 2.8 GHz

CONTROLLER F=2475 G=+10.0

1750 MHz

1820

MHz

3.8

4.3

GHz

var

atten

EXT

10MHz*

*OPTIONAL

var

atten

INT

10MHz

1.2 Technical Characteristics

TABLE 1.0 2015-26 Upconverter Specifications*

Input Characteristics

Impedance/Return Loss 75 /18 dB

Frequency 140 ± 36 MHZ

Input Level -40 to -10 dBm

Output Characteristics

Impedance/Return Loss 50 /12 dB

Frequency 2000 to 2500 MHz

Output level 0 to -20 dBm

Output 1 dB compression +5 dBm

Channel Characteristics

Gain range (adjustable) -10 to +30.0 dB

Spurious Response <-45 dBC

Frequency Response ± 1.5 dB, 2000 - 2500 MHz; ± 1.0 dB, 36 MHz BW

Group Delay, max .0035 ns/MHz2parabolic; 0.025 ns/MHz linear; 1 ns ripple

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ± 1.0 ppm internal ref (± 0.01 ppm, option H)

Frequency Step 1.0 MHz (0.5 MHz, option 5; 125kHz, option X)

10 MHz Level (In/Out) +3 dBm ± 3 dB (option E)

-105-95-80-70-70

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

Controls, Indicators

Frequency Selection direct readout LCD; pushbutton switches or remote selection

Gain Selection direct readout LCD; pushbutton switches or remote selection

Power Green LED

Alarm Red LED

Remote Yellow LED; RS232C, 9600 baud (RS485, option Q)

Mute Yellow LED

Other RF Connector BNC (female), 50

IF Connector BNC (female), 75

Ext 10 MHz BNC (female), 50/75(option E)

Connector, Alarm, Remote DB9 - NO or NC contact closure on Alarm

Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep

Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max

Options

Available Options See SECTION 2.6, page 18

Connector options See TABLE 2.2, page 10

*+10˚C to +40˚C; Specifications subject to change without notice.

2015-26 Manual, Rev. 0 Page 4 12/09/10

1.3 Monitor and Control Interface

A) Remote Serial Interface

Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

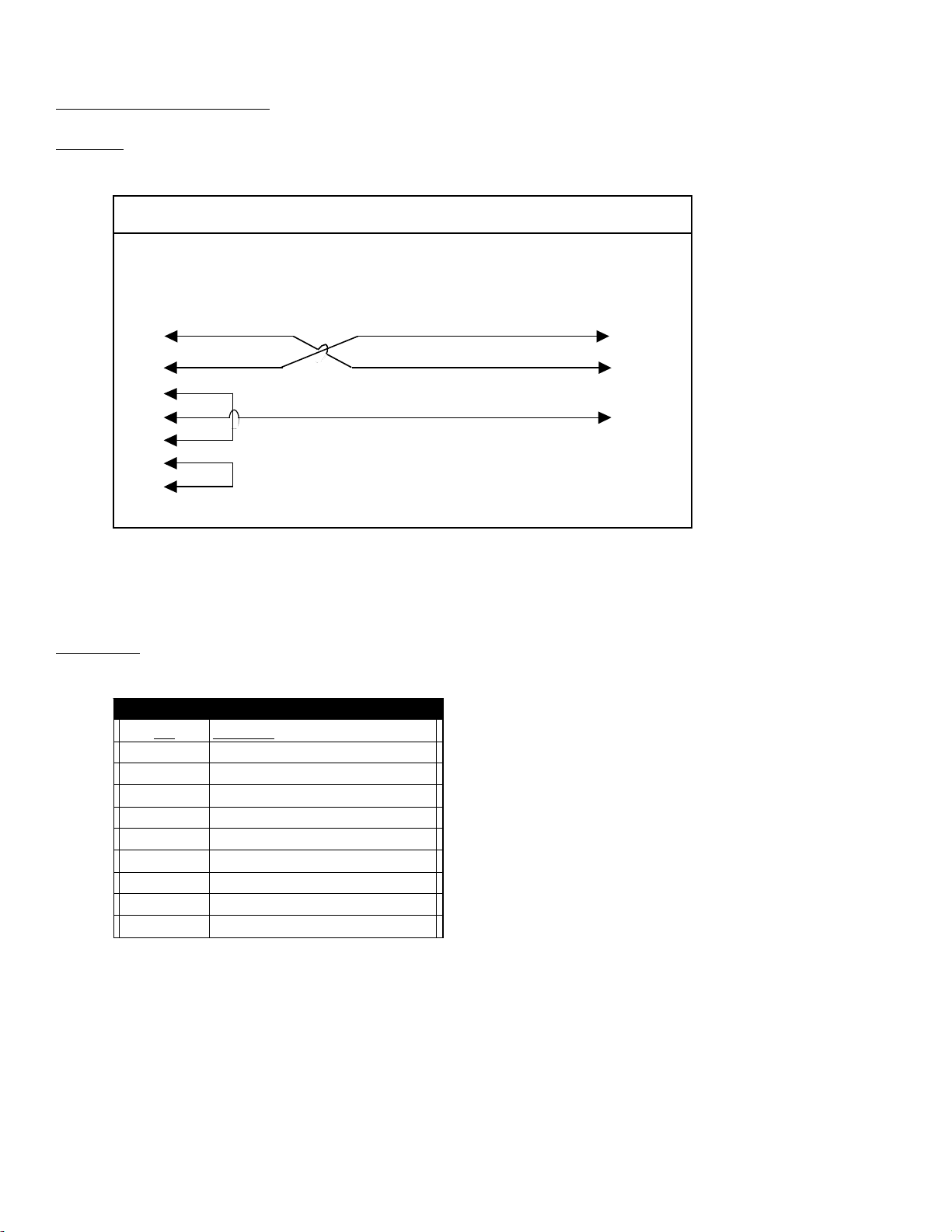

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 male.

J10 Pinouts

Pinouts (RS-232C/422/485)

Pin Function

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

2015-26 Manual, Rev. 0 Page 5 12/09/10

B) Status Requests - Table 1.1 lists the status requests for the 2015-26 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.1 2015-26 Status R

equests

Requests

Command Syntax* Description

Command Status {aaS1} Returns {S1bbbbcccccddAM} where:

• bbbb = Tx frequency (MHz)

4 characters - standard (7 characters - Option-X)

• Standard 1 dB step format: ccc = Tx gain (-10 to +30)

• Z OPTION (0.1 dB steps): cccc = Tx gain (-100 to +300)

• dd = Tx input level (10 to 40 => -10 to -40)

• A = 0 if no alarm, 1 if summary alarm)

• M = Tx RF Status (1 = Normal, 0 = Muted)

Command Status {aaS2} Returns {S2E} where:

• E = Ext 10MHz Status (1 = on, 0 = off)

2015-26 Manual, Rev. 0 Page 6 12/09/10

C) Commands Table 1.2 lists the commands for the 2015-26 and briefly describes them. After a command is

sent the 2015-26 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option Q)

C = 1 character, either C (command) or S (status)

N = 1-digit command or status number, 1 through 9

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2015-26 Commannds

Commands

Command Syntax* Description

Set Transmitter Frequency {aaC1xxxx} where:

• xxxx = 4 characters standard (7 characters -Option-X)

• Range: 2000 to 2500 MHz

Set Input Level {aaCIxx} where:

• xx = 2 characters

• Range: 10 to 40 (-10 to -40 dBm, in 1 dB steps)

Set Transmit Gain {aaC3xxxx} where:

• Standard 1 dB step format:

- xxx = 2 char (0 to 30dB), or 3 char (-10 to -01dB) if neg.

- Range: -100 to 300 (-10.0 dB to +30.0 dB, in 0.1 dB steps)

• Z OPTION (0.1 dB steps):

- xxxx = 3 char (0 to 300dB), or 4 char (-100 to -001dB) if neg.

- Range: -100 to 300 (-10.0 dB to +30.0 dB, in 0.1 dB steps)

Enable Tx {aaCAx} where x =:

• 0 to disable Tx signal

• 1 to enable Tx signal

Enable External 10MHz {aaCEx} where x =:

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2015-26 Manual, Rev. 0 Page 7 12/09/10

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2015-26 Manual, Rev. 0 Page 8 12/09/10

2.0 Installation

2.1 Mechanical - The 2015-26 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16

inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2015-

26 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2015-26 is

assembled.

POWER

SUPPLY

FIGURE 2.1 2015-26 Mechanical Assembly

2015-26 Manual, Rev. 0 Page 9 12/09/10

2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.

GND

J18

10 MHZ REF

OUTPUT

J10

AND

MONITOR

CONTROL

J10 - MONITOR AND CONTROL

DB9 female connector. See Table 2.1.

RF OUT

J4 J5J3

10 MHZ IF IN

EXT REF

J3 - 10 MHz EXT REF INPUT (Option -E)

10 MHz external reference input, 0 ± 3 dBm,

75 ohms, BNC female connector.

J5 - RF OUT

2000-2500 MHz output, -20 to 0 dBm out,

See Table 2.2.

J4 - IF IN

140 MHz input,

-10 to -40 dBm in,

See Table 2.2.

INPUT

J18 - 10 MHz REF OUTPUT (option -E)

10 MHz reference output.

75BNC female connector.

15 234

678

FIGURE 2.2 2015-26 Rear Panel I/Os

TABLE 2.1 JJ10

J10 Pinouts (RS-232C/422/485*)

Pin Function

1Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

*Remote Serial Interface

Interface: DB-9 Male

Protocol: RS-232C (RS-232C/422/485 option Q), 9600 baud rate, no parity, 8 data bits, 1 start

bit, 1 stop bit.

TABLE 2.2

IF/RF

IF/RF Connector Optionns

Options

Option IF RF

STD BNC, 75BNC, 50

-B BNC, 75BNC, 75

-D BNC, 50BNC, 50

-N BNC, 75Type N, 50

-M BNC, 50Type N, 50

2015-26 Manual, Rev. 0 Page 10 12/09/10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cross Technologies Convertitore multimediale

Cross Technologies

Cross Technologies 2116-21-1014 Manuale utente

Cross Technologies

Cross Technologies 2016-12 Manuale utente

Cross Technologies

Cross Technologies 2017-14 Manuale utente

Cross Technologies

Cross Technologies 2016-25-01 Manuale utente

Cross Technologies

Cross Technologies 3016-1520-1200 Manuale utente

Cross Technologies

Cross Technologies 2009-2425-1750 Manuale utente

Cross Technologies

Cross Technologies 2116-116 Manuale utente

Cross Technologies

Cross Technologies 3116-7786-2150 Manuale utente

Cross Technologies

Cross Technologies 2116-182193 Manuale utente

Cross Technologies

Cross Technologies 2117 Manuale utente

Cross Technologies

Cross Technologies 2016-75-213 Manuale utente

Cross Technologies

Cross Technologies 4116-285-2450 Manuale utente

Cross Technologies

Cross Technologies 2016-02-1200 Manuale utente

Cross Technologies

Cross Technologies 2015-05 Manuale utente

Cross Technologies

Cross Technologies 2117-7172 Manuale utente

Cross Technologies

Cross Technologies 2416 02I Series Manuale utente

Cross Technologies

Cross Technologies 2017-93 Manuale utente

Cross Technologies

Cross Technologies 2415 0925 Series Manuale utente

Cross Technologies

Cross Technologies 2005 Manuale utente

Cross Technologies

Cross Technologies 2017-03A Manuale utente

Cross Technologies

Cross Technologies 4116-31-2831 Manuale utente

Cross Technologies

Cross Technologies 2016-05A Manuale utente

Cross Technologies

Cross Technologies 4115-41-212 Manuale utente

Cross Technologies

Cross Technologies 2016-95 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
