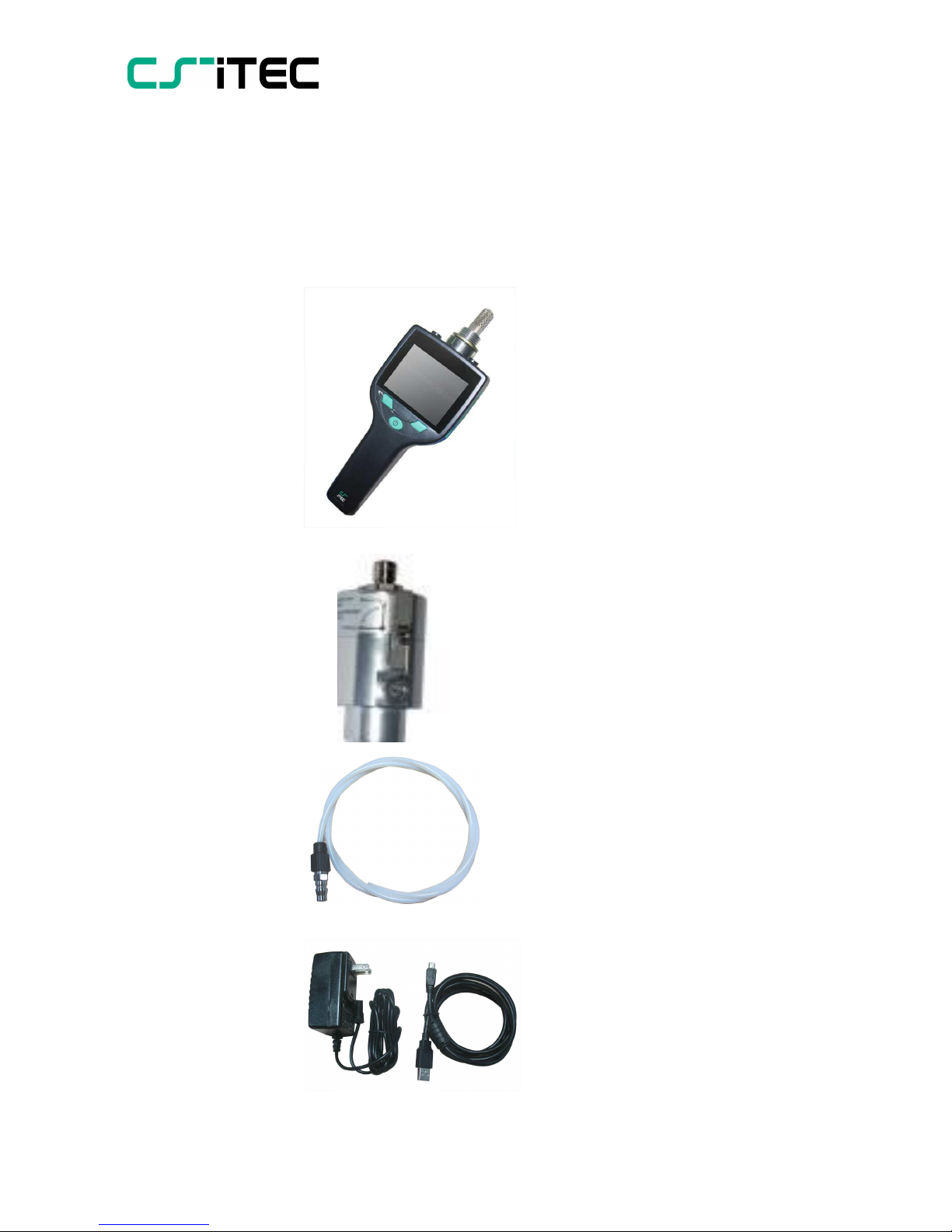

S 505
Printer charger and if requi-
red a suitable country
mains adapter
3. Getting ready for measurement
This chapter describes how to connect S 505 to the process
for measurement.
For the measurement we
should first define the proper
sensor module to be used.
This depends on the ex-
pected measurement value.
As a rule of thumb use the
sensor module A for ex-
pected dew points below –
50 and sensor module B for
dew points above –50.
To change the sensor mod-
ules just open the 2 screws
at the back of the instrument,
then you can pull the sensor
module out. It‘s recommend-
ed to place the protection
cap onto the unused sensor
mod-ule for storage.
