VoIP Ceiling Speaker with
Allworx 6x Server Setup Guide
CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193
www.CyberData.net
Server Setup Guide 930249A CyberData Corporation
2
1.0 Setup Diagram

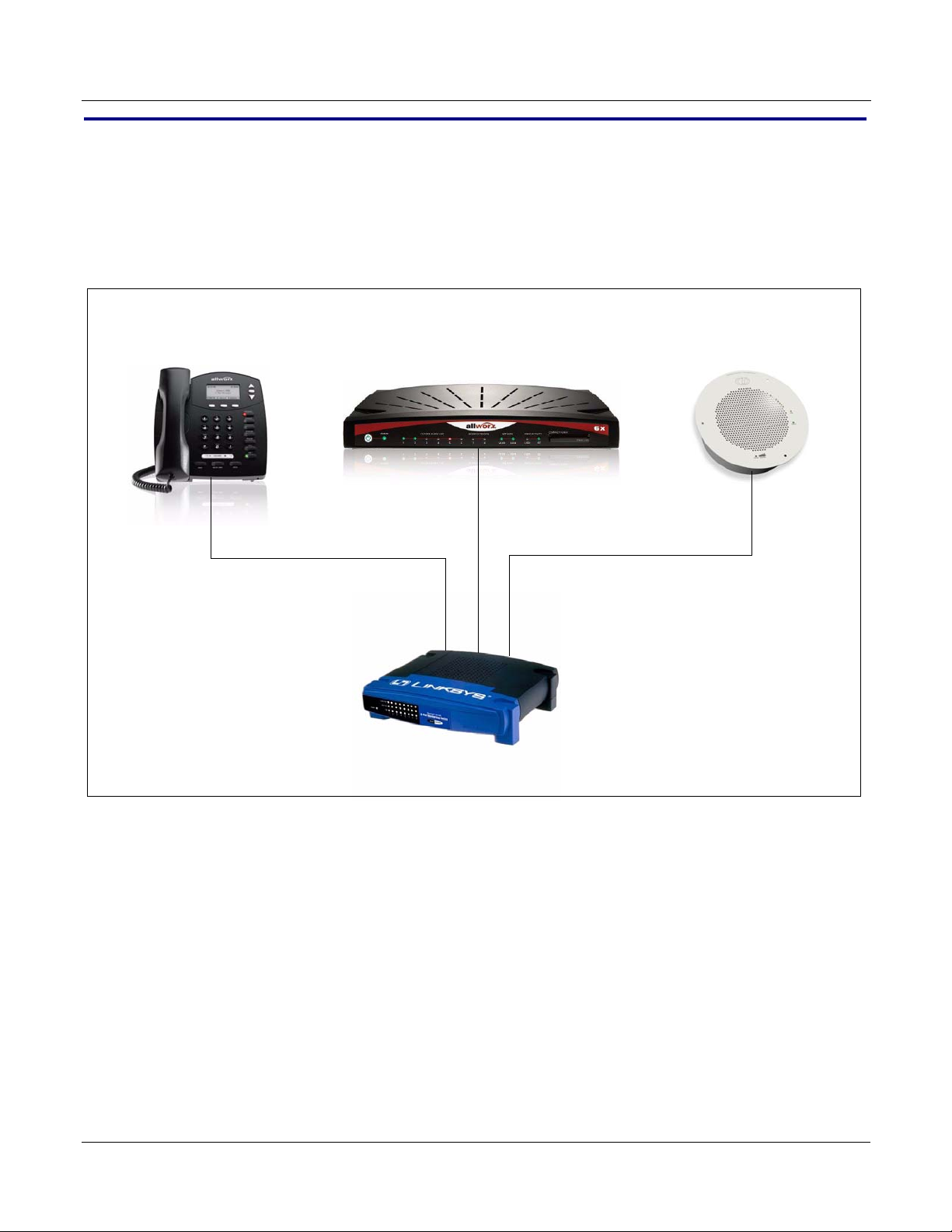

Figure 1-1 is a setup diagram for a single VoIP speaker configuration. In this configuration, the
ceiling speaker acts as a standalone SIP telephony device.
Figure 1-1. Setup Diagram
Allworx 9112 IP Phone
192.168.2.xx CyberData VoIP Ceiling Speaker
192.168.2.xx
Allworx 6x System
192.168.2.254 (default)
Linksys EtherFast 10/100 8-port Workgroup Hub
Server Setup Guide 930249A CyberData Corporation
3
2.0 Host PC Environment
3.0 Test Setup Equipment
Table 2-1. Host PC Environment Details
Description
Hardware Type Allworx 6x
Hardware Version Configuration 04
Software Type
Software Version 6.8.3.1
Table 3-1. Test Setup Equipment
Equipment Model Version
Allworx VoIP Phone 9112 1.8.2.1
Notes:
Allworx System 6x 6.8.3.1
Notes:
CyberData VoIP Ceiling Speaker 010844D 4.01
Notes:
Linksys EtherFast 10/100 8-port Workgroup Hub EFAH08W 2.0
Notes:
Notes:
Notes:
Notes:
Notes:
Notes:
Server Setup Guide 930249A CyberData Corporation
4
4.0 Setup Procedure
To set up the Allworx 6x SIP Server for the CyberData VoIP Ceiling Speaker,
1. Go to the Login page. By default, the login can be found at the following web address:
192.168.2.254:8080
2. On the Login page, enter the password and click on Login to go to the Home page. The default
password is admin.

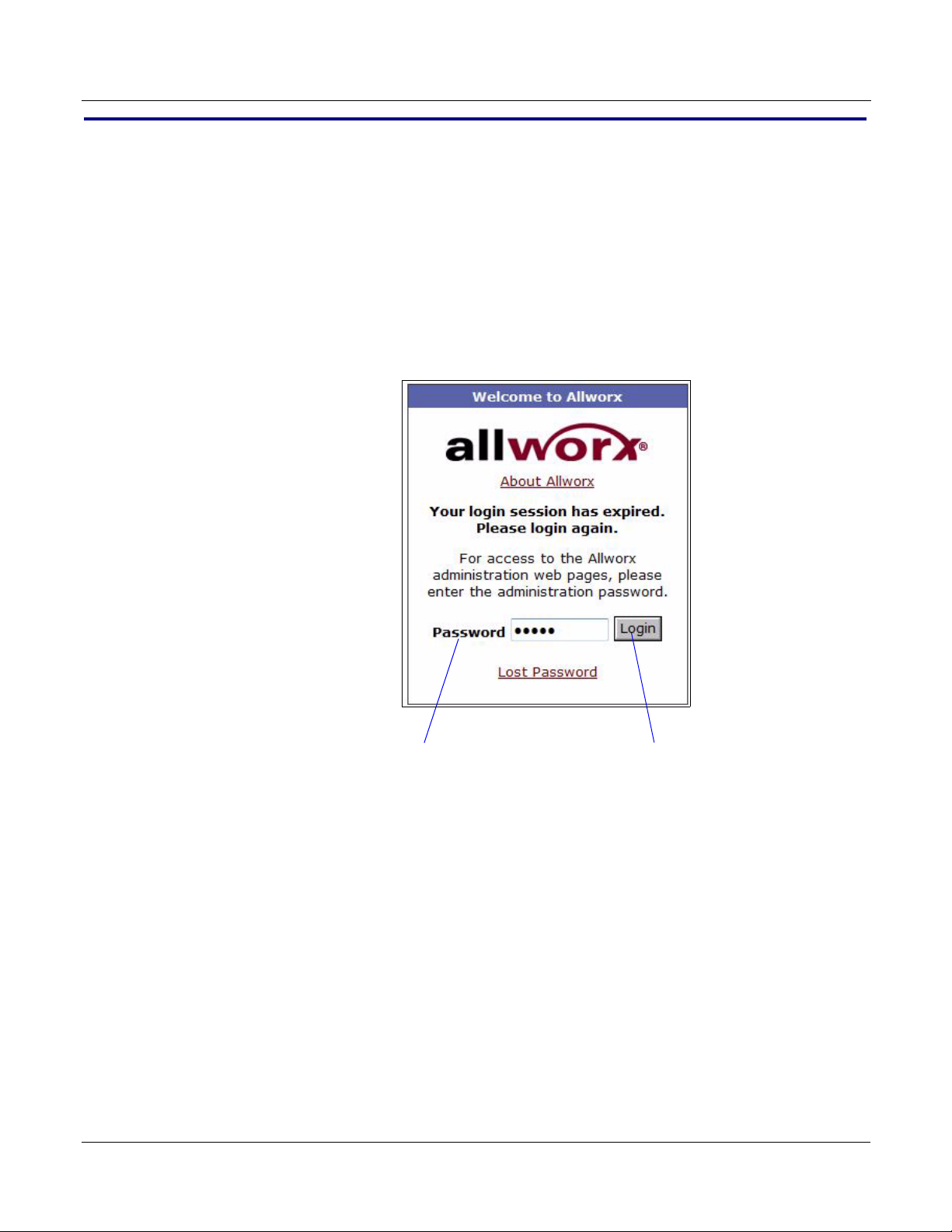

Figure 4-2. Login
Password Login
Server Setup Guide 930249A CyberData Corporation
5
3. On the Home page, go to the PHONE SYSTEM section and click on Handsets to go to the
Handsets page.
Figure 4-3. Home Page
Handsets
Server Setup Guide 930249A CyberData Corporation
6
4. On the Handsets page, go to the SIP Handsets section and click on Add new SIP Handsets to
go to the Add new SIP Handsets page.
Figure 4-4. Handset Page
add new SIP Handset
Server Setup Guide 930249A CyberData Corporation
7
5. On the Add SIP Handsets page, enter the following information as shown in Figure 4-5:
•CallerIDName
•Description
•Model
• Number of Lines
•LoginID
• Password
Note The information that you enter must match the SIP information in the Ceiling Speaker.
In Figure 4-5, the speaker is set for extension 5103.
Figure 4-5. SIP Handset Add
Caller ID NameDescriptionModel Number of LinesLogin IDPassword Add
Server Setup Guide 930249A CyberData Corporation
9
7. Upon returning to the SIP Handsets page, you will see (never registered) in the Identification
column of the Generic SIP section.
Figure 4-7. SIP Handset Never Registered
8. To register the speaker, you will need to reboot the speaker by logging into the CyberData
Configuration Home page.
(never registered) in the Identification column
Server Setup Guide 930249A CyberData Corporation
10
9. Log into the CyberData Configuration Home page (Figure 4-8) by pointing your browser to the
speaker’s IP address.
For the initial configuration of the speaker, refer to the VoIP Ceiling Speaker Operation Guide
which can be found at the following web address:
http://www.cyberdata.net/support/voip/ceilingspeaker.html
Note You may also download CyberData’s VoIP Discovery Utility program which allows you
to easily find and configure the default web address of the CyberData VoIP products.
CyberData’s VoIP Discovery Utility program is available at the following web address:
http://www.cyberdata.net/support/voip/discovery_utility.html
10. When prompted, enter the following Web Access Username and Web Access Password to
access the CyberData Configuration Home page (Figure 4-8):
Default Login:
Web Access Username: admin
Web Access Password: admin

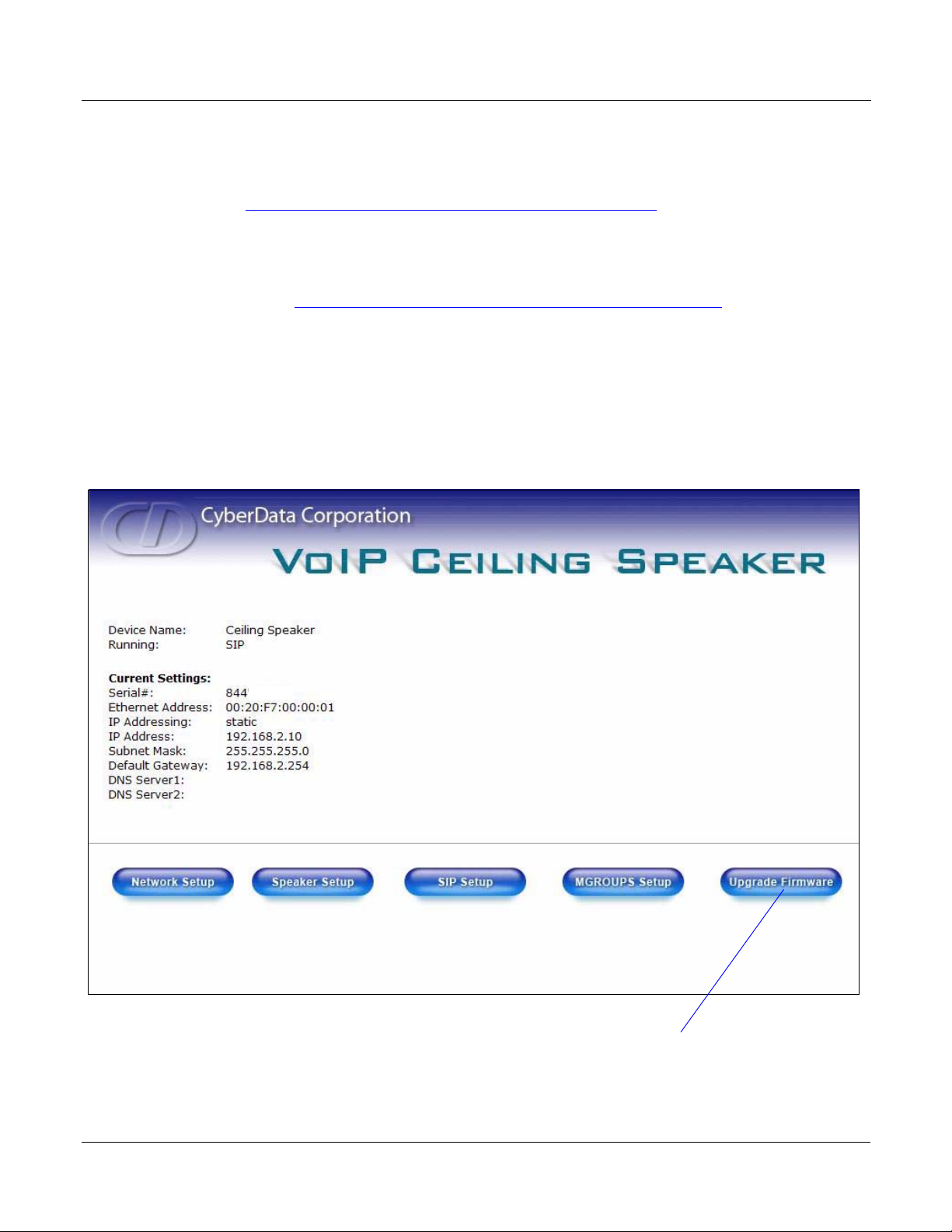

Figure 4-8. CyberData Configuration Home Page
11. Click Upgrade Firmware to open the Firmware Upgrade page.
Upgrade Firmware
