DCT-17
4 by 1 Optical Audio
Switcher with IR Remote
Operation Manual
DCT-17
DRAFT MANUAL
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
V1 20100802 Preliminary Release
Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. PackageContents......................................................................1
4. Features........................................................................................1
5. Specifications..............................................................................2
6. OperationControlsandFunctions............................................. 3
7.3 Top Panel ..................................................................... 3
7.1 Right Panel ................................................................... 3
7.2 Rear Panel .................................................................... 4
7. ConnectionandInstallation..................................................... 5
1
1. Introduction
The 4 by 1 Optical Audio Switcher is a device with four optical inputs and one
optical output. This device allows users with multiple optical sources connection
for one output display. All signal are bypass and without delay or conguration.
The device is built with last memory function and IR remote control which ease
users with friendly using.
2. Applications
• Multi-selection audio performance
• Optical audio signal display
• Theater performance
• Audio showroom control
3. Package Contents
• 4 by 1 Optical Audio Switcher
• IR Remote Control
• 5V / 1A Power Adaptor
• Operation Manual
5. Features
• Optical sampling rate supports up to 192 kHz
• Low power consumption
• up to 24 bit resolution
2
6. Specications
Input Ports 4 x Optical
Sample Frequency Up to 192 kHz
Output Port 1 x Optical
Audio Format PCM2, AC3/5.1, Dolby 5.1 & DTS 5.1 pass through
Power Supply 5V / 1A DC ( US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions(mm) 100 (W) x 70 (D) x 20(H)
Weight(g) 90
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Power Consumption <1W
Relative Humidity 20 ~ 90% RH (non-condensing)
3
7. Operation Controls and Functions
7.1TopPanel
1
① Input 1~4: The LED will illuminate in blue when selected the source.
1
1 Optical In: These slots are to connect with input source equipments such
as DVD/Blue-Ray player for audio input signal sending.
4

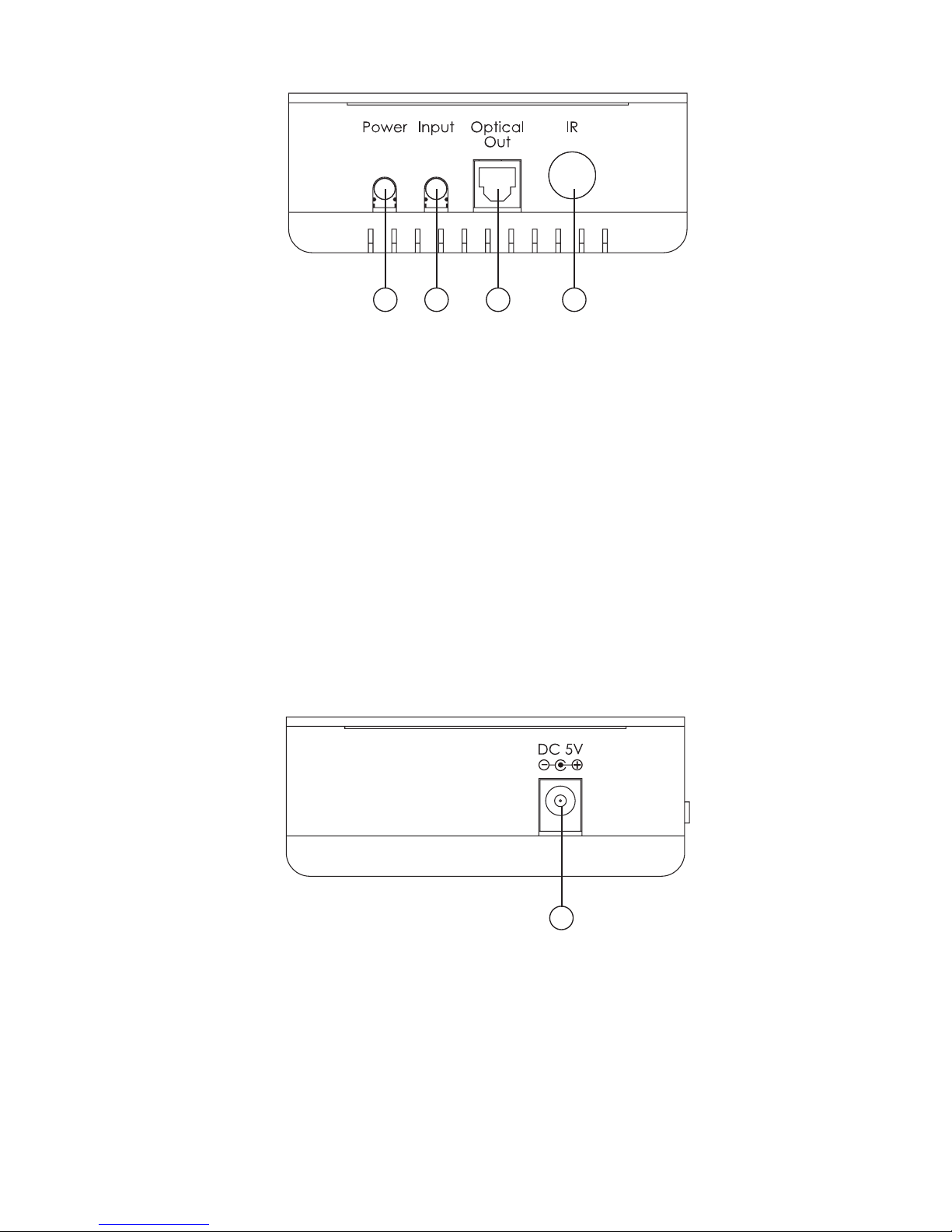

7.2LeftPanel
1 2 3 4
① Power: Press this button to turn on the device or to set it to standby
mode. The blue LED on the top panel will illuminate when the device is
turn on.
② Input: Press this button to select the input port from 1~4. The blue LED on
the top panel will illuminate according to the selection.
③ Optical OUT: This slot is where you connect the amplier or active
speaker with optical cable for audio output.
④ IR: This is the IR receiver window receiving IR signal from the remote
control included with the device.
7.3RearPanel
1
① DC 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC wall outlet.
5

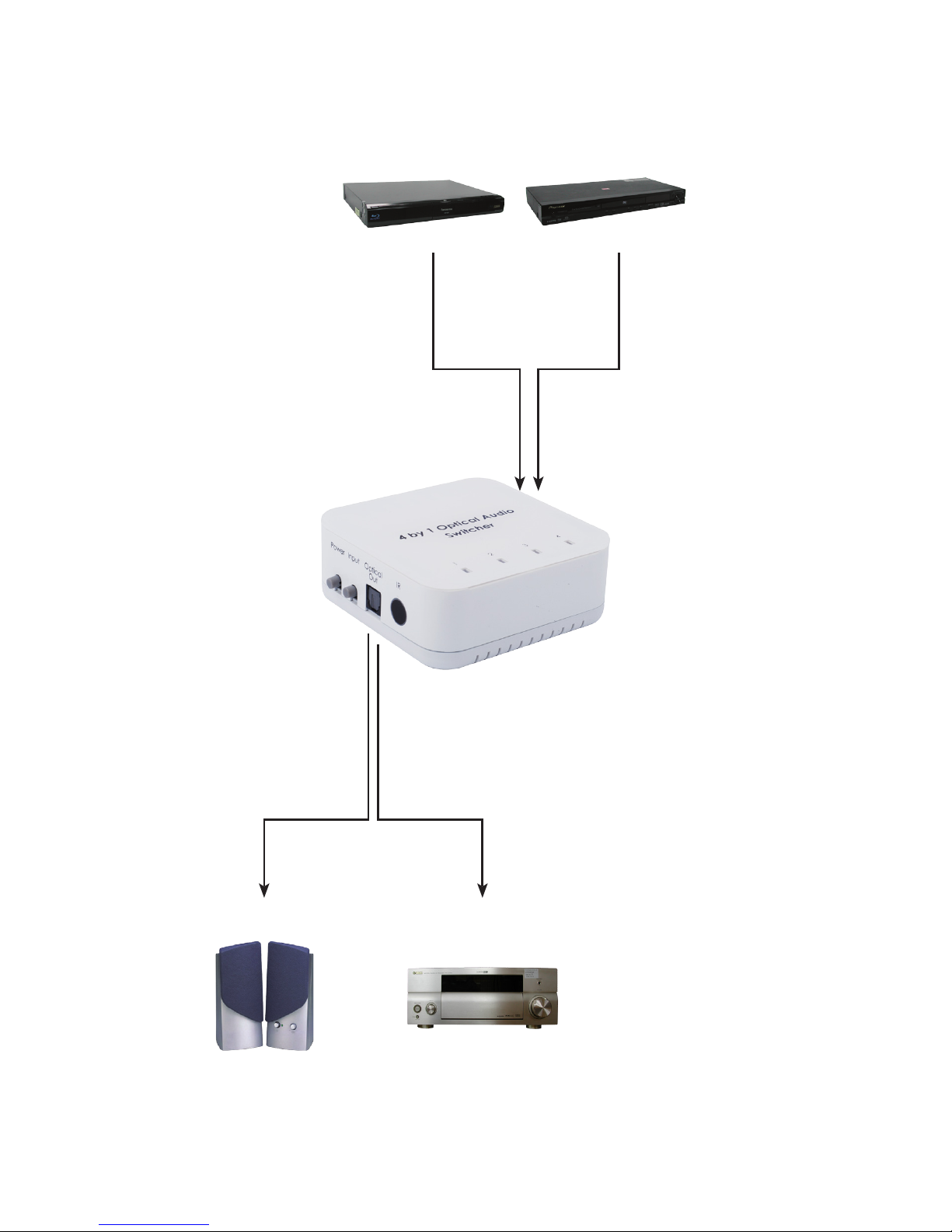

8. Connection and Installation
DVD Blu-ray
AmplierActive Speaker
6
Acronyms A
Acronym Complete Term
