CYP EL-5300 Manuale utente

OPERATION MANUAL

EL-5300

PC/Video/HD to v1.3 HDMI

Switcher

1. Introduction 1

2. Features 1

3. Package Contents 1

4. Operation Controls and Functions 2

4.1 Front Panel Diagram 2

4.2 Rear Panel Diagram 3

4.3 Connection Diagram 4

4.4 Remote Control 5

5 RS232 Control Protocal 5

5.1 RS232 Transmission Format 6

6 Input Signal Secications 7

6.1 Output Signal Specications 7

7Specications 8

Table of Contents

Finden Sie ab Seite 11.

1. Introduction

The EL-5300 is a high quality video converter to convert Analogue and

Digital signals to v1.3 HDMI output. The EL-5300 is compatible to v1.3 HDMI

specications, a cutting edge technology which denes the transfer Deep Colour

(10-bit and 12- bit) video. Simply select from the front panel or remote control to

choose the input sources.

2. Features

• v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.

• Supports ‘Deep Colour’ (10, 12, & 16 bit).

• Supports analogue/digital video & audio inputs, outputting to v1.3 HDMI

specications.

• HDCP keysets allows each HDMI input to work independently when connecting

to a HDMI display.

• Supports a wide range of PC and HDTV resolutions from VGA to SXGA@60Hz

and 480i to 1080p, including 1080p 24fps.

• 3D comb lter.

• 3D noise reduction (DNR).

• Format converter from 480i/576i to 480p/576p (de-interlace).

• Supports 150ms audio delay. Note: This feature will not function when input is

from HDMI source.

• IR remote control.

• RS-232 control.

3. Package Contents

• EL-5300

• 5V DC power supply adaptor.

• Operation Manual.

Page 1

Page 2

4. Operation Controls and Functions

1. Power switch and power LED indicator: Press the switch to power on the

unit and the power LED will illuminate.

2. IR sensor.

3. Input source selection: Press the input button to switch to your desired input

sources, the LED will illuminate to indicate which input source is selected.

4. Audio delay: Press to delay audio sources for 150ms, the LED will illuminate

when powered on.

5. De-interlace from 480i/576i to 480p/576p.

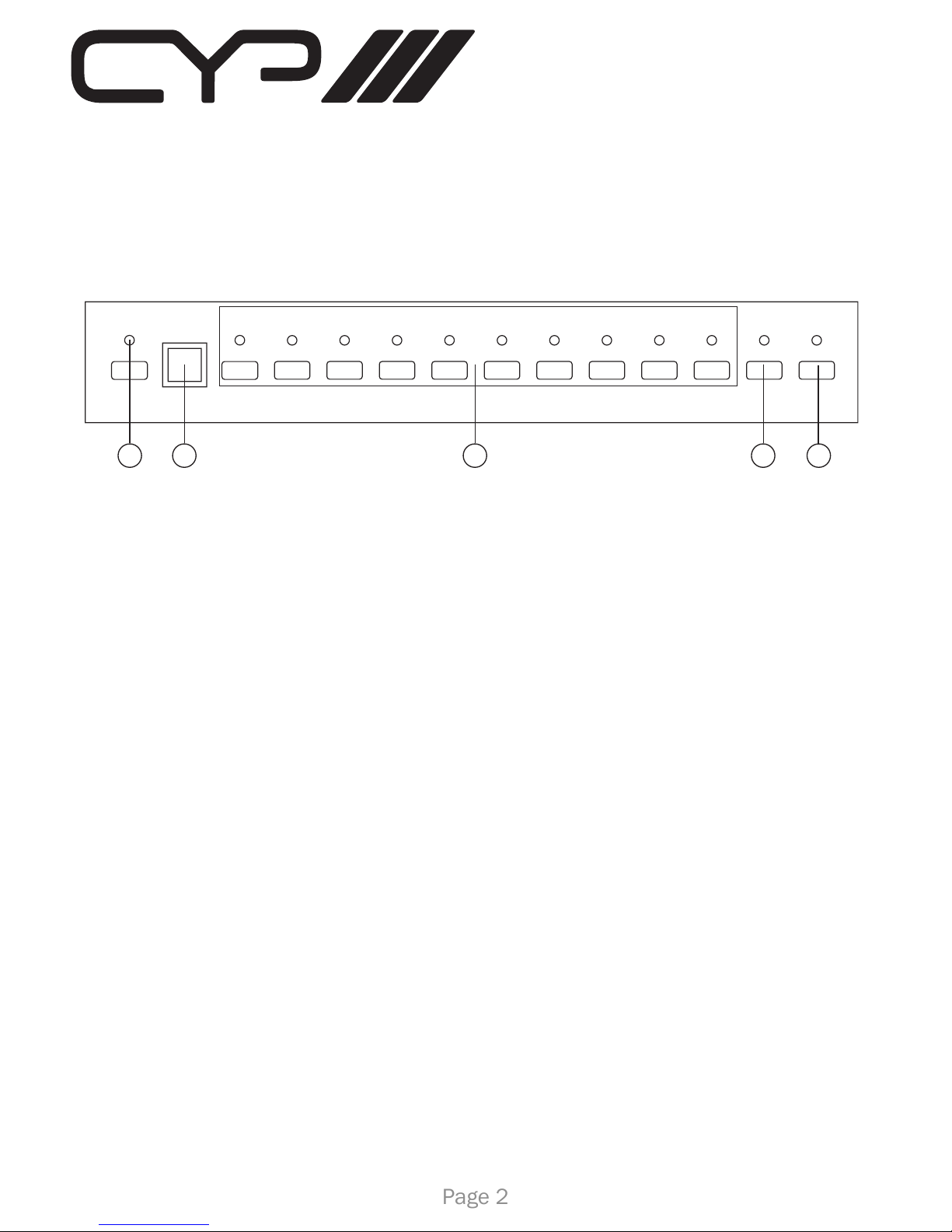

4.1 Front Panel

POWER HDMI 1 HDMI 2 HDMI 3 PC COMP 1 COMP 2 SVIDEO-1 SVIDEO-2 VIDEO-1 VIDEO-2 AUDIO

DELAY

3D Video Comb Filter/12bit

480I480P

576I576P

12 43 5

Page 3

4.2 Rear Panel

POWER

DC 5V

VIDEO 1 YPb/CbPr/Cr

HDMI IN

/ BYPASS HDMI OUT

AUDIO 1 AUDIO 1

Pr/Cr Pb/Cb Y

R LLR

AUDIO 2

SVIDEO 1

SVIDEO 2

COMPONENT 1 IN

RS-232COMPONENT 2 IN AUDIO

VIDEO 2

AUDIO 2

3 2 1

1 3 4 5 762

1. Power: Plug the 5V DC power supply into this unit and connect the

adaptor to AC wall outlet.

2. CV/SV inputs: Connect each of the input ports to the CV/SV and R/L

output ports of your source equipments such as DVD player or set-top-

box. The CV1/SV1/Audio1 and CV2/SV2/Audio2 are individual inputs for

source equipment.

3. Component inputs: Connect each of the input component ports to

the component and R/L output ports of your source equipments such

as DVD player or set-top-box. The Component1/Component Audio1

and Component2/Component Audio2 are individual inputs for source

equipment.

4. HDMI inputs: Connect each of the input ports to the HDMI or DVI output

ports of your source equipment such as DVD player or set-top-box.

5. PC input: Connect PC/audio input port to the PC/audio output port of

your source equipment such as Notebook or PC.

6. RS232: 9-pin D-Sub connector for connecting to your PC or other control

console for remote control.

7. HDMI output: Connect the output port to the HDMI display.

4.3. Connection Diagram

Page 4

Page 5

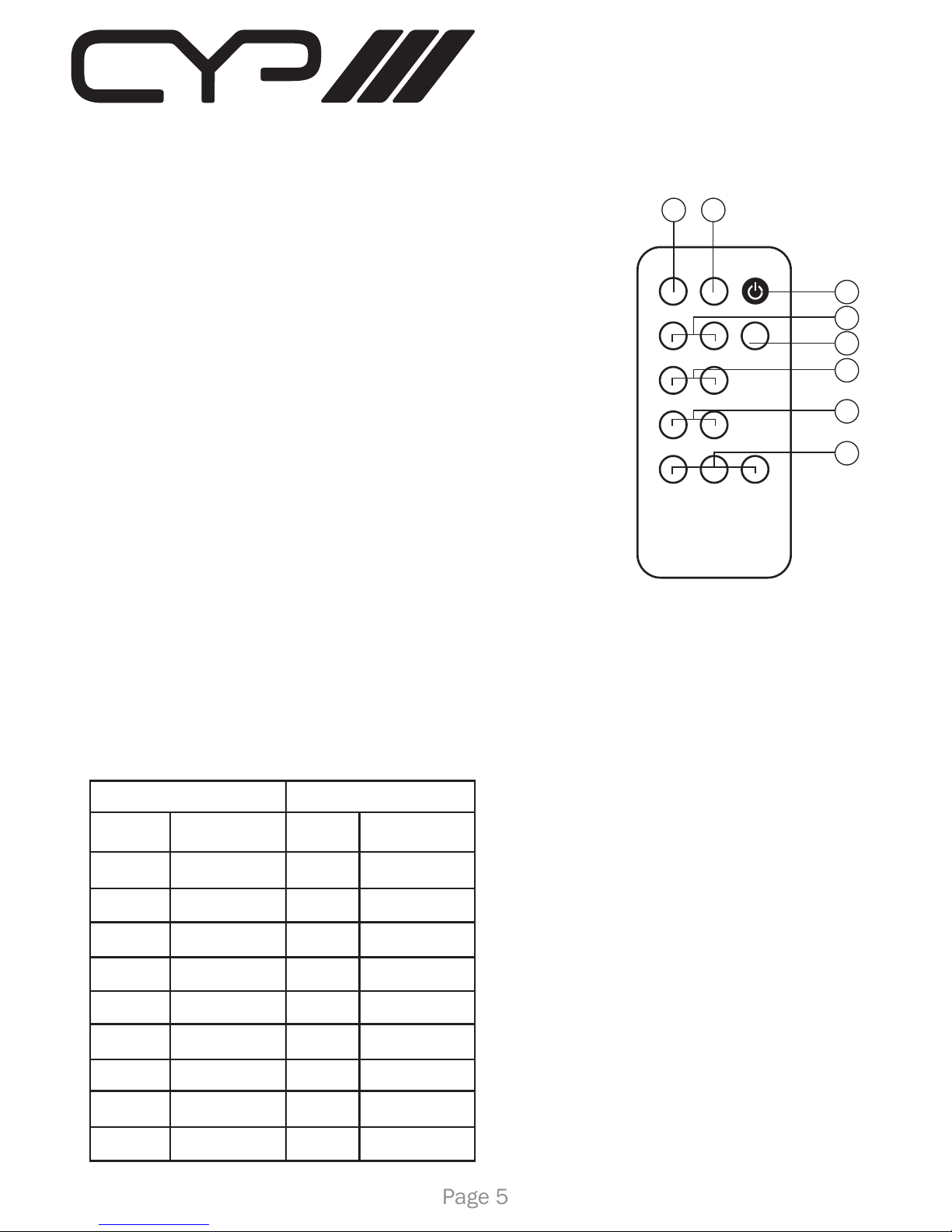

4.4. Remote Control

CR-62

POWERAudio Delay

COMP

SVIDEO

VIDEO

HDMI

480I480P

576I576P

21 1

1. Audio Delay: Press to delay audio output for 150ms.

2. Format selection: To switch between Interlace and

Progressive format (de-interlace).

3. Power: Press the button to turn on/off the unit.

4. Component 1/2: Press to select Composite 1 or 2

inputs.

5. PC: Press for PC input.

6. S-Video1/2: Press to select S-Video 1 or 2 inputs.

7. Video1/2: Press to select Video 1 or 2 inputs.

8. HDMI 1/2/3: Press to select HDMI 1, 2 or 3 inputs.

5. RS-232 Remote Control Protocol

* The connection between this unit and remote controller with RS-232 modem cable (not

supplied).

System Remote Controller

Pin Denition Pin Denition

1 NC 1 NC

2 TxD 2 RxD

3 RxD 3 TxD

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

Pins denition of modem cable

* RS-232 transmission format:

Baud Rate : 9600 bps

Data Bit : 8 bits

Parity : None

Stop Bit : 1 bit

5.1 RS-232 transmission format:

Command Code Response Description

R POWER > POWER ON~OFF SHOW POWER STATUS

R SOURCE > SOURCE HDMI~CV SHOW SOURCE STATUS

R AUDIODELAY > AUDIODELAY OFF~ON SHOW AUDIO DELAY STATUS

R SD_ITOP >480i/576i TO 480p/576p

OFF~ON

SHOW 480i/576i TO 480p/576p

STATUS

R FW_VER > FIRMWARE VERSION : Vx.xx SHOW FIRMWARE VERSION

(a) Set Command

Command Code Response Description

S POWER 0 > POWER OFF POWER OFF

S POWER 1 > POWER ON POWER ON

S SOURCE 0 > SOURCE HDMI1 HDMI1 INPUT

S SOURCE 1 > SOURCE HDMI2 HDMI2 INPUT

S SOURCE 2 > SOURCE HDMI3 HDMI3 INPUT

S SOURCE 3 > SOURCE PC PC INPUT

S SOURCE 4 > SOURCE COMP1 COMPONENT1 INPUT

S SOURCE 5 > SOURCE COMP2 COMPONENT2 INPUT

S SOURCE 6 > SOURCE SV1 SV1 INPUT

S SOURCE 7 > SOURCE SV2 SV2 INPUT

S SOURCE 8 > SOURCE CV1 CV1 INPUT

S SOURCE 9 > SOURCE CV2 CV2 INPUT

S AUDIODELAY 0 > AUDIODELAY OFF OFF : NO DELAY

S AUDIODELAY 1 > AUDIODELAY ON ON : DELAY 150ms

S SD_ITOP 0 > 480i/576i TO 480p/576p

OFF OFF : NO 480i/576i TO 480p/576p

S SD_ITOP 1 >480i/576i TO 480p/576p

ON ON : 480i/576i TO 480p/576p

S RESET 1 > RESET ON RESET ACTION

Page 6

PC Resolutions Vert Rate

VGA

SVGA

XGA

SXGA

640x480

800x600

1024x768

1280x1024

60/72/75/85Hz

56/60/72/75/85Hz

60/70/75/85Hz

60Hz

HDTV Resolutions Vert Rate

480p

480i

576p

576i

720p

1080i

1080p

1080p 24fps

720x480

720x576

1280x720

1920x1080i

1920x1080p

60Hz

50Hz

50, 60Hz

50,60Hz

24Hz

PC Resolutions Vert Rate

VGA

SVGA

XGA

SXGA

640x480

800x600

1024x768

1280x1024

60/72/75/85Hz

56/60/72/75/85Hz

60/70/75/85Hz

60Hz

HDTV Resolutions Vert Rate

480p

576p

720p

1080i

1080p

720x480

720x576

1280x720

1920x1080i

1920x1080p

60Hz

50, 60Hz

Page 7

6. Input Signal Specications

6.1 Output Signal Specications

Note: Output resolution is limited to the HDTV/Monitor's specications.

HDMI Input Port 3 x HDMI female ports (Type A connector)

Component Input 2 x YUV with L/R RCA

HDMI Output Port 1 x HDMI female ports (Type A connector)

Analogue Input Port 2 x CV/SV with L/R RCA

PC input Port VGA with 1 x 3.5mm stereo mini jack

Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certied)

Dimensions (mm) 280(W) x 147(D) x 44(H)

Weight (g) 1380

Chassis Material Aluminium

Silk Skin Colour Black

Operating Temperature Operating from 0°C ~ 48°C

7. Specications

Page 8
