Operation Manual

HDMI/Mini DisplayPort/USB Type-C to HDMI Switch

CPLUS-31PS

DISCLAIMERS

The information in this manual has been carefully checked and is believed

to be accurate. Cypress Technology assumes no responsibility for any

infringements of patents or other rights of third parties which may result from

its use.

Cypress Technology assumes no responsibility for any inaccuracies that

may be contained in this document. Cypress also makes no commitment to

update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express written

permission and consent from Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are trademarks of

the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain, moisture

or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it

is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to

be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings

in the unit housing that provide ventilation and allow for su󰀩cient space

for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use to

avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2020/03/18 Preliminary release

CONTENTS

1. Introduction...................................................... 1

2. Applications ..................................................... 1

3. Package Contents ........................................... 1

4. System Requirements..................................... 1

5. Features............................................................ 2

6. Operation Controls and Functions ................ 3

6.1 Front Panel.................................................. 3

6.1 Front Panel.................................................. 4

6.2 Rear Panel................................................... 4

7. Connection Diagram ....................................... 5

8. Specications .................................................. 6

8.1 Technical Specications .............................. 6

8.2 Video Specications .................................... 7

8.3 Audio Specications .................................... 9

8.3.1 Digital Audio ....................................... 9

8.4 Cable Specications.................................. 10

9. Acronyms ....................................................... 11

1. INTRODUCTION

This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switch featuring

USB Type-C, HDMI and Mini DisplayPort inputs which are automatically

converted to a standard HDMI format for use with projectors or displays. This

unit provides easy switching functionality with both a manual input selection

button and an optional autosensing “last memory” feature which can

automatically switch to a newly connected source or revert to the previous

source, if the current one becomes disconnected, with no user intervention

necessary. This switch is an ideal addition to any conference room, lecture

hall or home entertainment setup with its portable and easy to install design.

This unit is controllable via a single rear panel button.

2. APPLICATIONS

• Conference rooms and boardrooms

• Lecture halls, auditoriums, and classrooms

• Household entertainment sharing and control

3. PACKAGE CONTENTS

• 1× HDMI/Mini DisplayPort/USB Type-C to HDMI Switch

• 1× 5V/1.2A DC Power Adapter

• 1× Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI, DisplayPort, or USB-C source equipment such as media players,

video game consoles, set-top boxes or PCs.

• HDMI receiving equipment such as an HDTV, monitor or audio amplier.

• The use of Premium High Speed HDMI cables is highly recommended.

• The use of 30AWG (Gen 2) USB Type-C cable is highly recommended.

• The use of DisplayPort 1.2 or higher spec cable is highly recommended.

5. FEATURES

• HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant

• HDCP 1.x and 2.2 compliant

• 1 HDMI, 1 Mini DisplayPort, and 1 USB Type-C input

• 1 HDMI output

• Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and

output

• Supports Deep Color input and output up to 12-bit

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

• Supports pass-through of many audio formats including 8 channel LPCM,

Bitstream, and HD Bitstream

• Supports auto-switch functionality with a “last memory” feature

• EDID bypass with an optimized algorithm to ensure optimal resolution and

feature support

• Easy to read LEDs to indicate input selection and operational mode

• Powered via the Mini-USB port (1.2 Amps required)

• Small and portable switch box design

• Controllable via a single rear panel button with LEDs

6. OPERATION CONTROLS AND FUNCTIONS

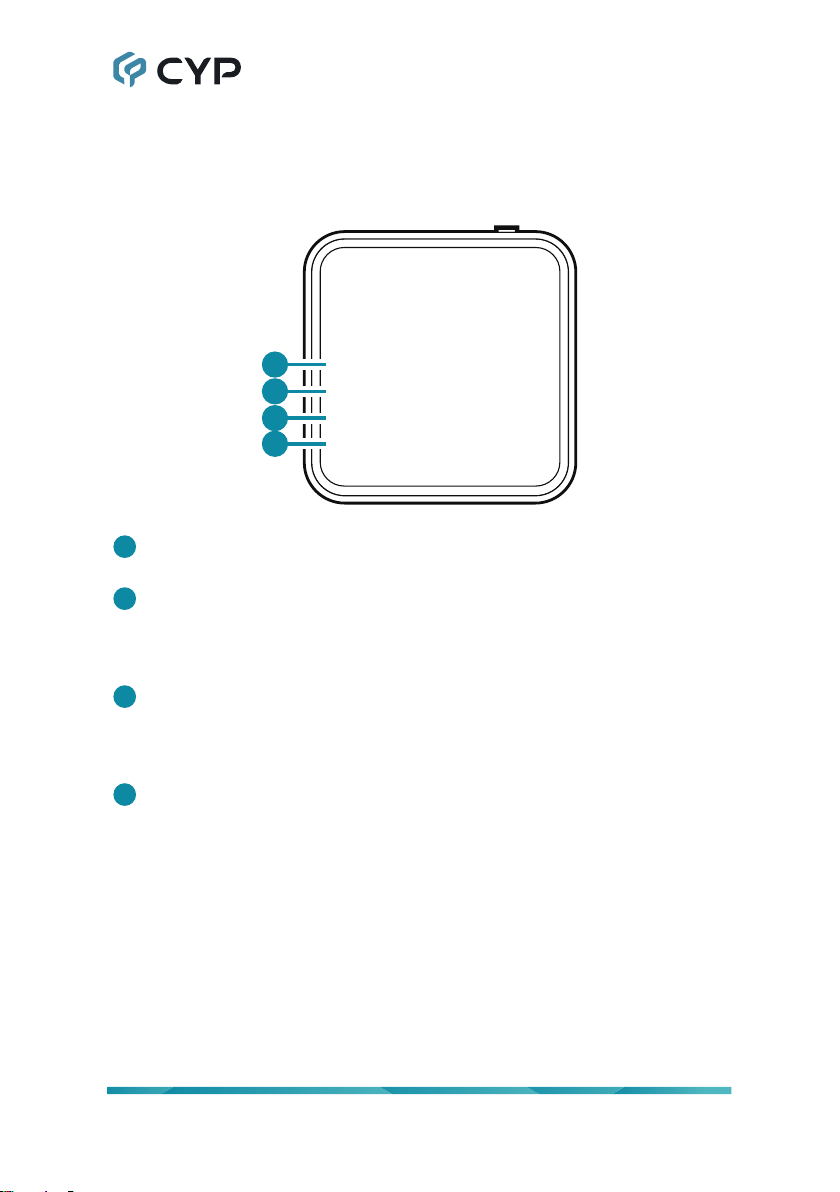

6.1 Top Panel

AUTO

MULTI-FORMAT

SWITCHER

USB-C

HDMI

MINI DP

1AUTO LED: This LED will illuminate when the auto switch function is

active.

2USB-C LED: This LED will illuminate blue when USB-C is the currently

selected input. If the input has an active source, but is not currently

selected, it will illuminate red. When no source is detected the LED will

remain o󰀨.

3HDMI LED: This LED will illuminate blue when HDMI is the currently

selected input. If the input has an active source, but is not currently

selected, it will illuminate red. When no source is detected the LED will

remain o󰀨.

4MINI DP LED: This LED will illuminate blue when Mini DisplayPort is

the currently selected input. If the input has an active source, but is not

currently selected, it will illuminate red. When no source is detected the

LED will remain o󰀨.

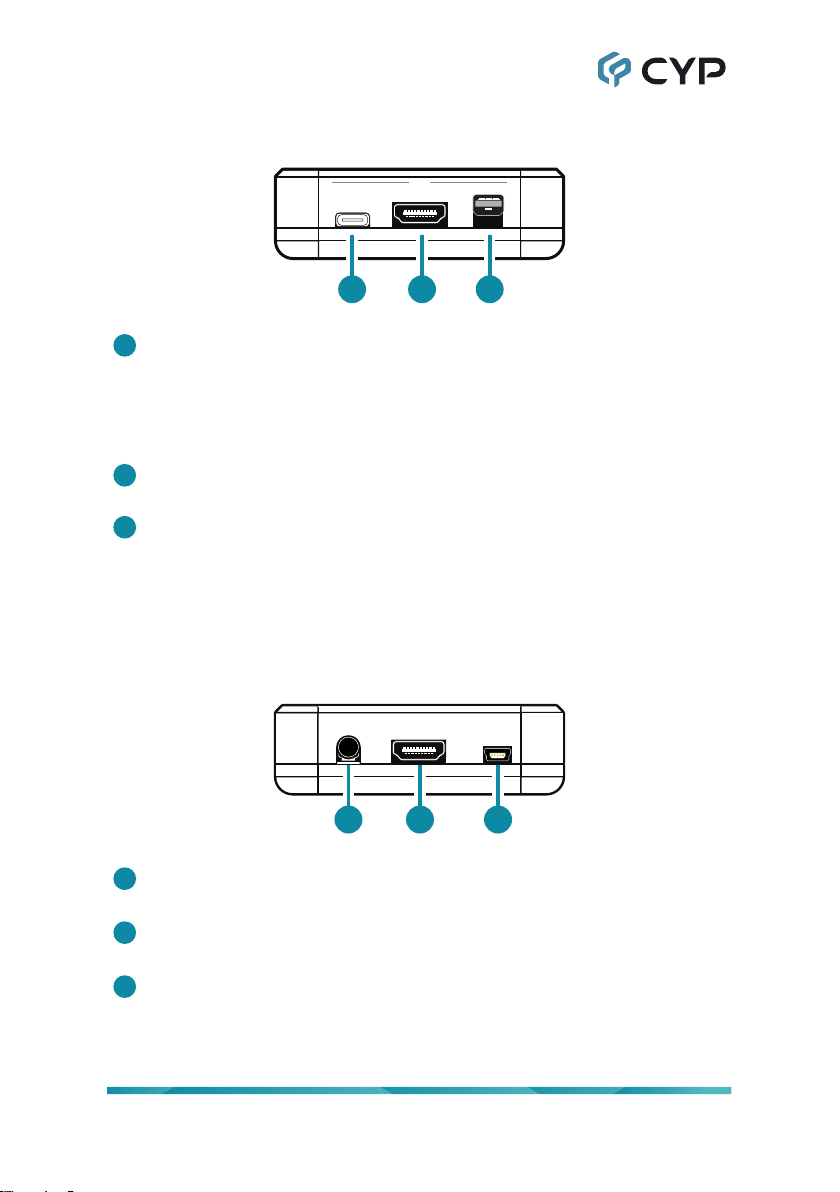

6.2 Front Panel

USB-C HDMI

IN MINI DP

1 2 3

1USB-C IN Port: Connect to USB Type-C video source equipment such

as a PC or laptop.

Note: Not all devices with USB Type-C ports can support video output.

Please verify that the device supports video output from the USB Type-C

port before connecting it.

2HDMI IN Port: Connect to HDMI source equipment such as a media

player, game console, or set-top box.

3MINI DP IN Port: Connect to DisplayPort source equipment such as a

PC or laptop.

Note: For 4K sources, use of cable that supports DisplayPort 1.2 or

higher is strongly recommended.

6.3 Rear Panel

PWRHDMI OUTIN SEL.

1 2 3

1IN SEL. Button: Press this button to sequentially switch through the

available inputs or select auto switch.

2HDMI OUT Port: Connect to HDMI source equipment such as a media

player, game console, or set-top box.

3PWR Port: Connect the provided mini USB power adapter to this port

and connect it to an AC wall outlet for power. This port is also used to

perform rmware updates.

Note: USB power sources must provide a minimum of 1.2 Amps.

7. CONNECTION DIAGRAM

PWRHDMI OUTIN SEL.

USB-C HDMI

IN MINI DP

Monitor Projector

4K TV

Mini DP

Input

USB-C Input

HDMI Input

HDMI Output

Laptop Game Console Desktop PC

POWER

Blu-ray Player
