CYP CLUX-31GAME Manuale utente
CLUX-31GAME
3×1 HDMI Switcher
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
V1 04/12/09 Preliminary Release
VS1 22/04/13 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ...........................................3
6.2 Front Panel.........................................3
6.3 Side Panels.........................................4
6.4 Rear Panel .........................................4
7. Connection Diagrams........................... 5
8. Specications ........................................ 7
9. Acronyms ............................................... 7
1
1. INTRODUCTION
This 3×1 HDMI Switcher allows the user to input three HDMI sources and
easily switch between these sources to provide a single HDMI output
to a display or AV receiver. The CEC and EDID bypass function allows
HDMI devices to turn both the source and display on or off with a
simple touch. The Switcher is also DVI compatible when using a DVI to
HDMI adaptor cable (available separately), allowing the integration
of DVI devices such as PCs with HDMI devices such as Blu-players or
game consoles.
2. APPLICATIONS
• Share a single TV/Monitor HDMI input between up to 3 source devices
• Add additional HDMI inputs to an AV receiver
• HDMI installation input extending
• Showroom display switching
3. PACKAGE CONTENTS
• 3×1 HDMI Switcher
• Operation Manual
• 5 V/1 A DC Power adaptor (optional)
• USB A to Mini-B Cable (optional)
4. SYSTEM REQUIREMENTS
Source equipment such as games consoles, Blu-ray players (or a PC/
Laptop with DVI with a DVI to HDMI adaptor cable) and a monitor or
TV with HDMI connection cable.
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI 1.0 compliant
• Supports 30/36-bit color depth display
• Supports High Denition audio – Dolby Digital TrueHD and DTS-HD
Master Audio
• Includes an Automatic Signal Enhancement feature that can
improve signal quality over long distances.
• Supports push-button switching and auto-switching of HDMI sources
• LED indicators for input selection
• Ideal for integrating your game consoles into your home
entertainment system
• Supports CEC and EDID bypass functions
• Optional USB Power for simpled installation
• Supports high resolution input:
- PC: VGA, SVGA, XGA, SXGA, UXGA (1600×1200) and 1920×1200(RB)
- HDTV: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
• Easy to install and operate
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
12
INPUT
3
CLUX-31GAME
3 x 1 HDMI v1.3 SWITCHER
1
1INPUT LED Indicators: These LEDs will light to indicate the currently
selected input.
6.2 Front Panel
INPUT
1
1INPUT Switch: Press this button repeatedly to cycle through the
input sources, the LED on the top panel will illuminate to indicate
the active input.
Push-Button-Switching and Auto-Switching
This unit features an auto-switching feature that will switch to a
new source when it is plugged in or to a source that is already
connected when it is powered on. Pressing the Input Switch will
over ride this function and switch to next source.
Last Memory
When powered off, the unit will retain in memory the last selected
input and will switch to that input when next powered on.
4
6.3 Side Panels
12
INPUT
INPUT
3
1
1
1HDMI INPUT 1/2/3: Connect to HDMI source devices such as a
games console with HDMI cables or a DVI source device such as a
PC (with DVI to HDMI cables, available separately).
6.4 Rear Panel
USB 5V
DC 5V
OUTPUT
1 2 3
1HDMI OUTPUT: Connect to a HDMI equipped TV/monitor or AV
receiver for display of the selected HDMI source signal..
2USB 5V: Connect the USB power port to any powered USB port with
a USB A to Mini-B cable (supplied separately).
3DC 5V: Connect the 5 V DC power supply (supplied separately) to
the unit and plug the adaptor into an AC outlet.
Note: Use only a single power supply at a time. Do not attempt to
connect both at the same time.
5

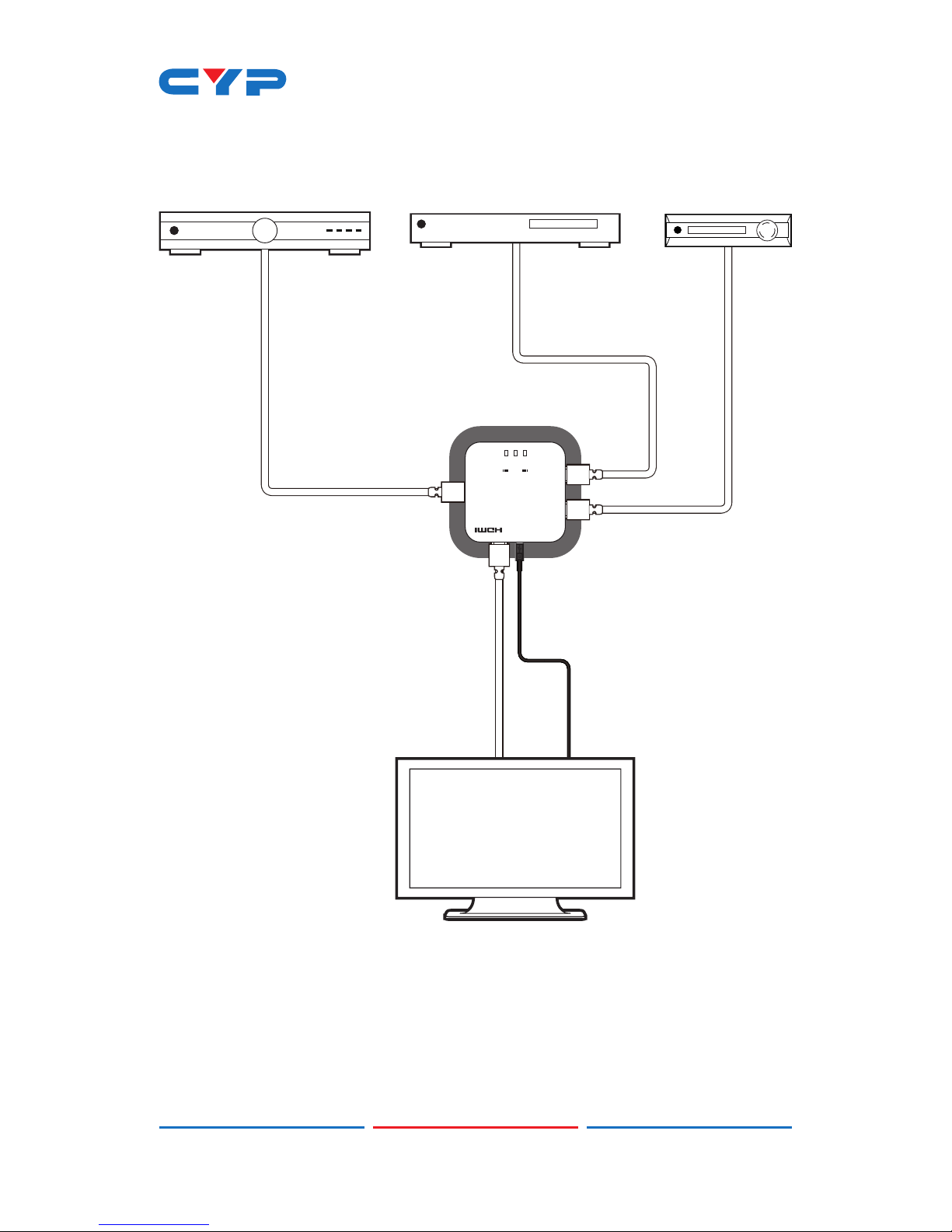

7. CONNECTION DIAGRAMS
Example 1: USB power from a spare USB connection on an HDTV
12
INPUT
3
CLUX-31GAME
3 x 1 HDMI v1.3 SWITCHER
DVD or Blu-ray PlayerSet-top Box
HDMI Input HDMI Input HDMI Input
HDMI Output
HDTV
USB Power
(Optional)
Game Console
