CYP EL-41PIP Manuale utente
EL-41PIP
4-Way HDMI Switch with Integrated Picture-in-Picture
(PIP) Technology
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 29/01/13 First Release
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Remote Control ........................................10
6.4 RS-232 Protocols ......................................11
6.5 RS-232 Commands ..................................12
6.6 OSD MENU .................................................14
7. Specications ...................................... 20
8. Connection and Installation .............. 21
6
1. INTRODUCTION
The EL-41PIP is an advanced 4 Way HDMI switch with integrated Picture
in Picture (PIP) technology. This plug and play solution oers advanced
control and display options that allow for the integration of 4 sources
onto a single screen.
2. APPLICATIONS
Broadcasting room and control
Surveillance room and control
Public advertisement and control
Digital Presentation
3. PACKAGE CONTENTS
1 x EL-41PIP Advanced 4 Way HDMI Switch
1 x Remote Control (CR-124)
1 x 12V/3A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment such as DVD/Blu-ray player and PC/Laptop devices and
output HD TV/monitor.
7
5. FEATURES
Integration of up to 4 sources on a single display
Multiple screen layout congurations
Seamless switching channels and on screen windows
Fade in out display functionality
Ability to mirror and rotate images
Zoom & Shrink HDMI Video and / or Overlay
Resolution supported : HDTV: 480i to 1080p plus 1080p24fps; PC: VGA
to UXGA
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER MENU
-
+
1
CHANNEL
INPUT 234
4
1
2
3
1
A
WINDOW 234
1 2
34
234
1
123 4
B C D E
G H
F
1 2 3 4 5 6
1 IR Window
Accept IR signal from the device’s remote control included in the
package.
2 POWER
Press this button to power on the device or set it to standby mode.
3 MENU
Press this button to bring up the OSD menu on screen.
4 -/+ Buttons
Press these buttons to scroll down/up the OSD selections.
5 CHANNEL INPUT 1~4
Press these buttons to rotate HDMI 1~4 input source on each channel
to be display on screen.
6 WINDOW A~H
Press these hot keys to select the screen setting where A~D are display
a full screen of each channel and E~H are a dierent combination of a
full screen setting with all 4 channels.
9
6.2 Rear Panel
4 3 2 1
HDMI IN
HDMI OUT
RS232 DC 12V
USB
SERVICE
ONLY
1 2 3 4 5
1 HDMI IN
Connect with source equipments such as DVD/Blu-ray players and or
PC/NB devices.
2 HDMI OUT
Connect with HD TV/monitor for output image display.
3 USB SERVICE ONLY
This slot is reserved for factory use only.
4 RS-232
Connect from PC/NB with D-Sub 15pin cable for RS-232 control.
5 DC 12V
Plug the 12V DC power supply into the unit and connect the adaptor
to an AC outlet.
10

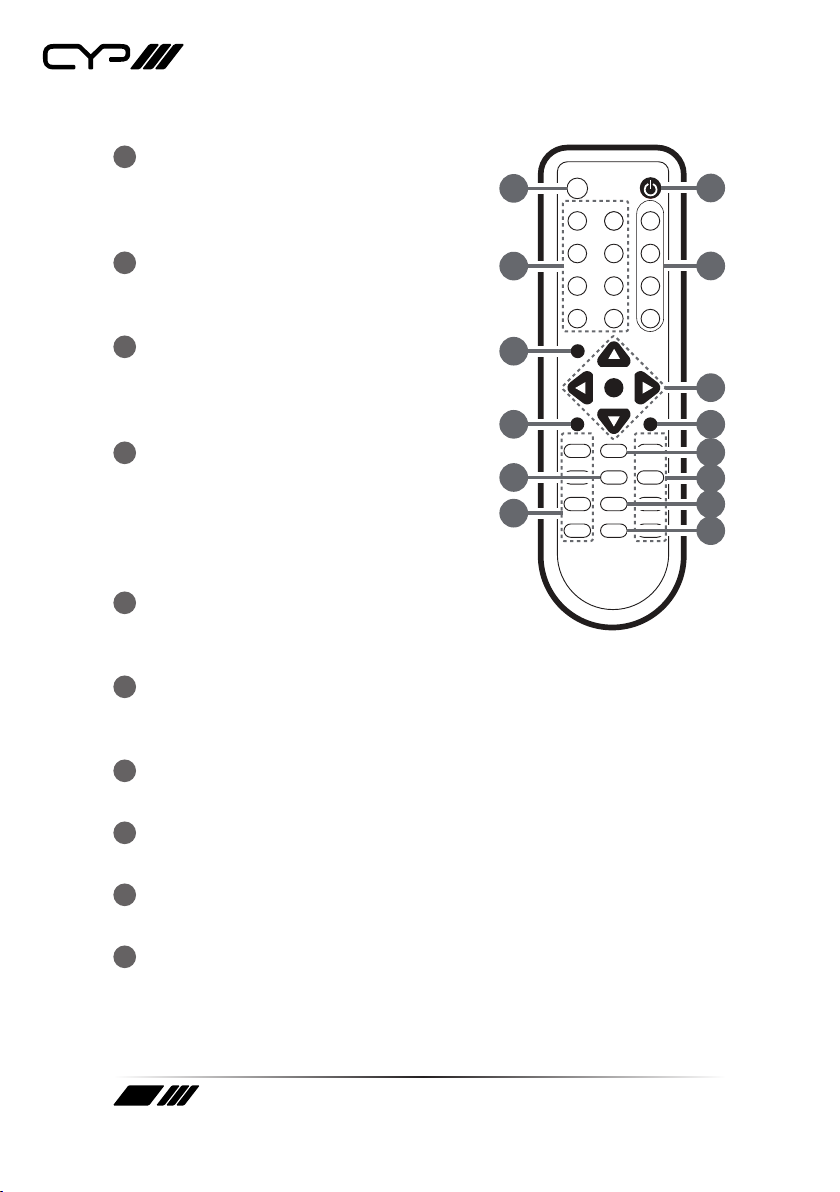

6.3 Remote Control
1 Power
Press this button to switch on the device
or press it again to set it to standby
mode.
2 Info
Press this button to show the device’s
rmware version.
3 Input CH 1~4
Press these buttons to rotate HDMI 1~4
input source on each channel to be
display on screen
4 WA~H
Press these hot keys to select the screen
setting where A~D are display a full
screen of each channel and E~H are a
dierent combination of a full screen
setting with all 4 channels.
5 Mute
Press this button to mute the audio from
HDMI output port.
6 ▲▼►◄ & OK Buttons
Press this buttons to scroll through the OSD selection and press OK to
enter and conrm the setting.
7 Menu
Press this button to enter into the OSD menu.
8 Exit
Press this button to exit the OSD menu or the OSD settings.
9 FAV. 1~4
Press these buttons to bring up the customized screen settings.
10 Fade-In-Out*
Press this button to switch on or o the Fade-in-out function.
WA WE CH 1
WB WF CH 2
WC WG CH 3
WD WH CH 4
Input
Mute
Menu
OK
Exit
Audio 1 Fade In-Out FAV. 1
Audio 2 Chromakey FAV. 2
Audio 3 Mirror FAV. 3
Audio 4 Rotation FAV. 4
Info Power
CR-124
1
3
6
7
9
10
12
13
1
4
5
8
11
14
