CYP EL-5500 Manuale utente
EL-5500
Advanced HDMI/VGA Presentation Switch
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 29/09/13 First Release
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Remote Control ........................................10
6.4 RS-232 Protocols ......................................11
6.5 RS-232 Commands ..................................12
6.6 OSD MENU .................................................14
7. Connection dIAGRAM ......................... 16
8. Specications ...................................... 17
6
1. INTRODUCTION
The EL-5500 is an advanced rack mountable HDMI, VGA, Composite, and
Component presentation switcher. This device can scale and switch input
sources to it's two HDMI outputs, with their associated audio signals to
the native resolutions supported by the connected display. Control is via
the IR remote, RS-232, IP, or via manual selection buttons. Both digital and
analogue stereo audio is supported via a built-in DAC (Digital to Analogue
Converter) and ADC (Analogue to Digital Converter). The EL-5500 is the
perfect solution for any educational or commercial environment requiring
integration of multiple sources and signal formats to two HDMI displays.
2. APPLICATIONS
Lecture hall
Meeting room
Conference hall
3. PACKAGE CONTENTS
Multi Input Scaler
Remote Control (CR-122)
D-Sub to RCA adaptor cable
Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipments such as Blu-ray/DVD players or PC/NB, output
display and amplier or speakers.
7
5. FEATURES
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Digital to Analogue & Analogue to Digital Audio conversion (DAC/
ADC)
Supported Resolutions: HDTV: 480i to 1080p PC: VGA to WUXGA
Aspect Ratio Adjustment
Motion Adaptive De-interlace (3D)
Video Noise Reduction
Underscan / Overscan Selection
Picture Adjustment Settings
8
6. OPERATION CONTROLS AND FUNCTIONS

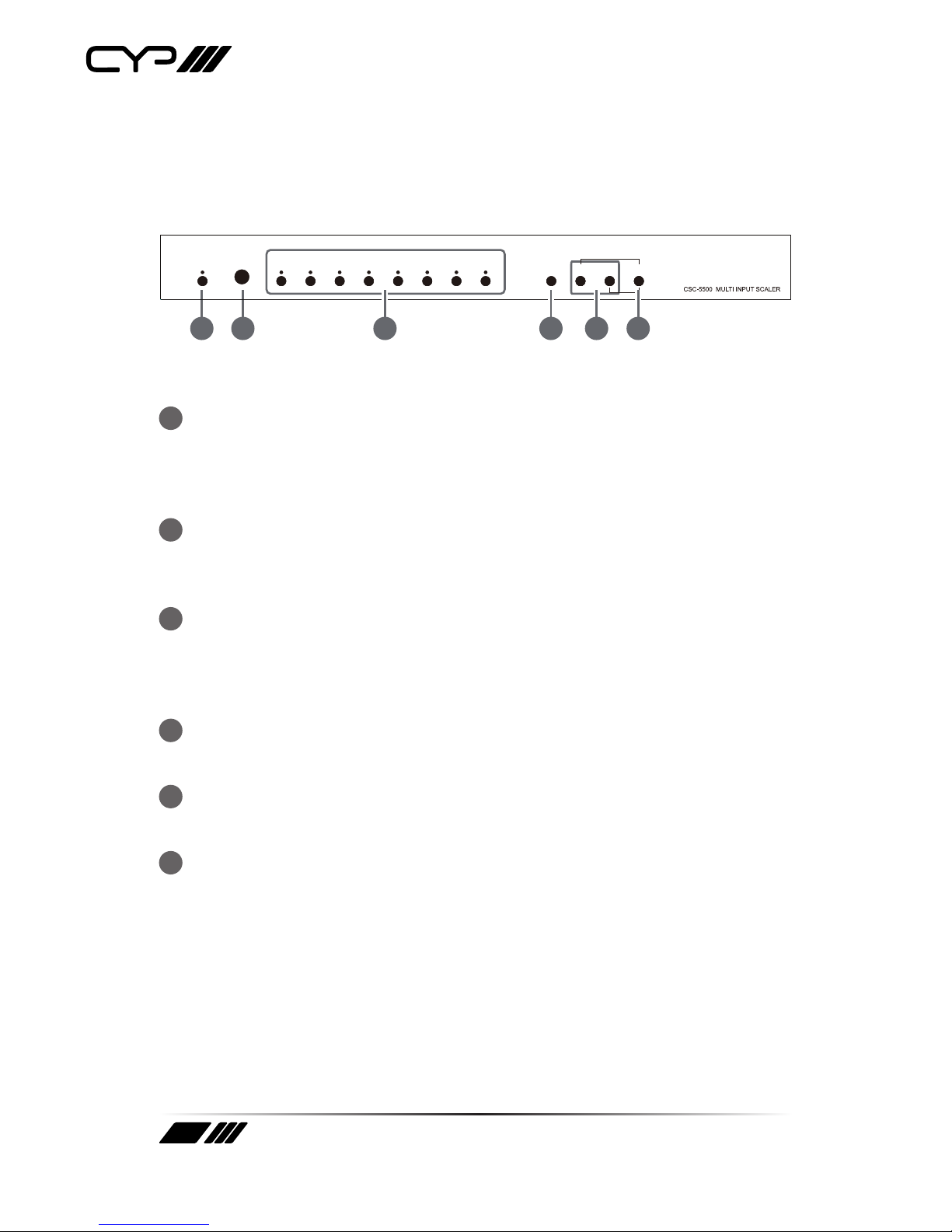

6.1 Front Panel
1 2
UNEM3 IMDH2 IMDH1 IMDH3 CP2 CP1 CPPMOCVCREWOP
XGA
ENTER
-
+
720P
3 4 5 6
1 POWER & LED:
Press this button to switch ON or set the device to standby mode.
Once the device is connected with power supply the LED will
illuminate and the device will switch to ON automatically.
2 IR:
This IR window receives only the IR signal from the remote control
included in the package.
3 INPUT button and LEDs:
Press this button sequentially to switch in between the input sources
rotationally. LED will illuminate accordingly to the selected input
source.
4 MENU:
Press this button to enter into the OSD menu.
5 -/+:
Press these buttons to scrolled down and up in the OSD selection.
6 ENTER:
Press this button to conrm the selection. Press this button together
with + button to switch output to XGA instantly or with - button to
switch output to 720p instantly.
9

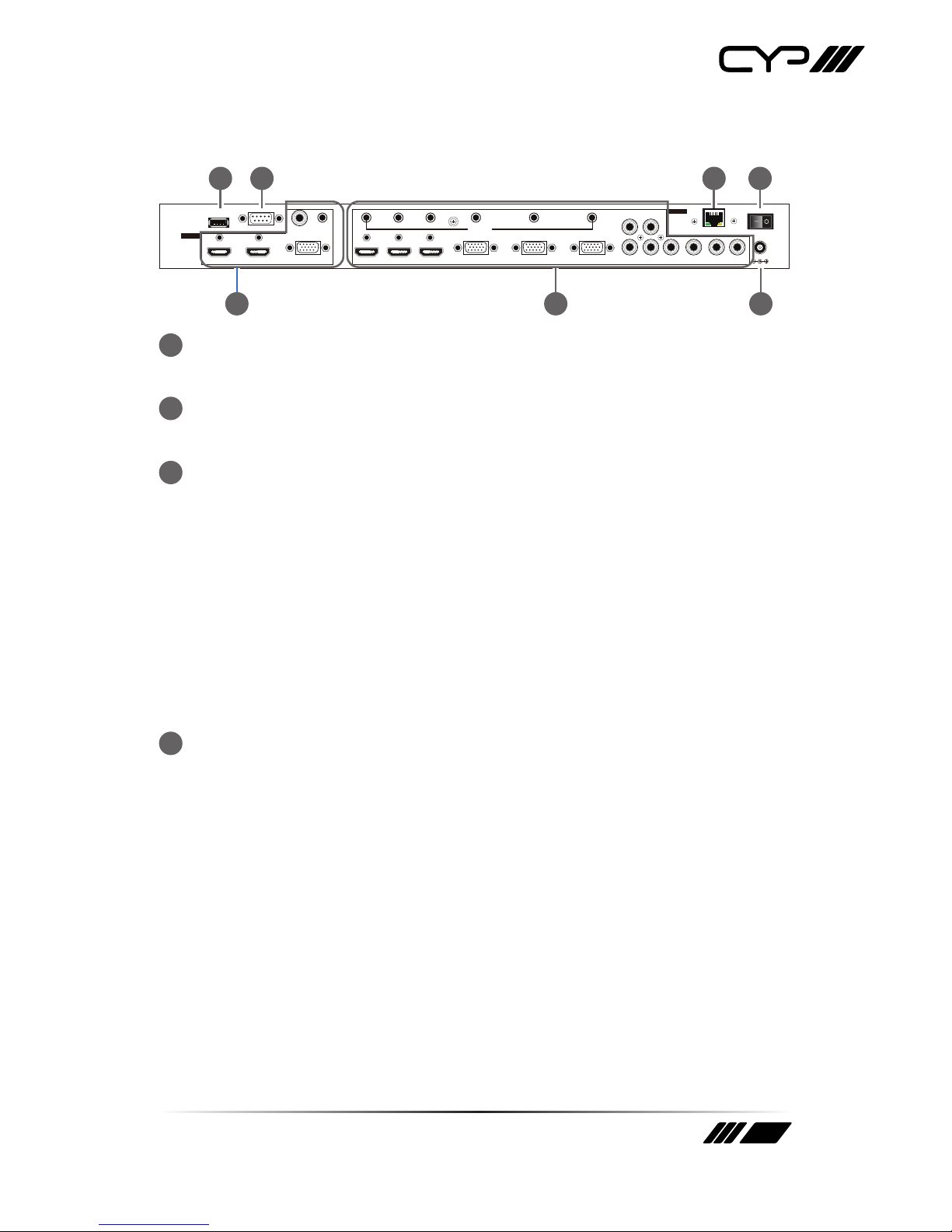

6.2 Rear Panel
POWER
DC 5V
CONTROL
HDMI 2HDMI 1 PC/HD
RS232 COAX AUDIO
SERVICE
OUTPUT
3 CP2 CP1 CP3 IMDH2 IMDH1 IMDH Cr/Pr Cb/Pb
R L
YR L CV
AUDIO
INPUT
3 4 7
1 2 5 6
1 SERVICE:
Reserved for factory use only.
2 RS-232:
Connect with PC/NB and use RS-232 command to control the device.
3 OUTPUT:
HDMI 1 & 2: Connect to HDMI display or amplier for video or video
and audio display.
COAX: Connect to active speaker or amplier for audio output in
digital format.
AUDIO: Connect to active speaker or amplier for audio output in
stereo format.
PC/HD: Connect to monitor/display for video output display. For HD
output,use D-Sub 9pin to 3 RCA adaptor cable for output HD timing
from 480p~1080p.
4 INPUT:
HDMI 1~3: Connect to HDMI source equipment such as Blu-ray/DVD
player for both video and audio signal sending.
PC 1~3: Connect with PC/NB source equipment for video signal input
with D-Sub 15pin cable.
L/R: Connect to source equipment’s L/R output corresponding tothe
input jack below with 3.5Ø phone jack for audio signal sending.The
priority audio input of HDMI is from HDMI, only when HDMI input has
no audio signal the L/R audio will be inserted into.
YCbCr/YPbPr + L/R: Connect to source equipment such as video/DVD
player for both video and audio signal sending.
CV + L/R: Connect to source equipment such as video/DVD player for
both video and audio signal sending.
10
5 CONTROL:
This port is the link for Telnet or Web GUI controls, connect to an active
Ethernet link with an RJ45 terminated cable.
6 POWER:
Switch this power toggle to turn on and activate the device or to turn
o to shut it down.
7 DC 5V:
Plug the power adaptor included in the package and connect it to the
AC wall outlet for power supply.

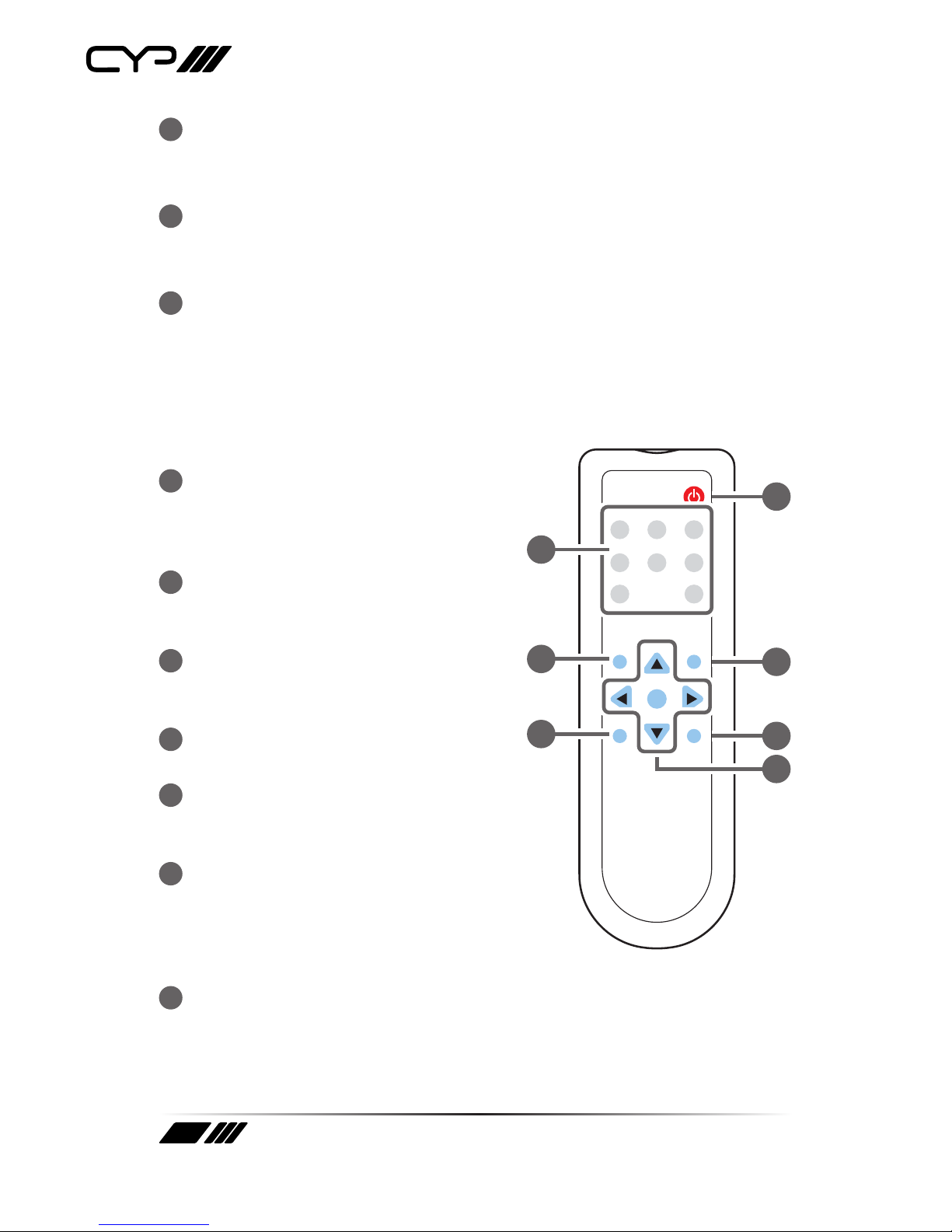

6.3 Remote Control
1 POWER: Press this button to switch
ON or set the device to standby
mode. Once the device is connected
with power supply.
2 HDMI1~3/PC1~3/CV/COMP: Press
these hot keys to switch input source
instantly.
3 EXIT: Press this button to exit the
menu or the current selection under
OSD.
4 MENU: Press this button to enter into
the OSD menu.
5 RESET: Press this button to set the
device back into the factory default
setting.
6 AUTO ADJUST: Press this button
when output image is not tting the
display's screen perfectly. The device
will auto adjust the image to full
screen.
7 OK & ▲▼◄►: Press OK to conrm the selection or press the arrow
buttons to scrolled in the OSD selections.
CR-122
POWER
PC1 PC2 PC3
CV COMP
EXIT MENU
OK
RESET AUTO
ADJUST
3
5
1
4
6
7
2
HDMI2HDMI1 HDMI3
