D & b audiotechnik E18-SUB Manuale utente

E18-SUB

Manual (3.1 EN)

Symbols on the equipment

Please refer to the information in the operating manual.

WARNING!

Dangerous voltage!

Contents

Safety precautions...............................................................3

Information regarding use of loudspeakers...............................................3

E18-SUB ................................................................................4

Connections.........................................................................................................4

Operation with D6 or D12.............................................................................5

Operation with E-PAC......................................................................................5

Operation with P1200A..................................................................................5

Technical specifications.....................................................................................6

Manufacturer's declarations................................................7

EU conformity of loudspeakers (CE symbol)..............................................7

WEEE Declaration (Disposal)..........................................................................7

General Information

E18-SUB Manual

Version 3.1 EN, 03/2008, D2076.E.03

Keep this manual with the product or in a safe place so that it is

available for future reference.

When reselling this product, hand over this manual to the new

customer.

If you supply d&b products, please draw the attention of your customers

to this manual. Enclose the relevant manuals with the systems. If you

require additional manuals for this purpose, you can order them from

d&b.

d&b audiotechnik GmbH

Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany

Telephone +49-7191-9669-0, Fax +49-7191-95 00 00

E-mail: [email protected], Internet: www.dbaudio.com

Safety precautions

Information regarding use of loudspeakers

WARNING! Never stand in the immediate vicinity of loudspeakers driven at a high

level. Professional loudspeaker systems are capable of causing a

sound pressure level detrimental to human health. Seemingly non-

critical sound levels (from approx. 95 dB SPL) can cause hearing

damage if people are exposed to it over a long period.

In order to prevent accidents when deploying loudspeakers on the

ground or when flown, please take note of the following:

When setting up the loudspeakers or loudspeaker stands, make sure

they are standing on a firm surface. If you place several systems on

top of one another, use straps to secure them against movement.

Only use accessories which have been tested and approved by d&b

for assembly and mobile deployment. Pay attention to the correct

application and maximum load capacity of the accessories as detailed

in our specific "Mounting instructions" or in our "Flying system and

rigging manuals".

Ensure that all additional hardware, fixings and fasteners used for

installation or mobile deployment are of an appropriate size and load

safety factor. Pay attention to the manufacturers' instructions and to

the relevant safety guidelines.

Regularly check the loudspeaker housings and accessories for visible

signs of wear and tear and replace them when necessary.

Regularly check all load bearing bolts in the mounting devices.

CAUTION! Loudspeakers produce a static magnetic field even if they are not

connected or are not in use. Therefore make sure when erecting and

transporting loudspeakers that they are nowhere near equipment and

objects which may be impaired or damaged by an external magnetic

field. Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic

data carriers (floppy disks, audio and video tapes, bank cards, etc.) is

sufficient; a distance of more than 1 m (3 ft) may be necessary with

computer and video monitors.

E18-SUB Manual (3.1 EN) Safety precautions - 1

E18-SUB

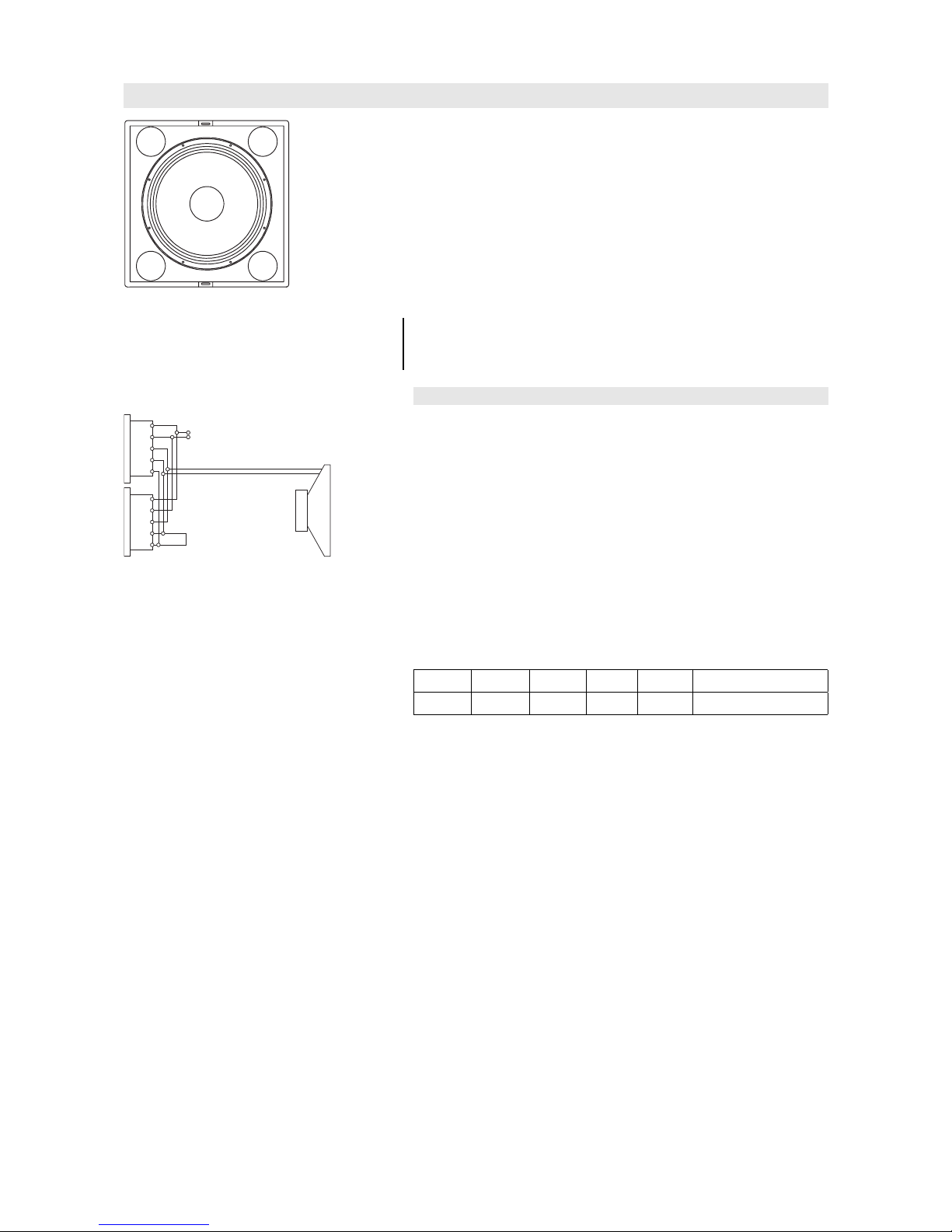

Fig. 1: E18-SUB loudspeaker

The E18-SUB is a compact, very low tuned bass-reflex design employing

a single 18" driver.

The E18-SUB cabinet is constructed from marine plywood and has an

impact resistant paint finish. The front of the loudspeaker cabinet is fitted

with a rigid metal grill covered with a replaceable acoustically

transparent foam and fitted with catches at the top and bottom to

secure an optional transport lid (E7908). The cabinet incorporates a

pair of steel handles and on the rear panel four heavy duty wheels. An

M20 threaded flange in the top panel accepts the Z5013 Loudspeaker

stand for the deployment of full range cabinets.

NOTICE: Only operate E18-SUB subwoofers with a correctly configured d&b

amplifier, otherwise there is a risk of damaging the loudspeaker

components.

Connections

Sense Drive

n.c.

Fig. 2: Connector wiring

The E18-SUB cabinet is fitted with a pair of EP5 connectors. All pins of

both connectors are wired in parallel.

The E18-SUB uses the pin assignments 3/4 and 5 (Pin 5: SenseDrive -

D12 only and in conjunction with 5-wire cables).

Pins 1/2 are designated to d&b full range systems.

Using one connector as the input, the second connector allows for direct

connection to additional cabinets.

The E18-SUB can be supplied with NL4 output connectors as an option

using the pin assignment 2+/2–. Pins 1+/1– are designated to d&b full

range systems. The D12 SenseDrive function is not available with NL4

connectors.

Pin equivalents of EP5 and NL4 connectors are listed in the table below.

EP5 1 2 3 4 5 (SenseDrive SUB)

NL4 1+ 1- 2+ 2- n.a.

E18-SUB Manual (3.1 EN) Page 4 of 8

Operation with D6 or D12

Select the controller setup E18-SUB.

Within the D12 amplifier this is available in "Dual Channel" and "Mix

TOP/SUB" mode.

Up to a total of two E18-SUB loudspeakers can be driven by each D6

or D12 amplifier channel.

In applications with low continuous levels and low ambient temperatures

up to three cabinets can be connected to a D12 channel.

When the D12 is operated in "Mix TOP/SUB" mode, the E18-SUB

cabinet and a respective full range cabinet can be linked together

locally and fed by a single 4-wire cable from either amplifier output

connector.

To apply SenseDrive for the subwoofer, EP5 connectors and 5-wire

cables have to be used. When operated in "Mix TOP/SUB" mode,

subwoofers have to be fed from the output B connector of the D12

amplifier.

Operation with E-PAC

Fig. 3: E-PAC version 2 configuration for

E18-SUB

To drive E18-SUB cabinets, the E-PAC has to be configured to E18-SUB

mode.

For an E-PAC version 2, the configuration is selected by setting the

appropriate DIP switches on the rear panel. DIP switches 1 and 2 (CUT

and HFA) are not functional with the configuration E18-SUB .

For an E-PAC version 3, the configuration is set via the encoder in

conjunction with an LCD.

The E-PAC can drive a single E18-SUB cabinet.

Operation with P1200A

Fig. 4: Controls on E18-SUB

controller module

Up to two E18-SUB cabinets can be driven by each P1200A power

amplifier channel fitted with an E18-SUB controller module. Fitting one

E18-SUB and one TOP controller module allows a single mainframe to

drive two E18-SUB and two mid/high cabinets. All cabinets can be

linked together locally and fed by a single 4-wire cable from either

mainframe output connector.

160 Hz switch

If the 160 Hz switch is selected, the upper operating frequency of the

system is increased from 110 Hz to 160 Hz.

E18-SUB Manual (3.1 EN) Page 5 of 8

Technical specifications

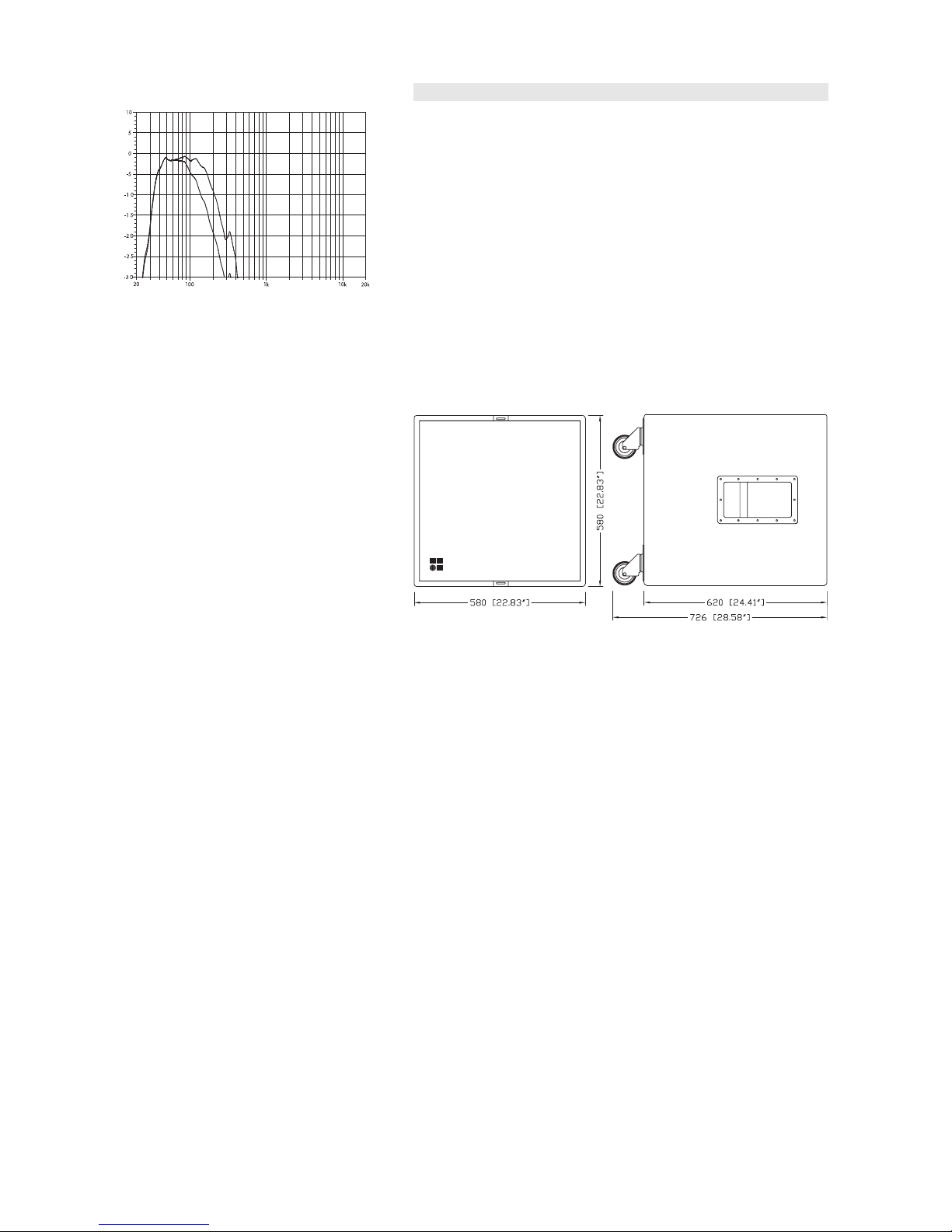

Fig. 5: E18-SUB frequency response,

standard and 160 Hz settings

E18-SUB system data

Frequency response (–5 dB).......................................................38 Hz - 110 / 160 Hz

Max. sound pressure (1 m, free field) with D12................................................132 dB

Max. sound pressure (1 m, free field) with D6...................................................128 dB

Max. sound pressure (1 m, free field) with P1200A.........................................130 dB

(SPLmax peak, pink noise test signal with crest factor of 4)

Input level (100 dB SPL / 1 m).............................................................................–11 dBu

E18-SUB subwoofer

Nominal impedance..................................................................................................8 ohms

Power handling capacity (RMS / peak 10 ms)........................................200 /800 W

Components..........................................................................................................18" driver

Connections................................................................................................................2 x EP5

Pin assignments....................................................3/4 and 5 (Pin 5: SenseDrive - D12)

optional......................................................................................................................2 x NL4

Pin assignments.........................................................................................................2+ / 2–

Weight...............................................................................................................42 kg (93 lb)

Fig. 6: Cabinet dimensions in mm [inch]

E18-SUB Manual (3.1 EN) Page 6 of 8

Manufacturer's declarations

EU conformity of loudspeakers (CE symbol)

This declaration applies to:

d&b E18-SUB, Z2253

manufactured by d&b audiotechnik GmbH.

All production versions of this type are included, provided they

correspond to the original technical version and have not been subject

to any later design or electromechanical modifications.

We herewith declare that said products are in conformity with the

provisions of the respective EC directives including all applicable

amendments.

A detailed declaration is available on request and can be ordered from

d&b or downloaded from the d&b website at www.dbaudio.com.

WEEE Declaration (Disposal)

Electrical and electronic equipment must be disposed of separately from

normal waste at the end of its operational lifetime.

Please dispose of this product according to the respective national

regulations or contractual agreements. If there are any further questions

concerning the disposal of this product please contact d&b audiotechnik.

E18-SUB Manual (3.1 EN) Page 7 of 8

d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00

D2076.E.03, 03/2008 © d&b audiotechnik GmbH
