D-Link Air DCF-660W Manuale utente

For use with Handheld or Pocket PCs with Windows CE 3.0 / Pocket PC 2002

in an “Ad Hoc” or “Infrastructure” network. This guide is for installation

purposes only. Please see your Manual for more detailed information.

Contents of Package:

• D-Link Air DCF-660W 2.4 GHz Wireless

Compact Flash Adapter

• Manual, Drivers, and Utility on CD

• Printed Quick Installation Guide

If any of the above items are missing, please

contact your reseller.

System Requirement:

• PDA with Windows CE 3.0 / Pocket PC 2002 operating system with at least

32 MB of memory

• Compact Flash Type I or Type II slot

• Computer with “Microsoft Active Sync” installed

• An 802.11b Access Point (e.g., DWL-1000AP for Infrastructure mode) or

another 802.11b wireless adapter (e.g., DWL-650 for Ad-Hoc mode.)

The default settings for the DCF-660W will work out of the box when used with

D-Link Air and D-Link Air Plus Wireless Routers and Access Points.

Installin

Window

g the DCF-660W Drivers using

s XP, 2000, Me, 98

• Place the PDA in its cradle with the DCF-660W in the Type I or II

slot. Keep the PDA turned on.

• Insert the driver CD that came with your DCF-660W into the CD-

ROM drive on your computer.

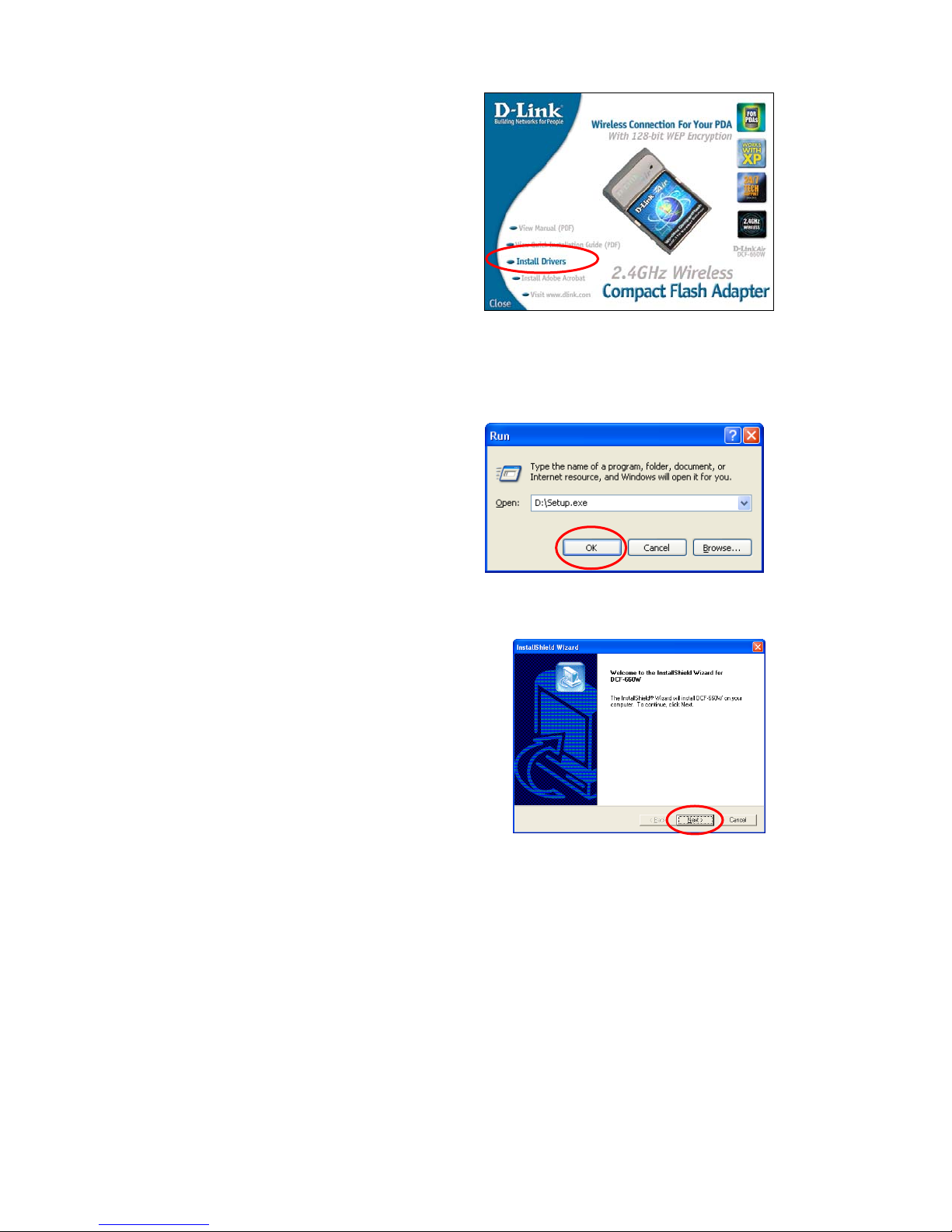

• Click on Install Drivers as

shown on the right. (Insert

Autorun SS)

. 1.1

If the Autorun function on your laptop computer does not automatically start,

proceed to the steps below. If it does, proceed to Fig. 1.3.

Go to Start > Run > type

D:\Setup.exe then click OK

Fig 1.2. XP setup screen.

NOTE: The letter “D” represents the

letter of the CD-ROM drive. Your

CD-ROM drive may be a different

drive letter.

The Windows 2000, Me, 98 screen will look similar to Fig 1.2.

Fig. 1.3

The InstallShield Wizard screen will

appear.

Click Next to continue

Click Yes

Fig. 1.4

Fig. 1.5

Click OK

Click Finish

Fig. 1.6

Driver installation is now complete

Now, proceed to Section 3 to properly configure the wireless settings for the

DCF-660W. Reset the PDA to finalize the DCF-660W driver installation.

• After resetting the PDA, the DCF-660W Compact Flash Adapter will finalize

its driver installation and the Settings screen

(Fig. 2.1) will appear. This section allows

users to set the IP address released from the

Wireless Router or Access Point.

• If the Settings screen does not appear, go to

Start > Settings > Connections and select

on IP Address icon tab. Select Use server-

assigned IP (dynamic IP) address via

DHCP or assign a specific IP address

(static IP) and click ok.

Check to see if the Wireless Router or Access

Point has a DHCP server built in. If DHCP

server is not available, select

“Use specific IP address” and enter in

the proper Static IP address, Subnet mask

and Default gateway information to access the

Wireless router or Access Point.

• By default the DCF-660W is set to “Use

server-assigned IP address.”

• To configure the SSID (Service Set

Identifier) and Network Type, go to Start >

Settings > select System tab > click on

DCF-660W CF Card icon.

Fig. 3.1

Configuring the DCF-660W Wireless Settings

Fig. 3.2

Select the “Configuration” tab (Fig. 3.3). By

default, it will display current wireless settings:

SSID - (Service Set Identifier) is a name that

identifies a wireless network. Access Points and

wireless clients attempting to connect to a specific

WLAN (Wireless Local Area Network) must use the

same SSID. The default setting is default. Note:

Specifying an SSID will prevent you from inadvertently

connecting to a different wireless network.

Network Type – Use “Infrastructure” mode if you

will be using a Wireless Router or Access Point in

your network. Use “Ad-hoc”, if you will not be

using an Access Point. Ad-hoc requires the same

channel and the same SSID for wireless devices on

the wireless network. Fig. 3.3

Power Saving Mode – The “Power Save” mode is used to extend battery life.

Note: In “Power Save” mode, the associated Wireless Router or the Access Point must support

Power Saving” for communication to be established.

“

Tx Rate – The default transfer rate of “Auto” which allows the DCF-660W to adjust

to the most optimal transfer rate available. However, the settings can be set at a fixed

ransfer rate.

If any changes are made in this section, select Apply to save changes.

For detailed explanation on the Ad-Hoc, Infrastructure mode, wireless basics,

and troubleshooting, please refer to the DWL-660W Manual.

he Wireless configuration of the

CF-660W is now complete

Troubleshooting

The illustration shows a typical wireless setup

for accessing the Internet connection using

the D-Link Air DCF-660W in a PDA.

In most scenarios, a wireless Access Point or

Access Point is used to connect to the wireless

local area network (WLAN) at home, office,

or public areas.

• Q: I cannot connect to the access point or wireless router.

A1: Make sure that the SSID on the DCF-660W CF adapter matches the

SSID on the Wireless Router or Access Point.

A2: Make sure the WEP encryption settings for the DWL-660W CF

adapter matches the Wireless Router or Access Point WEP encryption.

• Q: The DCF-660W link light is not on.

A: Check to see if the DCF-660W CF adapter is firmly inserted into a

type I or II slot in the PDA.

• Q: I am unable to access the Internet using the DWL-650.

A1: Check that the IP address, subnet mask, gateway, and DNS settings

are correctly entered for the network.

A2: Check the connection to the gateway by using the CF utility

software found in the Link section.

For detailed explanation on Ad-Hoc, Infrastructure mode, Basics of

networking, and troubleshooting, please refer to the DCF-660W Manual.

Contacting Technical Support

Thank you for purchasing D-Link Air DCF-660W. For any questions

or assistance using the DCF-660W, please feel free to contact

technical support.

The most recent software and documentation are available on the D-Link

website. D-Link provides free technical support for customers within the

United States during the warranty period on this product. U.S. customers can

contact D-Link Technical Support through our web site, or by phone.

D-Link Technical Support over Telephone:

(800) 758-5489

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

Building Networks For People
