D-Link D DPH-50U DPH-50U Manuale di istruzioni
DPH-50U VoIP USB Phone Adapter
Quick User Guide
Version 1.0
TABLE OF CONTENTS
1. INTRODUCTION........................................................................................3
2. PACKAGE CONTENTS.............................................................................4
3. REQUIREMENTS.......................................................................................5
4. DPH-50U INSTALLATION .........................................................................6
5. ENABLING DPH-50U ..............................................................................16
6. DPH-50U STATES ...................................................................................18
6.1 DPH-50U LEDS....................................................................................18
6.2 TESTING DPH-50U ................................................................................19
7. MAKING AND RECEIVING CALLS.........................................................22
7.1 SETTING UP SKYPE SPEED DIAL..............................................................22
7.2 SWITCHING BETWEEN VOIP AND REGULAR CALLS ...................................25
7.3 CONFERENCE CALL BETWEEN VOIP AND REGULAR CALLS.......................25
7.4 FORWARDING CALLS ..............................................................................25
7.5 TOLL BYPASS.........................................................................................29
7.6 SKYPE VOICEMAIL ..................................................................................33
7.7 RECORDER.............................................................................................34
7.8 CHANGING THE DEFAULT SETTINGS .........................................................36
8. DISABLING DPH-50U .............................................................................38
9. UNINSTALL .............................................................................................39
10. INSTALLING A NEW VERSION ............................................................40
11. TROUBLESHOOTING...........................................................................41
1. Introduction
The DPH-50U VoIP USB PhoneAdapter is an exciting new device that let’s
you make and receive Skype™ calls using your standard telephone handset.
After you follow the simple installation you will be able to do the following:
• Continue to make and receive regular calls as you normally do
• Make and receive Skype™ calls using your standard telephone
• Forward Skype™ calls to your mobile phone
• Make Skype™ calls from your mobile phone even when you are away
from your computer
• Switch between a Skype™ call and a regular phone call
Please view the readme.txt that is installed with the DPH-50U driver. It lists
any known issues that may exist.
2. Package Contents
The DPH-50U package includes the following (note that your particular
hardware and cables may look slightly different than shown below).
1. DPH-50U
2. USB Cable
3. Telephone Cable
4. CD-ROM
3. Requirements
In order to install the DPH-50U VoIP USB Phone Adapter you will need the
following:
1. DPH-50U VoIP USB PhoneAdapter
2. USB cable
3. RJ11 cable
4. Telephone (regular telephone, cordless phone, DECT phone, …)
5. Telephone service (for conf call, 3 way calling and forwarding features)
6. Broadband internet service is recommended
7. PC with the following minimum specifications:
o Pentium 400MHz or equivalent
o Windows 2000 or XP
o Available USB port (1.0, 1.1 or 2.0)
o Skype™ version 1.1.079 or higher (www.skype.com) must be installed
o 128MB RAM
o 10MB available hard disk space
o CD-ROM drive to install DPH-50U software from the supplied
CD-ROM
Note that the DPH-50U VoIP USB Phone Adapter must be connected
directly to the PC USB port or to an AC Powered USB hub. It CANNOT be
installed on a bus powered USB hub.
4. DPH-50U Installation
DO NOT CONNECT THE DPH-50U VoIP USB Phone
Adapter TO YOUR COMPUTER UNTIL INSTRUCTED
TO DO SO BY THE DPH-50U INSTALLATION WIZARD
The following instructions will guide you to through the process of installing
the DPH-50U VoIP USB PhoneAdapter.
The installation procedure is to:
• Install Skype™ (step 1 below)
• Start the DPH-50U software installation (step 2 below)
• Plug in the DPH-50U WHEN INSTRUCTED TO DO SO (step 2 below)
• Verify the installation is OK (step 3 below)
• Connect a telephone handset to the DPH-50U (step 4 below)
• Connect the DPH-50U to the wall jack (step 5 below). Note that this is
optional and only required for the forwarding and conferencing
features.
• Use your DPH-50U to make and receive Skype™ calls
The detailed instructions follow:
STEP 1: If Skype™ is not already installed on your computer, visit
http://www.skype.com and follow the instructions there to install Skype™. Verify
that Skype™ is working before installing the DPH-50U.
STEP 2: Insert the supplied CD-ROM into your PC CD-ROM drive. The
installation should start automatically. Please press “Install Utility”
You will see the following popup. Press Yes to proceed or No to cancel.
You will see the End User License Agreement. Click the “I have read …”
checkbox and press the I Agree button as shown below.
You will see the following progress bar below indicating that the installation is
proceeding.
Wait until you see the following popup and press the OK button.
Connect the USB cable to the D-Link VoIP USB PhoneAdapter USB port as
shown below:
The other end of the USB cable must be connected to a USB port on your
computer as shown below,
or to an AC Powered USB hub.
The D-Link USB Phone Adapter MUST not be connected to a bus
powered USB hub.
You will see the following Windows New Hardware Found Wizard.
Connect PC Connect NB
Select Install the software automatically (Recommended) and press the Next
button.

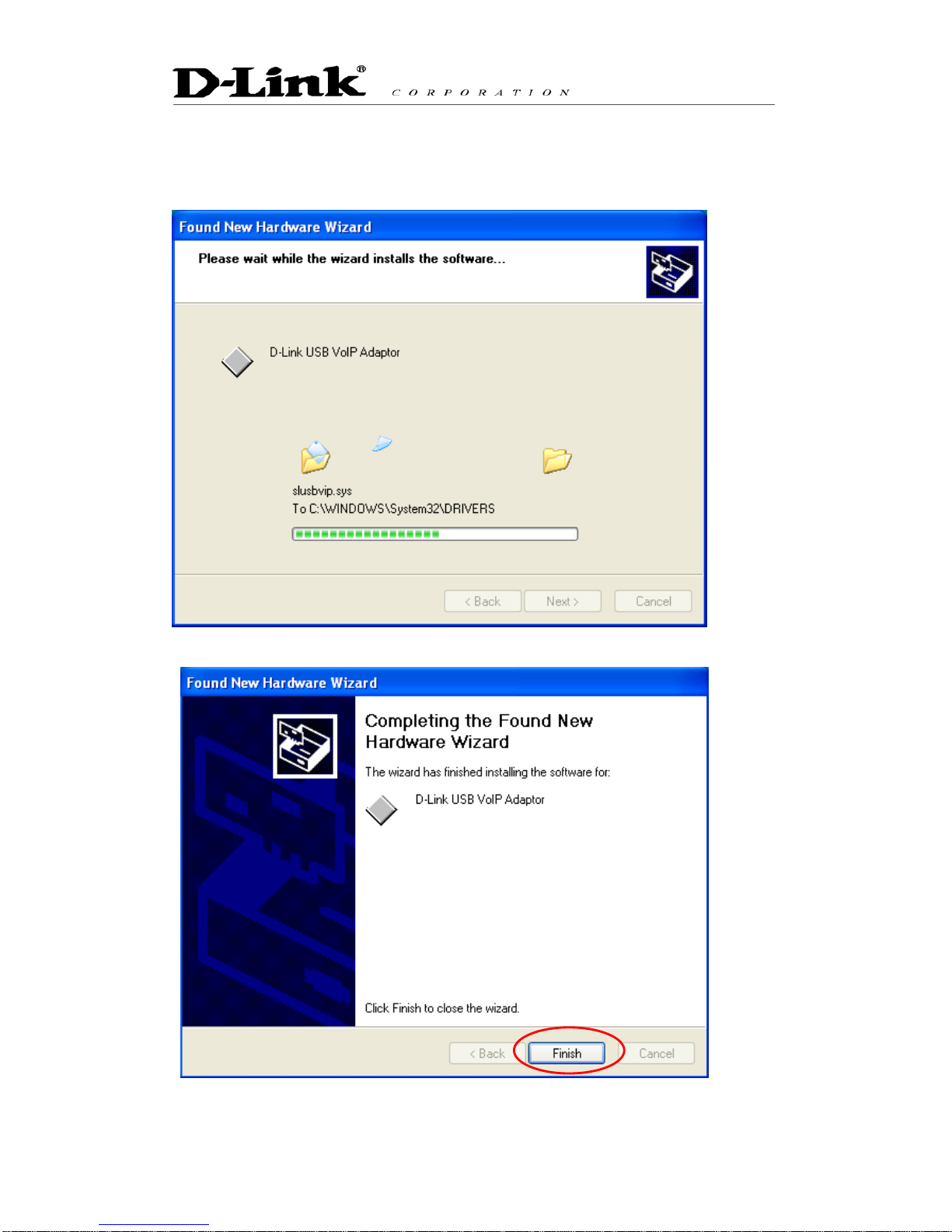

The installation will continue and you will see the following screen.
When you see the following screen, press the Finish button.
