D-MAX DCC-520D series Manuale utente

Color Dome Camera

650TVL

MANUAL

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits for a

Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and should conform

to all local codes

The camera needs periodic inspection.

Contact an authorized technician for inspection.

Stop using your camera when you find a malfunction.

If you use your camera around smoke or unusual heat for a long time,

fire may be caused.

Do not Install the camera on a surface that can not support it.

Unless the surface is suitable, it could cause falling or other hazards.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not disassemble the camera.

It may result in fire, electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in fire or other hazards.

■ Warning

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

It is one of the most important parts of

the camera. Be careful not to be stained

by fingerprint.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If it is exposed to radioactivity,

For heated CCD, it will be out of order.

It can damage the CCD.

It can cause malfunctions to occur.

■Precautions

1.Features --------------------------------- 6

2. Cable Connection & OSD Control --------------------------------- 7

3. Setup Menu Operation --------------------------------- 8

4. Troubleshooting --------------------------------- 18

5. Dimensions --------------------------------- 19

6. Specifications --------------------------------- 20

■Contents

☺Ultra High Resolution 650 TV Lines

Clear image quality has been achieved by employing a SONY CCD with 410,000(effective)

pixels, which provides a horizontal resolution of 620 TV lines.

☺Excellent Sensitivity

The built-in high sensitivity COLOR CCD enable a clear image even in 0.1Lux (color),

0.00001Lux (Sens-Up) or lower illumination.

☺Electrical Day & Night ( True Day & Night : Option)

The camera identifies whether it is day or night and automatically switches to the

appropriate mode, depending on its environment. By day, the camera switches to color

mode in order to maintain optimal color. At night, it switches to B/W mode so as to obtain

better picture definition.

☺Motion Detection

Since the camera detects motion and generates signals without any additional external

sensors, you can monitor activity more efficiently by connecting the camera to an alarm

device.

☺D-WDR

Built-in Digital WDR

☺White Defect restoration

When the camera has white defect in the CCD with ages, User can restore it using OSD

menu.

☺2D-DNR

The high performance New DSP chip dramatically reduces the gain noise in digital image

processing, producing clear, sharp images in low lighting environment. It provides the

further optimized DNR performance.

☺Controlled by OSD Menu

The camera can be controlled by selecting text displayed on the monitor screen.

☺Additional Functions

HSBLC(High Suppress Back Light Compensation), SYNC(INT/LL), SENS-UP, FREEZE,

Mirror(H,V-FLIP,ROTATE), D-ZOOM, Negative Image, Sharpness, Motion Detection and

Privacy functions are provided.

1. Features

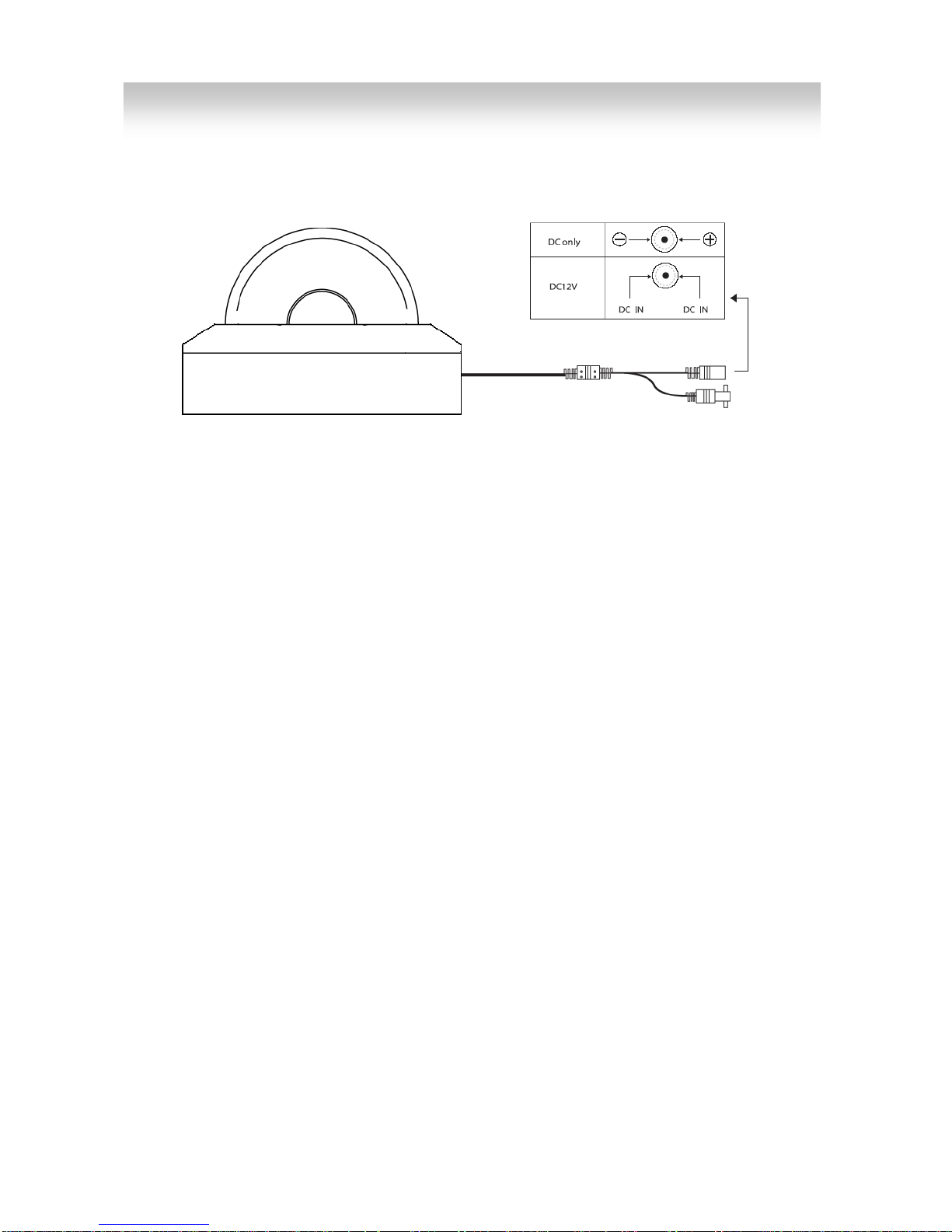

1) Cable Connection

2) OSD Control

① 3AXIS BRACKET

-Please loosen screws and fix tilted and panned position.

③ LENS : Vari-Focal Auto Iris Lens

③ OSD PCB

- SETUP button : Used for the menu display. This button can be used to confirm

settings after changing the value of the selected function or current conditions.

- UP & DOWN buttons : Used for selecting items by moving the cursor up or down

on the menu screen.

- LEFT & RIGHT buttons : Used when changing item values, by moving the cursor

to the left or right on the menu screen

2. Cable Connection & OSD Control

SETUP

LENS DC

EXPOSURE

WHITEBAL ATW

BACKLIGHT OFF

DAY& NIGHT COLOR

DPC

SPECIAL

RESET

EXIT

EXPOSURE

SHUTTER 1/60

BRIGHTNESS --|------ 050

AGC MIDDLE

D-WDR OFF

RETURN RET

•Please press the SETUP button to set OSD menu. The SETUP menu is displayed like

under the picture on the monitor.

•if it has been selected. You may move up/down to use another function by up/down

buttons and change the status by pressing left/right buttons.

•After finishing all desired setting, Please select 'EXIT.

Note) If ‘ ’ appears at the mode you wish to operate, it means that there is a sub-menu

which can be selected by pressing the SETUP button.

LENS

This menu is used to select kind of the lens.

•DC / VIDEO / MANUAL

1. DC : Please select, when you use DC

auto iris lens

2. VIDEO : please select, when you use

video iris lens

3. MANUAL : please select, when you use

manual lens

EXPOSURE

You can set up Exposure here.

→

3. Setup Menu Operation

SETUP

LENS DC

EXPOSURE

WHITEBAL ATW

BACKLIGHT OFF

DAY& NIGHT COLOR

DPC

SPECIAL

RESET

EXIT

SETUP

1.LENS DC

2. EXPOSURE

3.WHITEBAL ATW

4.BACKLIGHT OFF

5. DAY & NIGHT COLOR

6.DPC

7. SPECIAL

8. RESET

9.EXIT

5. Setup Menu Operation

When the SETUP menu screen is displayed, select EXPOSURE by using the Up and

Down buttons so that the indicates EXPOSURE.

Select a desired mode using the UP and DOWN buttons.

①SHUTTER

You can select either auto or manual shutter.

• FLK: Select this when you experience picture flicker, which can happen when there is a

clash with the frequency of the installed lighting.

• MANUAL: The shutter speed can be controlled manually.

• 1/50, AUTO, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000

selectable.

• AUTO: Select this to control the shutter speed automatically. The shutter speed is

automatically controlled depending on the ambient illumination of the subject.

②BRIGHTNESS

You can adjust BRIGHTNESS.

• Level: 1 ~ 255

③AGC (Auto Gain Control)

The higher the gain, the brighter the screen But it make a lot of noise.

• OFF: Deactivates the AGC function.

• LOW: Allows automatic gain control to 14 dB

• MIDDLE: Allows automatic gain control to 28dB

• HIGH: Allows automatic gain control to 32dB

④DWDR (Digital WDR)

When there are both bright and dark areas at the same time, this mode makes both areas

distinctive.

• OFF: Deactivates the WDR function

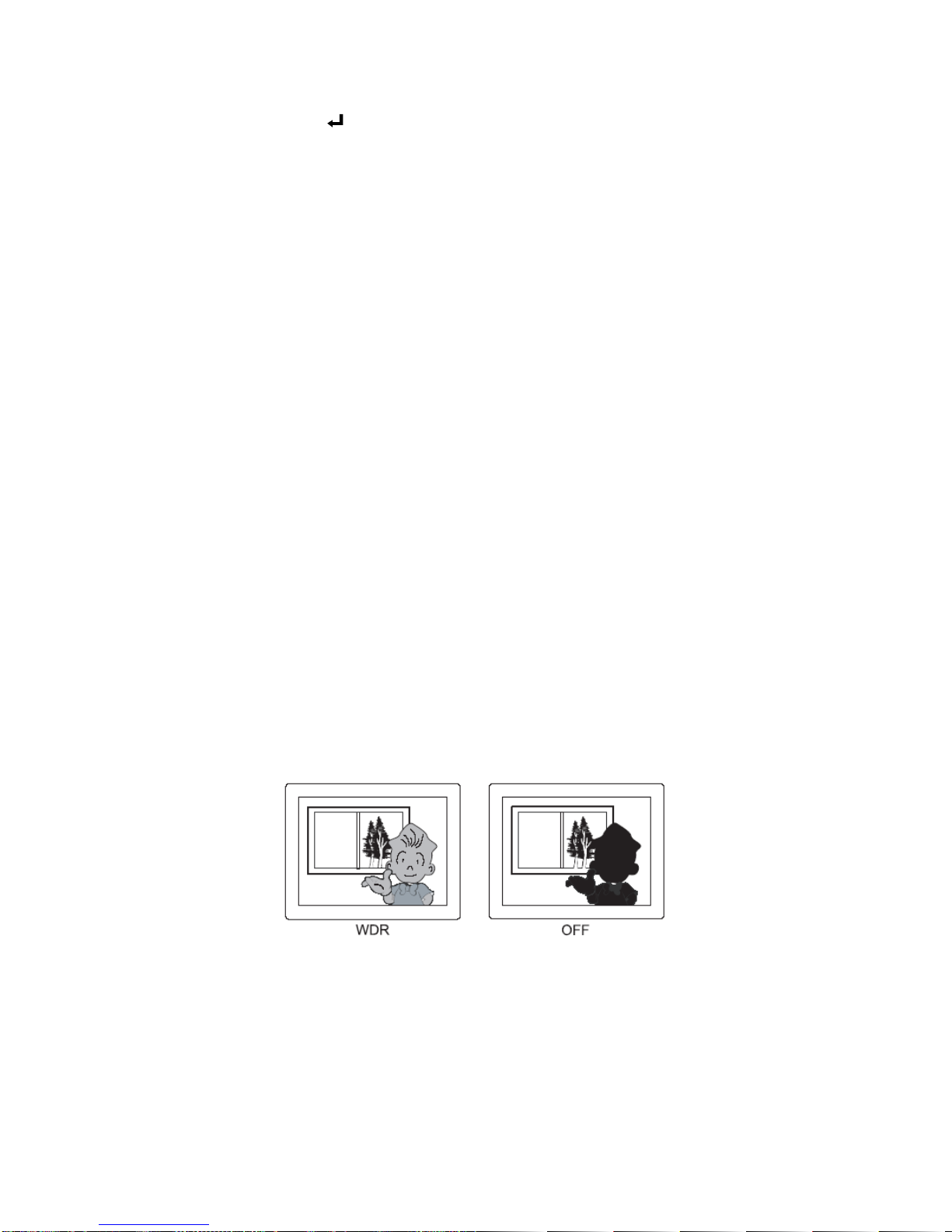

• ON: Digital WDR function will operate like below pictures.

SETUP

LENS DC

EXPOSURE

WHITEBAL ATW

BACKLIGHT OFF

DAY& NIGHT COLOR

DPC

SPECIAL

RESET

EXIT

WHITE BALANCE

The screen color can be adjusted by using the WHITE BALANCE function.

Please select the mode you wish to operate by pressing the LEFT or RIGHT button.

①ATW1: This automatically finds white color from color temperature between

2000~18,000°K.

②ATW2: This automatically finds white color from temperature between 4000~12,000°K.

③AWC->SET: To find the optimal setting for the current luminance environment

in this mode, set the point the camera towards a sheet of white paper and press the

SET button. If the environment changes, read just it.

④MANUAL : Select this to fine-tune White Balance manually.

Set White Balance first by using the ATW mode.

After that switch to MANUAL mode, fine-tune the White Balance and then press the SET

button.

▶INDOOR: Fixed setting, adjusting white balance by 3,200°K.

▶OUTDOOR: Fixed setting, adjusting white balance by 6,300°K.

BACKLIGHT

When there is a strong backlight behind the object, clear images of the background as well

as the object can still be obtained by using the BLC or HLC function.

WBL MANUAL

COLOR TEMP

BLUE IIIIIIIIIIIIIIIIIIIII 126

RED IIIIIIIIIIIIIIIIIIIII 95

RETURN RET
