D-MAX DCC-601DV Manuale utente
Digital Day & Night
Color Dome Camera
사용 설명서
용서
DCC-601DV
MANUAL
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to all local codes
3
The camera needs periodic inspection.
Contact an authorized technician for inspection.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time,
fire may be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.
■ Warning
4

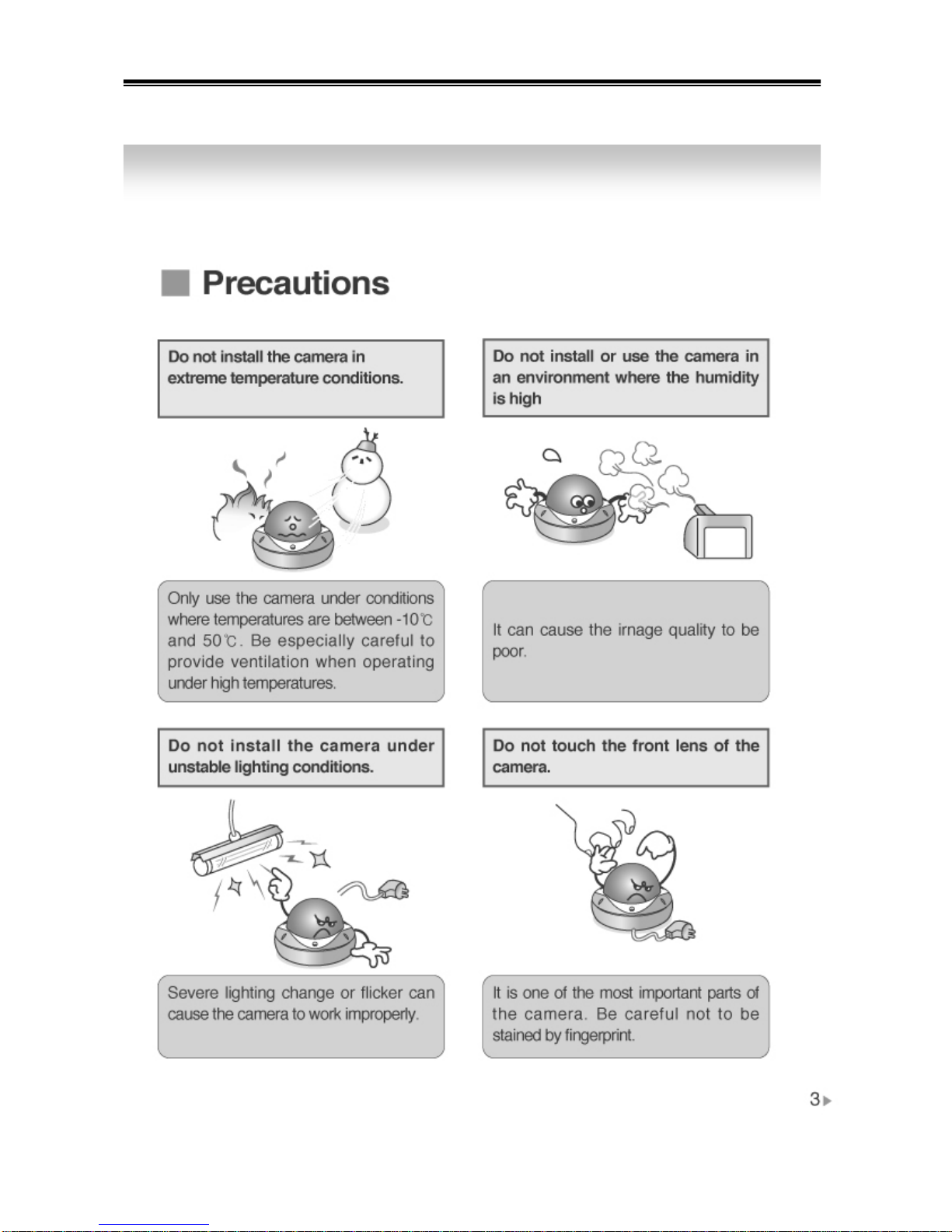

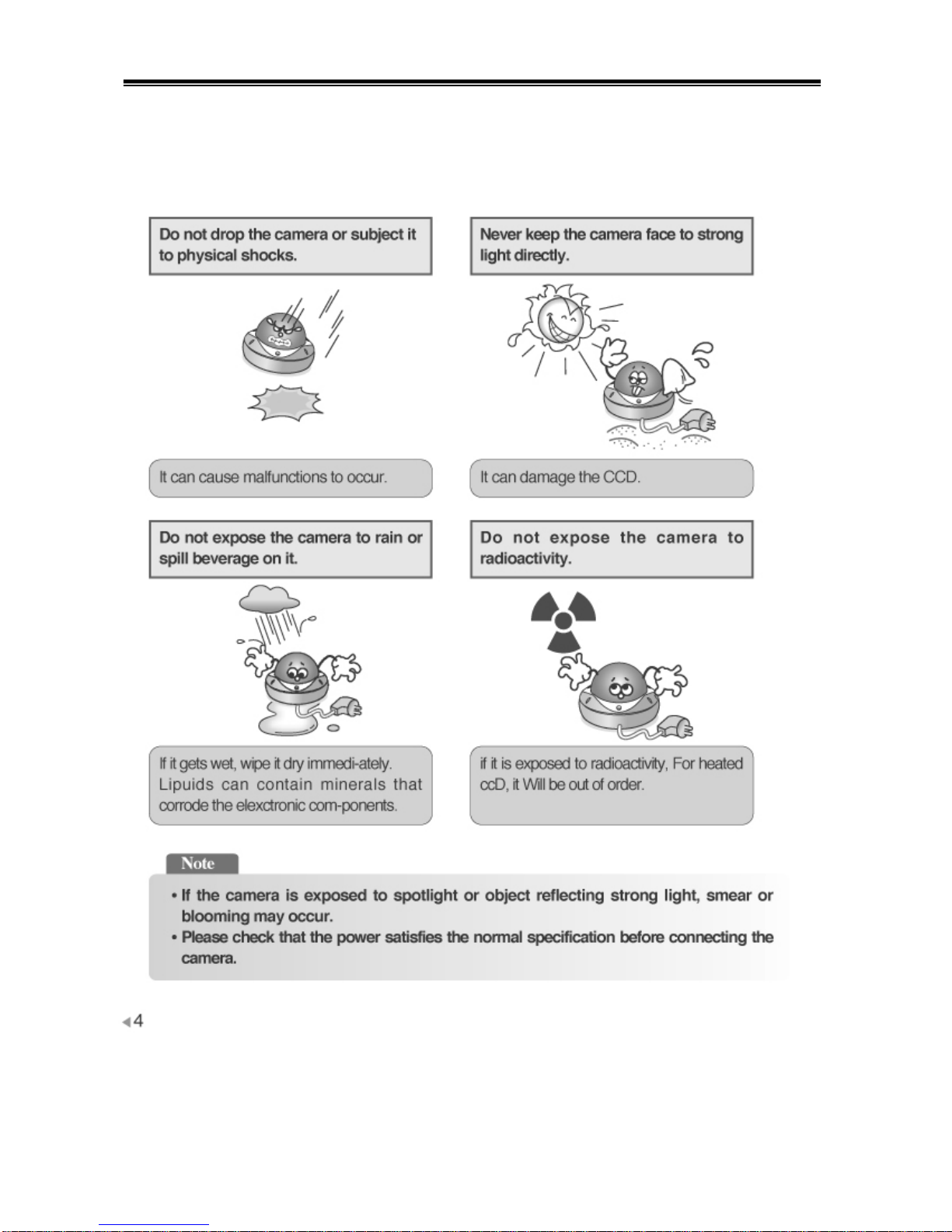

■Precautions
5
6
1.Features
--------------------------------- 7
2. Components & Cable Connection
--------------------------------- 8
3. Names and functions of parts
--------------------------------- 9
4. Installation & Dimension
--------------------------------- 10
5. Setup Menu Operation
--------------------------------- 11
6. Troubleshooting
--------------------------------- 25
7. Specifications
--------------------------------- 26
■Contents
7
☺Horizontal Resolution 560 TVLines
Clear image quality has been achieved by employing a SONY CCD with 410,000
(effective) pixels, which provides a horizontal resolution of 560 TV lines.
☺True DAY & NIGHT
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and BW mode operates in nighttime conditions to enhance the
definition of the image.
☺Electronic IRIS
The electronic IRIS function enables continuous automatic control of the shutter between
1/60~1/120,000 seconds.
☺PRIVACY Function
The PRIVACY function conceals the areas you do not wish to appear on the screen.
☺3Axis built-in Vandal Resistant Dome Housing
☺High Sensitivity
The built-in high sensitivity SONY COLOR CCD enables a clear image even in
0.3Lux(0.03Lux B/W) or as low as 0.00004Lux with SENS-UP.
☺DNR (Digital Noise Reduction)
The amount of low illuminance noise has been significantly reduced, and the
signal-to-noise ratio (S/N ratio) as well as horizontal resolution have been improved,
resulting in a clear and sharp image display even in the dark.
☺Controlled by OSD Menu
The camera can be controlled by selecting text displayed on the monitor screen.
☺Additional Functions
SENS-UP, MOTION DETECTION, MIRROR, SHARPNESS and SYNC (INT/LL) functions
are also available.
1. Features
8

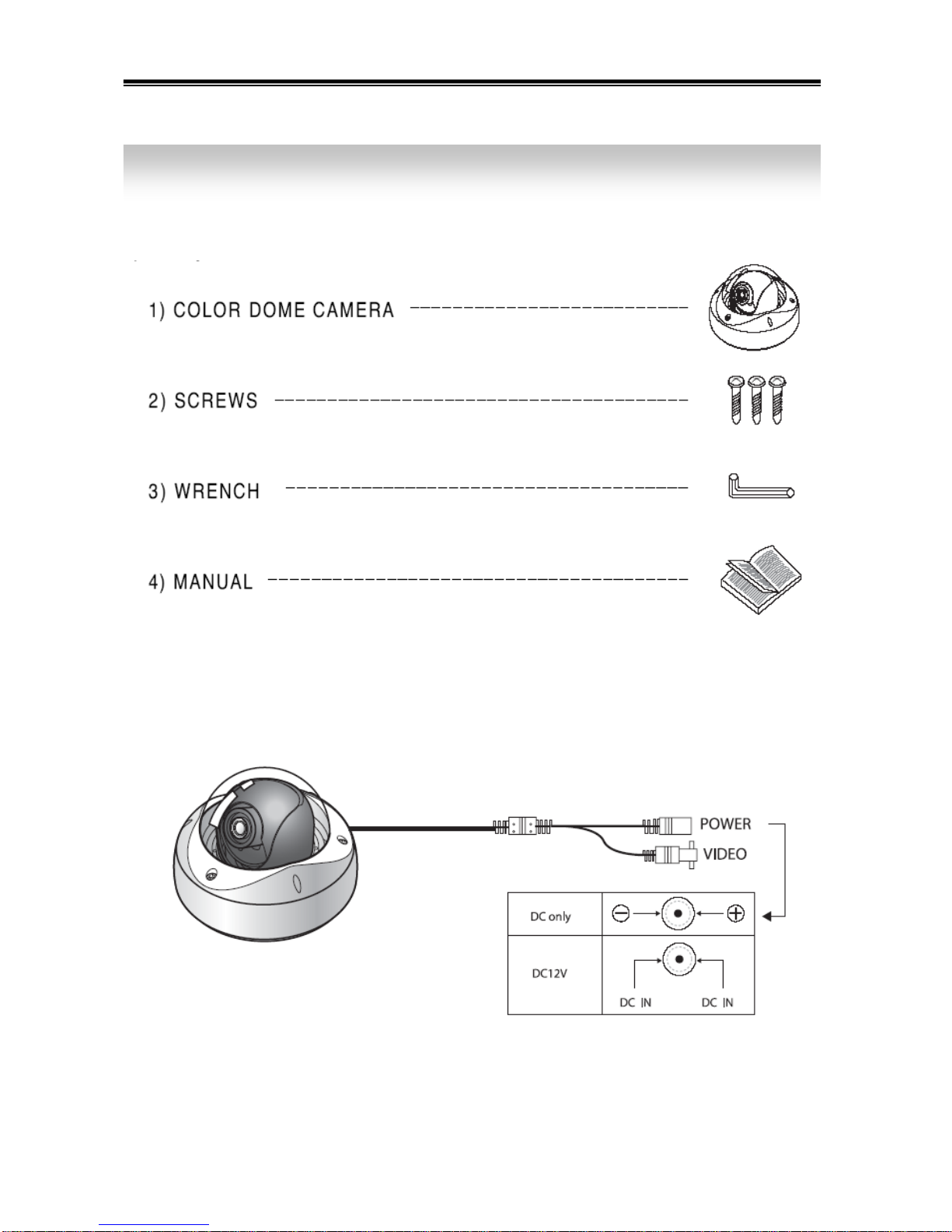

1) Components
2) Cable Connection
2. Components & Cable Connection
9

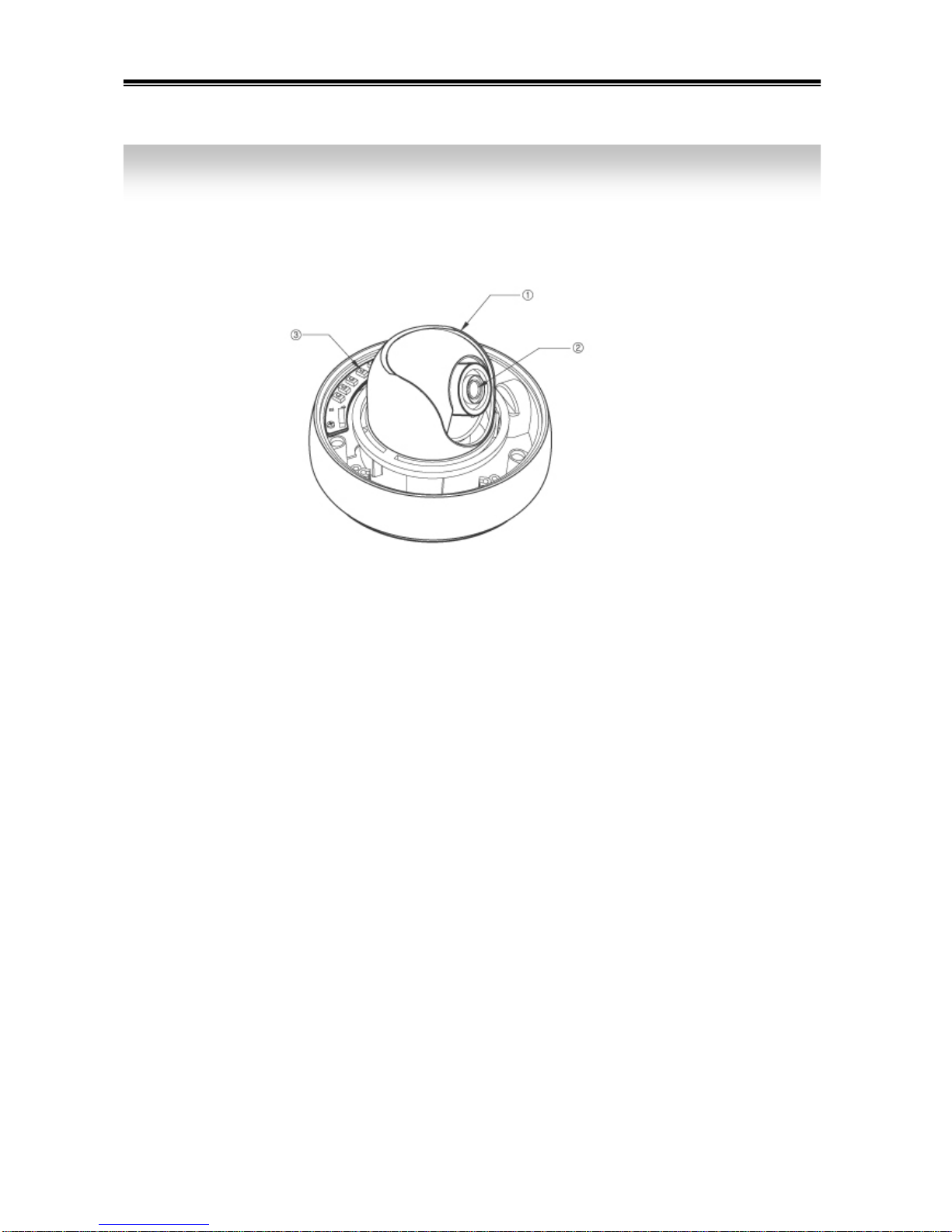

1) Names
2) Functions
① 3AXIS BRACKET
-Please loosen screws and fix tilted and panned position.
③ LENS : Vari-Focal Auto Iris Lens
③ OSD PCB
- SETUP button : Used for the menu display. This button can be used to confirm
settings after changing the value of the selected function or current conditions.
- UP & DOWN buttons : Used for selecting items by moving the cursor up or down
on the menu screen.
- LEFT & RIGHT buttons : Used when changing item values, by moving the cursor
to the left or right on the menu screen
3. Names and Functions of Parts
10
1) Installation
2) Dimension
4. Installation & Dimension
