Installation and
configuration guide
(Lite Version)
DH-TPC-BF2221-HTM
IVSS7008-1I
Blackbody
Ver.1.0
1
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
The purpose of this guide is to give you a clear understanding
of how to install and configure the Human Body Temperature
measurement system, from Dahua technology Co., Ltd
Aim and Purpose
2
Table of content
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
3
Tab l e of Co n t e n t
General Description .................................................................................................................................. 4
Installation preparation ............................................................................................................................ 5
Environment .............................................................................................................................................. 6
Installation ................................................................................................................................................ 7
Mounting camera and Blackbody ......................................................................................................... 8
Wiring .................................................................................................................................................. 15
Connecting Monitor and mouse ......................................................................................................... 16
Configuration .......................................................................................................................................... 17
IVSS startup wizzard ............................................................................................................................ 18
Add camera to IVSS ............................................................................................................................. 20
Setup perimeters for Camera and Blackbody ..................................................................................... 22
adjust Camera and Blackbody ............................................................................................................. 23
Test solution ........................................................................................................................................ 23
Installation precautions .......................................................................................................................... 26
Wayfinding .............................................................................................................................................. 30
Stickers ( Install stickers to ensure proper wayfinding/people Flow .................................................. 30
FAQ .......................................................................................................................................................... 31
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
•Become familiar with the application of Dahua Thermal Body Temp. Measurement Solution
•Get the necessary knowledge of equipment, installation and wiring, etc.
•Understand how to use the system
•Understand how to debug the system
•Get the knowledge of the solution FAQ;
Dahua Technology Co., Ltd is presenting a thermal camera solution that is capable of highly accurate
body temperature measurement ±0.3℃(with blackbody). Built-in AI algorithm for multi-person
measuring up to 2m distance, which enables fast and non-contact. This solution is working with an
IVSS server which can provide an overview during monitoring with temperature measurement as the
main focus and trigger multiple alarms generated from this, furthermore, we can generate statistics
and search for specific groups with high temperature.
General Description
4
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Installation preparation
BlackbodyThermal Network Value Hybrid
Bullet Camera
DH-TPC-BF2221-HTM
IVSS7008-1I Server
Poe Switch
5 Port
Monitor
DHL32-F600
2X Tripod incl Brackets HDMI Cable
10M Ethernet Cable
Make sure to check if all these
devices/materials are present
5
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Environment
•It is required that the visible light channel has enough illumination and avoid the influence of
backlight, reflection, change of strong light and occlusion, etc.
•It is forbidden to have high-temperature heat source or sunlight in the thermal imaging
picture, to avoid the interference of heat source such as a heater, hot water point, microwave
oven, high-power lamp, radiator, etc., so as to avoid the damage of detector.
•The installation area shall be relatively isolated from the outside environment without wind
and stability, to avoid the outdoor or the scene connected with the outside, which is not
suitable for the environment with airflow or strong electromagnetic interference or vibration.
6
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Installation
7
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.

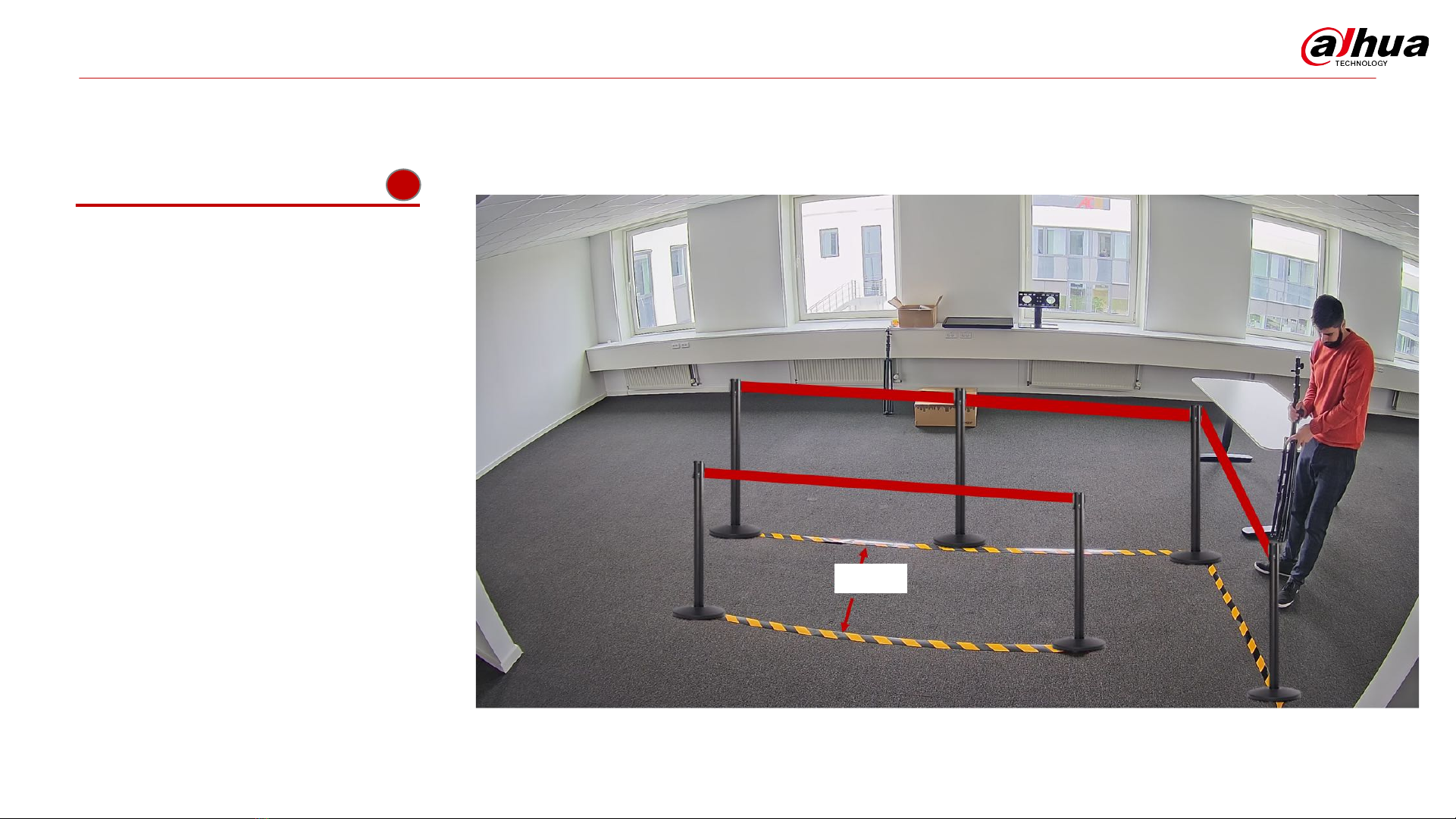

•The area needs to be
defined and marked
clearly with pullout
safety barriers or similar.
•The flow of People
should, in this case,
begin from the left and
exit in the bottom right
side, it could be
opposite as long as
diagram 2 is followed.
Installation Diagram
1
8
90cm
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.

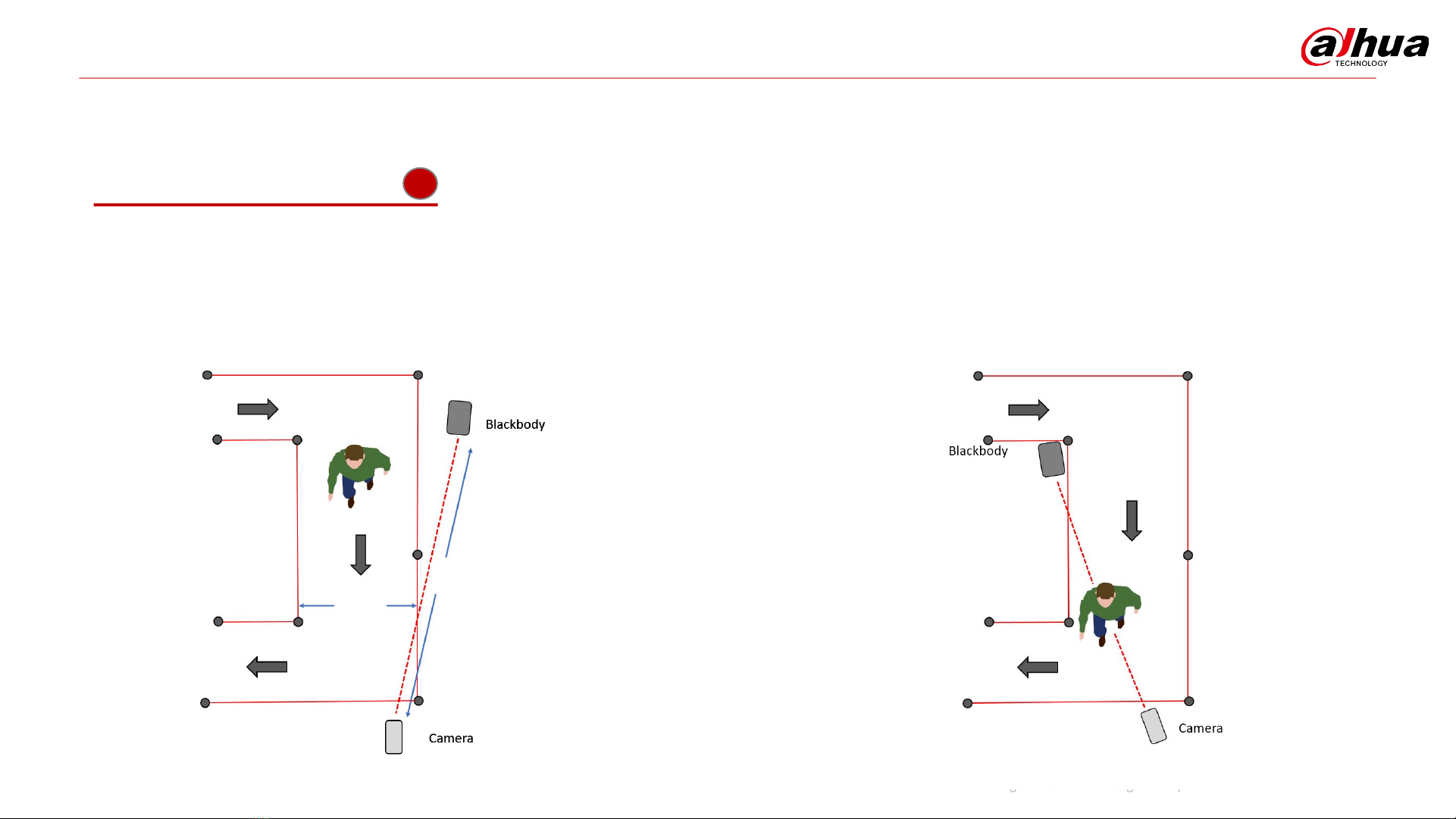

RIGHT
PLACEMENT
Here the person in not blocking the line of
sight between camera and Blackbody.
Here the person is blocking the line of sight between
camera and Blackbody, which will affect the accuracy.
Installation Diagram
WRONG
PLACEMENT
2
9
2M
90cm
Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Installation Diagram
3
•Here it is shown how the
placement of Blackbody
and camera should be if
we need the flow to
start from left-to-right or
from right-to-left.
•It is just important that
we make sure a person
is not able t block the
line of sight between
Blackbody and camera
during the temperature
measurement. 10
