Danfoss Genesis Passive Manuale utente

MAKING MODERN LIVING POSSIBLE

Installation Guide

Cooling module for domestic heat pump (Genesis

platform), Passive and Passive/Active

www.heating.danfoss.com

Danfoss A/S is not liable or bound by warranty if these

instructions are not adhered to during installation or service.

The English language is used for the original instructions.

Other languages are a translation of the original instructions.

(Directive 2006/42/EC)

Table of Contents

1 About documents and decals ................................... 4

1.1 Symbols on decals ...................................... 4

2Important information/Safety instructions .......................... 5

2.1 General safety precautions ................................. 5

2.2 Electrical connection ..................................... 7

3Area of use .............................................. 8

3.1 Area of use .......................................... 8

4Installation .............................................. 9

4.1 Dimensions and connections, Passive ........................... 9

4.2 Dimensions and connections, Passive/Active ....................... 10

4.3 Electrical installation ..................................... 11

5 Configuration in the control system ............................... 13

5.1 Display description ...................................... 13

5.2 Function during cooling operation ............................. 14

6 External available pressure .................................... 16

6.1 External available pressure, Passive, H–J .......................... 16

6.2 External available pressure, Passive/Active H-J ...................... 17

6.3 Cooling Module, Heating .................................. 18

6.4 Cooling Module, Passive mode ............................... 19

6.5 Cooling Module, Active cool mode ............................. 20

7 Internal wiring diagram ...................................... 21

7.1 Electrical Wiring Cooling Module Passive 230 V ...................... 21

7.2 Electrical Wiring Cooling Module Passive/Active 230 V ................. 22

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

Danfoss Heating Solutions VIMAB102 3

1 About documents and decals

1.1 Symbols on decals

The following symbols can occur on decals on the different parts of the heat pump. Which symbols are used

depends on the heat pump model.

1.1.1 General

Warning, danger!

Read the documentation provided.

Warning, hazardous electrical voltage!

Warning, hot surfaces!

Warning, moving parts!

Warning, risk of crushing injury!

1.1.2 Electrical components

Explanation

Component, ordinary delivery according to proposed system solutions

Components, accessories according to proposed system solutions

1.1.3 Pipe connections

Tap water

Heating system

Brine system

Expansion tank with safety valve, brine

Air bleeding

Water heater

Temperature and pressure relief valve

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

VIMAB102 Danfoss Heating Solutions

2 Important information/Safety instructions

2.1 General safety precautions

Warning This appliance can be used by children aged 8

years and above, and by persons with reduced

physical, sensory or mental capabilities or lack

of experience or knowledge, provided that

they are supervised or have been instructed in

the safe use of the appliance and understand

the hazards involved. Children must not clean

or carry out user maintenance on the appli-

ance except under adult supervision.

Warning Ensure that children do not play with the

product.

Warning The installation must only be carried out by a

qualified installation engineer, following ap-

plicable rules and regulations in addition to

these installation instructions.

Caution Installation and connection should be carried

out in accordance with the instructions, in or-

der to avoid subjecting local residents to noise

disturbance.

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

Danfoss Heating Solutions VIMAB102 5

Caution The cooling appliance must be mounted

hanging vertically on a wall. that can support

the gross weight of the heating appliance. The

central distance for mounting holes is 530

mm. Pipe installation is carried out according

to the diagrams.

To prevent leaks ensure that there are no

stresses in the connecting pipes!

It is important that the heating and brine cir-

cuits are completely bled after installation.

Bleed valves must be installed where necessa-

ry.

Caution Only spare parts approved by Danfoss Värme-

pumpar may be used for this appliance.

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

VIMAB102 Danfoss Heating Solutions

2.2 Electrical connection

Warning Hazardous electrical voltage! The terminal

blocks are live and can cause death through

electric shock. All power supplies must be iso-

lated before electrical installation is started.

The cooling module is connected internally at

the factory, for this reason electrical installa-

tion consists primarily of the connection of

the power supply.

Caution Electrical installation may only be carried out

by an authorized electrician and must follow

applicable local and national regulations.

Caution The installation may only be commissioned if

the heating system, water heater and brine

system have been filled and bled. Otherwise

the circulation pumps can be damaged.

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

Danfoss Heating Solutions VIMAB102 7

3 Area of use

3.1 Area of use

The passive/active cooling module can be used for cooling requirements greater than what can be obtained

through only passive cooling (free cooling). For cooling requirements at max 20 kW.

The cooling modules make it possible to retain either passive or passive/active cooling from the rock –ground-

water collectors. The distribution system for this can be the radiator system (fan coils) or under floor heating

systems. Cooling starts when the outside temperature exceeds the set value for seasonal stop.

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

VIMAB102 Danfoss Heating Solutions

4 Installation

4.1 Dimensions and connections, Passive

The cooling module must be mounted vertically on a

wall. The central distance between holes is 530 mm.

Pipe installation is carried out according to the dia-

grams.

722 60

475

16085

599

245 120

125 240

Position Name

1 Cooling module

2 Fan coils

3 Expansion card

4 Heat pump

5 Ground source

Position Name

A Brine line out 1

B Brine line in 1

H Cooling supply line

J Cooling return line

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

Danfoss Heating Solutions VIMAB102 9

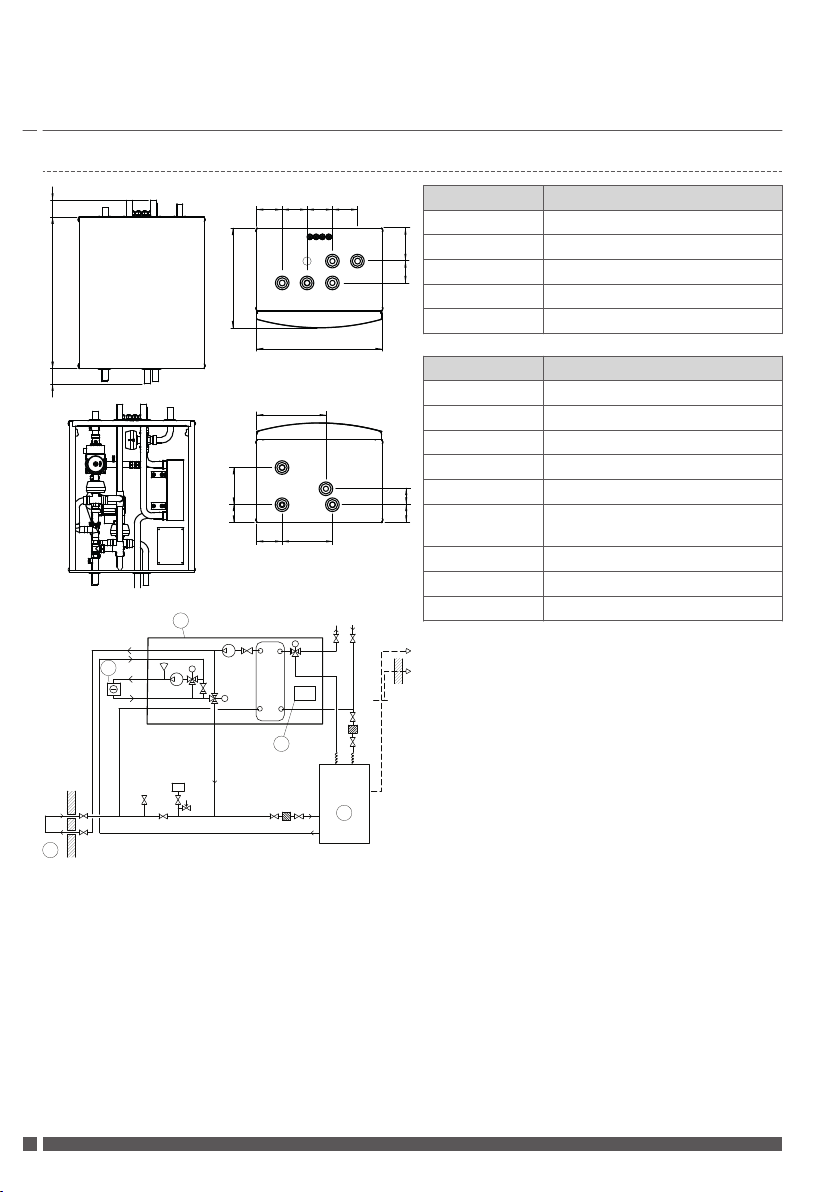

4.2 Dimensions and connections, Passive/Active

72260 60

GH J

475

599

160105

85 75

85 175

125 120120 120

125 240

330

Position Name

1 Cooling module

2 Fan coils

3 Expansion card

4 Heat pump

5 Ground source

Position Name

A Brine line out 1

B Brine line in 1

C Brine line out 2

D Brine line in 2

E Supply line heating system

F Heating system supply line heat

pump

G Return heating system

H Cooling supply line

J Cooling return line

Installation Guide Cooling module for domestic heat pump (Genesis platform),

Passive and Passive/Active

VIMAB102 Danfoss Heating Solutions
