Danfoss Heating 3

Installation Instructions

TP7000 Range

Electronic Programmable Room Thermostat

Index

1.0 Installation Guide .....................................................................................4

2.0 System Overview.......................................................................................4

3.0 Installation ...................................................................................................5

3.1 DIL Switch Settings ...........................................................................5

3.2 Setting Optimum Start Control....................................................6

3.3 TP7000 Wiring (Not RF models)....................................................6

3.4 Receiver Wiring (RF models) ..........................................................7

3.5 Commissioning (RF versions only)...............................................7

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

TP7000 RANGE

Thermostat Features TP7000-RF TP7000

TP7000A

TP7000-M

TP7000-MA TP7000-M 24

Power supply 2 x AA/MN1500/LR6

alkaline batteries 230v, 50 Hz 24v, 50 Hz

Memory backup

Capacitor during

battery change for 1

minute

Rechargable cell, 24 hrs (*1)

Switching action of output

relay N/A 1 x SPDT, Type 1B

Switch rating of relay contact,

voltage and current N/A 3(1) A, 10-230 volts

Transmitter frequency

(RF only) 433.92 MHz N/A

Transmitter range

(RF only) 30m max. N/A

Rated Impulse Voltage N/A 2.5Kv

Dimensions (mm) 138 wide x 88 high x 28 deep

Ball Pressure Test 75°C

Temperature Range 5-30°C

Design Standard EN 60730-2-7 (EN300220 for RF)

Control Pollution Situation Degree 2

Time accuracy ± 1 min.

Temperature accuracy ±1°C

*1: Unit must powered up for 6 days to charge cell before full back-up is available

Important note RF products: Ensure that there are no large metal

objects, such as boiler cases or other large appliances, in line of

sight between the transmitter and receiver as these will prevent

communication between thermostat and receiver.

1.0 Installation Guide

2.0 System Overview

Please Note:

This product should only be installed by a qualiﬁed electrician or

competent heating installer and should be in accordance with the

current edition of the IEEE wiring regulations.

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

Danfoss Heating 5

All models

15/2 day programming 7 day programming

2Optimum start contoller enabled Optimum start contoller disabled

3Chrono-proportional control On/O control

TP7000, M, & RF models with 3/6 cycles per hour option

4Chrono-proportional, 6 cycles / hour Chrono-proportional, 3 cycles / hour

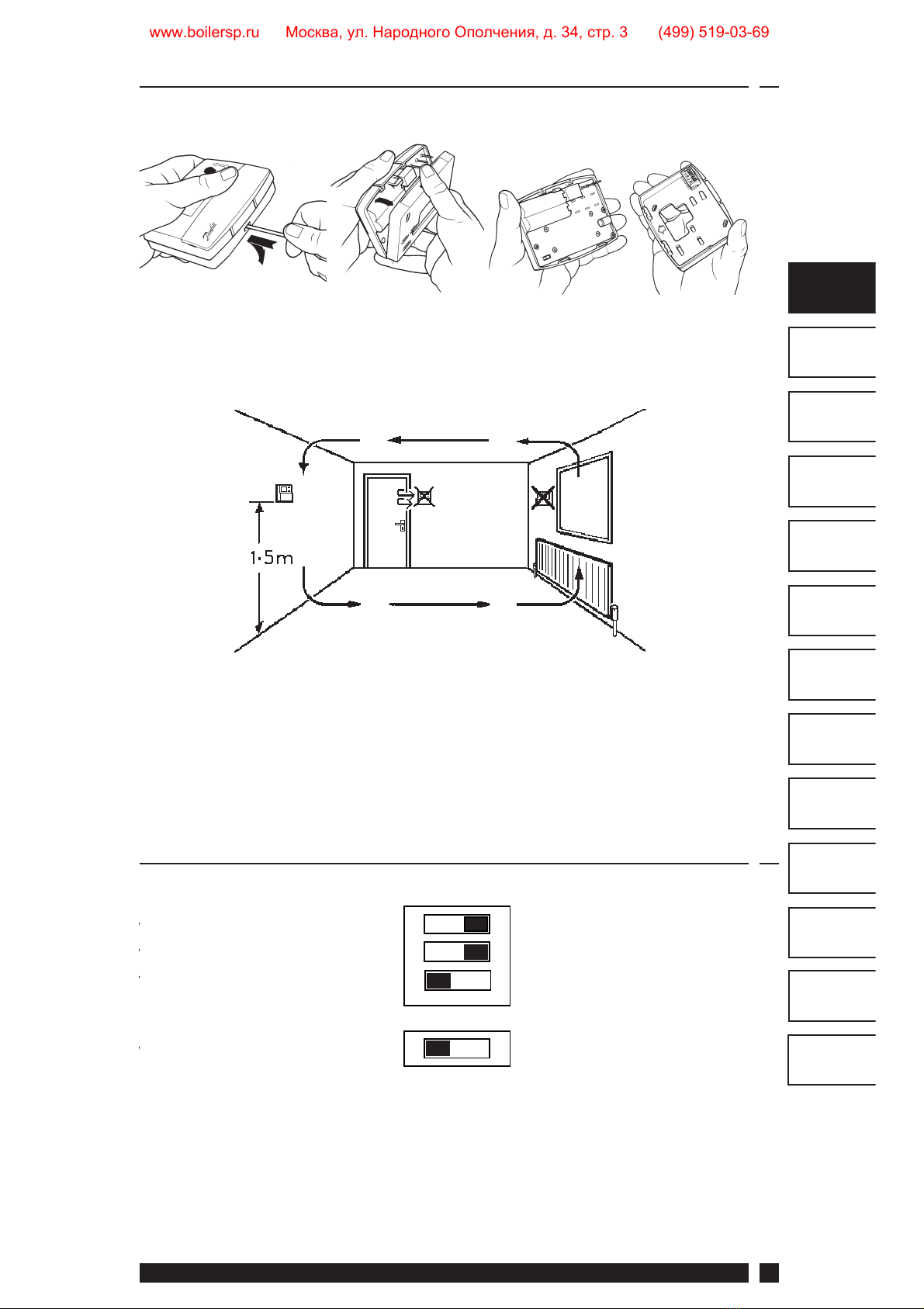

3.1 DIL Switch Settings

 First remove the wallplate from the back of the unit.

 From the top left hand corner of the wallplate, there must be

clearances of at least 15mm to the right, 15mm to the left, 30mm

above and 100mm below in order to mount the plug-in module.

 Before mounting the unit ensure the 4 DIL switches on the

rear of the unit have been moved to the required settings (see

below). Factory preset is 7-day, with Optimum Start and Chrono-

proportional control OFF.

NOTE

Use Chrono 3 for high thermal inertia systems, e.g. ﬂoor standing cast iron

boilers.

Use Chrono 6 for low thermal inertia systems, e.g. low water content

boilers and combi boilers.

3.0 Installation

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

TP7000 RANGE

3.3 TP7000 Wiring (not RF models)

7-day - each day can be programmed with diﬀerent times and

temperatures.

5/2 day - one set of times & temperatures for weekdays, and another

set for weekends.

Optimum start control - function which switches the heating on

earlier than the Event 1 programmed time to ensure the required

temperature is achieved by the set time.

Chrono-proportional control - energy saving feature which ﬁres the

boiler at regular intervals to maintain a set temperature, achieving a

constant ambient environment for the user.

3.2 Setting Optimum Start Control

-4°C

-3°C

-2°C

-1°C

120

min.

Event 1

time (0

)

 Set Sw2 to OSC ON

(see DIL settings page 4)

 Select OPTIMISER CURVE in

programming mode

A Event 1 Set Point

BDeviation from Set Point

CSwitch On Time prior to Event

DOptimiser Curve Setting

1234567

ELECTRONICS

REMOTE

SENSOR

'A' models

only

COM ON OFF

M 24V models only

24V

M 230V models only

230V

Note: 1.0mm2solid copper cable should be used to connect the

remote sensor to the TP7000A. Please ensure that:

a) the cable length does not exceed 50 metres,

b) to avoid electrical interference the cable should not be run

parallel in close proximity to other cables carrying mains electricity,

and where necessary the cable should cross over mains cabling at

right angles.

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

Danfoss Heating 7

1. TP7000-RF

Press the recessed RESET button, using a non-

metallic object, to reset the unit.

2. Press & hold the recessed LEARN button for 3

seconds, using a non-metallic object.

NOTE: Thermostat now transmits continuously for 5 mins.

3. RX1 - Press and hold buttons PROG and CH1

for 3 seconds until green light ﬂashes once.

4. RX2 (if applicable)

Stat 1 - perform steps 1-3.

Stat 2 - wait 5 mins, perform steps1-2 and then press PROG and CH2

on RX2.

RX3 (if applicable)

Stat 1 - perform steps 1 – 3.

Stat 2 - wait 5 mins, perform steps 1-2 and then press PROG and CH2

on RX3.

Stat 3 - wait 5 mins, perform steps 1-2 and then press PROG and CH3

on RX3.

5. TP7000-RF - Press or  to return the unit

to normal operation.

3.5 Commissioning (RF versions only)

If the thermostat and the receiver have been supplied together

in a combined pack, the units have been paired in the factory

and no commissioning is required (RX1 only).

To tune the RX receiver to the frequency of the thermostat signal, follow

steps 1-5 below.

RX1

LEARN

RESET

3.4 Receiver Wiring (RF models only)

1234

ELECTRONICS

COM ZONE

1 ON

ZONE

1 OFF

ELECTRONICS

BC123456

NLZONE

1 ON

ZONE

1 OFF

ZONE

2 ON

ZONE

3 ON

COM

TERMINAL 6

RX3 ONLY

RX1 RX2 & RX3

Note: 1) For mains voltage operated systems link terminal 2 to mains live supply.

2) Power supply to unit must not be switched by timeswitch.

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

TP7000 RANGE

Instructions d’installation

Série TP7000

Thermostats d’ambiance programmable

Index

1.0 Instructions d’installation.....................................................................9

2.0 Speciﬁcations..............................................................................................9

3.0 Installation ................................................................................................ 10

3.1 Réglages d’installateur.................................................................. 10

3.2 Démarrage anticipé (OSC)........................................................... 11

3.3 TP7000 Câblage (versions câblées seulement).................... 11

3.4 Câblage du Récepteur RX (modèles RF uniquement)....... 12

3.5 Instructions (versions câblées)................................................... 12

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

Danfoss Heating 9

1.0 Instructions d’installation

Importante: Veiller à ce qu’aucun gros objet métallique (caisson de

chaudière ou autres gros appareils domestiques) ne fasse obstacle aux

communications entre le thermostat et le récepteur.

2.0 Speciﬁcations

Caractéristiques TP7000-RF TP7000

TP7000A

TP7000M

TP7000MA TP7000M 24

Alimentation 2 piles alcalines AA/

MN 1500/LR6 230v, 50 Hz 24v, 50 Hz

Mémoire non volatile

Suﬃsante pour

remplacer les piles

endéans la minute

Rechargeable

(voir note 1*)

Type de contact N/A 1 x SPDT, Type 1B

Charge de contact,

voltage et courant N/A 3(1) A, 10-230V

Fréquence d’émission

(modèles RF) 433.92 MHz N/A

Rayon d’action

(modèle RF uniquement)

Max. 30

métres N/A

Tension assignée de

tenue au choc N/A 2.5Kv

Dimensions (mm) 138 largeur x 88 hauteur x 28 profondeur

Essai à la bille 75°C

Plage de températures 5-30°C

Normes de fabrication EN 60730-2-7 (EN300220 pour RF)

Pollution Degré 2

Précision de l’horloge ± 1 min.

Précision de la

température ±1°C

Note 1) : Le thermostat doit être alimenté pendant 6 jours pour disposer de la

mémoire non volatile.

Remarque:

Ce produit doit être installé exclusivement par un électricien

qualiﬁé ou un installateur de chauﬀage compétent et doit être

conforme à la version en vigueur des réglementations de câblage

IEEE.

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

TP7000 RANGE

3.0 Installation

 Retirez tout d’abord la plaque murale de l’arrière de l’appareil.

 Par rapport au coin gauche supérieur de la plaque murale, vous

devez disposer d’espacements d’au moins 15 mm à droite, 15

mm à gauche, 30 mm au-dessus et 100 mm en-dessous aﬁn de

pouvoir monter le module enﬁchable.

 Avant de monter l’appareil, assurez-vous que les 4 microcontacts

situés à l’arrière de l’appareil soient placés dans les positions

requises (voir ci-dessous). Le pré-réglage d’usine est 7 jours,

avec la régulation Optimum Start (démarrage optimum) et sans

démarrage anticipé (OSC OFF) et en mode Tout ou Rien.

3.1 Réglages d’installateur

REMARQUE

Utilisez Chrono 3 pour les systèmes à inertie thermique élevée, ex.

chaudières en fonte au sol.

Utilisez Chrono 6 pour les systèmes à faible inertie thermique, ex.

chaudières à faible contenu d’eau et chaudières mixtes.

Tous les modèles

Sw 1Programmation 5/2 jours Programmation 7 jours

Sw 2Optimum Start Contol on Optimum Start Contol oﬀ

Sw 3Règulation Chrono-proportionnelle Règulation On/Oﬀ

TP7000, M, & RF modèles avec 3 ou 6 cycles par heure

Sw 4Chrono-proportionnelle, 6 cycles par heure Chrono-proportionnelle, 3 cycles par heure

www.boilersp.ru Москва, ул. Народного Ополчения, д. 34, стр. 3 (499) 519-03-69

Altri manuali per TP7000 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Danfoss Termostato

Danfoss

Danfoss ECL Comfort 310, P314 Manuale utente

Danfoss

Danfoss Icon Master Manuale utente

Danfoss

Danfoss TP4 Istruzioni di montaggio

Danfoss

Danfoss RET2001RF Manuale utente

Danfoss

Danfoss DEVIreg 316 Manuale utente

Danfoss

Danfoss RT 14E Manuale utente

Danfoss

Danfoss RET1000 MD Manuale utente

Danfoss

Danfoss TP5000 RF Si Guida

Danfoss

Danfoss DEVIreg 532 Manuale utente

Danfoss

Danfoss SET 3E Manuale utente

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss ECL Comfort 310, P318 Manuale utente

Danfoss

Danfoss LX 420 Manuale utente

Danfoss

Danfoss Eco Manuale utente

Danfoss

Danfoss HP8211-1RJ Manuale utente

Danfoss

Danfoss RET2000B-RF + RX1-S Manuale utente

Danfoss

Danfoss TP5000 RF Si Manuale utente

Danfoss

Danfoss RET2000B-RF Manuale utente

Danfoss

Danfoss MTD Istruzioni per il montaggio

Danfoss

Danfoss SET3M Istruzioni di montaggio

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss TP5001 series Manuale utente

Danfoss

Danfoss 3020P Istruzioni di montaggio

Danfoss

Danfoss ECtemp 130 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
