Dell Precision Tower 3630 Manuale utente

Precision Tower 3630

Cable Cover Installation Guide

Regulatory Model: D24M

Regulatory Type: D24M003

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

may be trademarks of their respective owners.

2018 - 07

Rev. A00

Contents

1 Cable cover for Precision Tower 3630............................................................................................................ 4

2 Getting help................................................................................................................................................. 10

Contacting Dell..................................................................................................................................................................10

Contents 3

Cable cover for Precision Tower 3630

The cable cover for Precision Tower 3630 helps protect ports and cables connected to the system.

Follow these steps to install the cable cover on the system chassis.

NOTE: Images shown below are for representation only and may vary depending on the system's conguration.

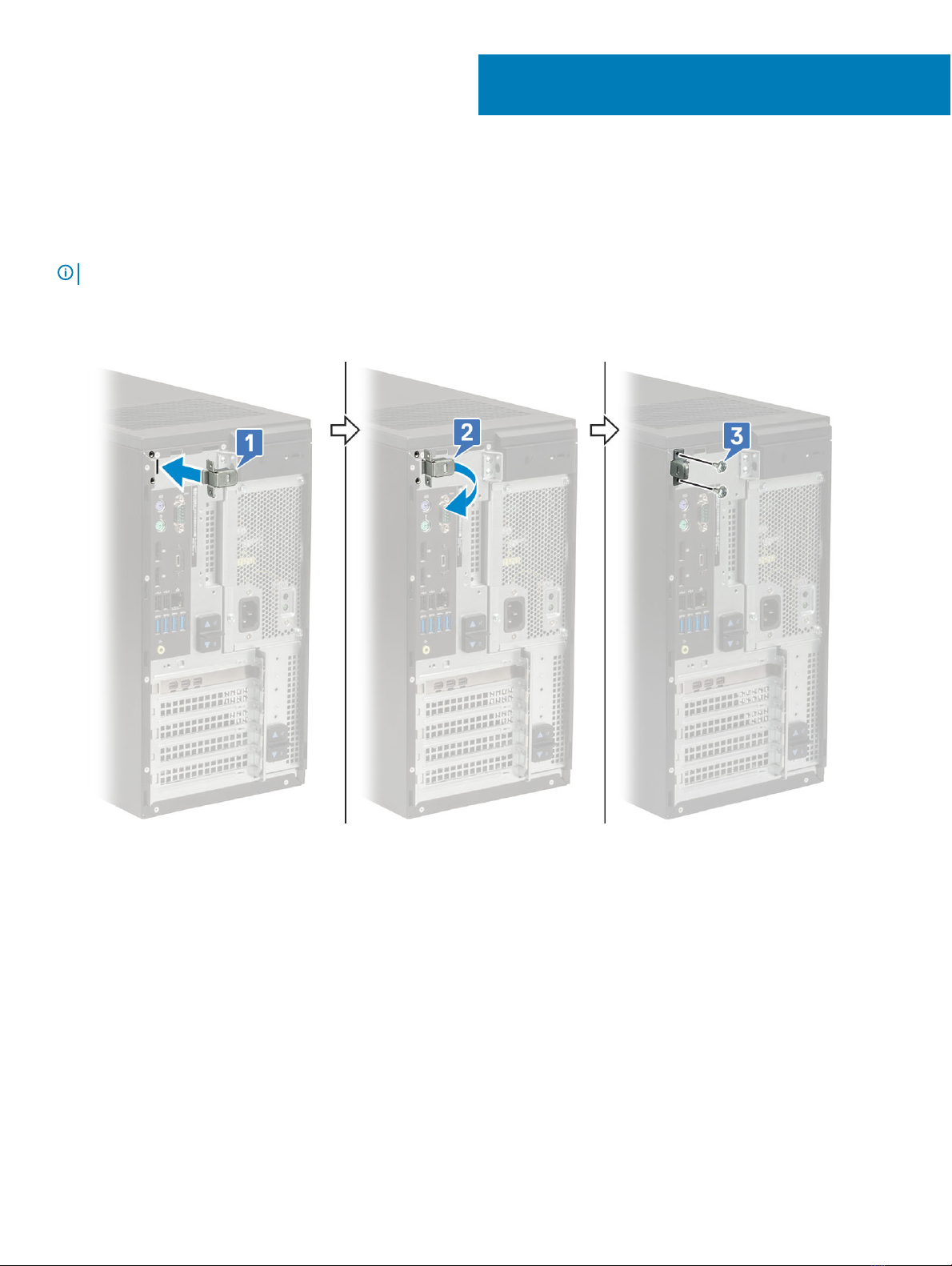

1 Insert the tab on the security-lock metal bracket into the slot on the rear side of the system [1] and rotate to align the holes on the

metal bracket with screw holders on the chassis [2]

2 Fasten the two #6-32x1/4'' screws to secure the security metal bracket to the chassis [3].

3 Pull the cable release latch and lift the latch away from the cable cover.

4 Cable cover for Precision Tower 3630

4 Lift the tab [1] to release and pull the cable tie from the slot on the cable release latch [2].

5 Align the cable release latch on the system chassis slot [1]. Tighten the screw to secure the cable release latch to the system chassis

[2].

Cable cover for Precision Tower 3630 5

6 Route the cables through the slot of the cable cover [1], and connect them to their respective ports on the system [2]. Secure the

cable with the cable tie and lock the tab in place [3].

CAUTION: Take care not to break or bend the delicate plastic hooks.

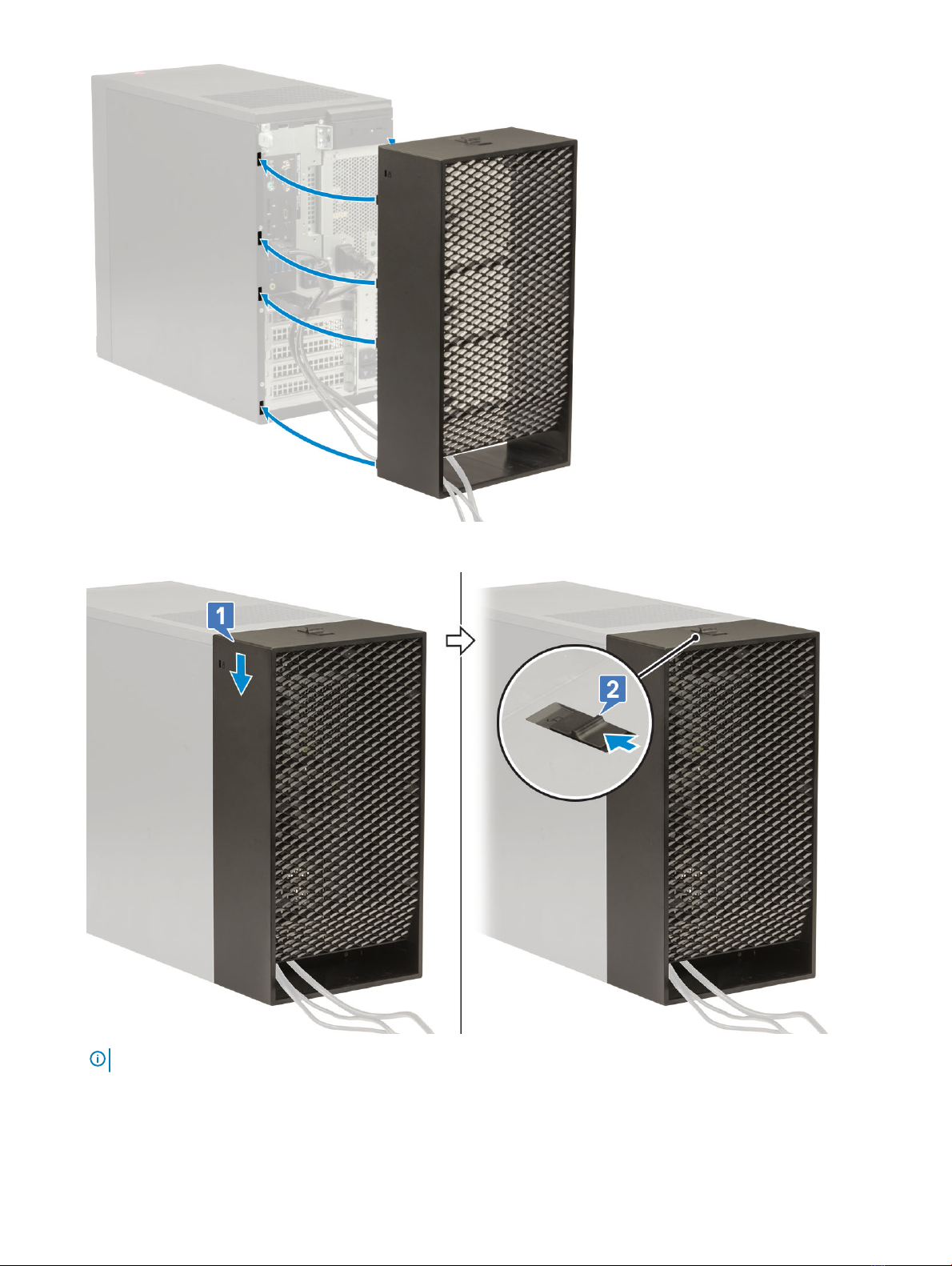

7 Align the plastic hooks of the cable cover to the slots on the system .

6Cable cover for Precision Tower 3630

8 Gently press down on the cable cover until it clicks into place [1]. Slide the latch towards the chassis [2] to lock the cable cover in

place.

NOTE: For added security, use the Padlock ring to secure the system.

9 To remove the cable cover:

a Slide the latch away from the chassis to unlock the cable cover [1].

b Lift the cable cover away from the system chassis [2].

Cable cover for Precision Tower 3630 7

10 Pull the cable cover to release it from the chassis.

11 Open the tab and unroute the cables from cable tie [1], disconnect the cables from the ports on the system [2]. Remove the cables

from the slot of the cable cover [3].

8Cable cover for Precision Tower 3630

Cable cover for Precision Tower 3630 9

Getting help

Contacting Dell

NOTE: If you do not have an active Internet connection, you can nd contact information on your purchase invoice, packing slip,

bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services

may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1 Go to Dell.com/support.

2 Select your support category.

3 Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.

4 Select the appropriate service or support link based on your need.

10 Getting help
