Dell 7700 FullHD Manuale utente

Dell™ 7700FullHD Projector

User’s Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you

make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware

or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property

damage, personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of

Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS

INCORPORATED; Microsoft and Windows are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Dell Inc. disclaims

any proprietary interest in trademarks and trade names other than its own.

Model 7700FullHD

March 2012 Rev. A00

Contents 3

Contents

1 Your Dell Projector . . . . . . . . . . . . . . . . . . 7

About Your Projector . . . . . . . . . . . . . . . . . 8

2 Connecting Your Projector . . . . . . . . . . . . 10

Installing the Optional Wireless Dongle . . . . . . 11

Connecting to a Computer . . . . . . . . . . . . . . . . 12

Connecting a Computer Using a VGA Cable . . . . 12

Monitor Loop-Through Connection Using

VGA Cables . . . . . . . . . . . . . . . . . . . . . 13

Connecting a Computer Using a RS232 Cable . . . 14

Connecting a Computer by USB Cable . . . . . . . 15

Connecting a Computer Using Wireless Dongle

(Optional) . . . . . . . . . . . . . . . . . . . . . . 16

Connecting a DVD Player . . . . . . . . . . . . . . . . 17

Connecting a DVD Player Using an S-Video Cable . 17

Connecting a DVD Player Using a

Composite Video Cable . . . . . . . . . . . . . . . 18

Connecting a DVD Player Using a

Component Video Cable . . . . . . . . . . . . . . 19

Connecting a DVD Player Using a 3 RCA

Component Video Cable . . . . . . . . . . . . . . 20

Connecting a DVD Player Using an HDMI Cable . . 21

Connecting to Local Area Network . . . . . . . . . . . 22

To project an image and control the projector that is

connected to a network through a RJ45 cable. . . 22

4Contents

Professional Installation Options: Installation for

Driving Automatic Screen . . . . . . . . . . . . . 23

Connection With Commercial RS232 Control Box . 24

3 Using Your Projector . . . . . . . . . . . . . . . . 25

Turning Your Projector On . . . . . . . . . . . . . . . . 25

Turning Your Projector Off . . . . . . . . . . . . . . . . 25

Adjusting the Projected Image . . . . . . . . . . . . . 26

Raising the Projector Height . . . . . . . . . . . . 26

Lowering the Projector Height . . . . . . . . . . . 26

Adjusting the Projector Zoom and Focus . . . . . . . . 27

Adjusting Projection Image Size . . . . . . . . . . . . 28

Using the Control Panel . . . . . . . . . . . . . . . . . 30

Using the Remote Control . . . . . . . . . . . . . . . . 32

Installing the Remote Control Batteries . . . . . . . . 35

Operating Range With Remote Control . . . . . . . . . 36

Using the On-Screen Display . . . . . . . . . . . . . . 37

INPUT SOURCE . . . . . . . . . . . . . . . . . . . 37

AUTO ADJUST . . . . . . . . . . . . . . . . . . . 38

BRIGHTNESS/CONTRAST . . . . . . . . . . . . . 39

VIDEO MODE . . . . . . . . . . . . . . . . . . . . 39

VOLUME . . . . . . . . . . . . . . . . . . . . . . 40

AUDIO INPUT . . . . . . . . . . . . . . . . . . . . 40

ADVANCED SETTINGS . . . . . . . . . . . . . . . 40

LANGUAGE . . . . . . . . . . . . . . . . . . . . . 54

HELP . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents 5

Wireless Networking Installation . . . . . . . . . . . . 55

Enable Wireless on the Projector . . . . . . . . . . 56

Install the Wireless Application Software on Your

Computer . . . . . . . . . . . . . . . . . . . . . . 58

Launch the Wireless Application . . . . . . . . . . 61

Presentation to Go (PtG) Installation . . . . . . . . . . 65

PtG Viewer . . . . . . . . . . . . . . . . . . . . . 66

Photo Viewer . . . . . . . . . . . . . . . . . . . . 66

PtG/Photo Function Introduction . . . . . . . . . . 67

PtG Overview . . . . . . . . . . . . . . . . . . . . 67

Photo Overview . . . . . . . . . . . . . . . . . . . 68

Buttons-Introduction . . . . . . . . . . . . . . . . 68

Install the PtG Converter Application Software on

Your Computer . . . . . . . . . . . . . . . . . . . 69

Using the PtG Converter . . . . . . . . . . . . . . 70

Audio Projection Installation . . . . . . . . . . . . . . 71

Enable Wireless or LAN on the Projector . . . . . 72

Install the Wireless Application Software on

Your Computer . . . . . . . . . . . . . . . . . . . 73

Launch the Wireless Application . . . . . . . . . . 74

Video Stream Installation . . . . . . . . . . . . . . . . 76

Video Stream Support Format . . . . . . . . . . . 76

Enable Wireless or LAN on the Projector . . . . . 77

Install the Wireless Application Software on

Your Computer . . . . . . . . . . . . . . . . . . . 77

Launch the Wireless Application . . . . . . . . . . 77

Managing the Projector From Web Management . . . . 78

Configuring the Network Setting . . . . . . . . . . 78

6Contents

Accessing Web Management . . . . . . . . . . . 78

Make Application Token . . . . . . . . . . . . . . . . 99

4 Troubleshooting Your Projector . . . . . . 101

Guiding Signals . . . . . . . . . . . . . . . . . . . . . 105

Changing the Lamp . . . . . . . . . . . . . . . . . . . 106

5 Specifications . . . . . . . . . . . . . . . . . . . . 108

6 Contacting Dell . . . . . . . . . . . . . . . . . . . 115

7 Appendix: Glossary . . . . . . . . . . . . . . . 116

Your Dell Projector 7

Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the

items, and contact Dell™ if anything is missing.

Package Contents

Power cable 1.8 m VGA cable (VGA to VGA)

1.8 m USB cable (USB-A to USB-B) Remote control

CD User’s Guide and Documentation AAA Batteries (2)

DOCOMENTATION

Dell

7700FullHD Projector

Dell

7700FullHD Projector

Quick Setup Guide

Informacion Importante

Dell

Projectors

oduct Information Guide

AAA

8Your Dell Projector

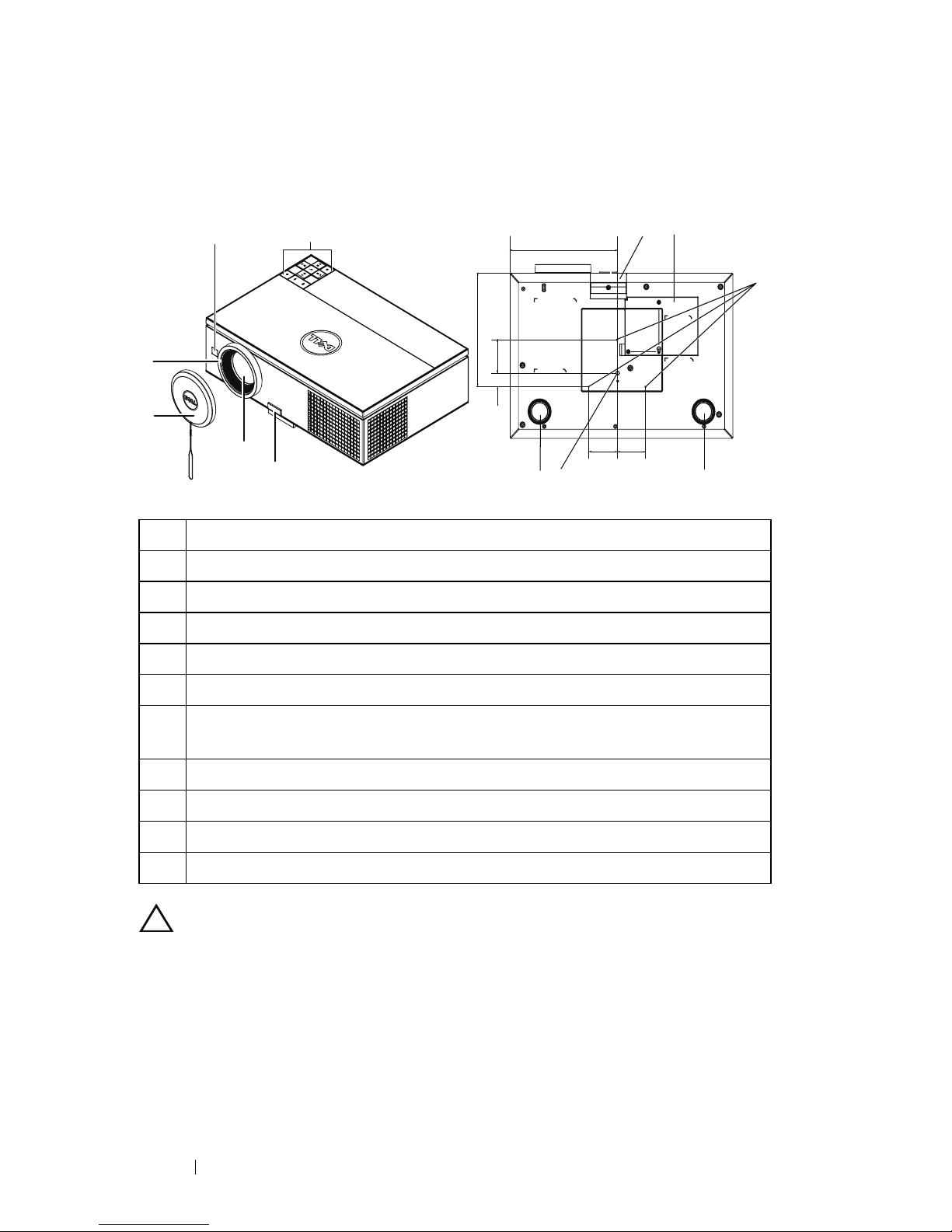

About Your Projector

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of dust. The

dust may cause the system to fail and the projector will automatically shut down.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).

1Control panel

2IR receivers

3Focus ring

4Lens

5Elevator button for height adjustments

6Lens cap

7Mounting holes for ceiling mount: Screw hole M3 x 6.5 mm depth.

Recommended torque <8 kgf-cm

8Mounting hole for tripod: Insert nut 1/4"*20 UNC

9Lamp cover

10 Tilt adjustment wheel

11 Elevator foot

Top View Bottom View

10 10

11 9

55.00 55.00

180.50

73.50

8.65

202.50

Your Dell Projector 9

Do not try to touch the ventilation outlet as it can become very hot after the

projector has been turned on or immediately after it is turned off.

Do not look into the lens while the projector is on as it may cause injury to your

eyes.

Do not place any objects near or in front of the projector or cover its lens while the

projector is on as the heat may cause the object to melt or burn.

Do not use the wireless projector near cardiac pacemakers.

Do not use the wireless projector near medical equipment.

Do not use the wireless projector near microwave ovens.

NOTE:

• Do not attempt to ceiling mount the projector yourself. It should be

installed by a qualified technician.

• Recommended Projector Ceiling Mount Kit (P/N: C3505). For more

information, see the Dell Support website at

support.dell.com

• For more information, see the

Safety Information

that shipped with your

projector.

• The 7700FullHD projector can only be used indoors.

10 Connecting Your Projector

Connecting Your Projector

1WiFi USB (Type A) connector 11 +12 V DC out connector

2USB Type B connector for USB

Display

12 Security cable slot

3USB Type A connector for USB

Viewer

13 Component Video input

connector

4RJ45 connector 14 Power cord connector

5S-Video connector 15 VGA-A output (monitor loop-

through) connector

6Composite Video connector 16 VGA-B input (D-sub) connector

7RS232 (D-sub) connector 17 VGA-A input (D-sub) connector

8Mini USB (Mini Type B)

connector for remote control

18 HDMI-B connector

9Audio output connector 19 HDMI-A connector

10 Audio input connector

3 4 5 6 7 8

14 12

910

19 15

161718
