Dell OptiPlex FX170 Manuale utente

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

TECHNICAL GUIDEBOOK

INSIDE THE OPTIPLEX FX170 THIN CLIENT

DELL

OPTIPLEX

FX170

™

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

TABLE OF CONTENTS

O V E R V IE W

OPTIPLEX FX170 FRONT AND BACK VIEWS 3

DETAILED ENGINEERING SPECIFICATIONS: SYS TEM C OMPONENT DET A ILS 4

POWER D E TAILS 5

AUD IO & COMMU NICATIO NS NETWO RK ADAP TE R 6

BIOS D E F AULTS 7

SERVICE, SUPP OR T, AN D SOFTWAR E 8

REGULATORY CO MPLIANCE A ND ENVIRO NMENTAL 8

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

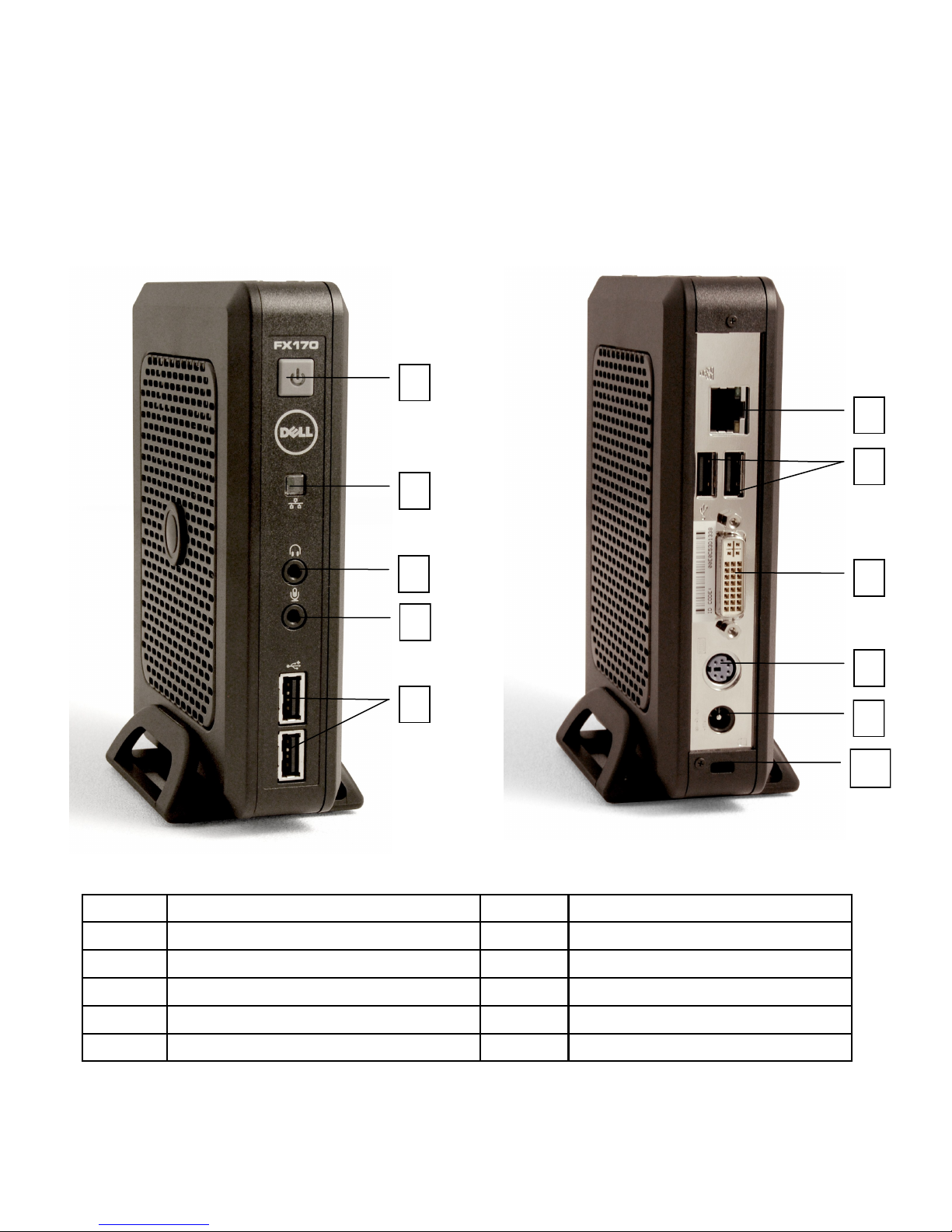

FRONT AND BACK VIEW

Front Back

Number Name Number Name

1Power Button 6USB 2.0 Connectors (4)

2Network Activity Indicator LED 7DVI-I

3Audio Line Out 8PS/2

4Microphone 9Power Connector

5Network Connector 10 Kensington Lock

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

Processor CPU / Chipsets Intel Atom N270 1.6 GHz / Intel 945GSE + ICH7-M

Memory RAM 1GB DDR2 RAM (WES 2009/DeTOS),

2GB DDR2 RAM (WES7)

Data Storage DOM 2GB DOM (WES 2009), 4GB DOM (WES7),

1GB DOM (DeTOS)

Storage x 1 (44 pins IDE port for DOM)

Display

Resolution Up to 1920x1200 at 32 bit color

Video Memory Dynamic Video Memory Technology (DVMT) 3.0 supports

up to 224MB of video memory

Display Data Control On-board Intel GMA 950

I/O Physical

USB (2.0)

Front x 2

Rear x 2

PS/2 x 1 (For keyboard, mouse, or optional PS/2 splitter cable)

x 1 DVI-I or

Video X 1 VGA with included adapter or

X 1 DVI-D + x 1 VGA with optional adapter

Audio

Mic-In x 1 3.5 mm jack

Line-Out x 1 3.5 mm jack

Speaker x 1 (Built-in 1W internal speaker)

Networking

LAN x 1 (RJ-45, 10/100/1000 Base-T)

WLAN

Netgear N600 Wireless Dual Band USB Adapter

Netgear G64/N150 Wireless USB Micro Adapter

Environment

Temperature

Operation 32° to 95° F (0° to 35° C)

Storage -4° to 140° F (-20° to 60° C)

Relative Humidity 20% to 80% non-condensing

Power Power Supply 36W, DC 12V/3A external power adapter

Mounting

Foot Stand Horizontal or Vertical Vertical

VESA Bracket (wall mount vertical only) Metal mounting kit for VESA standard (Optional)

Security Kensington Lock Yes

DETAILED ENGINEERING SPECIFICATIONS

Operating System for the

FX170

WES 2009, WES 7, or DeTOS Operating System (NOTE: Oerings vary by

country. For more information regarding the conguration of your computer, click Start>Help and

Support. Then select the option to view information about your computer. *Choose your OS on the

FX170.

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

POWER DETAILS

AC Parameters

External Power Adapter Dimensions 110.9 mm (L) x 51.9 mm (W) x 33 mm (H)

Power Supply Wattage 36W

AC input Voltage Range 100-240 V

AC input Current (max) 2A

AC input Frequency 47HZ/63HZ

Average Eciency >=78%

Typical Eciency (Active PFC) 84.8%

DC Parameters

+12.0v output 3A

Max total power 36W

BTUs/h (based on PSU max wattage) 123 BTU

Compliance

1watt requirement Yes

Blue Angel Compliant No

Climate Savers / 80Plus Compliant No

FEMP (CECP) Standby Power Compliant No

E Star Compliant No

3.0v CMOS battery (Type and estimated battery life)

Brand Type Voltage Composi-

tion

Life

KTS CR-2302

with wire

3V Lithium Continuous Discharge Under 15 kΩ Load to

2.0V End-Voltage.

23 ±3C Standard 1000 Hrs. Minimum Value

800h

0 ±3C Standard 850 Hrs. Minimum Value

680h

Physical

Characteristics

Chassis Housing Plastic and metal

Dimension /

Weight

Thin Client 36 (W) x 156 (H) x 122 (D) mm / Net Weight: 0.75 KG

Packing: Single Box 217 (W) x 85 (H) x 236 (D) mm / Gross Weight: 1.65 KG

Packing: Carton 450 (W) x 265 (H) x 355 (D) mm / Gross Weight: 20 KG,

8 boxes in one carton

DETAILED ENGINEERING SPECIFICATIONS CONTINUED

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

AUDIO

COMMUNICATIONS - NETWORK ADAPTER (NIC)

Integrated via 1708b High Denition Audio

High Denition Stereo support No

Number of Channels 2

Number of Bits / Audio resolution 16 and 24-bit resolution

Sampling rate (recording/playback) Support 44.1K/48K/96K/192 kHz sample rates

Signal to Noise Ratio 98 dB DAC outputs, 90 dB for ADC inputs

Analog Audio N/A

Dolby Digital N/A

THX N/A

Digital out (S/PDIF) N/A

Audio Jack Impedance

Microphone In 10K ohm

Headphone Out 50~65 ohm

Internal Speaker Power Rating 1Watt (peak) / 0.5Watt (average)

PCIE Realtek 8111dl-gr Ethernet LAN 10/100/1000

External Connector Type RJ45

Data Rates supported 10/100/1000 Mbps

Controller Details

Controller bus architecture PCIe-based interface

Integrated memory N/A

Data transfer mode (example Bus-Master DMA) N/A

Power consumption (full operation per data rate connection speed) 538mW (Max.)

Power consumption (standby operation) 227mW (Max.)

IEEE standards compliance (example 802.1P) 802.3

Hardware Certications (example FCC, B, GS mark…) N/A

Boot ROM Support EEPROM (located in SPI)

Network Transfer Mode (example Full Duplex, Half Duplex)

Network Transfer Rate (example 10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps

10 Mb (full/half-duplex)

100 Mb (full/half-duplex)

1000 Mb (full-duplex)

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

BIOS DEFAULTS

System Conguration

Integrated NIC Enable

USB Controller Enable

Serial Port N/A

SATA Operation N/A

SMART Reporting N/A

Diskette Drive N/A

Miscellaneous Devices Enable (Front USB, Rear USB, PXE)

Drives (IDE—0)

Video

Primary Video EGA/VGA

Performance

Multiple Core Support N/A

Intel® SpeedStep™ N/A

C States Control N/A

Limit CPUID Value Disable

HyperThread control Enable

Virtualization Support

Virtualization N/A

VT for Direct I/O N/A

Security

Administrator Password Not set

System Password Not set

Password Changes Enable

TPM Security N/A

CPU XD Support Enable

Computrace® N/A

SATA-0 Password N/A

P C I E R e a l t e k 8 1 1 1 D L -G R E t h e r n e t L AN 1 0 / 1 0 0 / 1 0 0 0 c o n t i n u e d

Management Capabilities

Operating humidity 20% to 80% (non-condensing)

Manageability (examples WOL, PXE) WOL, PXE 2.1

Management Capabilities Alerting N/A

COMMUNICATIONS - NETWORK ADAPTER (NIC) CONTINUED

DELL™ OPTIPLEX™ FX170 TECHNICAL GUIDEBOOK 1.0

SERVICE AND SUPPORT

NO T E: For m or e d e t ail s o n D e ll Se rvic e Pla n s pleas e t o go to : ww w.d ell .com/se rvic e/se rvice_ p l a ns

SOFTWARE

3 Year Warranty1 Standard

ProSupport Optional

1 For a copy of our guarantees or limited warranties, please write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock, TX 78682. For more

information, visit www.dell.com/warranty.

2 Service may be provided by third-party. Technician will be dispatched if necessary following phone-based troubleshooting. Subject to parts

availability, geographical restrictions and terms of service contract. Service timing dependent upon time of day call placed to Dell. U.S. only.

VMware View Ready Yes

Citrix HDX Ready Yes

REGULATORY COMPLIANCE AND ENVIRONMENTAL

Product related conformity assessment and regulatory authorizations including Product Safety, Electromagnetic Compatibility

(EMC), Ergonomics, and Communication Devices relevant to this product may be viewed at www.dell.com/

regulatory_compliance. The Regulatory Datasheet for this product is located at http://www.dell.com/regulatory_compliance.

Power Management

AC Recovery Power O

Auto On Time Disable

Deep Sleep Control N/A

Fan Control Override N/A

Wake on LAN Enable

Maintenance

Service Tag Set by the factory

Asset Tag Optional User Entry

SERR Message N/A

Numlock LED Enable

USB Emulation Enable

Keyboard Errors Default—No Error

POST HotKeys Enable

Fast Boot Thorough

BIOS DEFAULTS CONTIN UED
