Dell™ PowerEdge™

R210 Systems

Getting Started

With Your System

Regulatory Model E10S

Regulatory Type E10S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.;

Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries;

Microsoft,Hyper-V, Windows,and Windows Server are either trademarks or registered trademarks

of Microsoft Corporation in the United States and/or other countries; Red Hat and Red Hat Enterprise

Linux are registered trademarks of Red Hat, Inc. in the United States and other countries; SUSE is a

registered trademark of Novell, Inc. in the United States and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model E10S

Regulatory Type E10S001

June 2009 P/N U499M Rev. A01

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Rails and System in a Rack

CAUTION: If installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may be greater than room ambient.

Therefore, consideration should be given to installing the equipment in an

environment compatible with the maximum ambient temperature (Tma) specified

by the manufacturer. For more information, see "Technical Specifications" on

page 8.

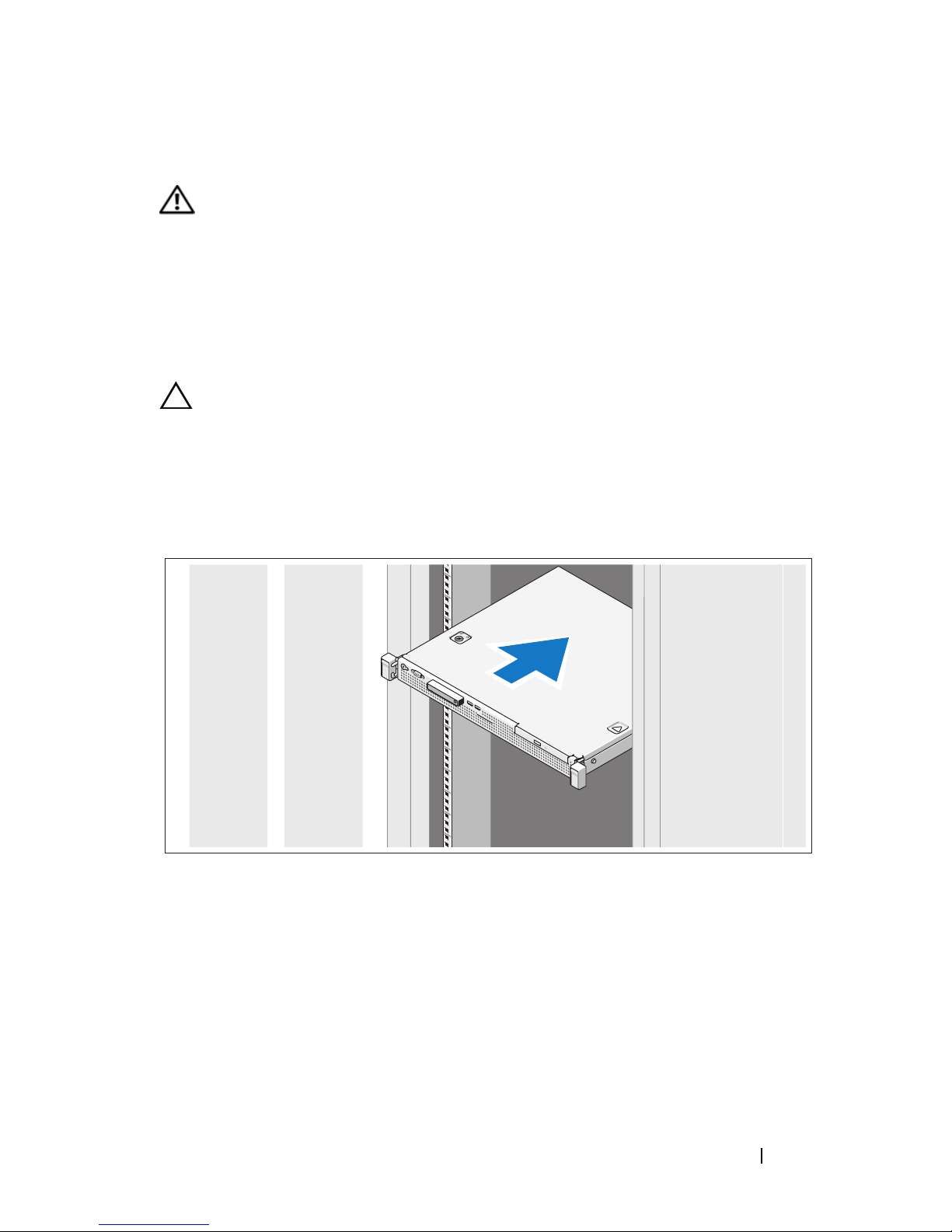

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

Optional – Connecting the Keyboard, Mouse, and Monitor

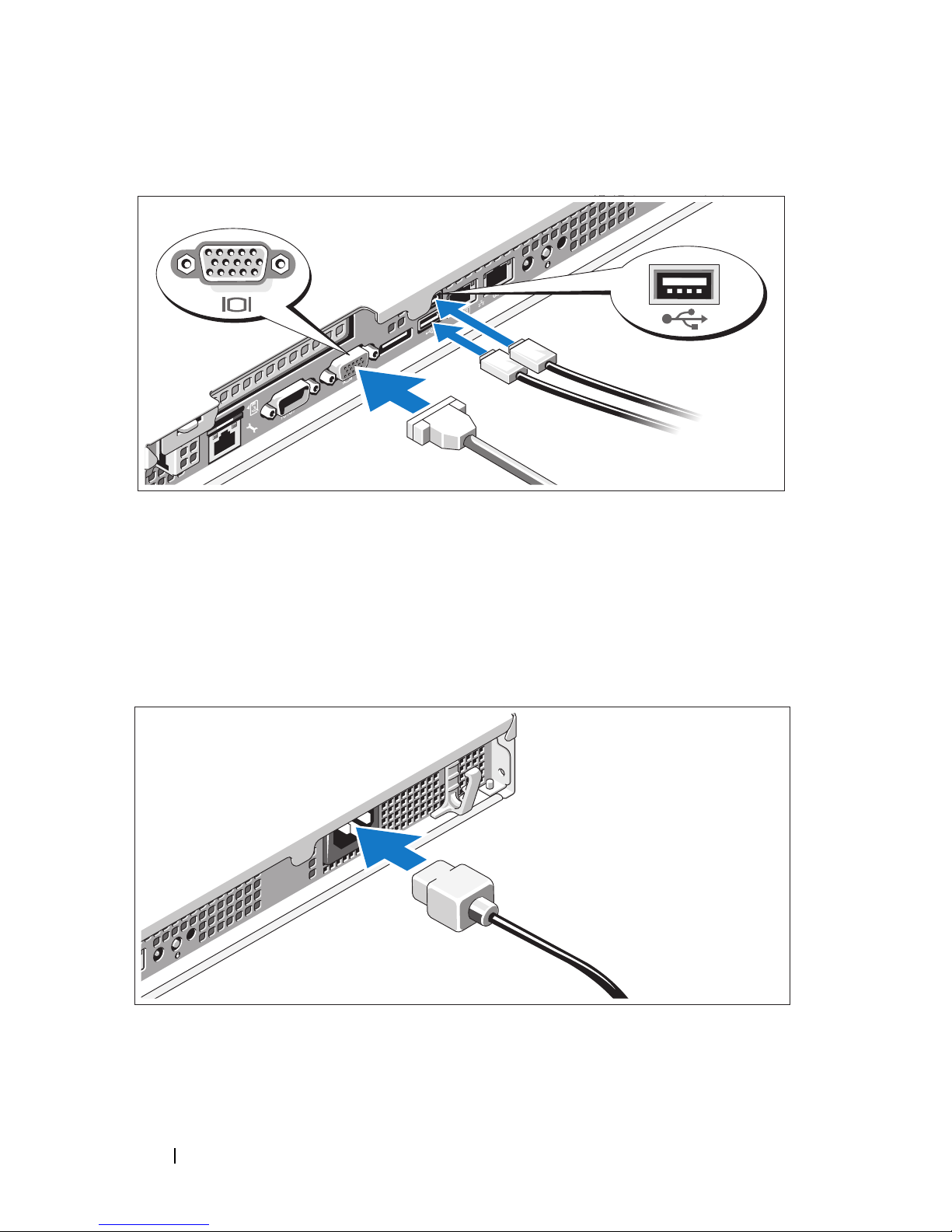

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cable

Connect the system’s power cable to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

Securing the Power Cable

Bend the system power cable as shown in the illustration and secure the cable

in the retention clip.

Plug the other end of the power cable into a grounded electrical outlet or

a separate power source such as an uninterrupted power supply (UPS) or

a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

6Getting Started With Your System

Installing the Optional Bezel

Install the bezel (optional).

Complete the Operating System Setup

If you purchased a preinstalled operating system, see the operating system

documentation that ships with your system. To install an operating system for

the first time, see the installation and configuration documentation for your

operating system. Be sure the operating system is installed before installing

hardware or software not purchased with the system.

Supported Operating Systems

• Microsoft

Windows

Server

2008 R2 (x64) Web, Standard, Foundation,

and Enterprise Editions

• Microsoft Windows Server 2008 SP2 (x86) Web, Standard,

and Enterprise Editions

• Microsoft Windows Server 2008 SP2 (x64) Web, Standard,

and Enterprise Editions

• Microsoft Windows Server 2008 x32-bit (x86) Web, Standard,

and Enterprise Editions

• Microsoft Windows Server 2008 (x64) Web, Standard, Foundation,

and Enterprise Editions

Getting Started With Your System 7

• Microsoft Windows Small Business Server 2008 (x64) Standard and

Premium Editions

• Microsoft Windows

Essential Business Server (x64) Standard and

Premium Editions

• Microsoft Windows Server 2003 R2 32-bit (x86) Standard and

Enterprise Editions

• Microsoft Windows Server 2003 R2 (x64) Standard and

Enterprise Editions

• Microsoft Windows Server

2008 Hyper-V

™

• Microsoft Hyper-V Server 2008

•RedHat

Enterprise Linux

5.3 (x86_64)

• Red Hat Enterprise Linux 5.3 (x86)

•SUSE

Linux Enterprise Server 11 (x86_64)

NOTE: For the latest information on supported operating systems,

see www.dell.com.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

• The rack documentation included with your rack solution describes how

to install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals

• Any media that ships with your system that provides documentation and

tools for configuring and managing your system, including those pertaining

to the operating system, system management software, system updates,

and system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

8Getting Started With Your System

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual. Dell™ offers

comprehensive hardware training and certification. See www.dell.com/training

for more information. This service may not be offered in all locations.

Technical Specifications

Processor

Processor type Intel®Xeon®processor 3400 series

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots One full-height, half-length x16 link

Memory

Architecture 1066 and 1333 MHz DDR3 unbuffered

Error Correcting Code (ECC) DIMMs

Memory module sockets Four 240-pin

Memory module capacities 1 GB, 2 GB, or 4GB

Minimum RAM 1 GB

Maximum RAM 16 GB

Drives

Hard drives Up to two 3.5-inch cabled SAS or

SATA internal drives

Up to two 2.5-inch cabled SAS, SATA, or

SSD internal drives

Optical drive One optional internal slimline

SATA DVD-ROM or DVD+/-RW drive

NOTE: DVD devices are data only

Optional external USB DVD-ROM
