Dell PowerEdge T20 Manuale utente

Dell PowerEdge T20

Getting Started Guide

Regulatory Model: D13M

Regulatory Type: D13M001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Trademarks used in this text: Dell™, the Dell logo, Dell Boomi™, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™, Venue™and Vostro™are trademarks

of Dell Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries.

AMD®is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro

Devices, Inc. Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and

Red Hat®Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®

are registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle

Corporation and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix

Systems, Inc. in the United States and/or other countries. VMware®, vMotion®, vCenter®, vCenter SRM™and vSphere®are registered

trademarks or trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International

Business Machines Corporation.

2013 - 09

Rev. A01

Installation And Configuration

WARNING: Before performing the following procedure, review the safety instructions that came with the system.

Unpacking The System

Unpack your system and identify each item.

Connecting The Optional Keyboard, Mouse, And Monitor

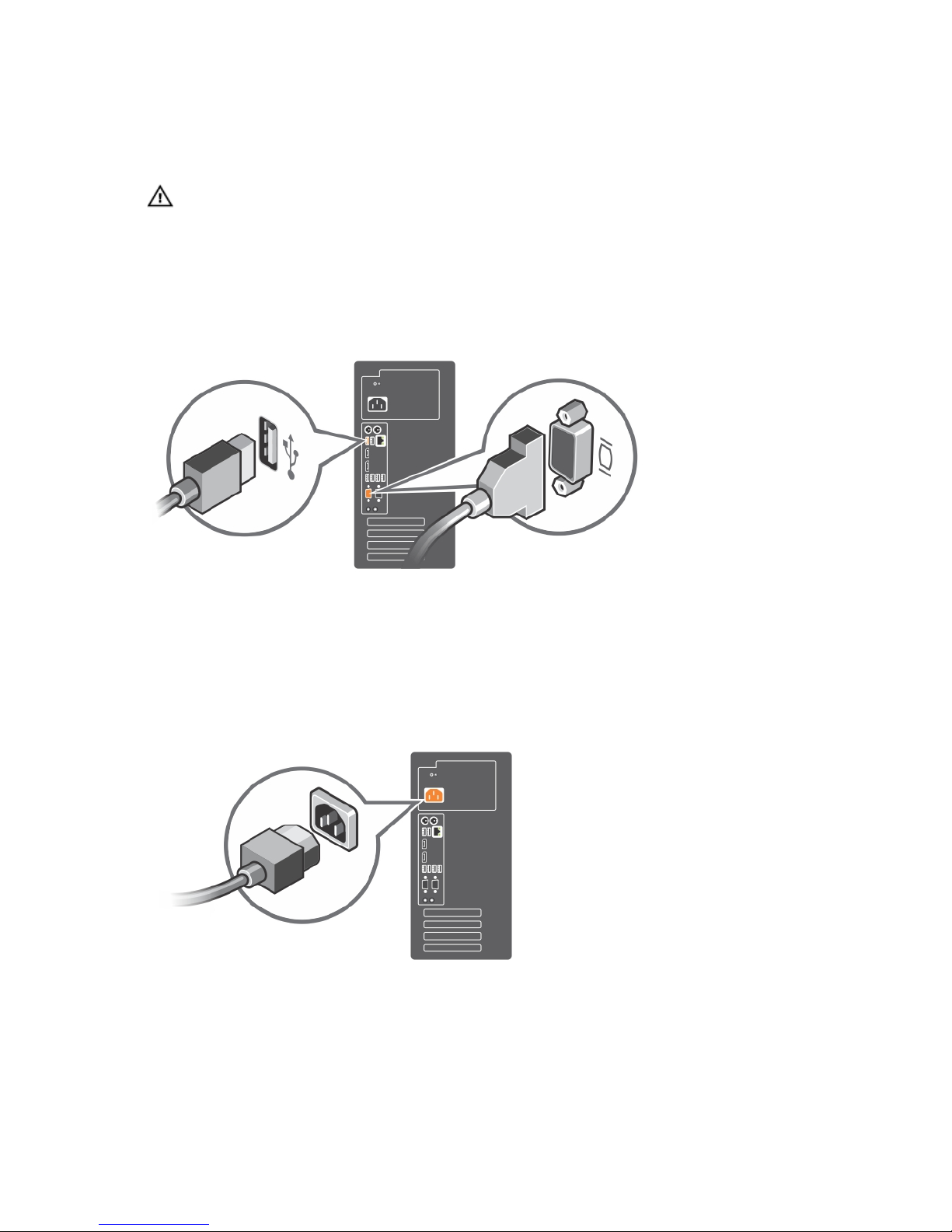

Figure 1. Connecting Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug into each connector. Be sure to

tighten the screws (if any) on the monitor's cable connector.

Connecting The Power Cable

Figure 2. Connecting Power Cable

Connect the system’s power cable to the system and, if a monitor is used, connect the monitor’s power cable to the

monitor.

Turning On The System

Figure 3. Turning on the System

Press the power button on the system. The power indicator should light.

Complete The Operating System Setup

To install an operating system for the first time, see the installation and configuration documentation for your operating

system. Be sure that the operating system is installed before installing hardware or software not purchased with the

system.

Supported Operating Systems

The following operating systems are supported:

• Microsoft Windows Server 2012

• Red Hat Enterprise Linux 6.5 and later

NOTE: For latest information on supported operating systems, see dell.com/ossupport.

Dell Software License Agreement

Before using your system, read the Dell Software License Agreement that came with your system. You must consider

any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do

not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United

States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, see dell.com/support and select

your country or region from the top left of the page.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be

included within this document or as a separate document.

• The Owner’s Manual provides information about system features and describes how to troubleshoot the system

and install or replace system components. This document is available online at www.dell.com/

poweredgemanuals.

• Any media that ships with your system that provides documentation and tools for configuring and managing your

system, including those pertaining to the operating system, system management software, system updates, and

system components that you purchased with your system.

NOTE: Always check for updates on dell.com/support/manuals and read the updates first because they often

supersede information in other documents.

NOTE: When upgrading your system, it is recommended that you download and install the latest BIOS, driver, and

systems management firmware on your system from dell.com/support.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your system

Owner’s Manual. Dell offers comprehensive hardware training and certification. See dell.com/training for more

information. This service may not be offered in all locations.

Información NOM (sólo para México)

La información que se proporciona a continuación aparece en el dispositivo descrito en este documento, de

conformidad con los requisitos de la Norma Oficial Mexicana (NOM):

Importador: Dell Inc. de México, S.A. de C.V.

Paseo de la Reforma 2620 -11º Piso

Col. Lomas Altas

11950 México, D.F.

Número de modelo: D13M

Voltaje de alimentación: 100 V CA-240 V CA

Frecuencia: 50 Hz/60 Hz

Consumo eléctrico: 5,0 A

Technical Specifications

NOTE: The following specifications are only those required by law to ship with your system. For a complete and

current listing of the specifications for your system, go to dell.com/support.

Power

AC Power Supply

Wattage 290 W

Heat dissipation NOTE: Heat dissipation is calculated using the power supply wattage

rating.

Voltage

NOTE: This system is also

designed to be connected to IT

power systems with a phase to

phase voltage not exceeding 230 V.

100–240 V AC, autoranging, 50/60 Hz

Power

Battery

Coin-cell battery 3 V CR2032 Lithium coin cell

Drives

Hard drives Up to four 3.5 inch and two 2.5 inch internal, cabled SATA hard drives

NOTE: If you install more than four SATA hard drives, you need an

optional SATA controller card.

Expansion Bus

Bus type PCI Express Generation 3

Expansion card slots: Supports three PCIe expansion card slots and one PCI expansion card

slot

NOTE: The power consumption of the PCIe expansion cards is less

than 25 W.

Physical

Height 36.29 cm (14.29 inch) with feet

36.0 cm (14.17 inch) without feet

Width 17.5 cm (6.88 inch)

Depth 43.5 cm (17.12 inch) with bezel

40.0 cm (15.75 inch) without bezel

Maximum configuration weight 8.6 kg (18.95 lb)

Empty weight 8 kg (17.64 lb)

Environmental

NOTE: For additional information about environmental measurements for specific system configurations, see

dell.com/environmental_datasheets.

Temperature

Operating Continuous operation: 10 °C to 35 °C at 10% to 80% relative humidity

(RH), with 26 °C maximum dew point. De-rate maximum allowable dry

bulb temperature at 1 °C/300 m above 900 m (1°F per 550 ft).

NOTE: For information on supported expanded operating

temperature range and configurations, see dell.com/support/

manuals.

Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum temperature

gradation of 20 °C per hour

Relative humidity

Environmental

Operating 20% to 80% (noncondensing) at a maximum wet bulb temperature of 29

°C (84.2 °F)

Storage 5% to 95% at a maximum wet bulb temperature of 38 °C (100.4 °F)

Maximum vibration

Operating 0.26 Grms at 5 Hz to 350 Hz (all operation orientations)

Non-operating 2.2 Grms at 5 Hz to 500 Hz for 15 min (all six sides tested)

Maximum shock

Operating One shock pulse (all operating orientations) of 40 G for 2 ms in the

operational orientation

Non-operating Six consecutively executed shock pulses in the positive and negative x,

y, and z axes (one pulse on each side of the system) of 71 G/2 ms half

sine shock

Six consecutively executed shock pulses in the positive and negative x,

y, and z axes (one pulse on each side of the system) of 50 G/320 inps

long duration half sine shock

Altitude

Operating –15.2 m to 3048 m (–50 to 10,000 ft)

NOTE: In compliance with the requirements of the official Chinese

standards, the operating altitude for systems shipping in China is in

the range of –15.2 m to 5000 m (–50 ft to 16400 ft).

NOTE: For altitudes above 2950 ft, the maximum operating

temperature is derated 1 ºF/550 ft.

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne Contaminant Level

Class G1 as defined by ISA-S71.04-1985
