Delta Children Jeep Arrow Manuale utente

www.DeltaChildren.com

Customer Experience Center

phone: (646) 435-8726

email: [email protected]

INSTRUCTION MANUAL

Read all instructions BEFORE assembly and USE of product

KEEP INSTRUCTIONS FOR FUTURE USE.

33508

ADULT ASSEMBLY REQUIRED

DCP-IM-02032020-V12

WARNING:

Adult assembly required because of

small parts. Keep assembly parts

out

of reach of children under 3 years.

CHOKING HAZARD

STYLES AND COLORS MAY VARY

ARROW

TRAVEL STROLLER

www.DeltaChildren.com

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

CAREANDMAINTENANCE

WARNING: Please follow all of these instructions to ensure the safety of your child.

Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result in serious injury or death.

• Avoid serious injury from falling or sliding out. ALWAYS insure that the child is properly positioned by

using the safety harness according to these instructions. ONLY children who have developed enough

upper body control to sit without leaning forward can use the front seat in the upright position.

• NEVER leave children unattended.

WARNING: CHOKING HAZARD Adult assembly required because of small parts.

Keep (assembly parts) out of reach of children under 3 years.

CAUTION: Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of

the stroller and cause hazardous unstable conditions.

TO PREVENT INJURY

• Make sure all body parts are clear of the stroller when folding and unfolding.

• The maximum weight that can be carried in the lower basket, and child tray, each is 3 lbs (1.36 kg).

Excessive weight may cause a hazardous unstable condition to exist.

• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the

open locked position.

• Use of the stroller with children weighing more than 50 pounds (22.62 kg) or over 42 inches

(106.7 cm) tall, may cause a hazardous unstable condition to the stroller.

• NEVER use the stroller on stairways or escalators.

• NEVER allow your stroller to be used as a toy.

• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates..

Product features and decorations may vary from the photo.

• To clean the plastic parts on stroller use a mild cleaning solution with warm water on a sponge or

damp cloth. Hand wash fabric with damp cloth and air dry. Do not use bleach.

• To keep your stroller wheels from squeaking, use silicone or graphite based lubricant.

• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis.Replace

or repair parts as needed, discontinue use of stroller if it should become damaged or malfunctions.

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Before returning this product to the store!

Let’s see if we can assist you!

• Not sure how to assemble our product?

Visit our site for easy to follow instructions along with some Tricks and Tips assembly

videos https://www.deltachildren.com/pages/instructions

• If you are missing a piece or have a damaged part

Please contact our Consumer Experience Center for assistance at 646-435-8726 or email

[email protected]. To better assist you please have your Style# or Model# and

Lot# available. This can be found on a white rectangular sticker on your product, on the

registration card, and on the product’s box.

• In the event we do not have a replacement part available

You may need to return your product to the retailer for an exchange or refund.

• Warranty

In order to protect your investment, don’t forget to register your product.

You may also wish to consider purchasing our extended warranty.

Visit https://www.deltachildren.com/pages/extended-warranty for more details.

• Please note:

“All Final”, “As Is” or Third Party/Liquidator sales are not covered under our Limited

Manufacturer Warranty.

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

EXTENDED WARRANTY

DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFE’S MISHAPS!

With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if

your item stops working due to normal wear and tear, plus all those unexpected surprises.

2 YEARS OF PROTECTION

For Additional Information:

Simply visit our Website, register your product, and add the Extended Warranty

https://www.deltachildren.com/pages/product-registration

Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho,

Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire,

New York, North Carolina, North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia

LIMITED MANUFACTURER WARRANTY

This Delta product is warranted to be free from defects for a period of 90 days from the date of

purchase under normal use. This warranty extends only to the original retail purchaser and is valid

only when supplied with proof of purchase, or if received as a gift, when the registration is on file

with Delta. This limited manufacturer warranty does not cover the following:

• Products purchased as floor models or samples.

• Items purchased on an “as-is” basis, as a second hand product, or as a resale product.

• Items purchased at a Final sale, a “Going out of Business” sale, or a Liquidation sale.

TO REGISTER YOUR PRODUCT for important safety alerts and updates to your product

please visit www.deltachildren.com

TO REPORT A PROBLEM, please log on to www.deltachildren.com and click the

Consumer Care Tab, or contact us by phone at (646) 435-8726 or email [email protected]

Date of Purchase: _____________ (you should also keep your receipt)

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

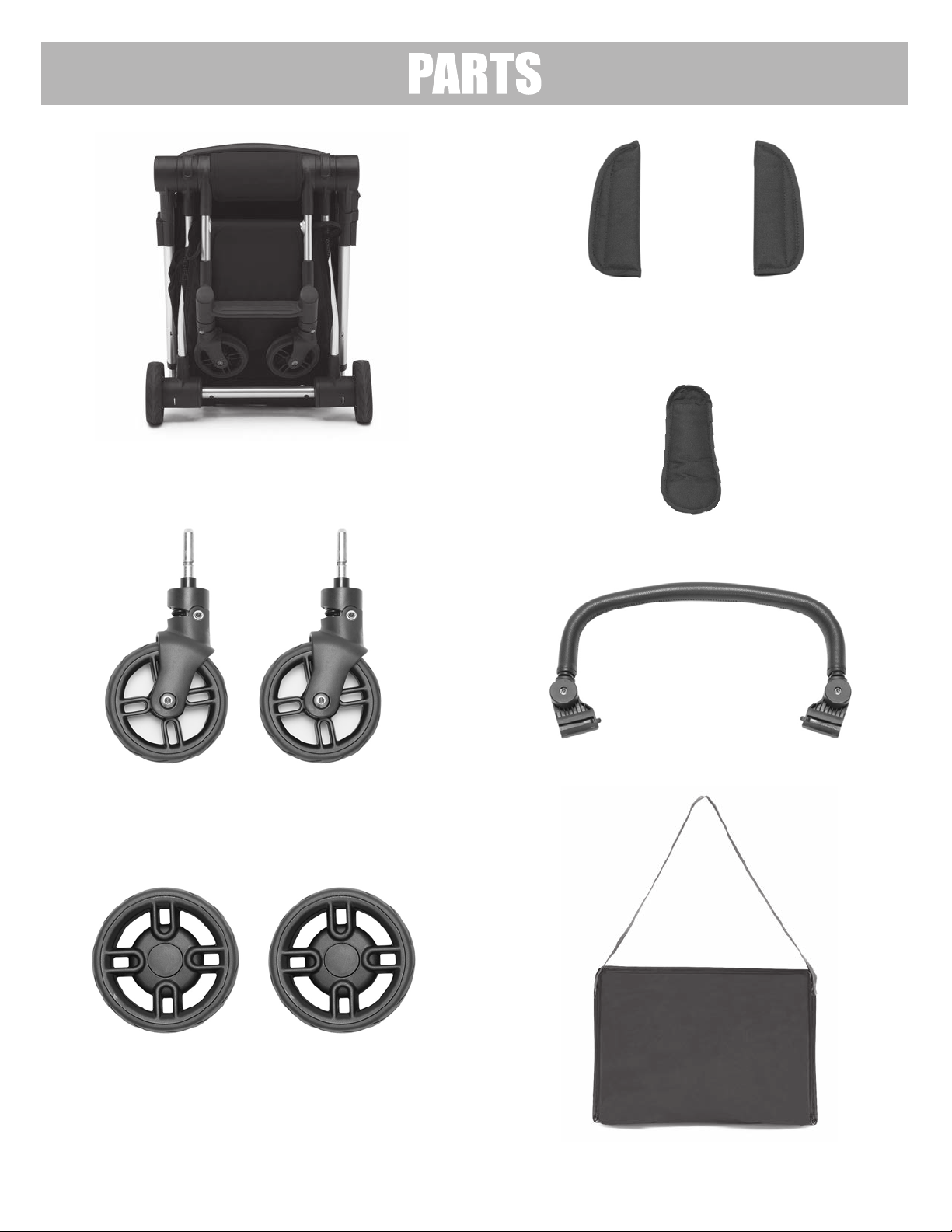

STROLLER

TRAVEL BAG

CHILD BAR

BACK WHEELS

FRONT WHEELS

SHOULDER PAD

(RIGHT)

SHOULDER PAD

(LEFT)

CROTCH PAD

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

ASSEMBLYASSEMBLY

INSTALL FRONT

& REAR WHEELS

*Assembled

REMOVING FRONT WHEELS REMOVING REAR WHEELS

Release

Button

Release

Button

FRONT REAR

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

ASSEMBLY

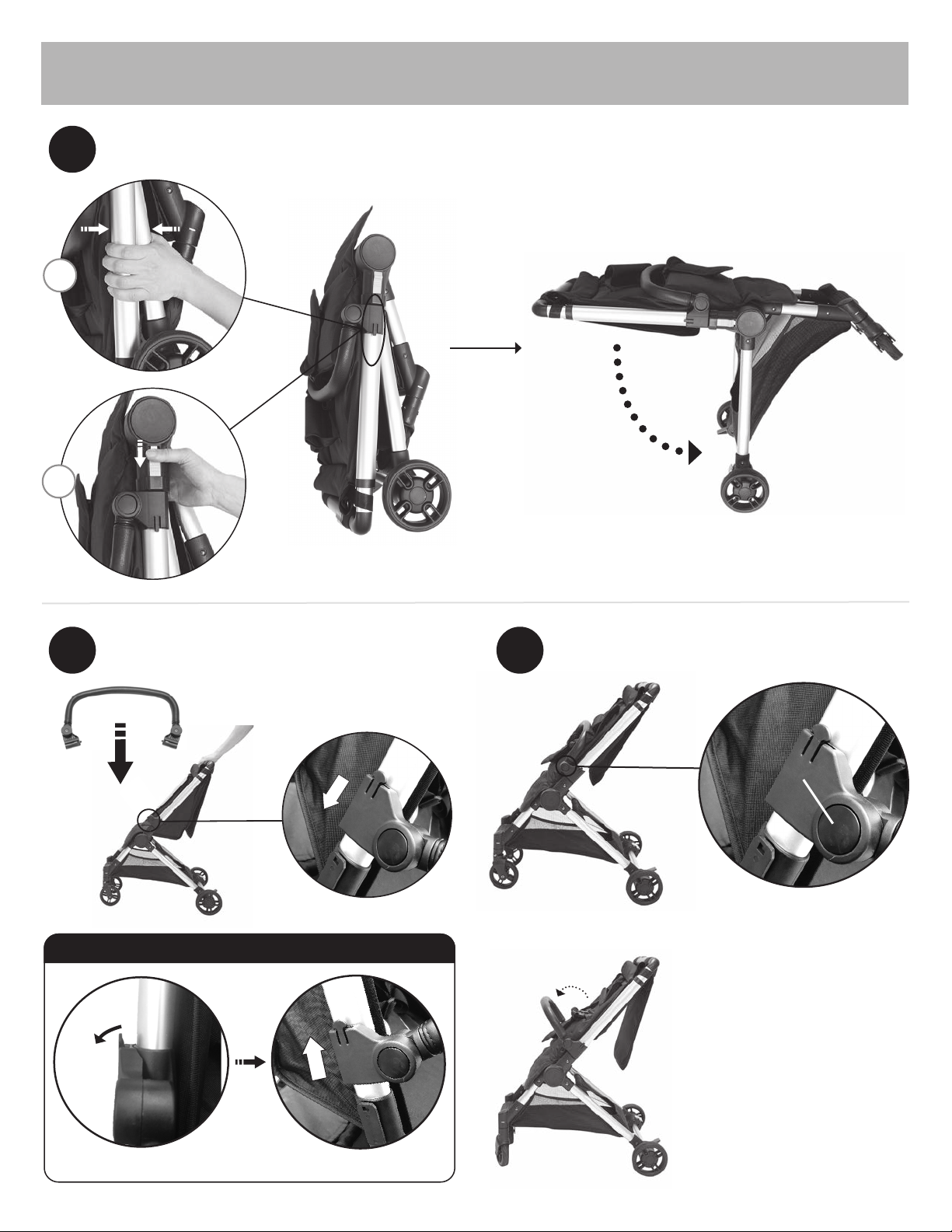

REMOVING CHILD BAR

INSTALLING CHILD BAR

UNLOCKING & OPENING STROLLER

ADJUSTING CHILD BAR

PUSH BUTTONS ON LEFT &

RIGHT TO ADJUST CHILD BAR

Detach one side to load/unload child, both sides to remove child bar completely

PULL CLIPPULL CLIP

LIFTLIFT

SLIDE

DOWN

SQUEEZE

RELEASE

BUTTON

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

ASSEMBLY

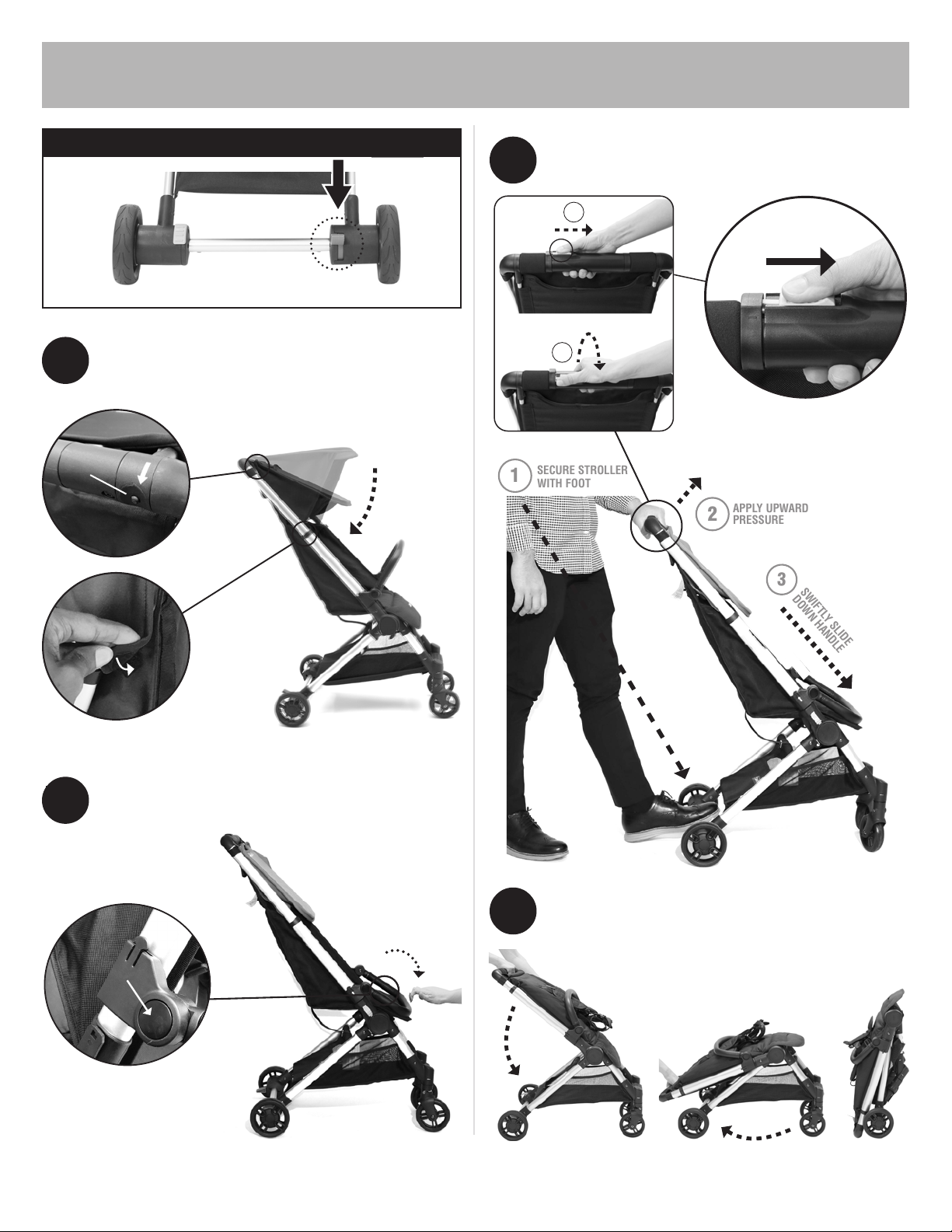

TO UNLOCK BRAKE

STEP ON LEFT PEDAL TO UNLOCK

TO LOCK BRAKE

LEFT RIGHT

STEP ON RIGHT PEDAL TO LOCK

LEFT RIGHT

SETUP&USE

EXTENDING HANDLE & ADJUSTING CANOPY

PUSH PINS ONPUSH PINS ON

LEFT & RIGHT TOLEFT & RIGHT TO

ADJUST CANOPYADJUST CANOPY

RELEASE

FASTEN VELCRO ONFASTEN VELCRO ON

LEFT & RIGHT SIDESLEFT & RIGHT SIDES

TWIST

SLIDE

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

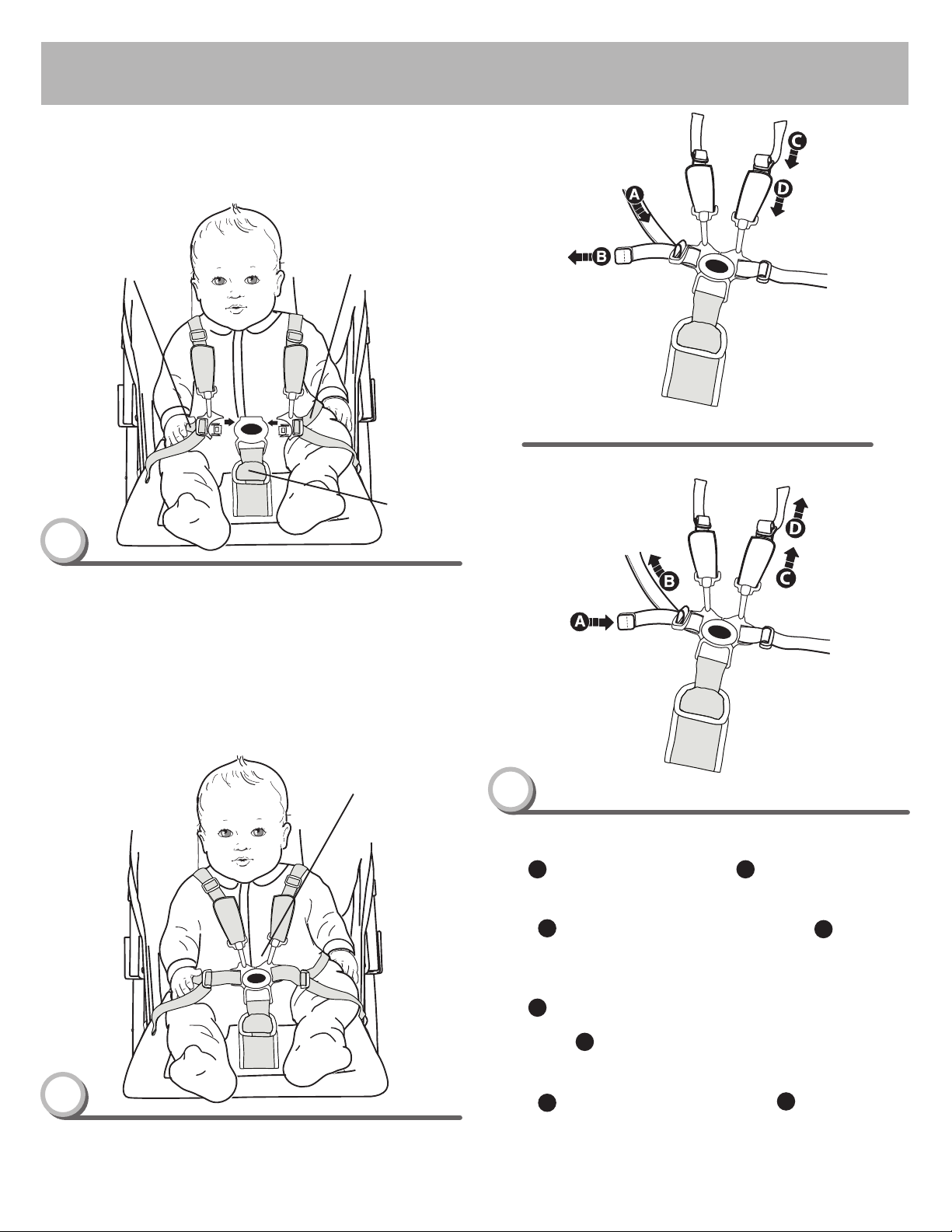

Securing Child

•Place your child in the stroller. Position the crotch belt between your

child’s legs.

•Pull shoulder straps over child’s arm and shoulder and fasten both strap

ends to the restraint system.

•Fasten both waist belts to the buckle on each side of the crotch belt.

Make sure you hear a “click” on both sides.

•Check to be sure the restraint system is securely attached by pulling it

away from your child. The restraint system should remain attached.

To tighten the waist belts and shoulder straps:

•Feed the anchored end of a waist belt up through the buckle to form a

loop A. Pull the free end of the waist belt B.

•Repeat this procedure to tighten the other waist belt.

•Feed the top end of the shoulder strap through the plastic stay to form

a loop . Pull the bottom end down to tighten the strap .

•Repeat this procedure to tighten the other shoulder strap.

To loosen the waist belts and shoulder straps:

•Feed the free end of the waist belt up through the buckle to form a

loop A. Enlarge the loop by pulling on the end of the loop toward the

buckle. Pull the anchored end of the waist belt to shorten the free end of

the waist belt B.

•Repeat this procedure to loosen the other waist belt.

•Feed the bottom end of the shoulder strap through the plastic stay to form

a loop . Pull the top end up to loosen the strap .

•Repeat this procedure to loosen the other shoulder strap.

Please note: After adjusting the restraint system to ﬁt your child, make sure

you pull on it to be sure it is securely fastened.

TIGHTEN

LOOSEN

5 Point Safety

Harness

•Tighten each waist belt and shoulder strap so that the restraint system is

snug against your child.

Please refer to the next section for instructions to tighten the waist belts.

Before Placing your Child in Stroller: Close Canopy. Press both

brake pedals down until they “click” into the locked position.

Make sure the brake pedals are pressed down completely.

Always set both brake pedals when parking the stroller.

Waist Belt

Crotch Belt

Restraint System

SECURINGCHILD

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

DETACH VELCRO ONDETACH VELCRO ON

LEFT & RIGHT SIDESLEFT & RIGHT SIDES

PRESS BOTH RELEASE

BUTTONS AT SAME TIME TO

ADJUST CHILD BAR

RELEASE

BUTTON

FOLDINGSTROLLER

PUSH PINS ONPUSH PINS ON

LEFT & RIGHT TOLEFT & RIGHT TO

ADJUST CANOPYADJUST CANOPY

RELEASE

FOLDING CANOPY

FOLDING CHILD BAR

STARTING FOLD

FINISHING FOLD

STEP ON RIGHT PEDAL TO LOCK

BEFORE YOU START

SECURE STROLLER

WITH FOOT

APPLY UPWARD

PRESSURE

SWIFTLY SLIDE

DOWN HANDLE

TWIST

SLIDE
