AVR-S700W

INTEGRATED NETWORK AV RECEIVER

Quick Start Guide

Read Me First....

Please do not return this unit to

the store – call for assistance.

If you need help… :

If you need additional help in solving problems,

contact Denon customer service in your area.

1-855-MY.Denon

1-855-693-3666

Call for Assistance:

Monday – Friday 10:00AM to 10:00PM E.S.T

Saturday 12:00PM to 8:00PM E.S.T

For frequently asked questions please visit

www.usa.denon.com/FAQ

For US and Canada only

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 1 2014/04/10 21:03:34

Thank you for choosing a Denon AV receiver. This guide

provides step-by-step instructions for setting up your AV

receiver.

Welcome Before You Begin

Required for Setup

TV HDMI cable

Speaker systems Speaker cables

Optional

LAN cable Wi-Fi router

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 1 2014/04/10 21:03:35

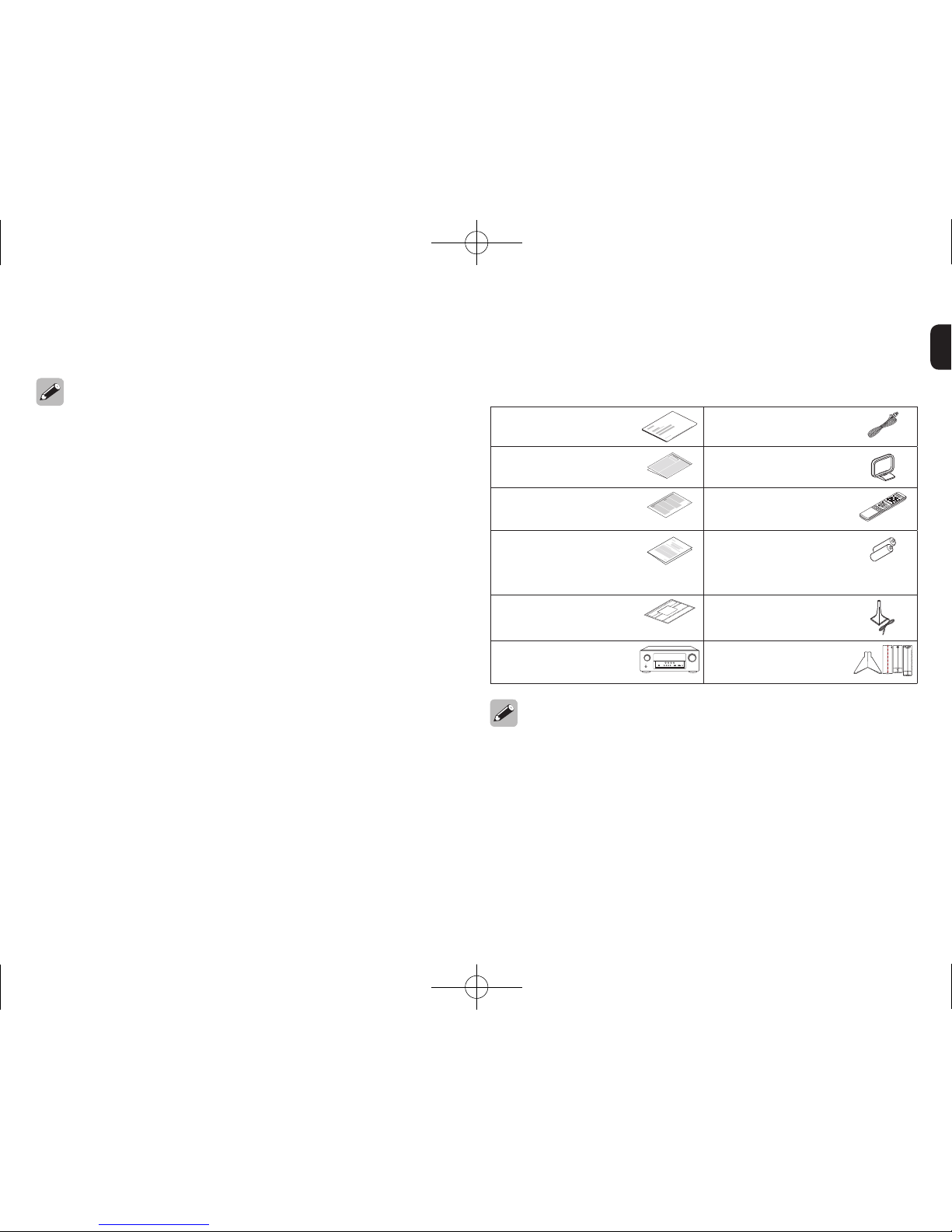

What’s In the Box

Quick Start Guide

FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Remote control

unit

Warranty

(for North America

model only)

R03/AAA batteries

Cable labels Sound calibration

microphone

Receiver Sound calibration

microphone stand

The supplied Sound calibration microphone stand is

convenient for use when performing Speaker Calibration.

Using your own tripod or the supplied Sound calibration

microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing

exceptionally high performance.

•When connecting this unit to a device that is compatible

with the Deep Color, 4K and ARC functions, use an “High

Speed HDMI cable with Ethernet” that comes with the

HDMI logo.

•These drawings are for illustrative purposes only and may

not represent the actual product(s).

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 2 2014/04/10 21:03:37

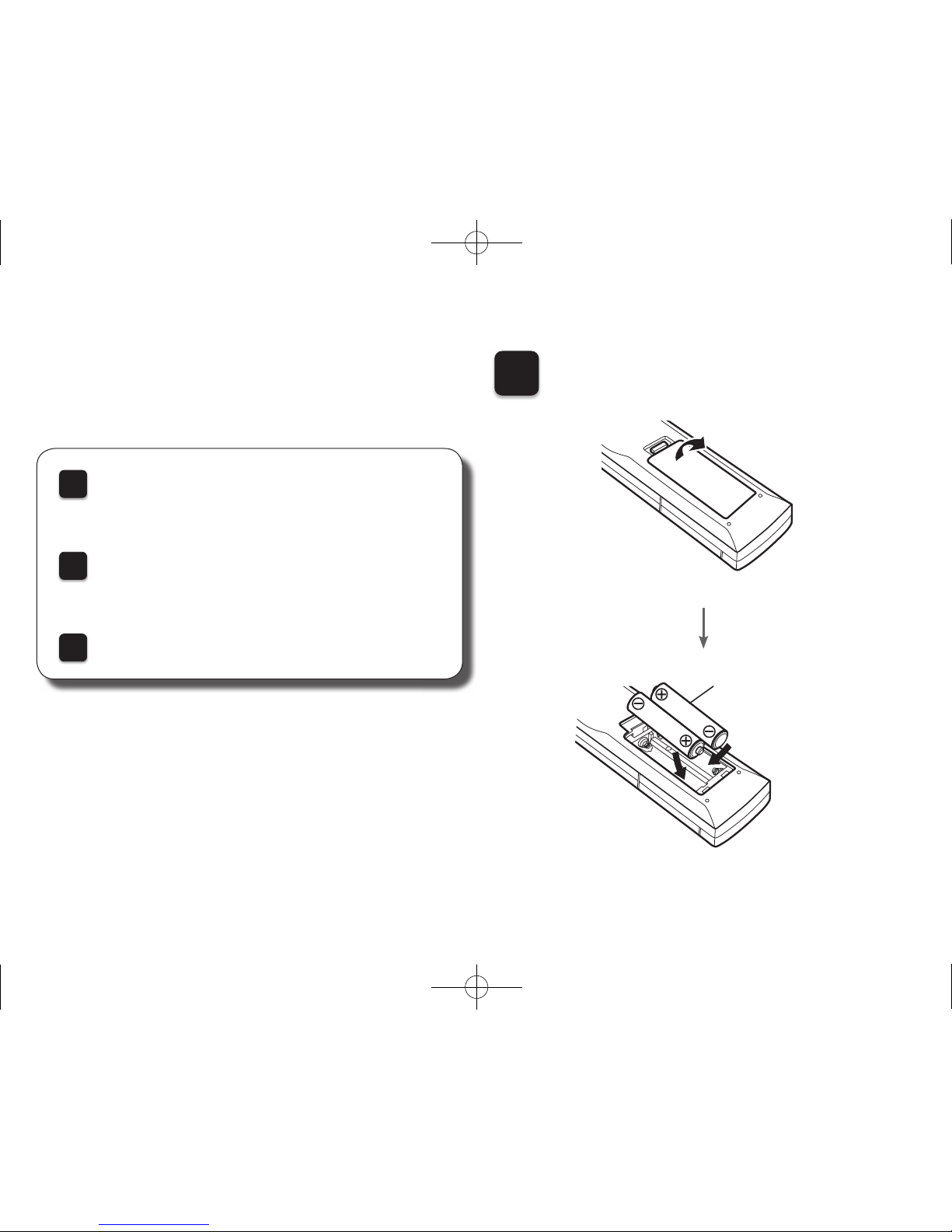

1Installing batteries in the

remote control unit

R03/AAA batteries

There are three steps to the setup

process.

1Install batteries in the remote control unit

2Connecting the receiver

3Follow the On-Screen Setup Assistant

Setup

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 3 2014/04/10 21:03:37

2Connecting the receiver

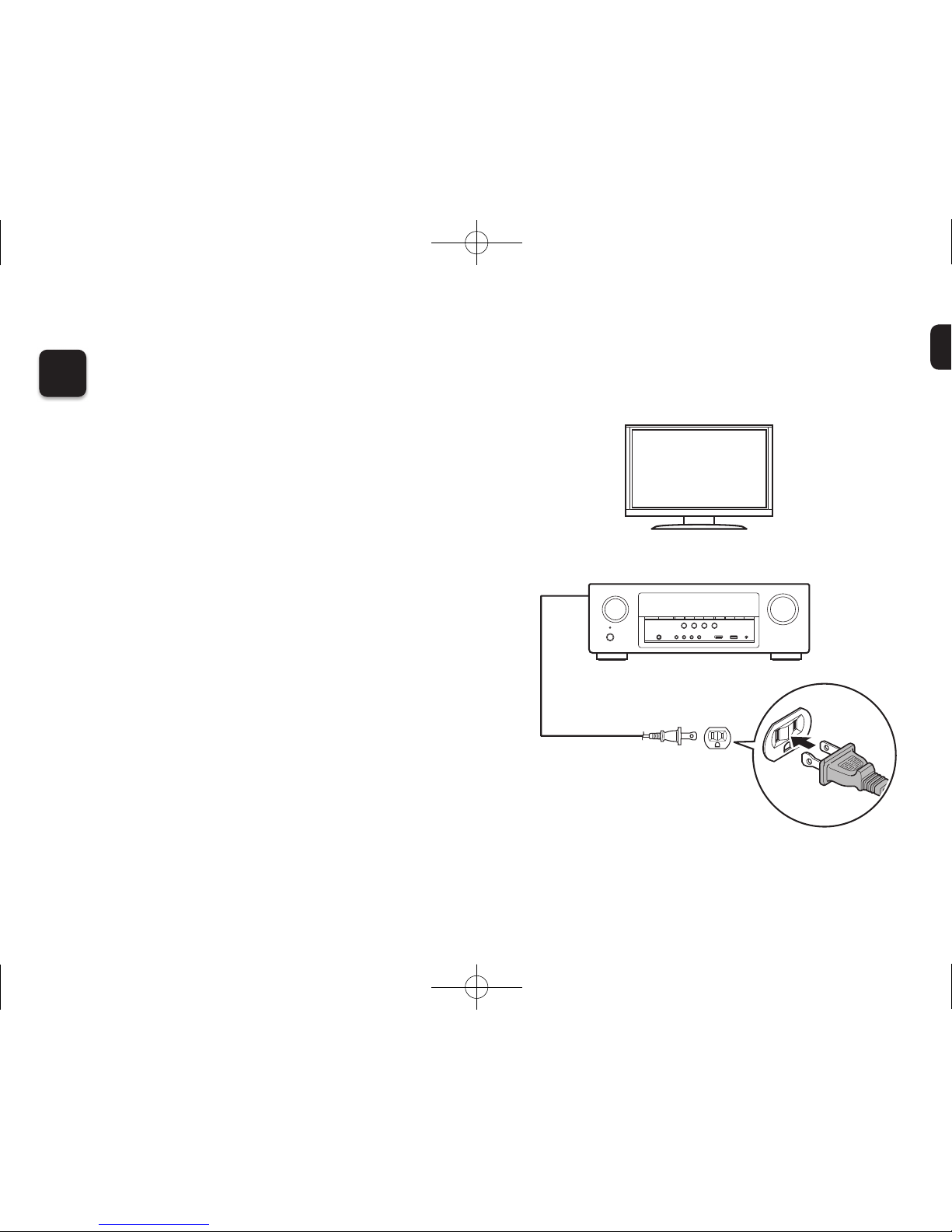

nPlace the receiver near your TV and

connect the power cable.

Receiver

Power cord

Connect to household

power outlet

(AC 120 V, 60 Hz)

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 4 2014/04/10 21:03:38

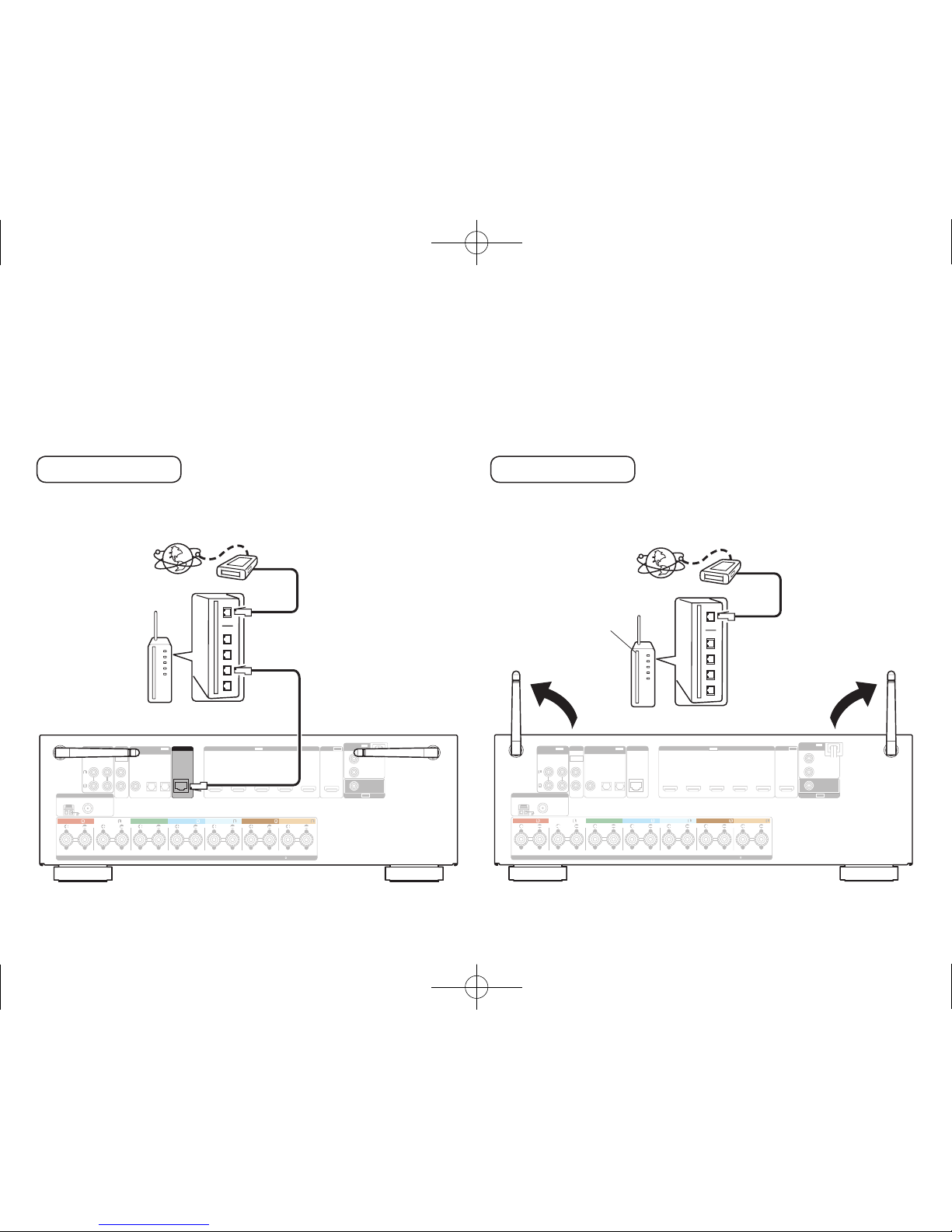

nConnect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

ANTENNA

1 CBL/SAT 4 Blu-ray 5 GAME

MEDIA

PLAYER

DVD/

Blu-ray

(4K)(4K)

HDMI (ASSIGNABLE)

PRE OUT

SUBWOOFER

CBL/SAT

MEDIA

PLAYER

TV AUDIO

COAXIAL

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

75Ȑ

FMAM

1 CBL/SAT

MEDIA

PLAYER

VIDEO

OUT

MONITOR

VIDEO

(ASSIGNABLE)

AUDIO

(ASSIGNABLE)

MEDIA

PLAYER

CBL/SAT

IMPEDANCE : 4㹼16Ȑ

SPEAKERS

ASSIGNABLE

CLASS 2 WIRING

FRONT FRONT

CENTER SURROUNDSURROUND

SURROUND BACK SURROUND BACK

MONITOR

ARC

HDMI

OUT

SURROUNDSURROUND

NETWORK

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When using a wireless connection (Wi-Fi), rotate the

antennas upword.

ANTENNA

1 CBL/SAT 4 Blu-ray 5 GAME

MEDIA

PLAYER

DVD/

Blu-ray

(4K)(4K)

HDMI (ASSIGNABLE)

PRE OUT

SUBWOOFER

CBL/SAT

MEDIA

PLAYER

TV AUDIO

COAXIAL

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

75Ȑ

FMAM

1 CBL/SAT

MEDIA

PLAYER

VIDEO

OUT

MONITOR

VIDEO

(ASSIGNABLE)

AUDIO

(ASSIGNABLE)

MEDIA

PLAYER

CBL/SAT

IMPEDANCE : 4㹼16Ȑ

SPEAKERS

ASSIGNABLE

CLASS 2 WIRING

FRONT FRONT

CENTER SURROUNDSURROUND

SURROUND BACK SURROUND BACK

MONITOR

ARC

HDMI

OUT

SURROUNDSURROUND

NETWORK

Router with

access point To WAN side

Internet Modem

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 5 2014/04/10 21:03:38

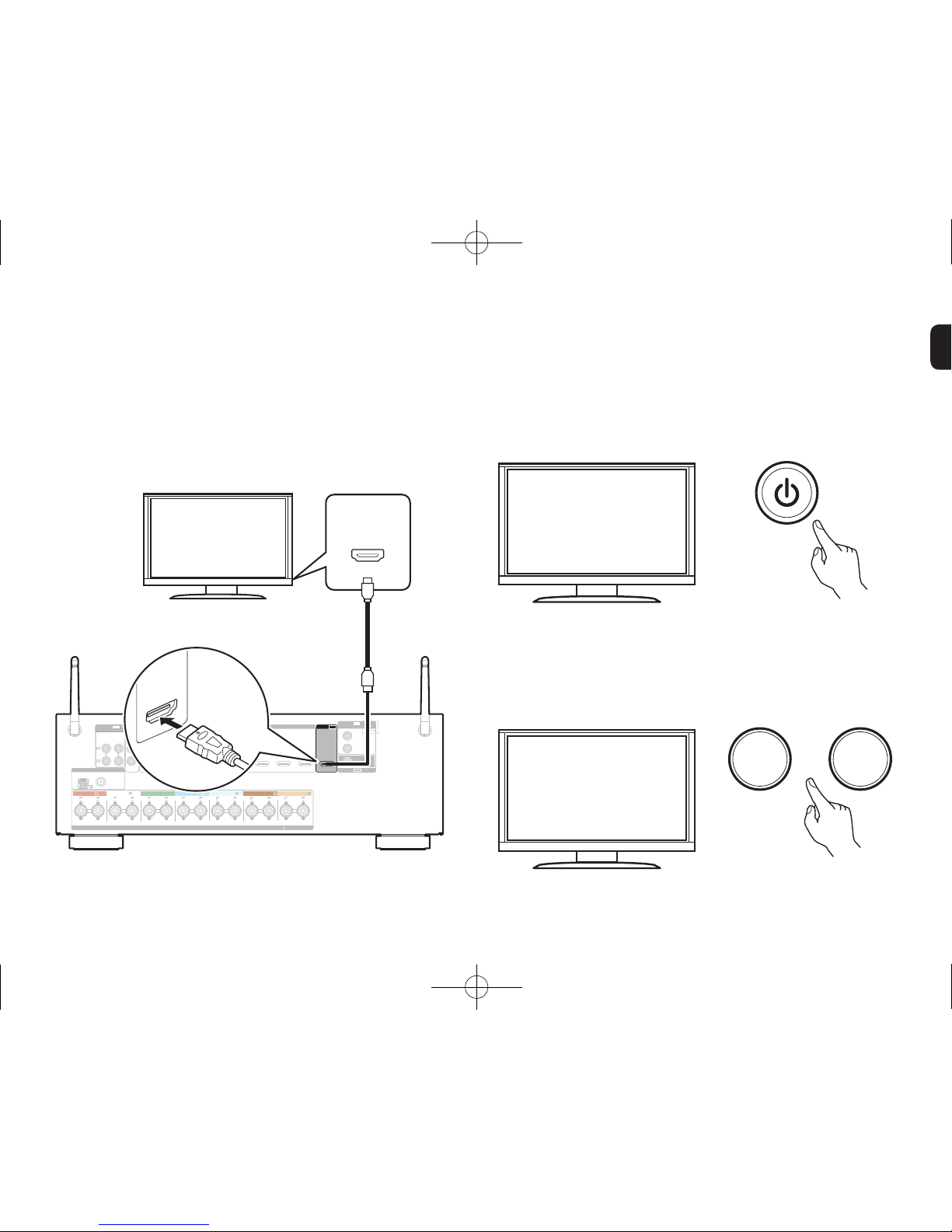

nTurn on the TV.

TV remote control unit

nSelect the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

nConnect the receiver to your TV with

an HDMI cable.

ANTENNA

1 CBL/SAT 4 Blu-ray 5 GAME

MEDIA

PLAYER

DVD/

Blu-ray

(4K)(4K)

HDMI (ASSIGNABLE)

NETWORK

PRE OUT

SUBWOOFER

CBL/SAT

MEDIA

PLAYER

TV AUDIO

1 2

COAXIAL

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

75Ω

FMAM

1 CBL/SAT

MEDIA

PLAYER

VIDEO

OUT

MONITOR

VIDEO

(ASSIGNABLE)

AUDIO

(ASSIGNABLE)

MEDIA

PLAYER

1 2

CBL/SAT

IMPEDANCE: 4～16Ω

SPEAKERS

ASSIGNABLE

CLASS 2 WIRING

FRONT FRONT

CENTER SURROUNDSURROUND

SURROUND BACK SURROUND BACK

SURROUNDSURROUND

MONITOR

ARC

HDMI

OUT

(ARC)

HDMI IN

(ARC)

HDMI OUT

MONITOR

ARC

MONITOR

HDMI cable

Receiver (Rear panel)

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 6 2014/04/10 21:03:39

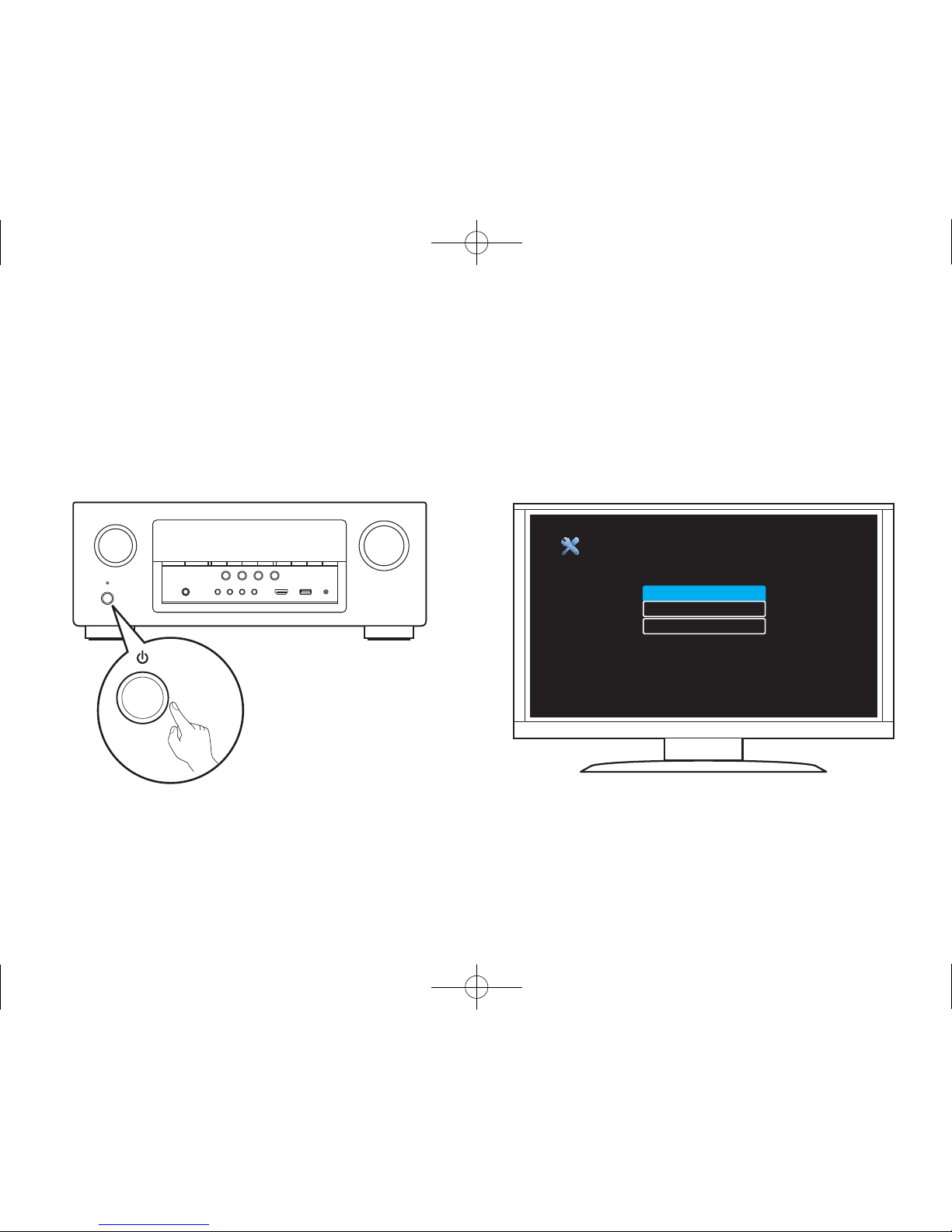

nTurn on the receiver.

•Press Xto turn on the receiver.

nVerify the connection.

•Verify that you can see this screen on your TV.

Setup Assistant

Please select a language...

English

Français

Español

When this screen is not displayed, please read operation

from the beginning.

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 7 2014/04/10 21:03:39

3Follow the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the

on-screen instructions.

Setup Assistant

Please select a language...

English

Français

Español

ENTER

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 8 2014/04/10 21:03:39

Owner’s Manual

•For more information, visit www.denon.com.

•Refer to the Web Manual for other

functions information and operation

procedure details.

manuals.denon.com/AVRS700W/NA/

EN/

Introductions

Connections

Playback

Settings

Tips

Appendix

PDF Download

INTEGRATED NETWORK AV RECEIVER

WEB Manual

PDF

Contents

INTEGRATED NETWORK AV RECEIVER

Web Manual

1.AVR-S700WE3_ENG_QSG_Suggestion_140410_Final.indd 9 2014/04/10 21:03:40
