DEVA Broadcast Radio Explorer III DAB Manuale utente

MAINTENANCE AND OPERATION

INSTRUCTION MANUAL

Publish Date: 10-Apr-2023

Radio Explorer III

DAB

Advanced Mobile DAB/DAB+ Radio Analyzer

50 Channel GPS Receiver

Contents

Introduction........................................................................................................................................ 5

Typographic conventions .................................................................................................................. 6

General Information.......................................................................................................................... 7

Product Features ................................................................................................................................ 8

Technical Specications .................................................................................................................. 9

Block Diagram .............................................................................................................................. 10

Safety Precautions............................................................................................................................ 11

Panel Indicators, Switches and Connectors................................................................................... 12

OLED Display............................................................................................................................... 12

Context-sensitive soft buttons........................................................................................................ 12

Navigational buttons ..................................................................................................................... 12

Front Panel.................................................................................................................................... 13

Rear Panel..................................................................................................................................... 14

Rear Panel GPO Terminal ............................................................................................................ 15

Before you start ................................................................................................................................ 16

Unpacking and Inspection............................................................................................................. 16

Radio Frequency Interference (RFI) ............................................................................................. 16

Safety Precautions......................................................................................................................... 17

Device connection ......................................................................................................................... 17

Getting Started ................................................................................................................................ 18

Connection .................................................................................................................................... 18

Network Settings............................................................................................................................ 19

Network Discovery ........................................................................................................................ 19

Basic Setup........................................................................................................................................ 20

OLED Display............................................................................................................................... 20

How to change device parameters ................................................................................................ 20

Set-up menu title ...................................................................................................................... 20

Navigation area ....................................................................................................................... 20

Home Screen.................................................................................................................................. 24

Bandscan Page.............................................................................................................................. 25

Span control state ..................................................................................................................... 27

Marker control state ................................................................................................................. 29

Parameter control state ............................................................................................................ 30

Bandscan page parameters ..................................................................................................... 30

Levels Page ................................................................................................................................... 31

Status Page.................................................................................................................................... 33

Status > Device ........................................................................................................................ 33

Status > IP Address .................................................................................................................. 33

Status > GPS ............................................................................................................................ 34

Settings Page................................................................................................................................. 35

Settings Menu screen structure ................................................................................................ 36

How to start a Logger campaign using the front panel menu?..................................................... 39

Restore factory defaults................................................................................................................... 40

WEB Interface.................................................................................................................................. 41

Manual IP Address Identication.................................................................................................. 41

Network discovery ........................................................................................................................ 43

Access............................................................................................................................................ 43

Device control interface ................................................................................................................ 44

Main .............................................................................................................................................. 46

DAB / DAB+ ................................................................................................................................. 47

Loudness........................................................................................................................................ 48

Band Scan...................................................................................................................................... 49

Status ............................................................................................................................................. 50

Log................................................................................................................................................. 51

General Settings ............................................................................................................................ 52

Tuner Settings................................................................................................................................ 53

Logger ........................................................................................................................................... 54

Important recommendations when acquisition time is set........................................................ 55

How to start a Logger campaign?............................................................................................ 56

Communication Settings................................................................................................................ 57

Outputs Settings ............................................................................................................................ 59

Other Settings................................................................................................................................ 60

APPENDIX B ................................................................................................................................... 61

How should I congure the connection between my DEVA Device and an FTP Client? 61

WARRANTY TERMS AND CONDITIONS................................................................................. 63

Product Registration Card.............................................................................................................. 64

THIS PAGE

IS INTENTIONALLY

LEFT BLANK

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 5 -

Introduction

DEVA Broadcast Ltd. is an international communications and high-technology manufacturing

organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company

serves the broadcast and corporate markets worldwide – from consumers and small businesses to

the largest global organizations. It is dedicated to the research, design, development and provision

of advanced products, systems and services. DEVA Broadcast launched its own brand back in

1997 and has nowadays evolved to become known as a market leader and internationally reputed

manufacturer of user-friendly, cost-eective and innovative broadcast products.

Creativity and innovation are deeply woven into DEVA Broadcast corporate culture. Through

successful engineering, marketing and management our team of dedicated professionals creates

future-oriented solutions to improve customers’ performance. You may rely that all issues

communicated to our crew would be addressed accordingly. We pride ourselves on our pre and

post-sales support and purchase services, which along with the outstanding quality of our radio

gear have won us due respect and the market authority position.

DEVA Broadcast best-of-breed solutions have become the best sellers for our partners. The

strategic partnerships which have been formed with industry leaders during all these years that

we have been operating on the broadcasting market, have proved us a reliable business partner

and a valuable asset, as our dealers worldwide would conrm. In constant pursuit of precision and

long-term satisfaction, DEVA Broadcast enhances the reputation of our partners and clients alike.

Furthermore, we have already a proven merit as a credible partner provider.

Our portfolio oers complete line of high quality and competitive products for FM and Digital

Radio, Radio Networks, Telecommunication Operators and regulation authorities. For almost

two decades of intensive software and hardware development, we have achieved a unique price-

performance and endurance of our product lines. Our company’s multitude of equipment and

services is in line with the latest technologies and key trends. The most recognizable characteristics

attributed to DEVA Broadcast products are their clear-cut, streamlined design, easiness of use and

cost-eectiveness: simplicity of forms but multiplicity of functions.

For us there is no stage when we deem that we have reached the most satisfactory level in

our work. Our engineers are in constant pursuit of new ideas and technologies to be captured in

DEVA Broadcast solutions. Simultaneously, a strict control is being exercised at each step of any

new development. Experience and hard work are our fundament but the continuous improving

process is what we never leave aside. DEVA Broadcast participates on a regular basis in all

landmark broadcasting events, not only to promote its products, but to exchange valuable know-

how and experience. We are also engaged in international large-scale projects involving radio and

audio solutions which makes us even more competitive on the global market.

All DEVA Broadcast products are developed and produced in accordance with the latest ISO

9001 quality control standards.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 6 -

Typographic conventions

The following table describes important conventions used in the manual.

Convention and Style Description Examples

Menu > Sub Menu >

Menu Command

A menu item(s) and menu

command that you need to click

in sequence

Click Settings > General

[Button] Interface Interactive buttons Press [OK] to save the changes

NOTE Important notes and

recommendations

NOTE: The notication will appear

only once

“Reference Name” on

Page XXX

References and links refer to “New Connection”

(see “Monitoring” on page 56)

Example Used when example text is cited Example for E-mail Notication:

Date: 04 Nov 2013, 07:31:11

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 7 -

General Information

Radio Explorer III DAB adds another dimension to DEVA Broadcast’s already spectacular range

of DAB/DAB+ products. This is an advanced coverage survey mobile tool in full compliance with

the ETSI EN 300 401 DAB standard. Among its most important advantages are the two powerful

DAB tuners, which account for the unprecedented accuracy and reliability to this product.

Radio Explorer III DAB allows you to monitor up to 10 services within the DAB ensemble

with predened acquisition time in a round-robin scheduler and stores the measured parameters in

a log le for further analysis through the DEVA Device Manager software.

It oers support for Program Associated Data (PAD), as well as all standard bitrates and VBR,

and automatically displays live metadata. As a tool of immense precision, it also measures the

following DAB signals: RSSI, SNR, CNR, FIC Quality, FIB Errors, FFT Oset and the Left &

Right Audio level values.

The BandScan function of the Radio Explorer III DAB presents an overview of all DAB/DAB+

signals available, plus their RF signal strength. BandScans are possible within any section of

Band III, whereas the generated spectrum diagram shows the RF Level vs. the channels. Another

great asset to this tool is the Loudness meter, which can be shown as dened by ITU BS.1770-4

and EBU R128 recommendations, as the product supports both.

As a matter of course, our aim with Radio Explorer III DAB has once again been to make

sophisticated, high quality equipment easy to use. This product has a high-resolution graphical

OLED display with front panel navigational buttons and soft buttons for quick access to the

device’s various functions. Another option to control the unit is via the built-in Web server - a

standard web browser can be used to monitor its status or to make some adjustments. iOS and

Android devices are also supported. The Main Screen of the WEB Interface shows all mandatory

parameters represented as LED bar graph readings.

The DEVA Device Manager Software, supplied free of charge, also allows for quick and easy

connection to the device.

Another elegant solution in our DAB/DAB+ line, the Radio Explorer III DAB brings precision,

eectiveness and the customary DEVA quality.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 8 -

Product Features

• DAB/DAB+ compliant receiver

• Support for Program Associated Data (PAD)

• Predened DAB channels scan or manual tune

• Detailed DAB component information

• High-end digital tuner

• Dual tuner frontend for faster service switching

• Protected access to the device settings

• SNTP for automatic synchronization of the built-in clock

• LAN port for full TCP/IP remote control and monitoring

• Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels

• Alarm dispatch via E-mail, SNMP ver.2C and GPO

• Firmware updates will ensure improved operation

• Antenna port supporting up to 110 dBµV direct RF Antenna Input

• Built-in 50-channels GPS Receiver

• Front panel OLED Graphical Display

• Easy to use WEB Interface

• Apple and Android devices support

• Very Intuitive Application Interface

• SNMP for adjustments and control

• Maintenance via DEVA Device Manager Software

• Measurement results visualization in Google Earth

• Accurate front-panel metering for local use

• Headphone output with front panel level control

• 3 General purpose outputs

• Built-in FTP Server for easy download of the Log les

• Robust, custom made Metal Case for high RF immunity

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 9 -

TECHNICAL SPECIFICATIONS

DAB/DAB+ RADIO INPUT

RF frequency range 168 - 240 MHz

DAB/DAB+ Band III Channels 5A - 13F

Sensitivity 18 dBµV

Input connector BNC 50Ω

In compliance with ETSI EN 300 401

Ensemble acquisition Time 940 ms

L&R Audio 1%, +5.0 to -50.0 dB, 0.1 dB resolution

DAB/DAB+ RADIO METERING

Quality indicators RSSI, SNR, CNR, FIC Quality, FIB Errors, FFT Oset

PAD DLS, MOT

Metadata Displayed Ensemble Label, Component List & ID, Service List & ID,

Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode,

Service Mode, Protection Info, Current CU & Address, Country,

Language, Time & Date

OUTPUTS

Audio (L, R) +6 dBu, 600Ω, balanced XLR Connector

GPO Terminals on rear panel, optoisolated

Headphone 6,3mm (1/4”) Phone Jack

COMMUNICATION INTERFACES

USB B-type Connector

Ethernet 10/100 Base-T RJ45 Connector

GPS RECEIVER

Number of channels 50

Antenna Pre-amplied, 5m of cable, magnetic

Connector SMA, rear panel

MEASUREMENT STORAGE

Storage 16GB Build-in Memory Card

Data format Text, CSV

POWER REQUIREMENT

Voltage 12 DC (11-15V) / 2A max at 12V

Connector XLR (on rear panel)

SIZE AND WEIGHT

Dimensions (W;H;D) 210 x 76 x 215 mm

Shipping Weight 470 x 180 x 310 mm / 4.031 kg

HS Code 8527212000

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: o󰀩[email protected] ,Web: www.devabroadcast.com

- 10 -

BLOCK DIAGRAM

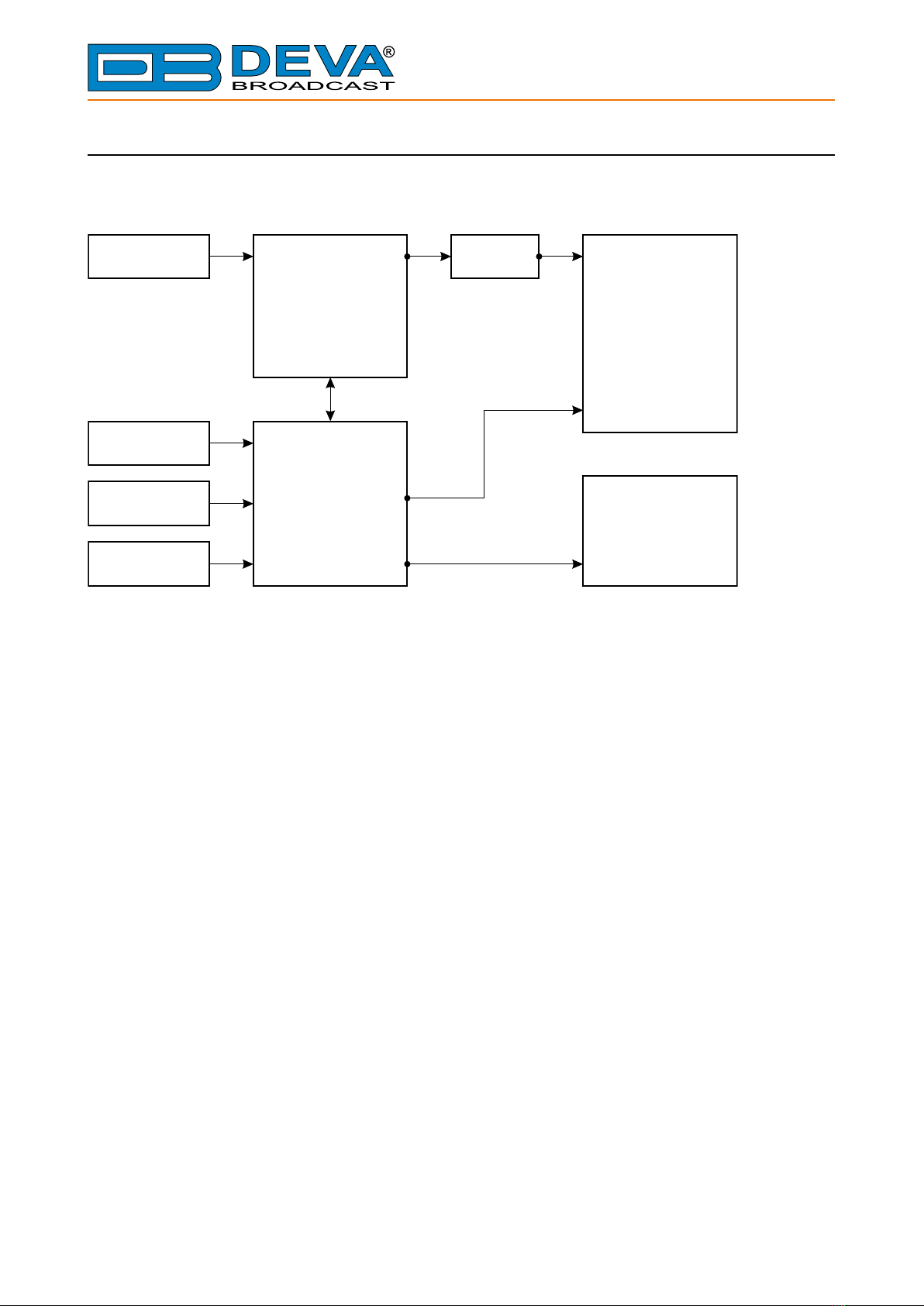

A simplied block diagram of Radio Explorer III DAB is shown below

DSP

DAB DAB+/

Tuner

Metering

Audio Streaming

Control and

Communication

CPU

Ethernet

USB

User

controls

L/R Rear Panel

Analog Audio

GPO

Front panel

LED

OLED

GPS

Because of the all-digital, minimalist-discrete-component nature of device circuitry, we have

not provided schematic diagrams of the Radio Explorer III DAB in this Manual. Please, note that:

NO USER-SERVICEABLE COMPONENTS INSIDE.

REFER ALL SERVICING TO

QUALIFIED TECHNICAL PERSONNEL.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DEVA Broadcast Strumento di misura

DEVA Broadcast

DEVA Broadcast Radio Explorer II Manuale utente

DEVA Broadcast

DEVA Broadcast DB4005 Manuale di istruzioni

DEVA Broadcast

DEVA Broadcast DVB Explorer Manuale utente

DEVA Broadcast

DEVA Broadcast Band Scanner PRO Manuale di istruzioni

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
