DFI AD75 Manuale utente
AD75
Rev.A+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
935-AD7501-000
57100216
Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®2000, Windows NT®
4.0 and Windows®XP are registered trademarks of Microsoft
Corporation.AMD,AthlonTM and DuronTM are registered trademarks
of Advanced Micro Devices, Inc. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend
by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s
instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.
4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
24
42
62
82
Note:
The user’s manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.
5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
7
10
19
Important:
To ensure proper boot up and operation of your system, you must
power-off the system then turn off the power supply’s switch or
unplug the AC power cord prior to altering the setting of a jumper
or replacing the CPU.
6
Quick Setup Guide
1
Quick Setup
Guide
1.1 System Board Layout
Socket 462
(Socket A)
J1
Mouse
KB
USB 1/2 (J2)
COM 1
J3
Parallel
J4
COM 2
J5
Game/MIDI (J8)
Line
out
(J6)
Line
in
(J7)
Mic
in
(J9)
CD-in (J10)
AUX-in (J11)
AC’97
DDR
SDRAM
DIMM 1
I/O
chip
PCI standby power LED
3.3VSB
standby for
PCI (JP5)
VIA
KT333
VIA
VT8233A
CPU fan
(J21)
ATX Power
(J13)
Second chassis
fan (J14)
Secondary IDE
Primary IDE
FDD
IDE 1
IDE 2
FDD
®
N
O
1432 5
CPU frequency
ratio select (SW1)
DDR
SDRAM
DIMM 2
DDR
SDRAM
DIMM 3
Power select
USB 1/2
(
for
JP4)
CPU FSB
select (JP7)
Clear
CMOS (JP8)
Battery
BIOS
Wake-On-LAN J15
10 2
91
Front audio (J18)
Wake-On-
Ring (J19)
Power select
USB 3/4 (for JP9)
15
11
5
1
USB 3/4
(J20)
Chassis
fan (J27)
PWR-LED
ATX-SW
G-LED
G-SW
HD-LED
RESET
SPEAKER
21
2019
CNR Slot
AGP Slot
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
PCI 4 Slot
PCI 5 Slot
Square denotes pin 1
J29
DIMM
standby
power LED
21
3
4
CNR setting
(JP6)
JP1
JP2
Audio
codec
settings
IrDA
(J16)
7
1
Quick Setup Guide
Quick Setup
Guide

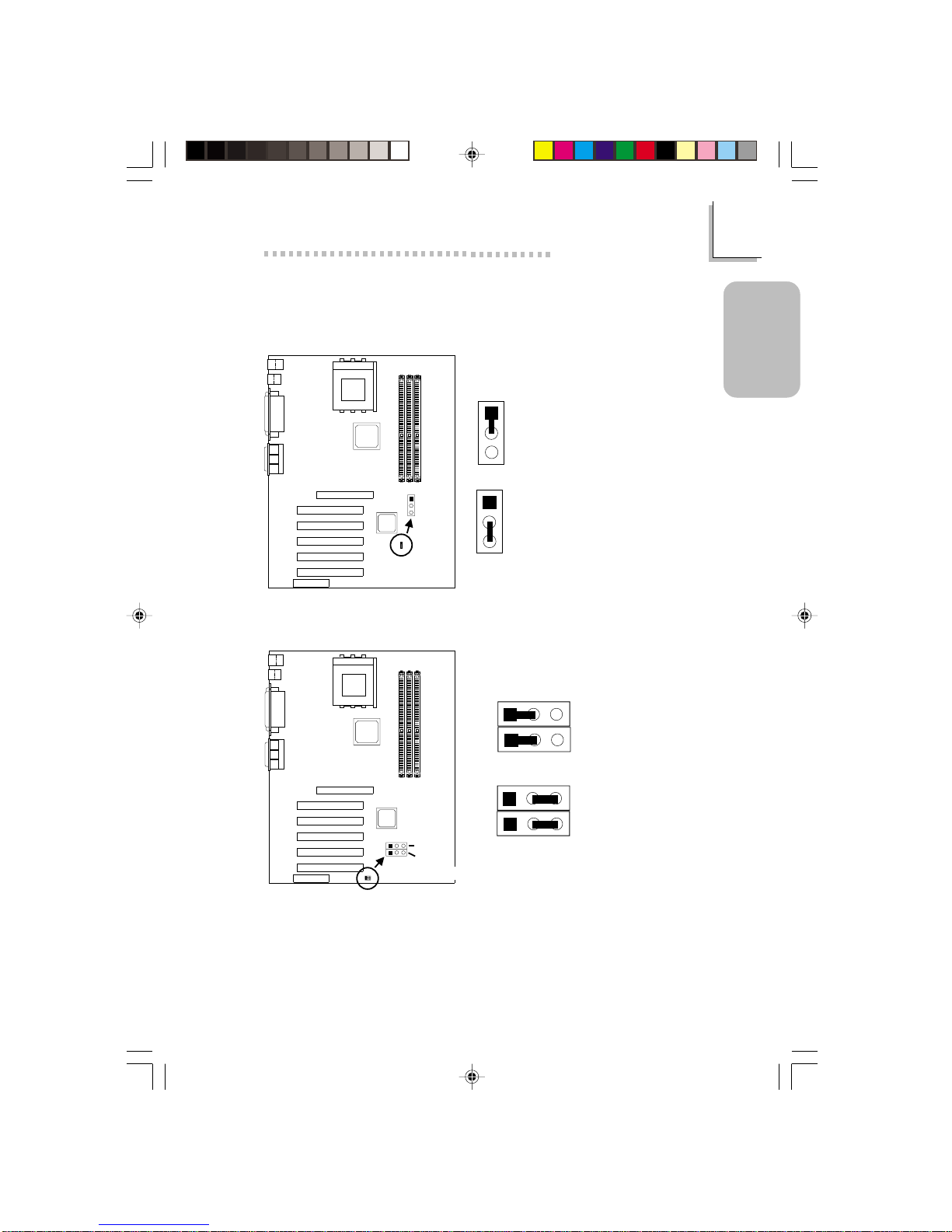

1.2 Jumpers
1.2.1 Clear CMOS Data - JP8
1.2.2 Onboard Audio Codec - JP1 and JP2
If you are not using the onboard audio codec, set pins 2 and 3 to On
(Disabled) and set the “VIA-3058 AC97 Audio” (“VIA OnChip PCI
Device” field) in the Integrated Peripherals submenu of the BIOS to
Disabled.
Clear
CMOS
(JP8)
1
2
3
1
2
3
1
2
3
1-2 On:
Normal (default)
2-3 On:
Clear CMOS Data
123
JP1
JP2
Audio codec
settings (JP1 & JP2)
JP1
123
JP2
JP1
123
JP2
1-2 On:
Enable the Onboard
Audio Codec
(default)
2-3 On:
Disable the Onboard
Audio Codec
8
Quick Setup Guide
1
Quick Setup
Guide
1.2.3 CPU Frequency Ratio - SW1
Ratio
Auto
5x
5.5x
6x
6.5x
7x
7.5x
8x
8.5x
9x
9.5x
10x
10.5x
11x
11.5x
12x
12.5x
1
Off
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
2
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
3
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
4
Off
Off
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
5
Off
On
On
On
On
Off
Off
Off
Off
Off
Off
Off
Off
On
On
On
On
®
N
O
1432 5
CPU frequency
ratio select (SW1)
®
N
O
1432 5
9
1
Quick Setup Guide
Quick Setup
Guide
1.2.5 Power Select for USB 1 and USB 2 (JP4) and USB 3
and USB 4 (JP9)
1.2.4 CPU’s Front Side Bus - JP7
CPU FSB
select (JP7)
21
3
4
3
1
4
2
12
43
12
43
1-2 On, 3-4 On:
100MHz (200MHz FSB)
(default)
1-2 Off, 3-4 On:
133MHz (266MHz FSB)
Power select
USB 3/4
(
for
JP9)
Power select
USB 1/2
(
for
JP4)
1
2
3
123
123
1
2
3
JP4
JP9
123
1
2
3
JP4
JP9
1-2 On: 5V
(default)
2-3 On: 5VSB
10
Quick Setup Guide
1
Quick Setup
Guide

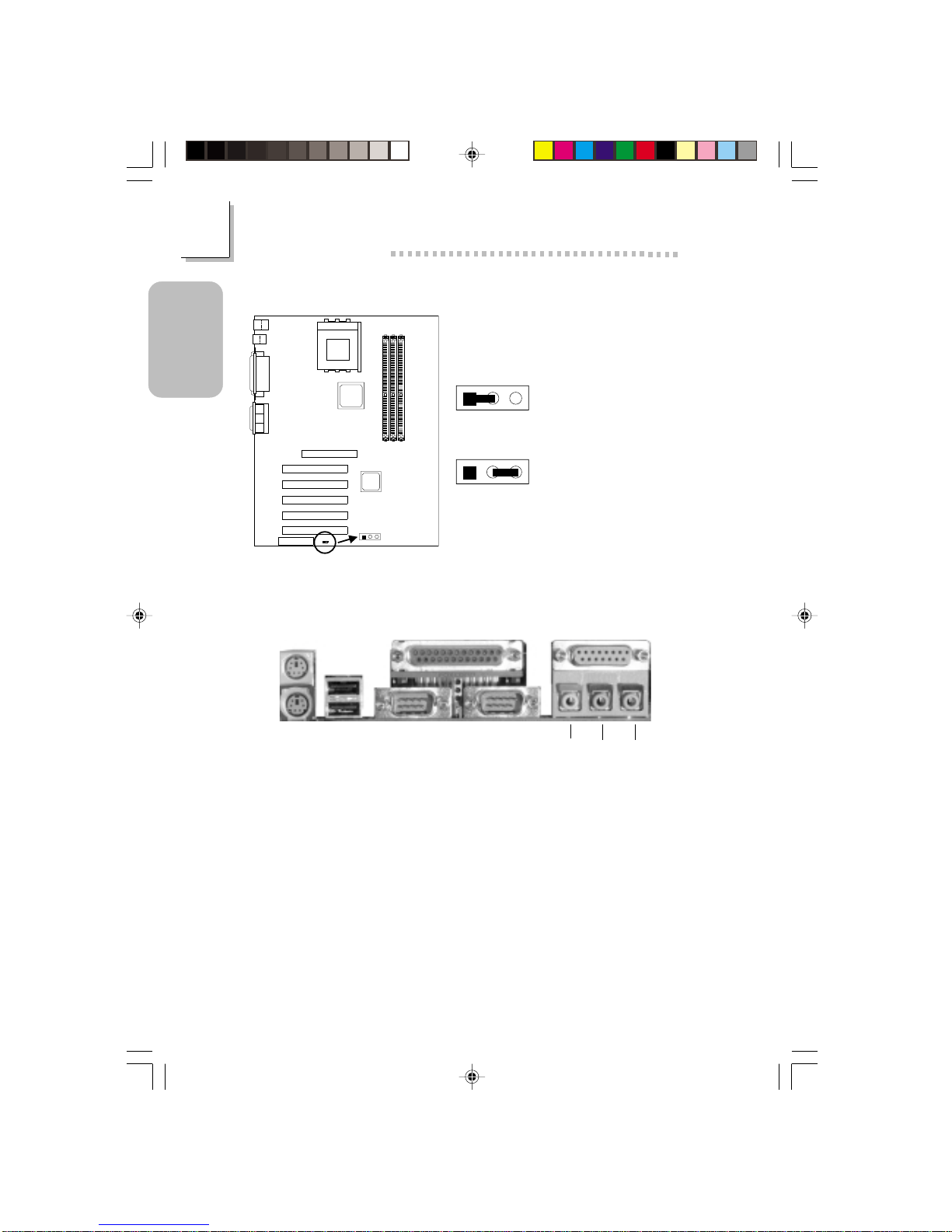

1.3 Ports and Connectors
1.2.6 CNR Settings - JP6
CNR setting
(JP6)
123
123
123
1-2 On:
Secondary (default)
2-3 On:
Primary
PS/2
Mouse
PS/2
K/B
USB 2
USB 1
Parallel
COM 1
GAME/MIDI
Line-
out Line-
in Mic-
in
COM 2
ATX Double Deck Ports
