DFI NS80-EA Manuale utente

NS80-EA

NS80-EC

NS80-EL

Rev. A+

System Board Users Manual

Carte Mère Manuel our Utilisateur

System- latine Benutzerhandbuch

Tablero Electrónico del Sistema Manual del Usuario

935-NS8001-000

63300233

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose. The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000,

Windows NT® 4.0 and Windows® XP are registered trademarks of

Microsoft Corporation. Intel® and Pentium® 4 are registered

trademarks of Intel Corporation. SiS® is a registered trademark of

Silicon Integrated Systems Corporation. Award is a registered

trademark of Award Software, Inc. Other trademarks and registered

trademarks of products appearing in this manual are the properties

of their respective holders.

Caution

To avoid damage to the system:

 Use the correct AC input voltage range.

To reduce the risk of electric shock:

 Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

 Danger of explosion if battery incorrectly replaced.

 Replace only with the same or equivalent type recommend by

the manufacturer.

 Dispose of used batteries according to the battery

manufacturers instructions.

Joystick or MIDI port:

 Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide



Quick Setup

Guide

Table of Contents

C apter 1

Quick Setup Guide.............................................

C apter 2

Englis ......................................................................

C apter 3

Français (Frenc ).................................................

C apter 4

Deutsc (German)................................................

C apter 5

Español (Spanis )..................................................

RJ45 LAN port

IEEE 1394A

NS80-EL

NS80-EA

NS80-EC



Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1. Jumpers.....................................................................................................................................

1.3 Rear Panel I/O Ports..................................................................................................

1.4 I/O Connectors...............................................................................................................

1.5 Award BIOS Setup Utility.......................................................................................

Note:

The users manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesnt

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide



Quick Setup

Guide

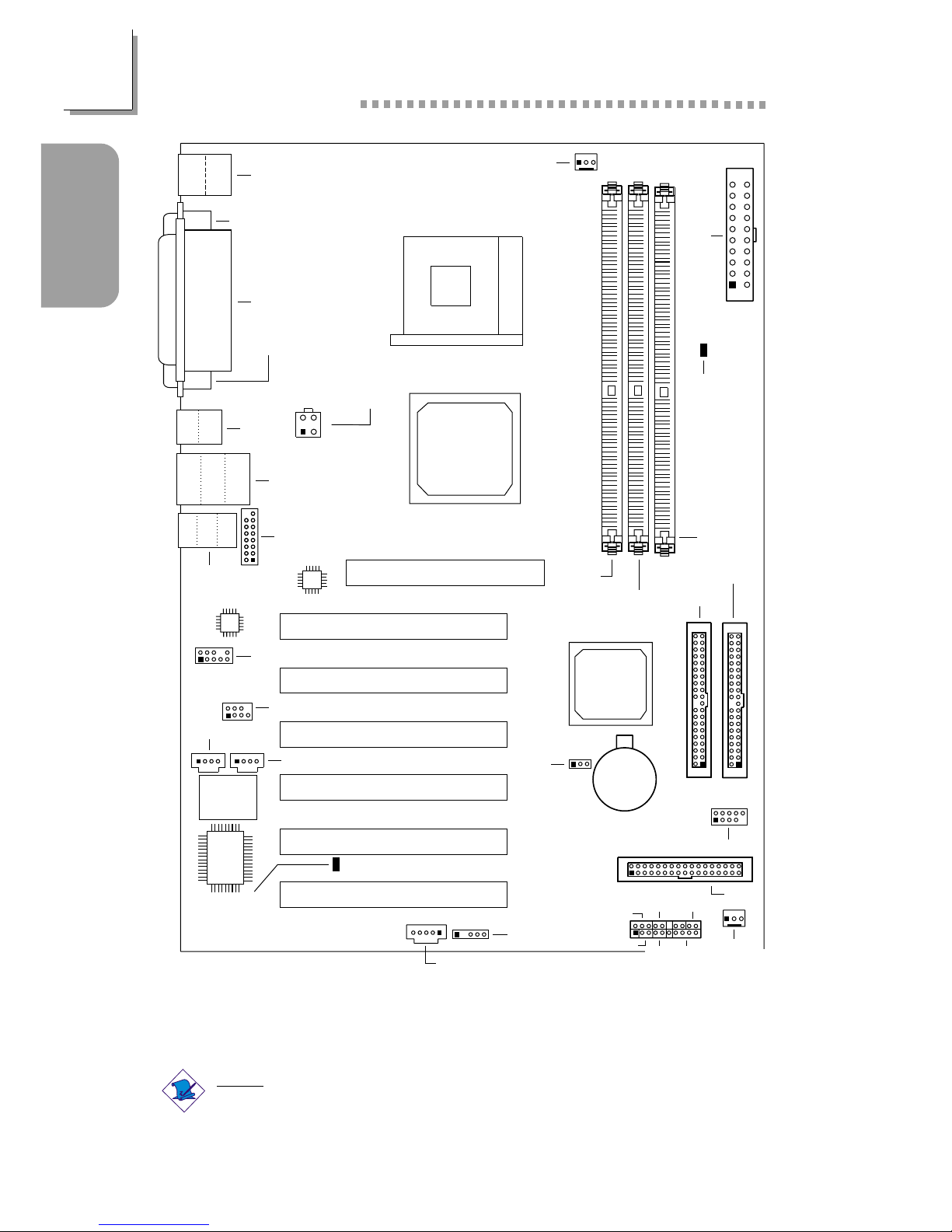

1.1 System Board Layout

NS80-EA

(Supports I 1394A and onboard LAN)

Mouse

USB 1

USB 2

JUSB1

COM 1 (J4)

Parallel (J6)

COM 2 (J3)

+12V power

(ATXP1)

LAN

CN2

USB 3

USB 4

Line-

out

Mic-in

CN1

Phy

AC’97

Front audio

(J2)

CD-in (J5)

AUX-in (J7)

4CH audio (J8)

BIOS

PCI standby

power LED

I/O

chip

IrDA (J13)

Clear CMOS (JP2)

Battery

1394A (J14)

1394A

(J15)

1394A (J17) FDD

Chassis

fan (J20)

IDE 1

IDE 2

SiS

648

SiS

963

DDR 1

DDR 2

DDR 3

ATX main power

(ATXPWR1)

CPU fan (J16)

Socket 478

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

PCI Slot 6

J18

PWR-LED ATX-SW G-SW

HD-LED SPEAKER

RESET

USB 5/6 (J19)

Game/MIDI

(J9)

Realtek

RTL8801

DIMM

standby

power LED

S/PDIF-in/out (J11)



Quick Setup Guide

Quick Setup

Guide

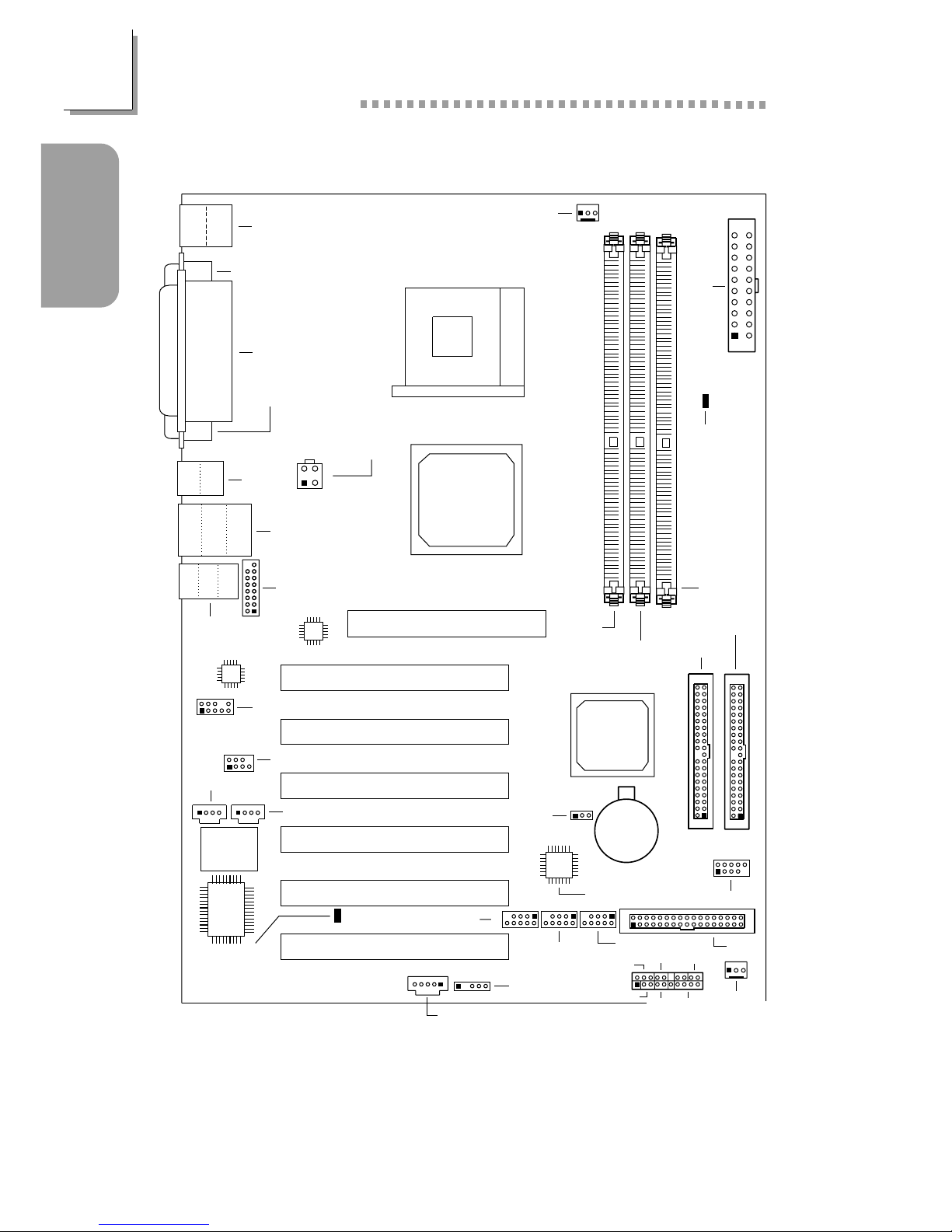

NS80-EC

Mouse

USB 1

USB 2

JUSB1

COM 1 (J4)

Parallel (J6)

COM 2 (J3)

+12V power

(ATXP1)

CN2

USB 3

USB 4

Line-

out

Mic-in

CN1

AC’97

Front audio

(J2)

CD-in (J5)

AUX-in (J7)

4CH audio (J8)

BIOS

PCI standby

power LED

I/O

chip

IrDA (J13)

Clear CMOS (JP2)

Battery

FDD

Chassis

fan (J20)

IDE 1

IDE 2

SiS

648

SiS

963

DDR 1

DDR 2

DDR 3

ATX main power

(ATXPWR1)

CPU fan (J16)

Socket 478

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

PCI Slot 6

J18

PWR-LED ATX-SW

HD-LED SPEAKER

RESET

USB 5/6 (J19)

Game/MIDI

(J9)

DIMM

standby

power LED

S/PDIF-in/out (J11)

G-SW

Quick Setup Guide



Quick Setup

Guide

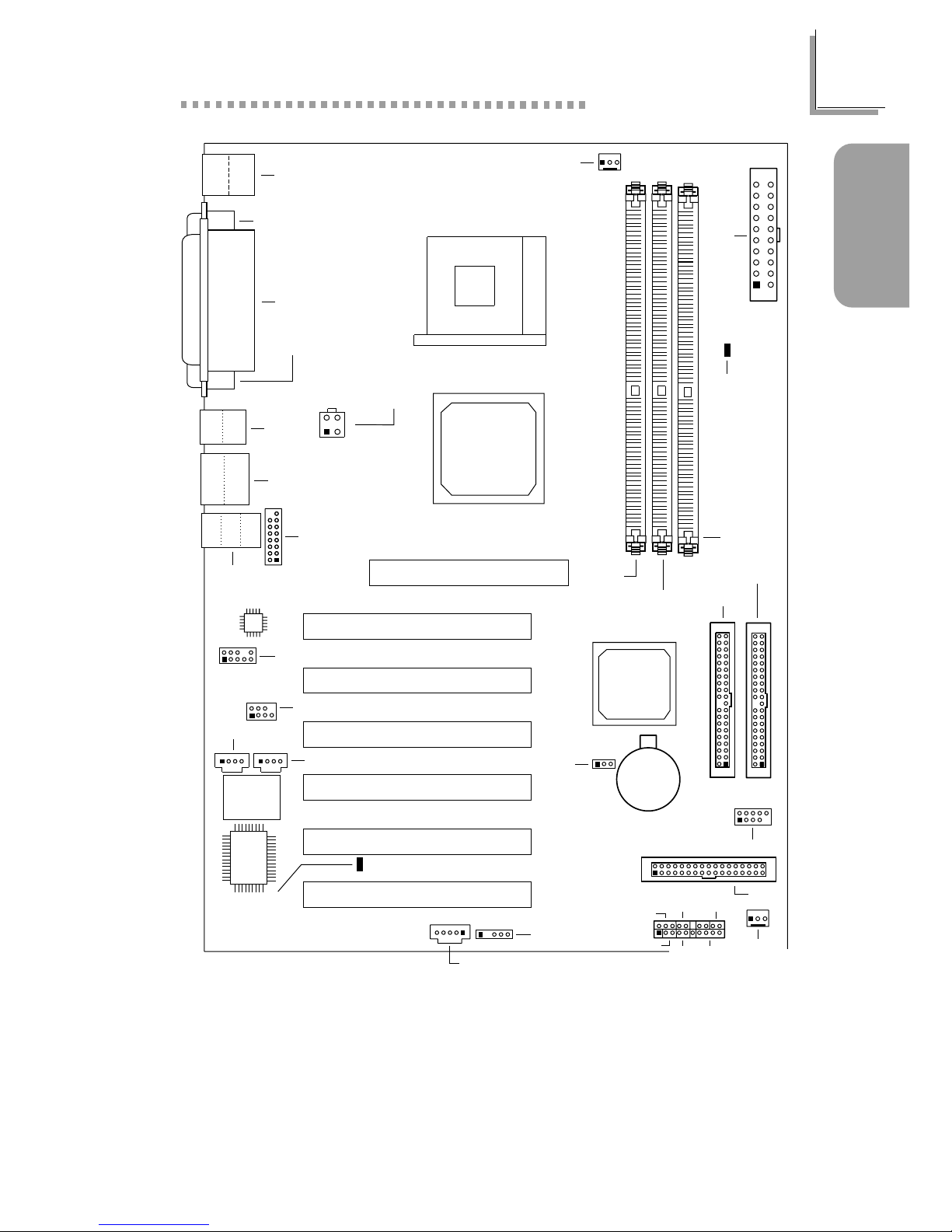

Note:

The illustrations on the following pages are based on the system

board that supports onboard LAN.

Mouse

USB 1

USB 2

JUSB1

COM 1 (J4)

Parallel (J6)

COM 2 (J3)

+12V power

(ATXP1)

LAN

CN2

USB 3

USB 4

Line-

out

Mic-in

CN1

Phy

AC’97

Front audio

(J2)

CD-in (J5)

AUX-in (J7)

4CH audio (J8)

BIOS

PCI standby

power LED

I/O

chip

IrDA (J13)

Clear CMOS (JP2)

Battery

FDD

Chassis

fan (J20)

IDE 1

IDE 2

SiS

648

SiS

963

DDR 1

DDR 2

DDR 3

ATX main power

(ATXPWR1)

CPU fan (J16)

Socket 478

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

PCI Slot 6

J18

PWR-LED ATX-SW

HD-LED SPEAKER

RESET

USB 5/6 (J19)

Game/MIDI

(J9)

DIMM

standby

power LED

S/PDIF-in/out (J11)

G-SW

NS80-EL

(Supports onboard LAN)



Quick Setup Guide

Quick Setup

Guide

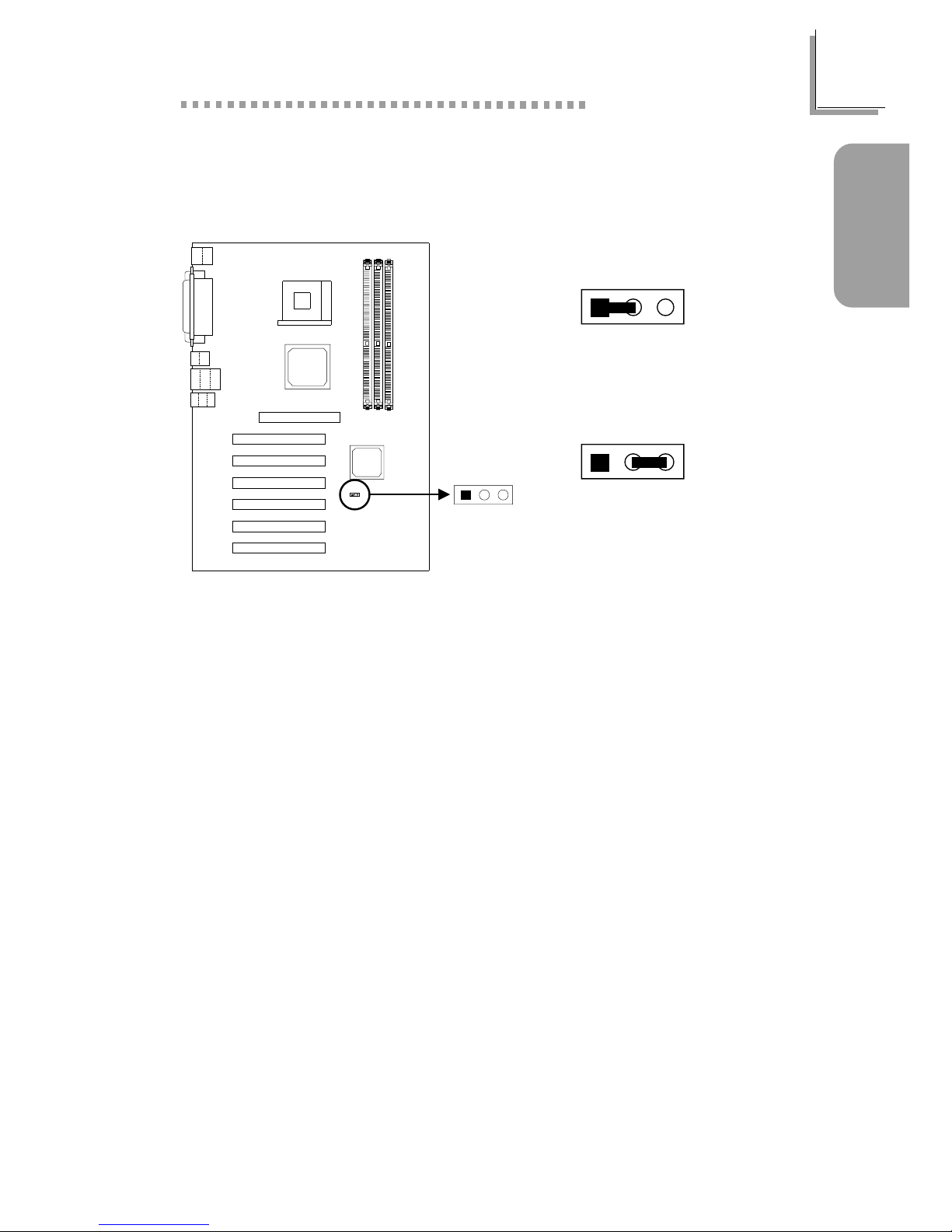

1.2 Jumpers

1.2.1 Jumper Settings for Clearing CMOS Data - JP2

1- On:

Clear CMOS Data

-3 On: Normal

(default)

Clear CMOS

(JP2)

123

1 3

Quick Setup Guide



Quick Setup

Guide

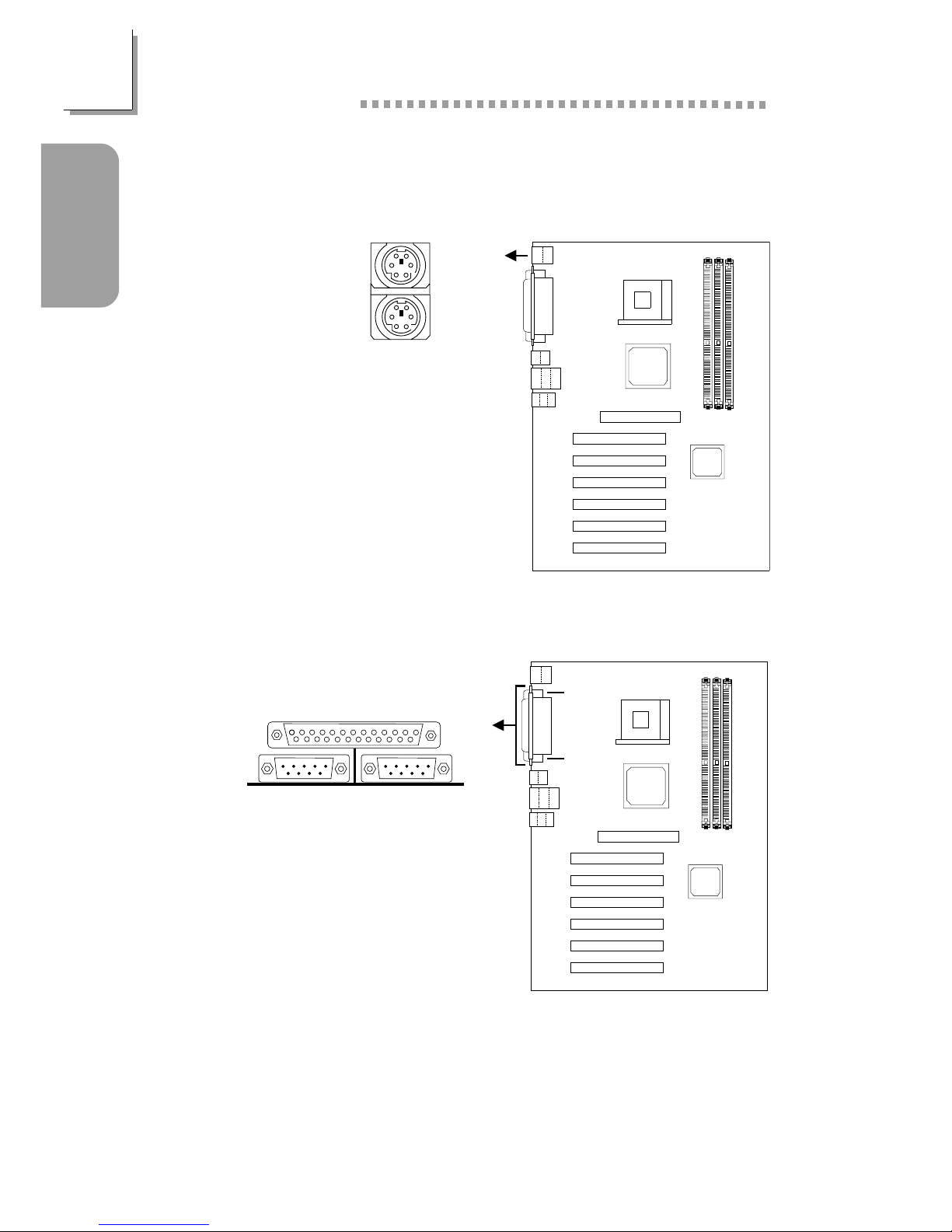

1.3 Rear Panel I/O Ports

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports

Make sure to turn off your

computer prior to connecting or

disconnecting a mouse or

keyboard. Failure to do so may

damage the system board.

PS/ Mouse

PS/ Keyboard

1.3.2 Serial Ports

COM 1

Serial Port COM

Serial Port
