Digital Projection E-Vision 8000 series CONTENTS Installation and Quick-Start Guide
Rev A April 2012
CONTENTS
What’s in the Box?...............................................................................Inst_1
Getting to Know the Projector....................................................Inst_2
Front and rear views .............................................................................Inst_2
Remote control......................................................................................Inst_2
Control panel .........................................................................................Inst_3
Indicators ...............................................................................................Inst_3
Changing the lens, lamps, lters and colour wheel ....Inst_4
Removing the lens ................................................................................Inst_4
Fitting the lens.......................................................................................Inst_4
Changing a lamp ...................................................................................Inst_5
Changing the lters...............................................................................Inst_5
Changing the colour wheel ..................................................................Inst_6
Positioning the Screen and Projector....................................Inst_7
Operating the Projector...................................................................Inst_8
Switching the Projector On ..................................................................Inst_8
Selecting an Input Signal or Test Pattern ...........................................Inst_8
Input signal....................................................................................Inst_8
Test pattern ...................................................................................Inst_8
Adjusting the Lens................................................................................Inst_9
Zoom.............................................................................................Inst_9
Focus ............................................................................................Inst_9
Shift...............................................................................................Inst_9
Adjusting the Image..............................................................................Inst_9
Orientation.....................................................................................Inst_9
Aspect Ratio..................................................................................Inst_9
Picture...........................................................................................Inst_9
Switching the Projector Off................................................................Inst_10
Digital Projection E-Vision 8000 series WHAT'S IN THE BOX? Installation and Quick-Start Guide
Page Inst_1Rev A April 2012

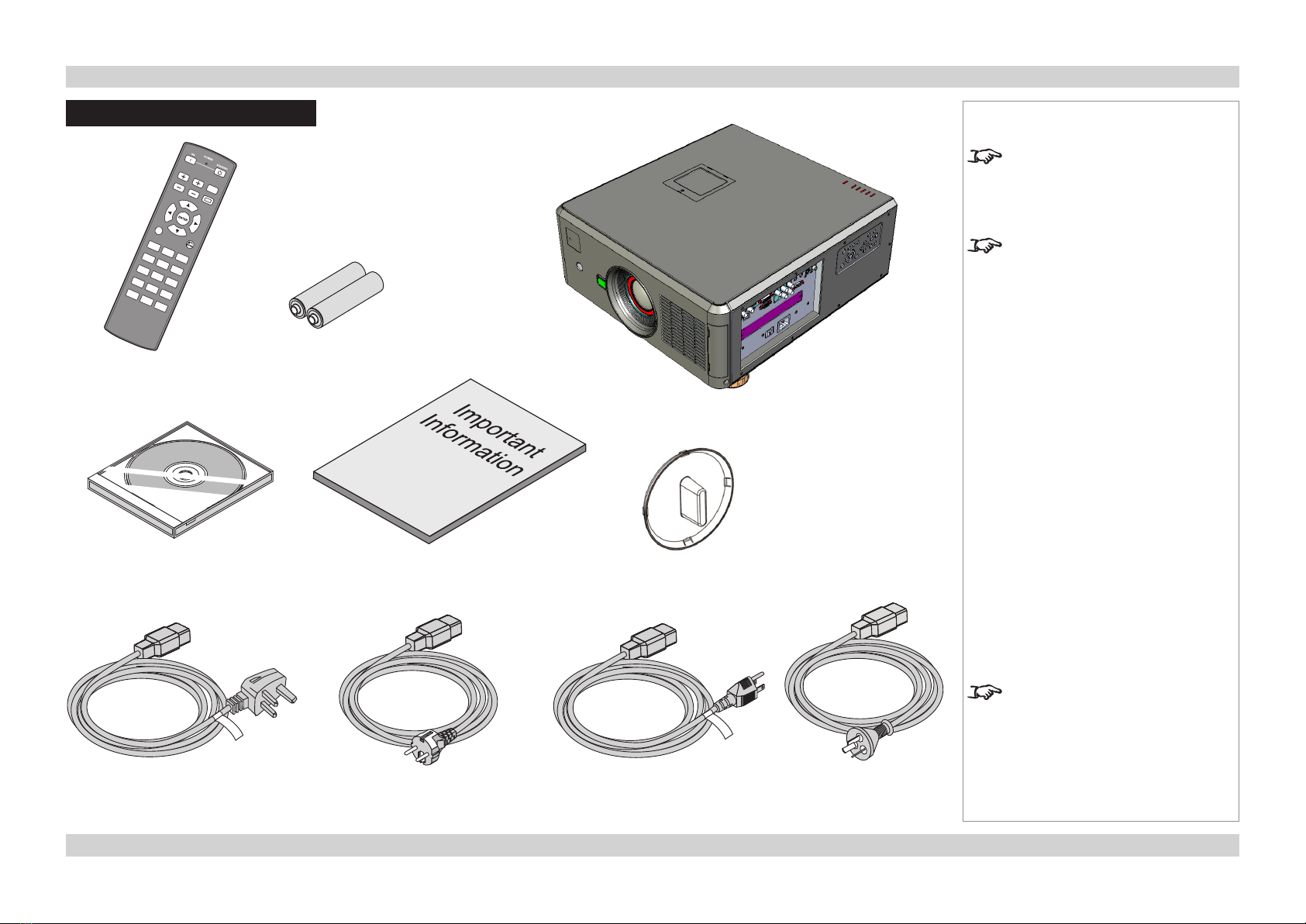

What’s in the Box? Notes
Make sure your box contains
everything listed. If any pieces are
missing, contact your dealer.
You should save the original box
and packing materials, in case you
ever need to ship your Projector.
Only one power cable - dependent
on the destination territory - will be
supplied with the projector.
Remote control
(112-532)
2x AAA batteries
User Guides on CD
(112-456) Important Information
(112-797)
Projector
Lens cap
Power cable,
China
(112-817)
Power cable,
United Kingdom
(112-814)
Power cable,
Europe
(112-816)
Power cable,
North America
(112-815)
Digital Projection E-Vision 8000 series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide
Page Inst_2Rev A April 2012
Getting to Know the Projector
Front and rear views
Notes
The projector can use an infra-red or
a wired remote control.
Some of the controls are duplicated
on the projector control panel, as
shown on the next page.
For full details of how to use the
controls and the menu system, see
the Operating Guide.
Theairltersshouldbecleanedor
changed regularly, depending on the
installation environment.
Theltersshouldbechangedatthe
same time as the lamp is changed.
The projector lens is shipped
separately.

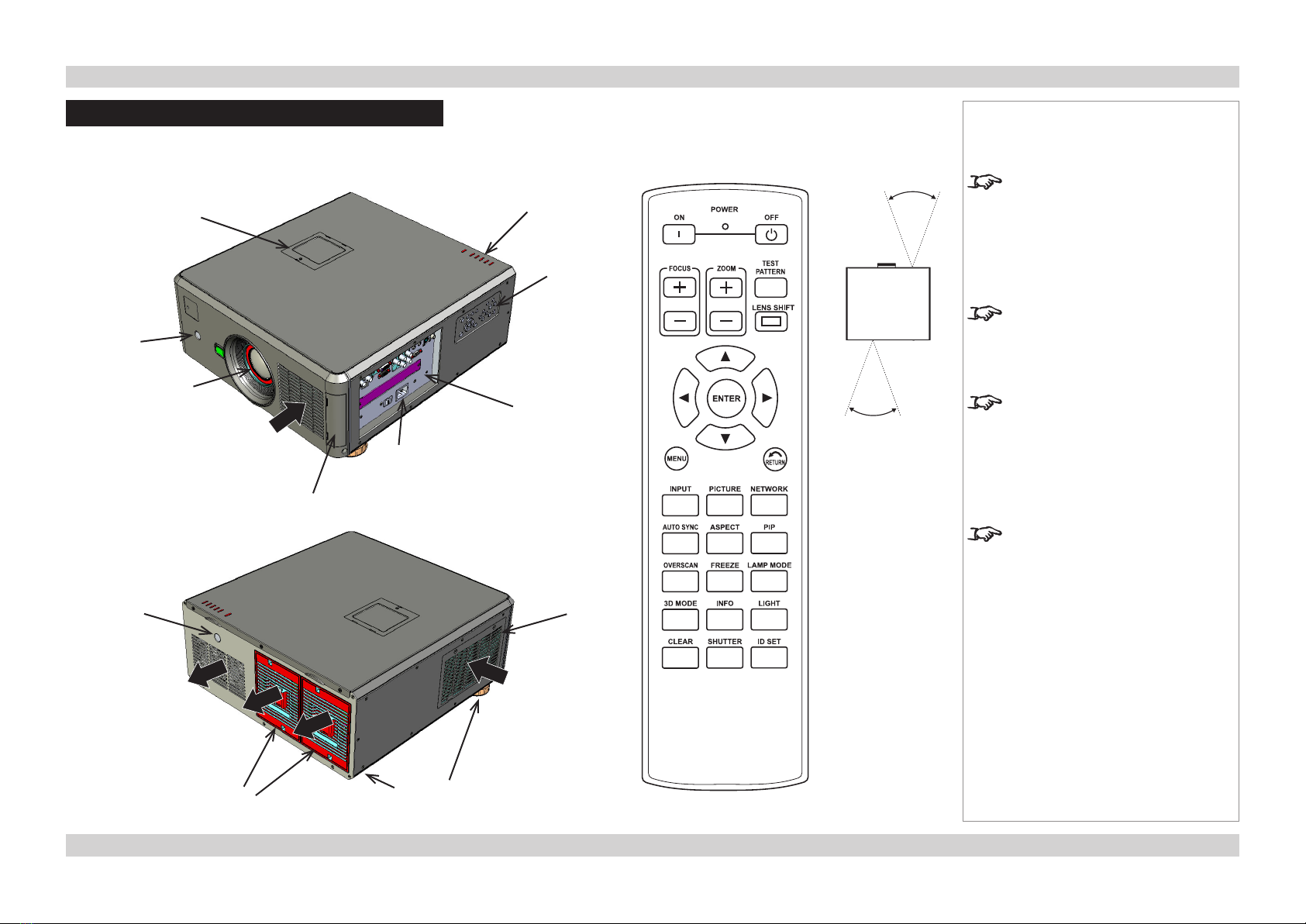

Lens Connection
panel
Mains
input
Control
panel
Adjustable
feet
Front
infra-red
window
Rear
infra-red
window
Remote control
Infra-red
reception
40°
40°
Air
inlet
Air
inlet
Air
outlets
Colour wheel
cover
Air lter
cover
Air lter
cover
Lamp
covers
Indicator
panel
Digital Projection E-Vision 8000 series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide
Page Inst_3Rev A April 2012
Control panel

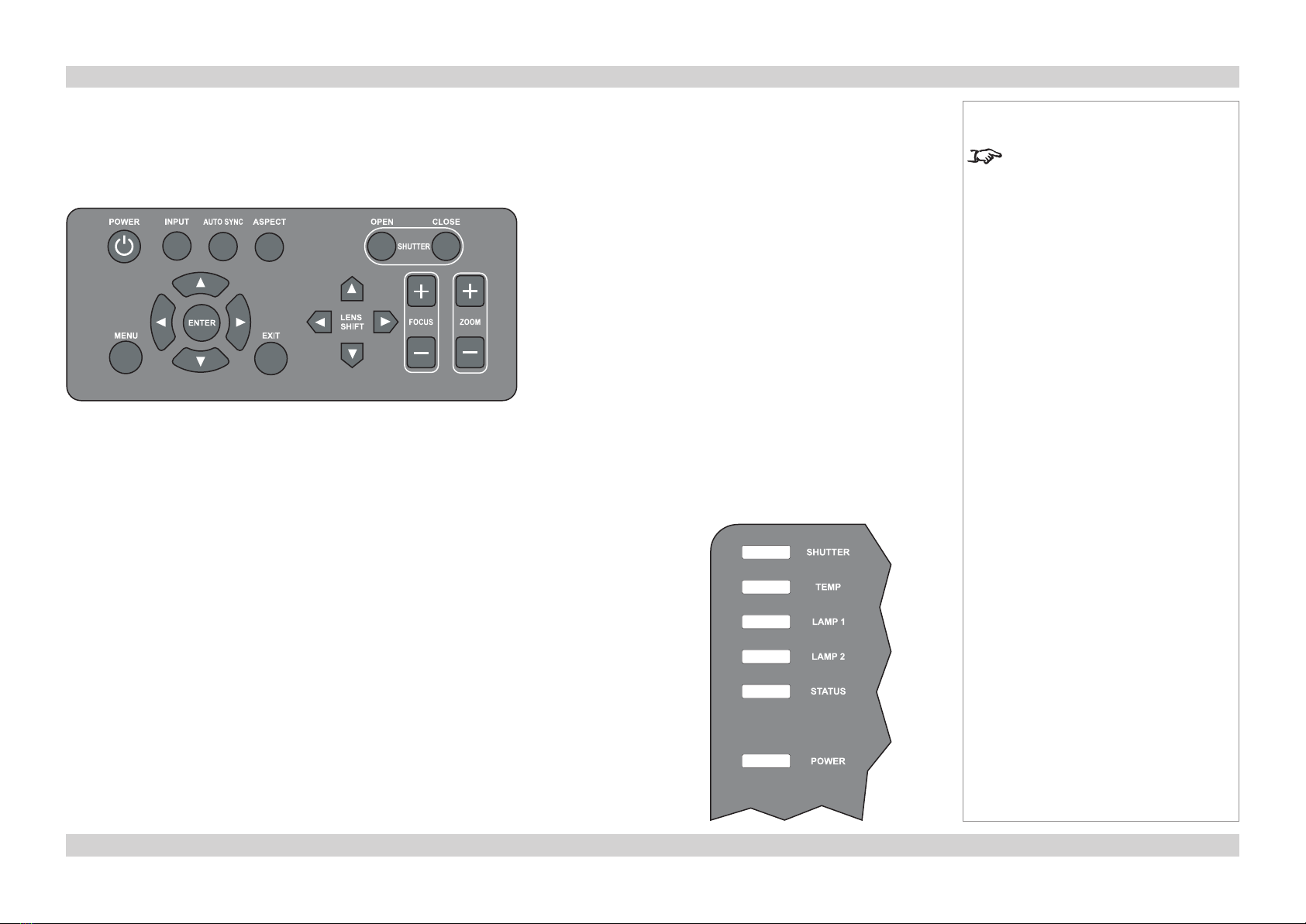

Some of the controls from the remote control are duplicated on the projector control panel, as
shown below.
The EXIT button has the same function as the RETURN button on the remote control.
Notes
For full details of how to use the
controls and the menu system, see
the Operating Guide.
Indicators
SHUTTER off = OPEN green = CLOSED
TEMP off = NO ERROR ashing red = ERROR (temperature)
LAMPS 1,2 off = OFF
ashing red = LAMP ERROR red = END OF LIFE
ashing green = LAMP WARM-UP green = ON
STATUS off = NO ERROR
ashing red (1 ash) = COVER OPEN ashing red (4 ashes) = FAN ERROR
red = SYSTEM ERROR
POWER off = NO POWER
green = normal RUNNING mode red = STANDBY mode
ashing green = PROJECTOR WARM UP
ashing amber = PROJECTOR COOL DOWN
Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide
Page Inst_4Rev A April 2012
Changing the lens, lamps, lters and colour wheel
Removing the lens

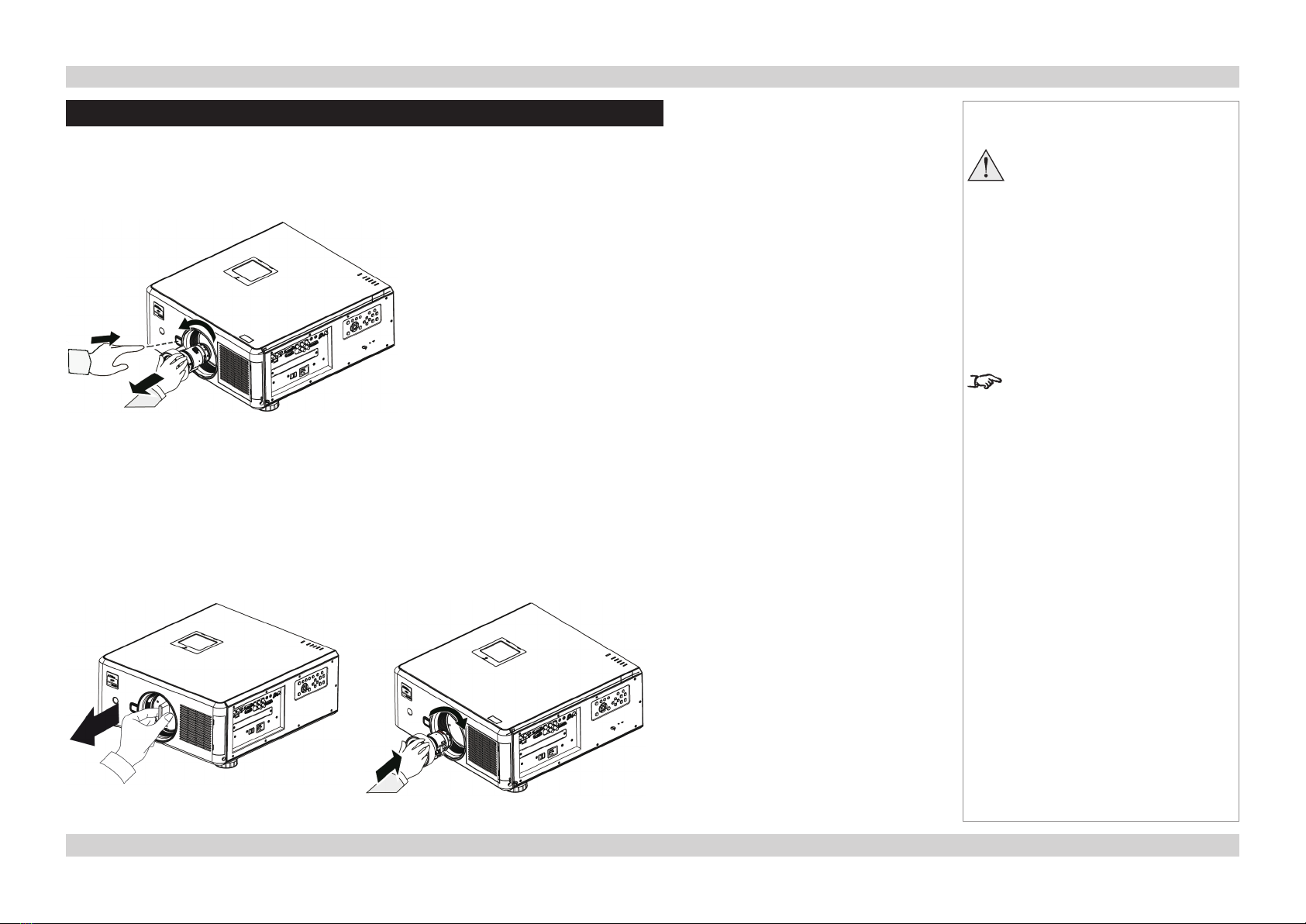

• Push in the lens release lever, and turn the lens anti-clockwise.
• Remove the lens.
Fitting the lens
• Remove the lens cap.
• Position the lens so that the labels are at the top, and gently insert it all the way into the
lens mount.
• Push the lens in rmly, and turn it clockwise until it clicks into place.
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The projector lens is shipped
separately.
Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide
Page Inst_5Rev A April 2012
Changing a lamp

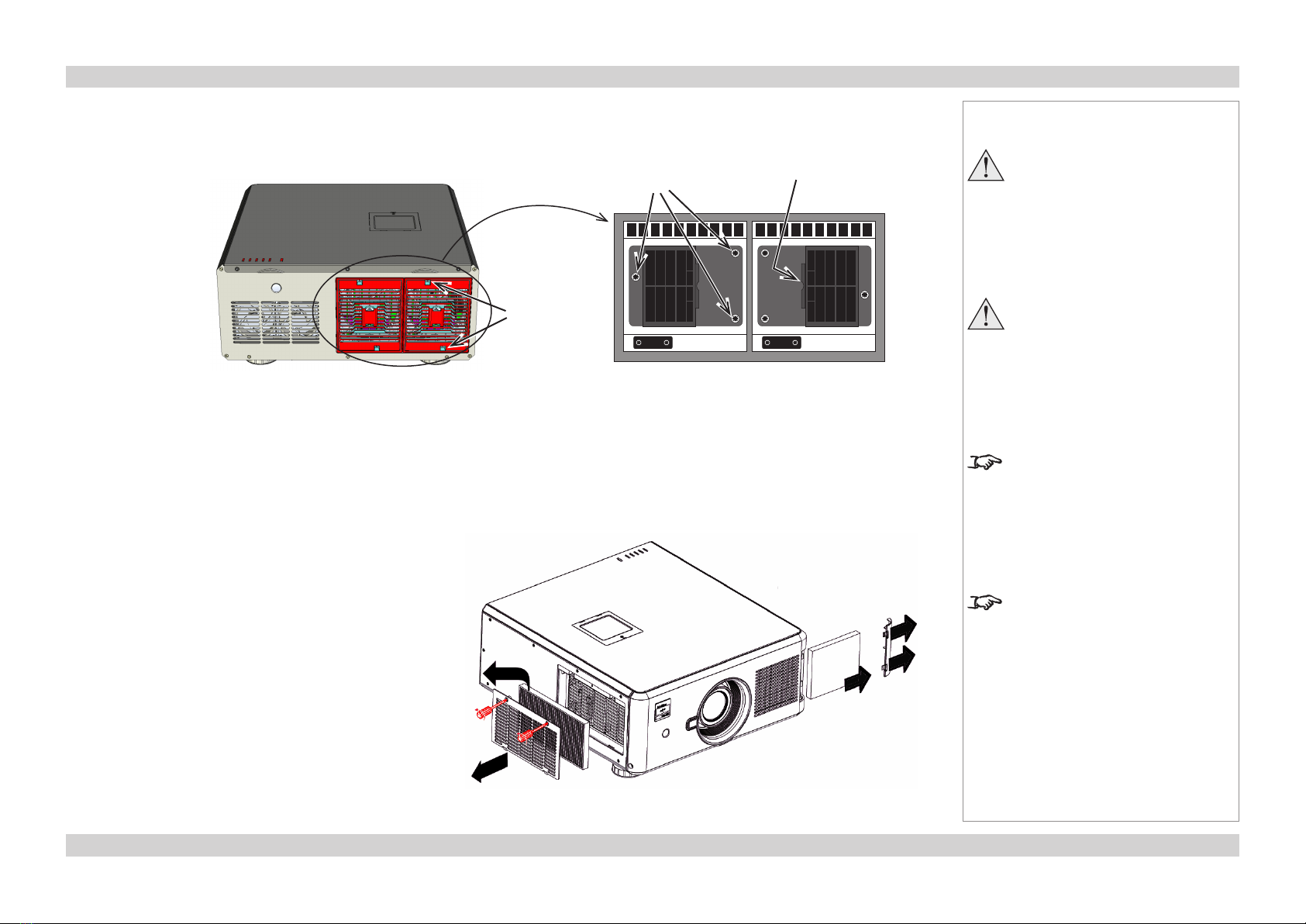

• Unscrew the two captive screws securing the cover for the lamp that needs changing.
• Open the lamp compartment.
• Unscrew the three captive screws securing the lamp module.
• Pull rmly on the handle to remove the lamp module.
• Insert a new lamp module and fasten the screws.
• Replace the lamp compartment cover and fasten the screws.
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The lamp and colour wheel must
be changed only by suitably
qualied personnel.
Note that the projector will shut
down if any of the covers is opened
whilst in operation.
Theltersshouldbechangedatthe
same time as the lamp is changed.
Lamp 1 Lamp 2
Cover
screws
Lamp compartment
Lamp module
screws
Lamp 1 Lamp 2
Handle
Changing the lters
• Unscrew the captive screws securing the cover for the
side air inlet.
• Replace the lter, making sure that the arrow showing
the air ow direction is pointed inwards.
• Replace the cover and fasten the screws.
• Remove the cover for the side air inlet by pushing it
rmly to the right, as shown.
• Replace the lter, making sure that the arrow showing
the air ow direction is pointed inwards.
• Replace the cover.
Front air inlet
lter
Side air inlet
lter
Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide
Page Inst_6Rev A April 2012

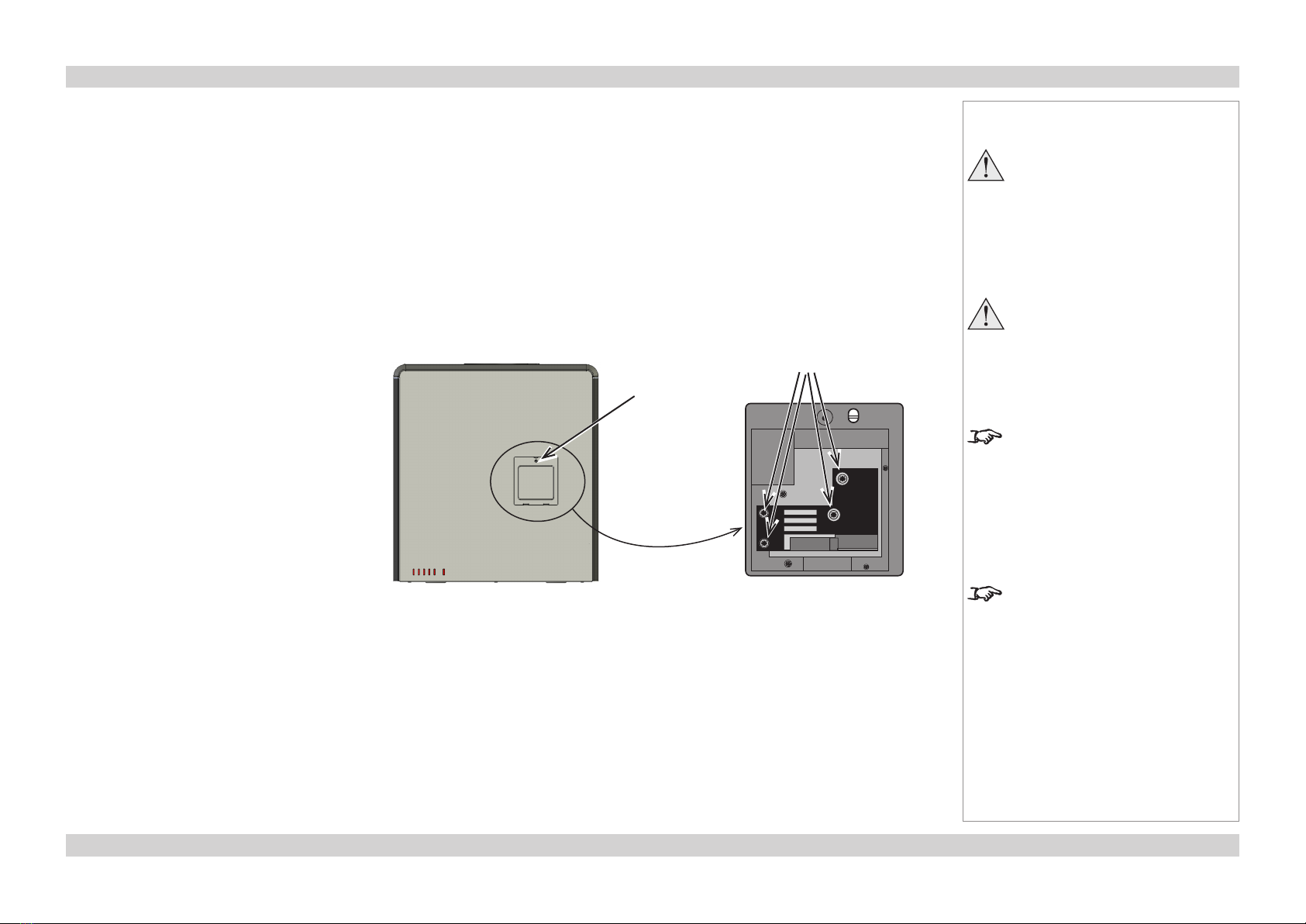

Changing the colour wheel
• Unscrew the captive screw securing the
colour wheel compartment cover.
• Open the colour wheel compartment.
• Unscrew the four captive screws securing
the colour wheel.
• Remove the colour wheel.
• Insert a new colour wheel and fasten the
screws.
• Replace the cover and fasten the screw.
Cover
screw
Colour wheel
compartment
Colour
wheel
screws
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
- changing the lamp
The lamp and colour wheel must
be changed only by suitably
qualied personnel.
Theprojectorrmwareiscolour
wheelspecic,andsowillneedto
be changed at the same time as the
wheel.
For assistance, contact your dealer.
Note that the projector will shut
down if any of the covers is opened
whilst in operation.
