Responder HD Models

Viper 5904

Clifford 590.4X

Python 594

Security and Remote Start

Installation Guide

This product is intended for installation by a professional

installer only! Attempts to install this product by a per-

son other than a trained professional may result in severe

damage to a vehicle’s electrical system and components.

N5904 2011-09b

Bitwriters with a date code of 6a or older require an IC upgrade (p/n

998M). Some bitwriters with a date code of 6B do not require the IC

upgrade, refer to tech tip # 1112 for more information.

Bitwriter®, Code Hopping™, Doubleguard®, ESP™, Fail-

Safe®, Ghost Switch™, Learn Routine™, Nite-Lite®, Nui-

sance Prevention® Circuitry, Revenger®, Silent Mode™,

Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®,

VRS®, and Warn Away® are all Trademarks or Registered

Trademarks of Directed Electronics.

The Bitwriter®(p/n 998U)

requires chip version 2.7 or

newer to program this unit.

Contents

Warning! safety first........................................................................................................................ 4

Wiring Diagram ............................................................................................................................. 5

Wiring Connections ........................................................................................................................ 6

Main Harness (H1), 6-pin connector ........................................................................................... 6

H2 Harness, 24-pin connector ................................................................................................... 6

Remote Start, (H3) 10-pin connector ........................................................................................... 7

Door Lock, 3-pin connector......................................................................................................... 7

Adjusting the Sensor........................................................................................................................ 7

Initializing Virtual Tach (not needed w/hardwire tach inputs)................................................................ 7

Learning the Tach (not needed with Virtual Tach) ................................................................................. 8

Neutral safety switch interface .......................................................................................................... 8

Testing the neutral safety switch................................................................................................... 8

Remote Start Shutdown/Startup Diagnostics ....................................................................................... 9

Remote Pairing ............................................................................................................................. 10

Programming System Features ........................................................................................................ 11

Feature Menus.............................................................................................................................. 12

Menu 1 - Security .................................................................................................................... 12

Menu 2 - Convenience............................................................................................................. 14

Menu 3 - Remote start .............................................................................................................. 16

Bitwriter - Only Options ................................................................................................................. 18

Basic Remote Functions.................................................................................................................. 20

Reset and Deletion ........................................................................................................................ 20

Long Term Event History ................................................................................................................. 20

Table of Zones .............................................................................................................................. 21

Troubleshooting: Alarm.................................................................................................................. 21

Troubleshooting: Remote Start......................................................................................................... 22

Warning! safety ﬁrst

The following safety warnings must be observed at all times:

• Due to the complexity of this system, installation of this product must only be performed by an authorized

Directed Electronics dealer.

• When properly installed, this system can start the vehicle via a command signal from the remote control.

Therefore, never operate the system in an area that does not have adequate ventilation.

The following precautions are the sole responsibility of the user; however, authorized Directed Electronics

dealers should:

• Never use a test light or logic probe when installing this unit. Always use a multimeter.

• Never operate the system in an enclosed or partially enclosed area without ventilation (such as a ga-

rage).

• When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote

start system must be disabled using the installed toggle switch. It is the user’s sole responsibility to prop-

erly handle and keep out of reach from children all remote controls to assure that the system does not

unintentionally remote start the vehicle.

• USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT

TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PAR-

TIALLY ENCLOSED VEHICLE STORAGE AREA MUST REMAIN CLOSED AT ALL TIMES.

Use of this product in a manner contrary to its intended mode of operation may result in property damage,

personal injury, or death. Except when performing the Safety Check outlined in this installation guide, (1)

Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the

keys in the ignition. The user is responsible for having the neutral safety feature of the vehicle periodically

checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be performed

by an authorized Directed Electronics dealer in accordance with the Safety Check outlined in this product

installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the

user to ﬁx the problem immediately.

After the remote start module has been installed, test the remote start module in accordance with the Safety

Check outlined in this installation guide. If the vehicle starts when performing the Neutral Safety Shutdown

Circuit test, the remote start unit has not been properly installed. The remote start module must be removed

or properly reinstalled so that the vehicle does not start in gear. All installations must be performed by an

authorized Directed Electronics dealer.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS IN-

TENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS

MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. IMMEDIATELY CEASE THE USE OF THE UNIT

AND REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED ELECTRONICS WILL

NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.

Remote starters for manual transmission pose signiﬁcant risks if not properly installed and operated. When

testing to ensure the installation is working properly, only remote start the vehicle in neutral gear, on a ﬂat

surface and with a functional, fully engaged parking brake. Do not allow anyone to stand in front of or behind

the vehicle.

This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission.

Installation in such vehicles may pose certain risk.

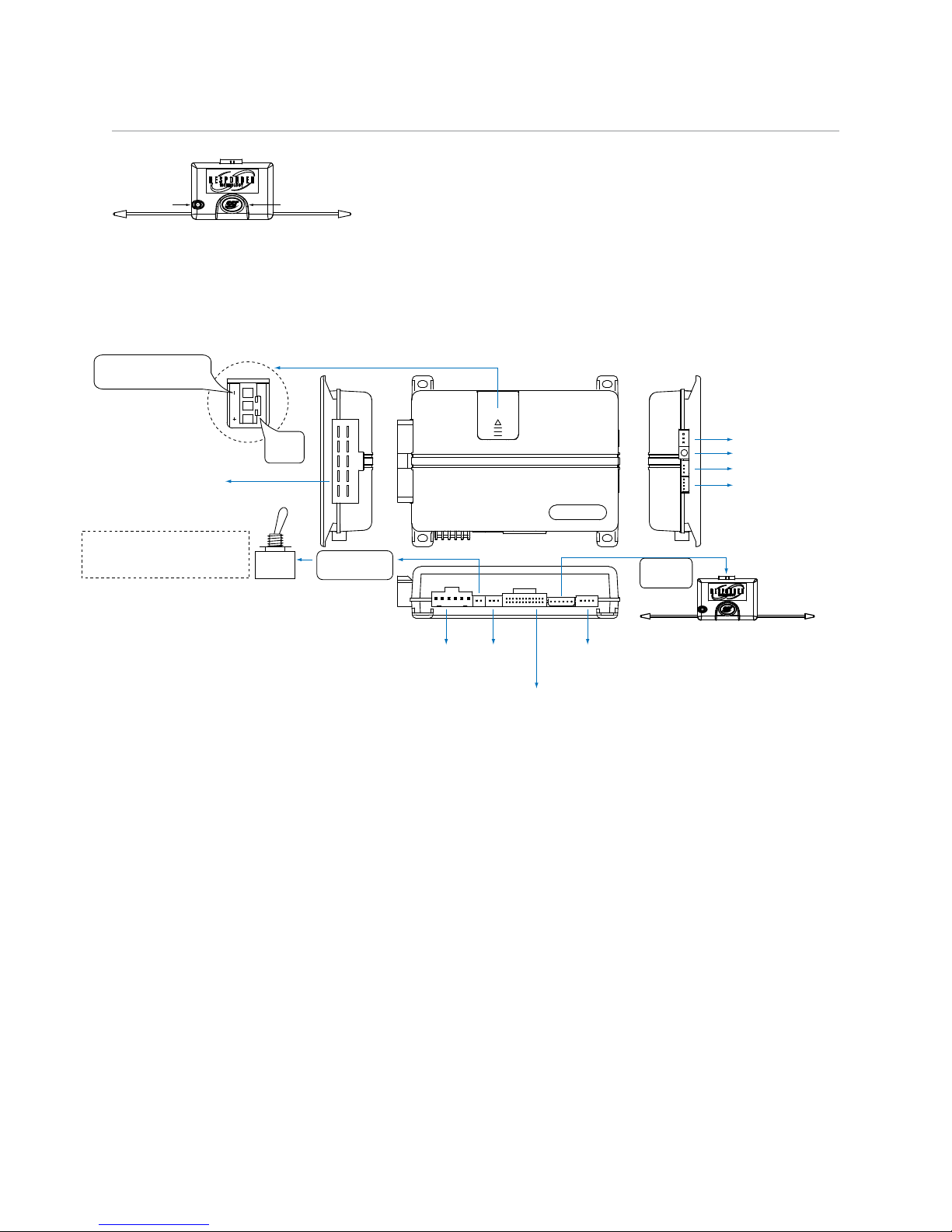

Wiring Diagram

Status LED Control button

Wheel

Control Center 6711T

Note:

Sensor ports 1 and 2 cannot support sensor 508D due to current limitations. These ports are also

constant power and ground connections.

5x04

Neutral Safety

Switch

110 9 8 7 6

12345

1 8

1 3

18 10

1 12

D2D Port (for external

Xpresskit interface module)

IMPORTANT! Neutral Safety

switch must be plugged in

and in the ON position RF Port

for IVU

Control Center

Thermistor/Temp Sensor

Sensor 1

Bitwriter/SmartStart Port

Door Lock

Port

Remote Start

10-pin Harness

Main 6-pin

Harness

10A FUSE

MINI ATM

RPN: 8540

LIGHT FLASH POLARITY

(10A (MAXIMUM) FUSE JUMPER)

Sensor 2

Aux/Shutdown/Trigger 24-pin Harness

Wiring Connections

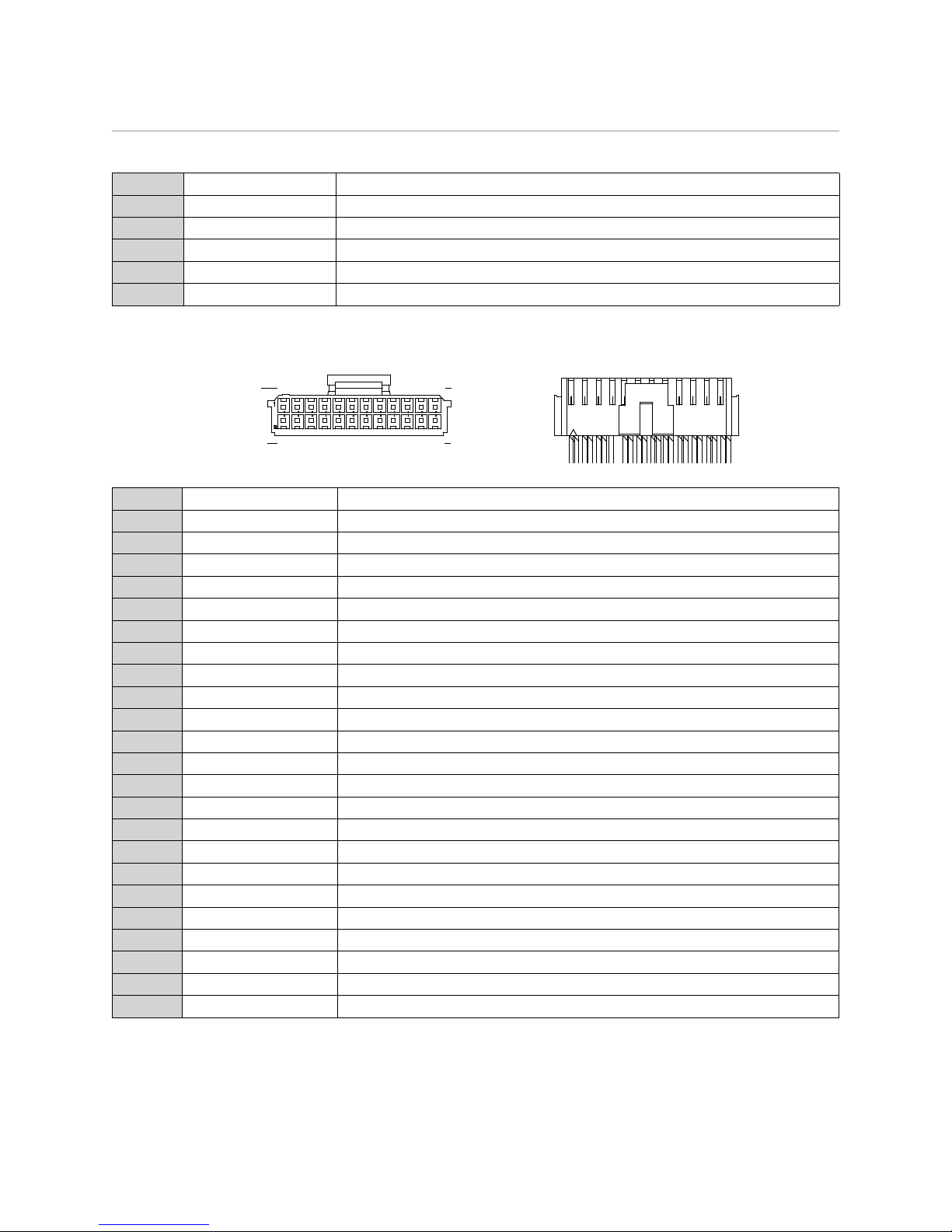

Main Harness (H1), 6-pin connector

H1/1 RED (+)12VDC CONSTANT INPUT

H1/2 BLACK (-) CHASSIS GROUND

H1/3 BROWN (+) SIREN OUTPUT

H1/4 WHITE/BROWN PARKING LIGHT ISOLATION WIRE - PIN 87a of onboard relay

H1/5 WHITE PARKING LIGHT OUTPUT

H1/6 ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT

H2 Harness, 24-pin connector

1 3 5

INSERTION SIDE

2 4 6 24

23PINK/WHITE VIOLET/WHITE

GREEN/WHITEBLACK/WHITE

H2/1 PINK/WHITE (-) 200mA IGNITION/FLEX RELAY CONTROL OUTPUT

H2/2 BLACK/WHITE (-) NEUTRAL SAFETY INPUT

H2/3 BLUE/WHITE (-) 200mA 2ND STATUS /REAR DEFOGGER OUTPUT

H2/4 GREEN/BLACK (-) 200mA OEM ALARM DISARM OUTPUT

H2/5 RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT

H2/6 GREEN (-) DOOR TRIGGER INPUT (N/C* OR N/O)

H2/7 BLACK/YELLOW (-) 200mA DOME LIGHT SUPERVISION OUTPUT

H2/8 BROWN/BLACK (-) 200mA HORN HONK OUTPUT

H2/9 DARK BLUE (-) 200mA STATUS OUTPUT

H2/10 PINK (-) 200mA IGNITION 1 OUTPUT

H2/11 WHITE/BLACK (-) 200mA AUX 3 OUTPUT

H2/12 VIOLET (+) DOOR TRIGGER INPUT

H2/13 WHITE/VIOLET (-) 200mA AUX 1 OUTPUT

H2/14 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT

H2/15 ORANGE/BLACK (-) 200mA AUX 4 OUTPUT

H2/16 BROWN (+) BRAKE SHUTDOWN INPUT

H2/17 GREY (-) HOOD PIN INPUT (N/C OR N/O)

H2/18 VIOLET/YELLOW (-) 200mA STARTER OUTPUT

H2/19 BLUE (-) TRUNK PIN/ INSTANT TRIGGER INPUT (N/C OR N/O)

H2/20 GREY/BLACK (-) DIESEL WAIT TO START INPUT

H2/21 WHITE/BLUE (-) REMOTE START/ TURBO TIMER ACTIVATION INPUT

H2/22 ORANGE (-) 200mA ACCESSORY OUTPUT

H2/23 VIOLET/WHITE TACHOMETER INPUT

H2/24 GREEN/WHITE (-) 200mA OEM ALARM ARM OUTPUT

*The Normally Closed setting will only work if one of the vehicle's doors is connected. If more than one door

is to be monitored, then it is recommended to use the Xpresskit DTIMAZDA or tech tip # 1921 on www.di-

rectechs.com to interface with these types of vehicles.

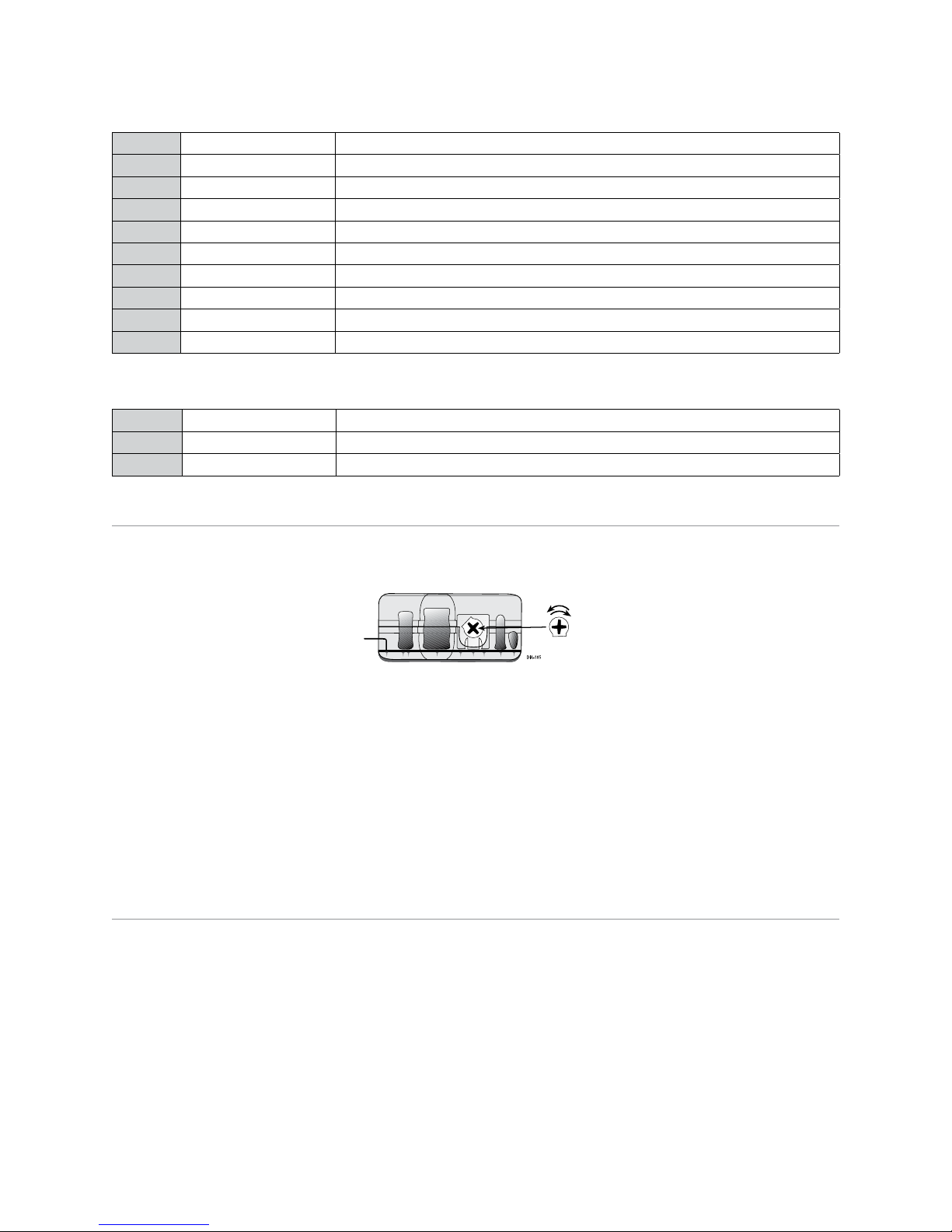

Remote Start, (H3) 10-pin connector

H3/1 PINK (+) IGNITION 1 INPUT/OUTPUT

H3/2 RED/WHITE (87) FLEX RELAY +12V INPUT (30A FUSED)

H3/3 ORANGE (+) ACCESSORY OUTPUT

H3/4 VIOLET (+) STARTER OUTPUT (CAR SIDE OF THE STARTER KILL)

H3/5 GREEN (+) STARTER INPUT (KEY SIDE OF THE STARTER KILL)

H3/6 RED IGNITION 1 +12V INPUT (30A FUSED)

H3/7 PINK/WHITE (30) FLEX RELAY OUTPUT (car side of ign, acc or starter wire)

H3/8 PINK/BLACK (87a) FLEX RELAY INPUT (key side of ign, acc or starter wire if needed)

H3/9 RED/BLACK ACCESSORY/STARTER RELAY +12V INPUT (30A FUSED)

H3/10 NC No Connection

Door Lock, 3-pin connector

1 BLUE (-) 500mA UNLOCK OUTPUT

2 EMPTY NOT USED

3 GREEN (-) 500mA LOCK OUTPUT

Adjusting the Sensor

Important! Make sure the vehicle is disarmed. The shock sensor sensitivity can be adjusted by using a trimmer

tool to turn the potentiometer.

Adjusting the sensor:

1. Disarm the system, turn the ignition Off.

2. With the sensor mounted in its permanent location, locate the trim pot on the shock sensor module and

using a trimmer tool:

• Turn the potentiometer clockwise for increased sensitivity or

• Turn it counterclockwise for decreased sensitivity

Note: You can test the new setting by cautiously impacting the vehicle with increasing intensity while not-

ing the LED status on the shock sensor. The LED turns on for a short duration for small impacts before turn-

ing off (indicating a warn-away trigger). The impact level required to fully trigger the alarm is indicated

when the LED remains on for a longer duration before turning off.

Note: This adjustment cannot be performed using the remote control.

Initializing Virtual Tach (not needed w/hardwire tach inputs)

To program Virtual Tach:

1. After the install is complete, remote start the engine. The programming operation may require 3 cranks of

the starter before the engine starts and runs. Do not turn off the remote start if this happens, it is a normal

programming operation.

2. Once the engine begins running, let it run for at least 30 seconds.

3. Using the Remote, send the Remote start command to turn remote start off. Virtual Tach is programmed.

To reset Virtual Tach, go into the Reset and Deletion section of this guide. Virtual Tach cannot be reset with

the Bitwriter.

Note:

Virtual Tach cannot be used in MTS Manual Transmission Mode. It is also not recommended for diesel

trucks.

Virtual Tach handles disengaging the starter motor during remote starting – it does not address over-rev. If the

customer wants to have the over-rev protection capability, the tach wire must be connected.

Important: After successfully learning Virtual Tach, a small minority of vehicle starters

may over crank or under crank during remote start. The Bitwriter can be used ﬁne tune

the starter output time in 50mS increments to compensate for such an occurrence.

Learning the Tach (not needed with Virtual Tach)

To learn the tach signal:

1. Start the vehicle with the key. Within 5 seconds, press and hold the Control button.

2. After 3 seconds the status LED on your Control Center lights constant when the tach signal is learned.

3. Release the Control button.

Note: When the tachometer is programmed, the main unit automatically enters the Tachometer engine

checking mode.

Since this unit has the capability to learn the tachometer with the analog input or through D2D from an

interface module, the unit gives conﬁrmation as to which source the unit has learned from. After learning the

tach and releasing the Control button, the system:

Flashes the parking lights once if programmed using the analog tach wire.

Flashes the parking lights twice if programmed using the interface module through D2D.

Neutral safety switch interface

Some vehicles do not have an electrical neutral safety switch. Instead, the vehicle has a mechanical neutral

safety switch that physically interrupts the starter wire and is used when the vehicle is in any drive gear. If the

remote start is interfaced before this switch, it will provide protection from starting in gear. However, some

vehicles combine the column shift mechanism and the mechanical neutral safety switch into one mechanical

part.

Important: You must complete the remote start system installation before doing the follow-

ing test. Ensure that the remote start system is functioning normally. This includes connect-

ing to the brake as a shut-down.

Testing the neutral safety switch

1. Make sure there is adequate clearance to the front and rear of the vehicle because it may move slightly.

2. Make sure the hood is closed and there are no remote start shut-downs active.

3. Set the emergency brake.

4. Turn the key to the “run” position, this releases the shifter.

5. Place the car in drive (D).

6. Place your foot directly over the brake pedal, but do not depress it. Be ready to step on the brake if the

starter engages.

7. Activate the remote start system.

8. If the starter engages, immediately depress the brake to shut the remote start system down. If the

starter does not engage, no additional safety

system is required.

If the starter engages and the vehicle is a General Motors product or Dodge Dakota pickup, refer to

www.

directechs.com

for Document 1008 under the Resource tab. For an alternative shut-down method

which prevents the starter from engaging. If the vehicle is not a General Motors product or a Dodge

Dakota pickup, please call Directed Electronics Technical Support for an alternative shut-down method.

Do not return the vehicle to the customer until this feature is properly installed!

Remote Start Shutdown/Startup Diagnostics

Shutdown diagnostics: If the remote start activates but fails to stay running, the remote start module has the

ability to inform you of what may have caused the remote start failure. Before performing shutdown diagnos-

tics it is important that you let the remote start shut off on its own i.e. let it attempt to start 3 times then shut

down, if this is not done the unit will report the shutdown you used to shut off the remote start.

Note: Shutdown diagnostics does not report if the vehicles factory immobilizer is causing the problem.

To perform shutdown diagnostics:

1. With the ignition Off, press and hold the Control button (on Control Center).

2. Turn the ignition On and then back Off while holding the Control button.

3. Release the Control button.

4. Press and release the Control button. The status LED ﬂashes to report the last shutdown for one minute or

until the ignition is turned on, as shown in the following table:

Status LED Flashes Shutdown Mode

1 ﬂash Runtime expired

2 ﬂashes Over-rev shutdown

3 ﬂashes Low or no RPM

4 ﬂashes Transmitter shutdown (or optional push button)

5 ﬂashes (+) Brake shutdown

6 ﬂashes (-) Hood shutdown

7 ﬂashes Timer mode/Turbo mode/Manual mode error *

8 ﬂashes Neutral safety shutdown

9 ﬂashes Low battery (voltage mode)

10 ﬂashes Alarm triggered **

11 ﬂashes Wait-to-start input timed out

* Timer mode error: Ignition is on or shutdown input is active when activating timer mode.

Turbo mode error: Turbo mode is programmed off, engine is not on or shutdown input is active.

Manual mode error: MTS mode not enabled.

** Alarm was triggered during remote start sequence.

Startup Diagnostics: If the vehicle fails to activate the remote start, the remote start module will notify you via

your Responder HD 2-way remote control and will ﬂash the parking lights on the vehicle to notify you of what

caused the no-start situation.

Parking Light Flashes

5 ﬂashes Brake wire is active

6 ﬂashes Hood pin wire is active

7 ﬂashes Manual transmission mode is enabled and not initialized.

8 ﬂashes Neutral safety wire has no ground or the neutral safety switch is Off.

Remote Pairing

Prepare the vehicle system to be Paired with a new remote

1. Open a door.

2. Turn the key to the ON position.

3. Within 5 seconds press and release the Control button on the Control Center one time.

4. Within 5 seconds, press and hold the Control button on the Control Center. The status LED will ﬂash one

time and the siren then chirps to conﬁrm the vehicle is ready for remote pairing.

5. Release the Control button and proceed below.

Note:

If no remote pairing results, the system will exit after 60 seconds.

Prepare the Responder HD 2-way remote control to be Paired with the system:

Remote Pair matches your HD remote to the system. Make sure the HD remote is set for the desired Car 1

(Default) or Car 2 operation for the system it will be paired with.

1. With the HD remote control display blank, press in and hold the menu wheel for 3 seconds until Settings

screen appears.

2. Toggle the menu wheel until Adjustments screen appears

3. Press in on the menu wheel to enter.

4. In the Adjustments menu highlight Remote Pair and press in the Menu Wheel to go to the Remote Pair

screen. Follow the on screen instructions:

I. Press and hold the

AUX

button until tones are played.

II. The system chirps the siren to indicate it has learned the HD remote ID and is sending its ID to the

remote.

III. Release

AUX

button.

5. Successful or Failed Pair: The HD remote control indicates a successful or failed pairing on the display.

After a successful pairing, it then returns to the Adjustments menu. If pairing fails, it returns to the

Remote Pair screen, press the

AUX

button to attempt another pairing.

Prepare the vehicle system to be Paired with the companion or a new 1-way remote as described above.

Note: If no remote pairing results, the system will exit after 60 seconds.

Prepare the companion 1-way remote control to be Paired with the system:

Make sure the remote is set for the desired Car 1 (Default) or Car 2 operation for the system it will be paired

with.

1. Press and hold the

AUX

button for 8 seconds.

Note: If Car 2 mode is on, ignore the Car Select beep after 3 seconds.

2. Wait for the Transmit LED to light solid and the remote to beep. Release the

AUX

button.

3. Press the

AUX

button for 1 second. The transmit LED will blink 3 times and beep 3 times.

4. Within 5 seconds, press the

AUX

button.

5. The vehicle siren will chirp. You have now successfully learned the remote to the vehicle remote start and

security system.

6. Press the

AUX

button two times to exit learn routine on the remote. The transmit LED will turn off and exit

tone will sound.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Directed Electronics Allarme auto

Directed Electronics

Directed Electronics 591XV Manuale utente

Directed Electronics

Directed Electronics VIPER 5701 Manuale utente

Directed Electronics

Directed Electronics 544T Manuale utente

Directed Electronics

Directed Electronics Hurricane 3 Manuale utente

Directed Electronics

Directed Electronics Cyber 130XV Manuale utente

Directed Electronics

Directed Electronics Avital 2300 Manuale utente

Directed Electronics

Directed Electronics Concept 550 Manuale utente

Directed Electronics

Directed Electronics Python 880XP Manuale utente

Directed Electronics

Directed Electronics PS-7870TWE-FM Manuale utente

Directed Electronics

Directed Electronics 3100 Manuale utente

Directed Electronics

Directed Electronics 10 Manuale utente

Directed Electronics

Directed Electronics Automate 640M Manuale utente

Directed Electronics

Directed Electronics AM1 Manuale utente

Directed Electronics

Directed Electronics Intelliguard 850 Manuale utente

Directed Electronics

Directed Electronics CLIFFORD 320.3X Manuale utente

Directed Electronics

Directed Electronics Viper 4704 Manuale utente

Directed Electronics

Directed Electronics Clifford 12.2X Manuale utente

Directed Electronics

Directed Electronics Viper 5601 Manuale utente

Directed Electronics

Directed Electronics Avital Manuale utente

Directed Electronics

Directed Electronics 551R Series Manuale utente

Directed Electronics

Directed Electronics G322R Guida rapida

Directed Electronics

Directed Electronics 446 Series Manuale utente

Directed Electronics

Directed Electronics Model 3000 ESP Manuale utente

Directed Electronics

Directed Electronics Python 990 Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
