Dji OSMO X5 Adapter Manuale utente

V1.0

Quick Start Guide

OSMO X5 Adapter

Disclaimer and Warning

Congratulations on purchasing your new DJI product. The information in this

document affects your safety and your legal rights and responsibilities. Read

this entire document carefully to ensure proper conguration before use. Failure

to read and follow instructions and warnings in this document may result in

serious injury to yourself or others, damage to your DJI product, or damage to

other objects in the vicinity. This document and all other collateral documents

are subject to change at the sole discretion of DJI.

By using this product, you hereby signify that you have read this disclaimer and

warning carefully and that you understand and agree to abide by the terms and

conditions herein. You agree that you are solely responsible for your own conduct

while using this product, and for any consequences thereof. You agree to use this

product only for purposes that are proper and in accordance with all applicable

laws, rules, and regulations, and all terms, precautions, practices, policies and

guidelines DJI has made and may make available.

DJI accepts no liability for damage, injury or any legal responsibility incurred

directly or indirectly from the use of this product. The user shall observe safe and

lawful practices including, but not limited to, those set forth in this document.

Introduction

The Osmo X5 Adapter allows the Zenmuse X5 Series gimbal and camera to be

used with the Osmo handle. It also provides a communication port for the DJI

Focus to control aperture and focus.

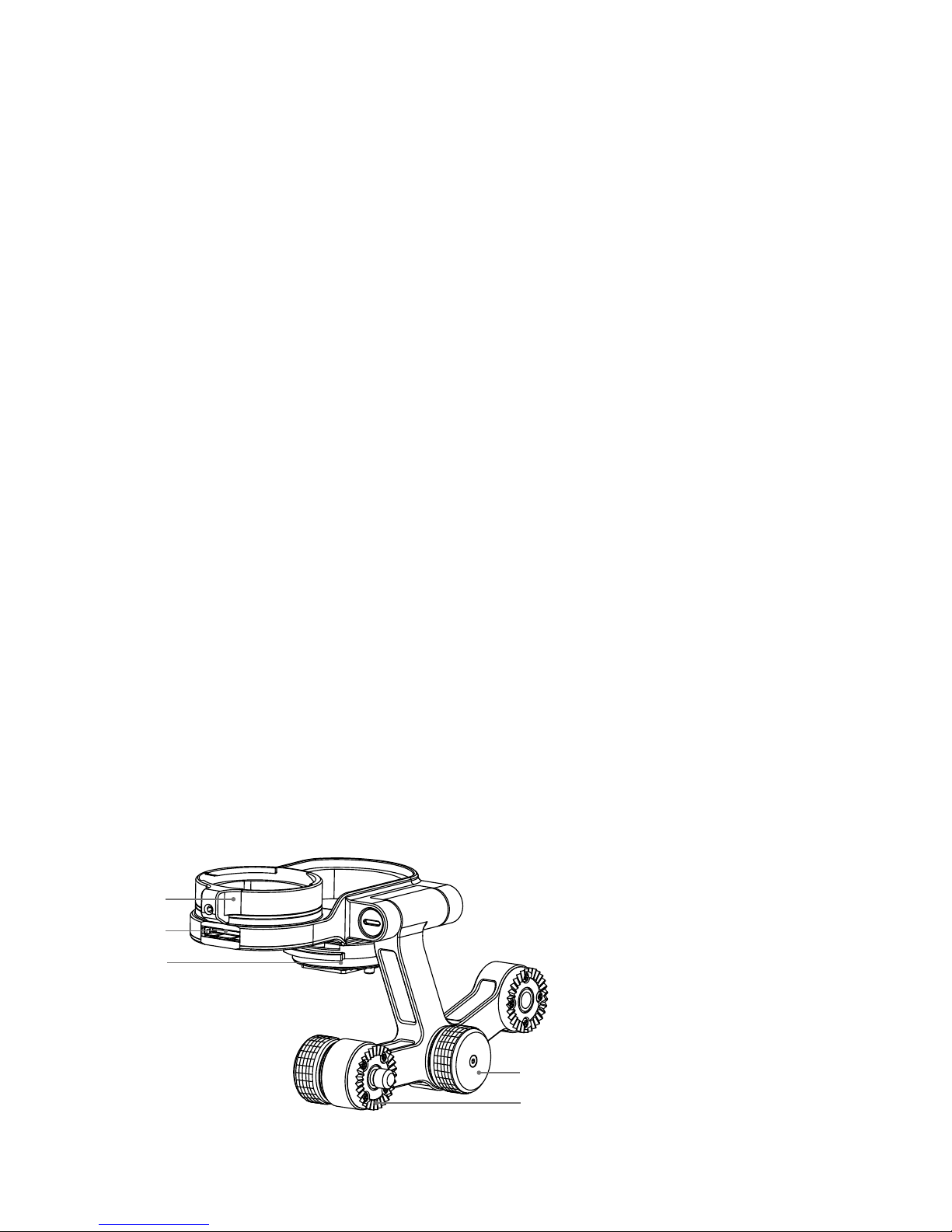

1. Gimbal Securing Ring

2. Communication Port

3. Handle Connector

4. DJI Rosette Mount

5. Knob

1

2

3

4

5

Specications

Weight: 155 g

Installation

Important

The Zenmuse X5 or X5R must be upgraded on the Osmo handle with Osmo

rmware v01.01.00.10 or higher.

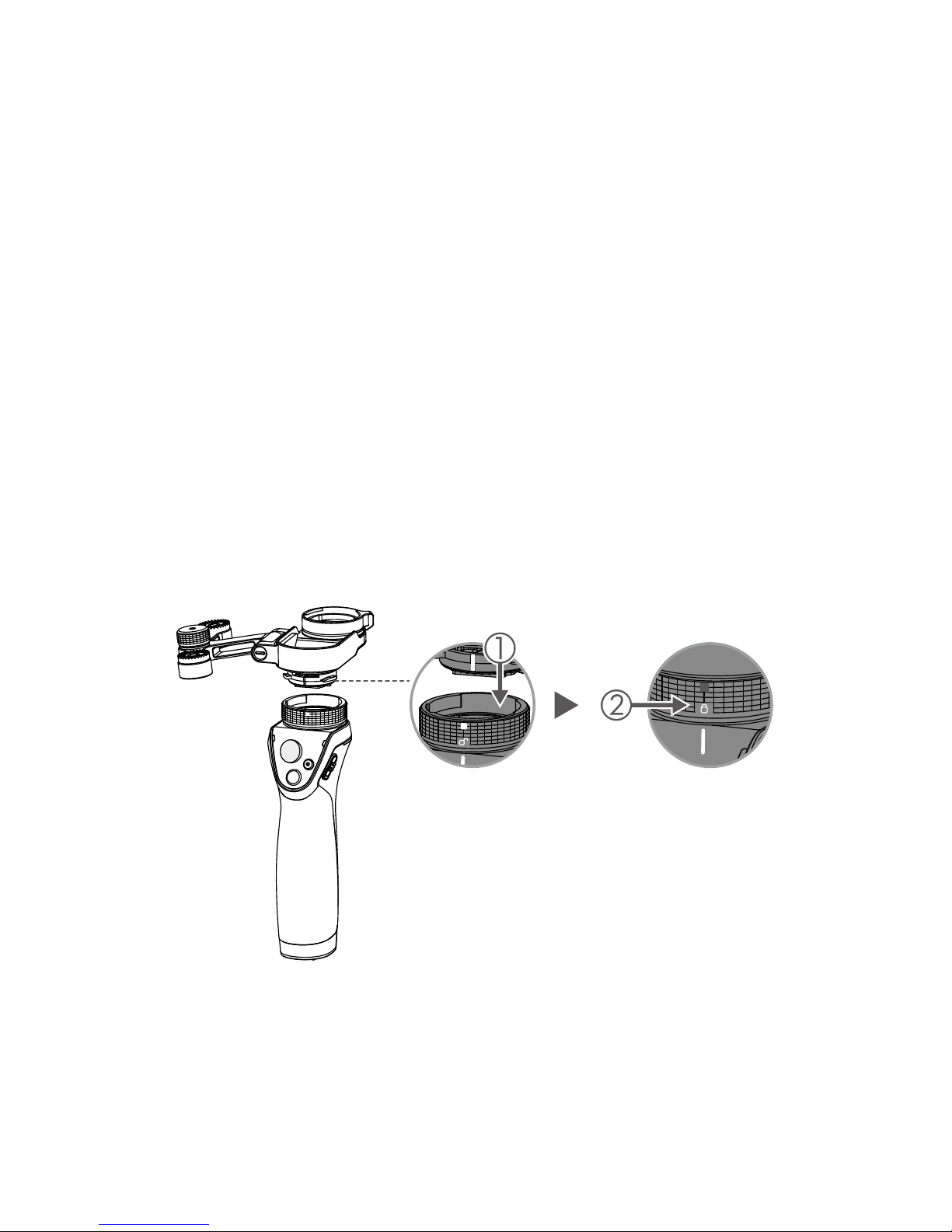

Mounting the X5 Adapter onto the Osmo Handle

1. Rotate the gimbal securing ring to its unlocked position.

2. Insert the X5 Adapter’s handle connector into the Osmo’s gimbal securing ring

by aligning their respective white marks.

3. Lock the gimbal securing ring.

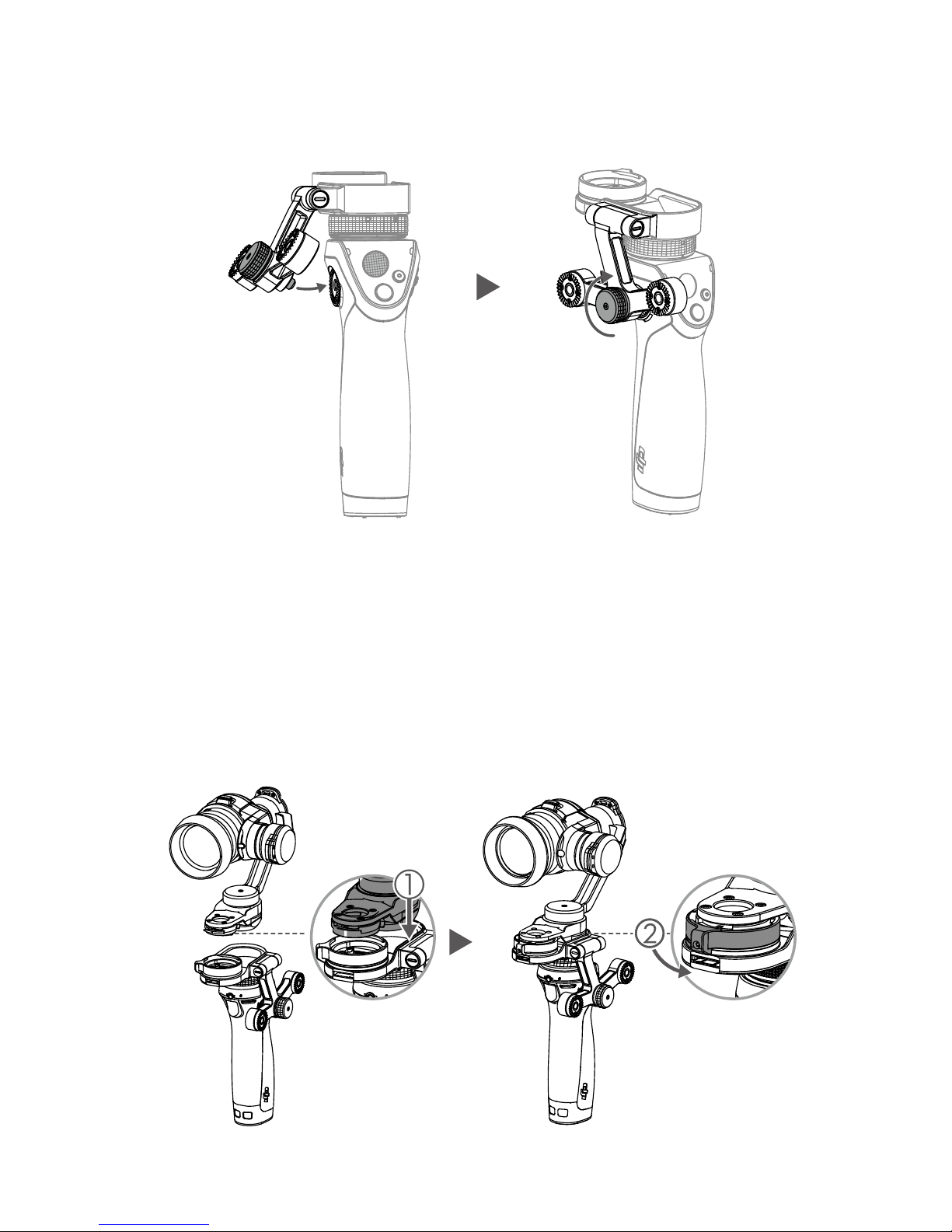

4. Screw the X5 Adapter’s knob to the Rosette Mount on the side of the Osmo

handle.

Mounting the Zenmuse X5 onto the X5 Adapter

1. Rotate the X5 Adapter’s gimbal securing ring to the unlocked position.

2. Mount the Zenmuse X5 gimbal and camera, making sure the pan motor sits

nicely in the X5 Adapter.

3. Lock the gimbal securing ring.

Mounting the DJI Focus Remote Controller onto the X5 Adapter

1. Attach the Focus Remote Controller to one of the Rosette Mounts on the X5

Adapter and tighten the knob to secure.

2. Connect the communication ports on the Focus Remote Controller and the X5

Adapter using the DJI Focus-Osmo CAN-Bus cable.

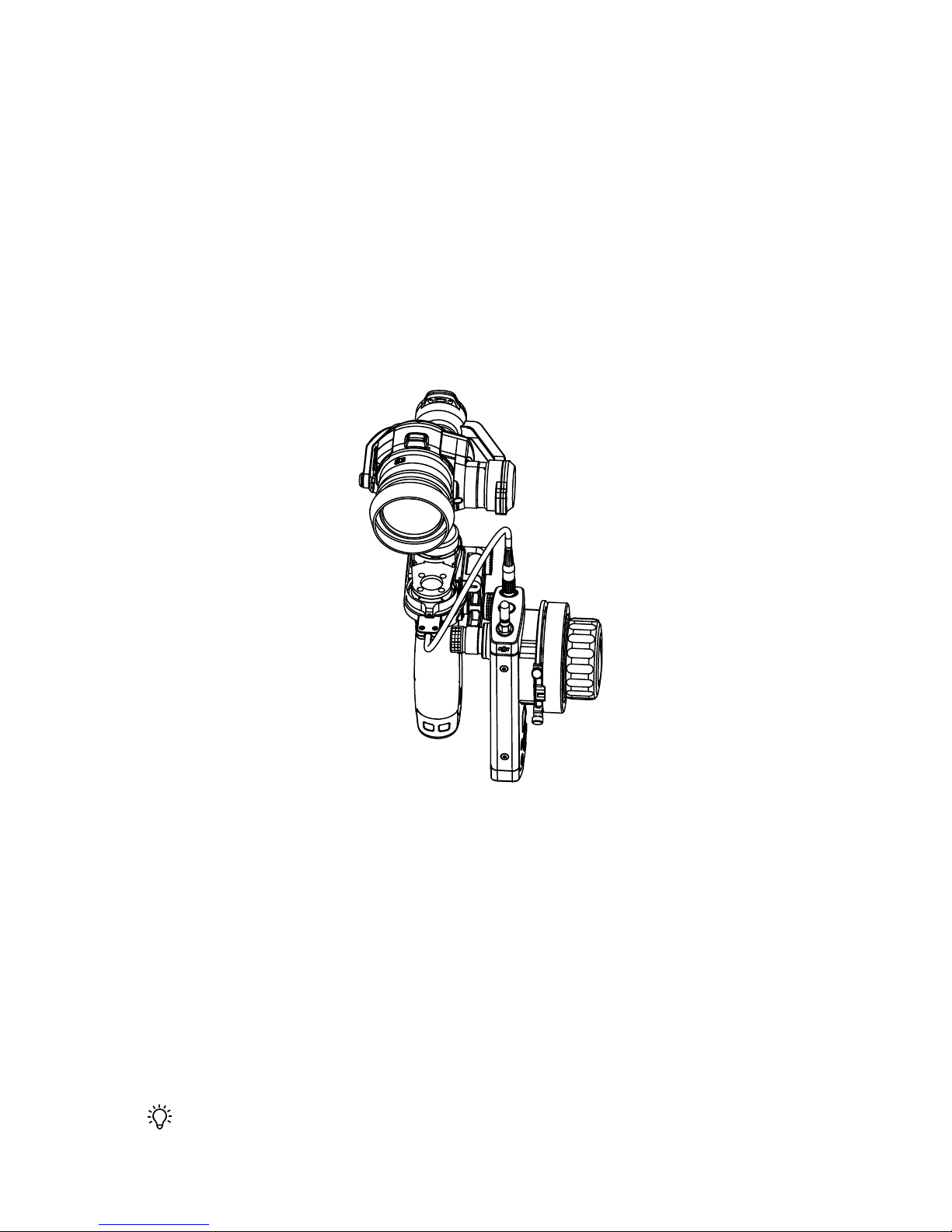

The mounted Focus Remote Controller should look like this.

• The DJI Focus-Osmo CAN-Bus cable can be purchased on the ocial

DJI Store.
