DSPPA DSP154H Manuale utente

70V

100V

Freq. Resp

400Hz-8kHz

Sensitivity

105±2dB

Max SPL

117±2dB

Rated Power

15W

Dimension(L×W×H)

195×195×250mm

Weight

1.7kg

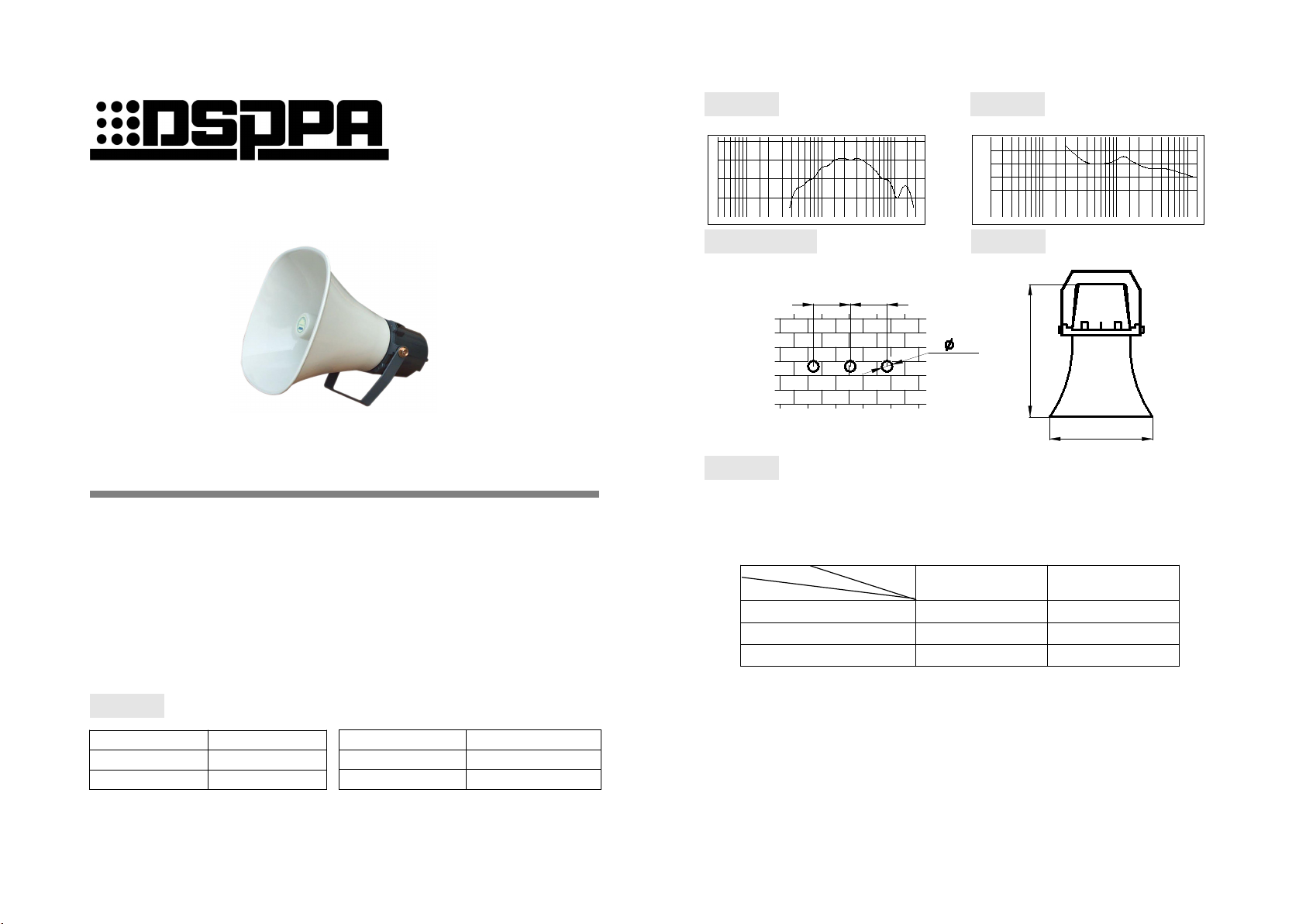

Horn Speaker System DSP154H

OWNER’S MANUAL

Thank you for purchasing PA speaker system of DSPPA series. All of DSPPA series

products have been tested strictly before shipping. DSPPA series PA speaker system is

widely used in hotel, trade building, supermarket, school, entertainment, etc. It’s the most

ideal choice of you! In order to facilitate installing, modulating and running please read this

manual carefully before setup.

FEATURES：

The products have gotten waterproof certificate and other certificates

and are suitable for outdoor use;

Equipped with brackets for installation;

The speaker units have the features of high sensitivity and high

dynamic range and different power can be chosen.

SPECIFICATIONS

FREQ. RESPONSE DISTORTION

(dB SPL、1W、1m) (THD< 3% 1W、1m、400Hz-8kHz)

POSITIONING DIMENSIONS & DIAGRAM

28mm 28mm

3- 8mm

245mm

195mm

INSTALLATION

1. Fit three Φ8mm screws in the position where needed to install a speaker；

2. Set the system in those three screws；

3. Connect audio broadcasting wire to the impedance according to the table

below；

Power Line Voltage

Impedance

2.5KΩ

2 W

4 W

1.3KΩ

4 W

8 W

660Ω

8 W

15W

4. Finally，adjust the direction of the system and examine whether it is steady.

Guangzhou DSPPA Audio Co., Ltd.

50050

100

100 300200

110

120

1K 2K 3K 5K 20K10K 20020 5030 100

1.000

500 1K 2K 3K 10K5K

0.010

0.032

0.100

0.316

3.162

10.000

300 Hz

D istortio n /%

Public Address System

70V

100V

频响范围

400Hz-8kHz

灵敏度

105±2dB

最大声压级

117±2dB

额定功率

15W

尺寸(长×宽×高)

195×195×250mm

重量

1.7kg

号筒扬声器

DSP154H

使用说明

承蒙选用迪士普广播扬声器系列产品。所有迪士普产品出厂前均经严格测试，

信守质量承诺。迪士普广播扬声器广泛应用于酒店、商厦、超市、学校、休闲娱乐等

场所，是您理想的选择。为了方便您安装、调试和使用本产品，安装前请详细阅读

本说明。

性能特点：

产品通过防水认证等多项认证，适宜室外使用；

配备安装支架，安装便捷；

选用优质高灵敏度，高动态范围扬声器单元，多种功率可选择。

技术指标

频响特性失真特性

(dB SPL、1W、1m) (THD<3% 1W、1m、400Hz-8kHz)

支架安装孔位外形尺寸

28mm 28mm

3- 8mm

245mm

195mm

安装方法

1、在需安装扬声器的位置安装三个直径 8mm 螺丝（如上图）；

2、将扬声器支架固定在这三个螺丝上；

3、根据实际功率需要按下表选择合适阻抗档位连接音频广播传输线；

2.5KΩ

2 W

4 W

1.3KΩ

4 W

8 W

660Ω

8 W

15W

4、最后，调整扬声器角度并检查安装是否牢固可靠。

Guangzhou DSPPA Audio Co., Ltd.

线路电压

阻抗

功率

50050

100

100 300200

110

120

1K 2K 3K 5K 20K10K 20020 5030 100

1.000

500 1K 2K 3K 10K5K

0.010

0.032

0.100

0.316

3.162

10.000

300 Hz

D istortio n /%

公共广播系列
