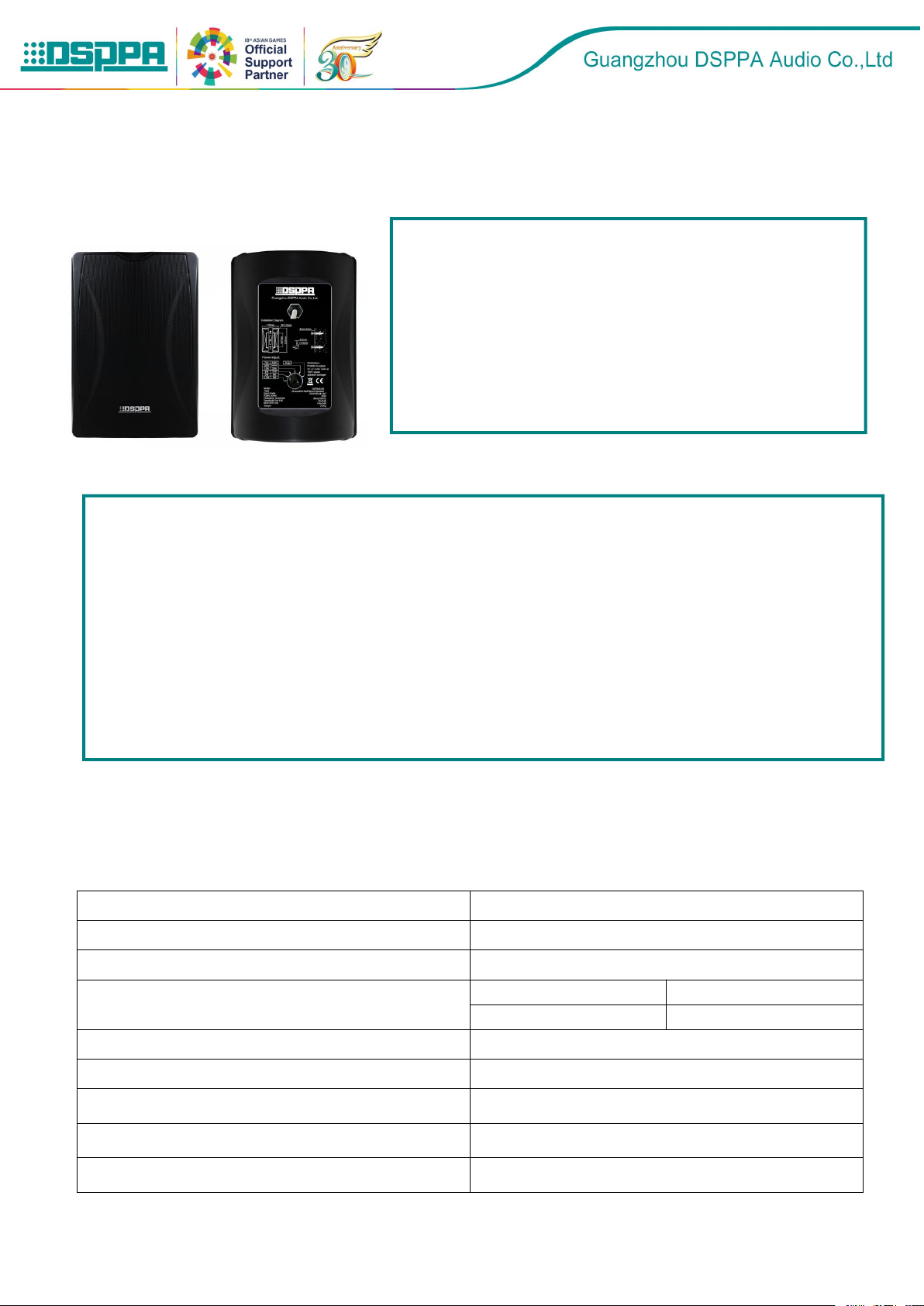

DSP8064B 40W Wall Mount Speaker with Power Tap
Input 70V/100V/8Ω
Wide Freq.Resp.:65Hz-20KHz
Max SPL:107±2dB
High sensitivity:91±2dB
Wall mount type loudspeaker
Metal grille and ABS enclosure of black color
Equipped with hanging holes for mounting convenient
Features
The DSP8064 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is
realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel
connection of multiple loudspeakers possible.
Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high
sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where
background music and paging is needed.
Description
Specification
Model
DSP8064
Speaker Unit
6.5"×1, 1"×1
Rated Power
40W
Input
Constant voltage
70/100V
Constant resistance
8Ω
Sensitivity(1M,1W)
91±2dB
Max SPL(1M)
107±2dB
Freq. Resp
65Hz-20kHz
Weight
4.6 kg
Dimension(H×W×D)
310×215×203mm
1. Fit two Ø4mm nails on wall where it is needed to install a speaker system.
2. Connect audio broadcasting wire to the speaker according to the table below.
Constant voltage
Constant
resistance
70V
100V
8Ω
Red--White
40W
-
40W
20W
40W
10W
20W
5W
10W
2.5W
5W
Note:
When the audio line is the constant voltage, prohibit the knob to the 8Ω.
Prohibit to adjust to“—” under state at 100V cause speaker damage!
3. Position the speaker, then adjust the direction of it and examine whether it is steady.
Installation
Hanging hole Nail For Mounting
Input Voltage
Terminal
Power
D SP 8064
Horizontal directivity patt ern
DSP80 64
Vertical directivity pattern
FREQ. RESPONSE DISTORTION
(dB SPL、1W、1m) (THD< 1.5% 1W、1m、200Hz~12kHz)
DSP8064 Power adjustment knob
Audio line interface
Audio line interface
Power Adjustment Knob
Power Voltage
Terminal
Constant voltage
Constant resistance
70V
100V
8Ω
Red---white
40W
—
40W
20W
40W
10W
20W
5W
10W
2.5W
5W
Notification:
When the audio line is the constant voltage, prohibit the knob to the 8Ω.
Prohibit to adjust to“—” under state at 100V cause speaker damage!
Installation Diagram
Power adjust
