SLICE6 AIR DAS

User’s Manual

February 2020

SLICE6 AIR DAS User’s Manual February 2020




support.dtsweb.com ii 13006-90440-MAN (Rev. 1)
TableofContents
DTS Support ....................................................................................................................... 4
Introducing the SLICE6 AIR DAS...................................................................................... 5
Sensor Interface................................................................................................................. 6
Supported Sensor Types ................................................................................................. 6
Input Range ..................................................................................................................... 6
Excitation Sources........................................................................................................... 7
Bridge Completion ........................................................................................................... 7
Hardware Filters............................................................................................................... 7
Offset Compensation....................................................................................................... 7
Electronic Identification (EID)........................................................................................... 7
Shunt Emulation............................................................................................................... 7
System Connector.............................................................................................................. 8
Communication Method................................................................................................... 8
Timing Synchronization.................................................................................................... 8
Power Management......................................................................................................... 8
Power-up and Power-down Procedures...................................................................... 9
LEDs.................................................................................................................................... 9
Status (STS) LED ............................................................................................................ 9
Power (PWR) LED......................................................................................................... 10
Data Memory Size............................................................................................................. 11
Sampling Rates.............................................................................................................. 11
Circular Buffer Limitations.......................................................................................... 11
Basic Care and Handling................................................................................................. 12
Shock Rating.................................................................................................................. 12
Mounting Considerations........................................................................................... 12
Thermal Considerations................................................................................................. 12
Environmental Rating..................................................................................................... 13
Software............................................................................................................................ 14
Data Collection Concepts............................................................................................... 14
Data Collection Modes................................................................................................... 14

SLICE6 AIR DAS User’s Manual February 2020




support.dtsweb.com iii 13006-90440-MAN (Rev. 1)
Circular Buffer Mode.................................................................................................. 14
Recorder Mode.......................................................................................................... 14
Hybrid Recorder Mode............................................................................................... 15
Continuous Recorder Mode....................................................................................... 15
Data Streaming.............................................................................................................. 15
Start Record and Event Initiation ................................................................................... 15
Appendix A: Hardware Specifications........................................................................... 17
Mechanical Specifications, Connector Information and Pin Assignments...................... 17
Ethernet Chaining.......................................................................................................... 18
Accessories/Support Equipment.................................................................................... 18
Appendix B: Hardware Configuration Specifications.................................................. 19
Using the SLICE Network Configuration Utility .............................................................. 19
Appendix C: Sensor Interface Wiring Diagrams........................................................... 22
Appendix D: Declaration of CE Conformity .................................................................. 30




SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 413006-90440-MAN (Rev. 1)

DTS Support

SLICE systems are designed to be reliable and simple to operate. Should you need

assistance, DTS has support engineers worldwide with extensive product knowledge and

crash test experience to help via telephone, e-mail or on-site visits.

The best way to contact a DTS support engineer is to submit a request through the DTS Help

Center web portal (support.dtsweb.com). You must be registered

(support.dtsweb.com/registration) to submit a request (https://support.dtsweb.com/hc/en-

us/requests/new). Registration also enables access to additional self-help resources and

non-public support information.

This manual supports the following products:

13006-90440: SLICE6 AIR DAS Module (Alpha)

13006-90441: SLICE6 AIR DAS Module

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 513006-90440-MAN (Rev. 1)

Introducing the SLICE6 AIR DAS

SWaP optimized and IP65 rated, the SLICE6 AIR DAS is a complete data acquisition unit for

measuring analog signals in extreme environments such as payload ejection/deployment; in-

flight/on-board UAVs/drones, rockets, missiles and munitions; and biomechanics. PTPv2

Ethernet communications and real-time data streaming up to 20,000 sps per channel with

on-board data storage to flash memory are supported. Each unit includes 6 sensor input

channels and can be used standalone or interconnected/networked for high channel count

systems.

•Sample rates up to 400,000 sps on 6 channels simultaneously via record in place.

•Shock rated to 500 g for dynamic testing environments.

•6-channel analog sensor interface supports accelerometers, load cells, pressure

sensors, strain gage and piezo-resistive bridges, IEPE and voltage inputs.

•Ethernet PTPv2 communications (IEEE1588) and sensor ID easily support test set-

ups of hundreds of channels.

•Real-time data streaming up to 20,000 sps per channel

•Optional time source synchronization using IRIG-B122, GPS and 1 PPS standards.

•LED indicators for system and power status.

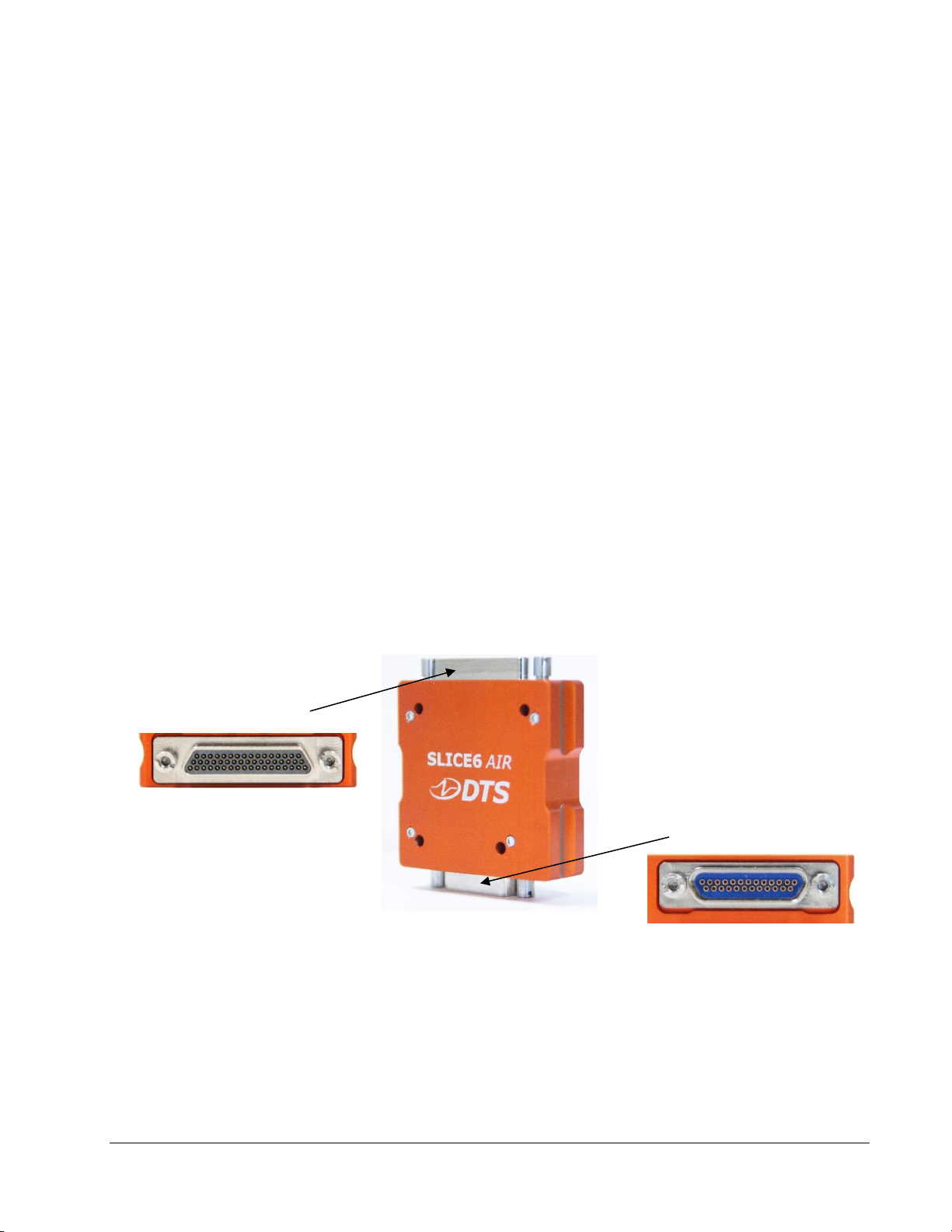

Connector information, pin assignments and mechanical specifications can be found in

Appendix A. Common sensor wiring schematics are shown in Appendix C. Please see your

packing list for your hardware’s specifications.

Sensor interface

connector

System connector

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 613006-90440-MAN (Rev. 1)

Sensor Interface The SLICE6 AIR DAS supports 6 sensor measurement

channels via the 51-pin, micro-D sensor interface connector.

See Appendix A for sensor connector pin assignments.

SLICE6 AIR DAS Sensor Interface

Supported Sensor Types

The SLICE6 AIR DAS supports many types of sensors including accelerometers, load cells

and pressure sensors. The following general sensor types are supported:

•Full- bridge (4-wire) or half-bridge (3-wire) resistive and piezo-resistive sensors

•IEPE sensors

•Conditioned sensors with 5 V excitation and an output voltage of 0-5 V.

For additional questions regarding supported sensors, please contact DTS and provide the

sensor manufacturer and model number, if available. For specific implementation

schematics, see Appendix C.

Input Range

The nominal sensor input range for bridge and piezo-resistive sensors is 0-5 V

(2.5 V center

with respect to -Ex) at a gain of 1. The sensor input range for IEPE sensors is 0.5-23.5 V.

At higher gains, the maximum range decreases correspondingly. For example, at a gain of

10, the input range is ±240 mV. (The software will automatically calculate the gain based on

the user-specified input range and other sensor parameters.)

Larger ranges supported with range expander cable. Contact DTS for more information.

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 713006-90440-MAN (Rev. 1)

Excitation Sources

Bridge excitation sources are fixed and independently current limited at 5 V, 20 mA. IEPE

excitation is supported with a constant current of 5 mA with a source voltage of 24 V.

Excitation sources arenot enabled until the software initializesthe system during diagnostics.

Bridge Completion

Half-bridge emulation for any channel may be selected via software. Half-bridge transducers

should be connected to ±Ex and -Sig.

Hardware Filters

Each measurement channel has a fixed-frequency, 50 kHz, 4-pole and an adjustable 5-pole

Butterworth anti-aliasing filter supporting 1 Hz-40 kHz. Should you have any questions

regarding the best filter option for your application, please contact DTS.

Offset Compensation

Each channel can compensate for a sensor offset of up to 100% of the full-range output of a

sensor. The sensor offset is measured and the hardware compensation is adjusted during

the diagnostic check. Please see the software manual for additional information.

Electronic Identification (EID)

Each measurement channel supports communication with silicon serial number devices

manufactured by Dallas Semiconductor/Maxim Integrated Products (1-wire devices such as

DS2401 and DS2431). When an ID chip is connected to the proper pins on the sensor

connector, the software can automatically read these devices and correlate the serial number

to channel set-up information stored in the sensor database.

Shunt Emulation

The SLICE6 AIR DAS contains a shunt emulation circuit, effectively eliminating the need for

conventional shunt resistors to perform shunt checks. When “Emulation” is chosen as the

shunt calibration method, the software injects a precisely-calculated current into the sensor

to create an expected deflection of the sensor's output. Expected versus actual deflection

are compared to validate that the channel is working properly. Please see the software

manual for additional information.

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 813006-90440-MAN (Rev. 1)

System Connector All communications, control signals and input power are

provided via the 25-pin, micro-D system connector. Using

a SLICE6 AIR Chain Module or other interface, multiple

units can be interconnected (daisy-chained) for hundreds of

test channels.

Ethernet signals must be connected in series with a maximum cable length of ~10 m. (Cable

quality may affect maximum length and performance.) Control signals must be connected in

parallel. See Appendix A for pin assignments.

Communication Method

The SLICE6 AIR DAS supports Ethernet PTPv2 communications (IEEE1588). PTP

(Precision Timing Protocol) provides standards for precision clock synchronization for

measurement and control systems via Ethernet network communications. Timing

information is extracted from the network’s master clock and used by the SLICE6 AIR DAS

to adjust their internal (local) clock, providing precision timing for highchannel-count systems

with a sampling synchronization better than 10 µs. Communication is enabled after the

initialization sequence has completed (~15 s after sufficient power and ON signal is applied).

(Note network congestion may slow IP address acquisition.)

Timing Synchronization

System-wide, channel-to-channel, time source synchronization is supported using

IRIG-B122, GPS and 1 PPS. Serial data (RS232 or RS422) from an external GPS source

can be recorded, and 1 PPS may be used with or without GPS.

Power Management

A good power source is of paramount importance. SLICE6 AIR DAS should be powered

from a high-quality power supply. Be sure to consider any power drop due to cable length.

Power Consumption (on 1588 network)

Input Voltage

Idle

IEPE off;

Armed and Recording

IEPE on;

Armed and Recording

9-30 VDC2

<1.5 W

<2.7 W

<3.3 W

The SLICE6 AIR DAS does not contain an internal battery and must be connected toexternal

power at all times for operation. Without external power applied, the SLICE6 AIR DAS is in

a power off state.

When the unit is on (sufficient power and ON signal applied), power consumption depends

largely on the connected sensor load and whether the unit is armed.

Commercially-available 9 V batteries should not be used to power the SLICE6 AIR DAS.

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 913006-90440-MAN (Rev. 1)

Power-up and Power-down Procedures

When sufficient power is applied, the SLICE6 AIR DAS will power up (on, idle and communi-

cation enabled) if an ON signal is present. With power applied but the ON signal absent, the

unit is off. Power up (On state) occurs in ~15 s, after which communication is enabled.

Power down of the DAS is immediate upon removal of either the ON signal or external power.

Wait ~30 s before reinitializing the DAS.

LEDs The SLICE6 AIR DAS has a two LED indicators that show

system and power status.

Status (STS) LED

The status LED indicates communication and arm status and is red, green or blue. At system

power up, the LED cycles from red to green to blue followed immediately by the power LED

boot-up sequence.

Action

Result

Power up

Communicating with PC

Recording Data (Recorder Mode) -or- Armed (Circular Buffer) -or-

Real-Time Streaming

Armed in Recorder Mode

Unit received Event

Idle

•When the unit is not armed, the status LED will blink green when handling a

command from the PC.

•For Recorder Mode:

-When the unit is first armed, the LED will go solid blue to indicate that it is waiting

for the START RECORD signal but not taking data.

-When it receives the START RECORD signal, the LED will turn green to indicate

that it is actively recording data.

-The LED will turn off when data collection has completed.

-If an EVENT signal is received while the unit is recording data, the LED will turn

red and then turn off when data collection has completed.

•For Circular Buffer Mode:

-When the unit is armed, the LED will go solid green to indicate that it is collecting

data and waiting for the EVENT signal.

-When an EVENT signal is received the LED will turn red and then turn off when

data collection has completed.

SLICE6 AIR DAS User’s Manual February 2020

support.dtsweb.com 10 13006-90440-MAN (Rev. 1)

Power (PWR) LED

The power LED is red, green or blue.

Action

Result

Power up

Connected to host

Power up; not connected to host

Power fault (input power out of range)

•At power up, the LED cycles from red to green to blue immediately after the status

LED has completed its boot-up sequence.

•When connected to host, the LED will turn blue.

•At power up but not connected to host, the LED will turn green.

•When input power is too high or too low, the LED will turn red.

Altri manuali per SLICE6 DAS

Indice

Altri manuali DTS Strumento di misura

DTS

DTS SLICE6 DAS Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
