DURKOPP ADLER 867 - 10-2010 Manuale utente

867

Spezialnähmaschine

Betriebsanleitung

Instruction manual

Instructions d’emploi

Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 521 / 9 25-00 • Telefax +49 (0) 521 / 9 25 24 35 • www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

10/2010 Rev. index: 07.0 Printed in Federal Republic of Germany 0791 867740

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise

Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG

verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,

even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Propriété de la société Dürkopp Adler AG et protégé par la loi sur le droit d’auteur. Une copie ou reproduction

par quelque procédé que ce soit du contenu sans accord écrite de l’auteur est interdite.

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Contents Page:

Part 2: Installation Instructions Class 867 – Original Instructions

1 Scope of Delivery ............................................ 5

2 General and transport packing ................................... 5

3 Assembling the stand

3.1 Assemblingthestandcomponents(Standard)............................ 7

3.2 Assemblingthetableplate ....................................... 7

3.3 Assembling the stand components (Long arm) ........................... 9

3.4 Assemblingthetableplate ....................................... 9

3.5 Self-manufactureofthetabletop ................................... 9

3.6 Settingtheworkingheight........................................ 10

4. Sewing drives

4.1 Drivecategory,typeanduse...................................... 11

4.2 Fittingthesewingdrive.......................................... 12

4.3 Fittingthepedal.............................................. 12

4.4 Fittingthecontrolunitonmachineswithdirectdrive........................ 13

4.4.1 Fittingthesetvalueinitiator....................................... 14

4.4.2 Fittingthepedal.............................................. 15

4.5 Fitting the sewing-drive control for machines with direct drive (only 867-190142-M) .... 15

4.6 Fittingthesetvalueinitiator....................................... 15

4.7 Fittingthepedal.............................................. 16

5 Assembling the machine head

5.1 Fittingthemachinehead......................................... 17

5.2 Fittingtheoilsuctiontube ....................................... 17

5.3 FittingandtensioningtheV-belt.................................... 19

5.4 Attachingthekneelever......................................... 20

5.5 Fittingtheoperatingpanel........................................ 21

5.6 Fittingthesewinglamp(optionalequipment) ............................ 21

6 Electrical connection

6.1 General................................................... 23

6.2 Checking the mains voltage ....................................... 23

6.3 Connectingthesewingdrive ...................................... 23

6.3.1 Connectingtheclutchmotor...................................... 23

6.3.2 Connectingthecoupling-positioningactuator............................ 23

6.3.3 Connectingthedirect-currentpositioningactuator......................... 23

6.4 Earthing................................................... 24

6.5 Connectingthesewingdrivetothemains.............................. 25

6.6 Drive-control connection sockets ................................... 25

6.7 Fittingtheproximityswitch....................................... 26

6.8 Connectingthemachinehead ..................................... 26

6.9 Directionofrotationofsewingdrive.................................. 27

Contents Page:

6.9.1 Checking the direction of rotation with the coupling-positioning

actuator (mounted under the table) .................................. 27

6.9.2 Changing the direction of rotation with the coupling-positioning

actuator (mounted under the table) .................................. 27

6.10 Connectingthesewinglighttransformer(optionalequipment).................. 28

6.10.1 Attachingandconnectingthesewinglighttransformer(optionalequipment)......... 28

6.10.2 Connection to the DA321G ....................................... 29

6.10.3 ConnectiontotheDACClassic..................................... 30

6.11 Connectingthedirectdrive....................................... 31

6.11.1 ConnectingtheHallsensor(optionalequipment).......................... 31

6.11.2 Connecting the DA321G control unit ................................. 33

6.11.3 ConnectingtheDACClassiccontrolunit............................... 33

6.12 Connectingthekneeswitch....................................... 34

6.13 Mounting the M-Control PCB ...................................... 35

6.14 SettingtheswitchesontheM-ControlPCB............................. 36

6.15 Settingmachine-specificparameters................................. 37

6.15.1 General................................................... 37

6.15.2 Autoselect ................................................. 37

6.15.3 Subclass 867-290342-100........................................ 37

7 Pneumatic connection

7.1 Pneumaticsewingfootlifting...................................... 40

8 Lubrication................................................. 41

9 Sewing test ................................................ 42

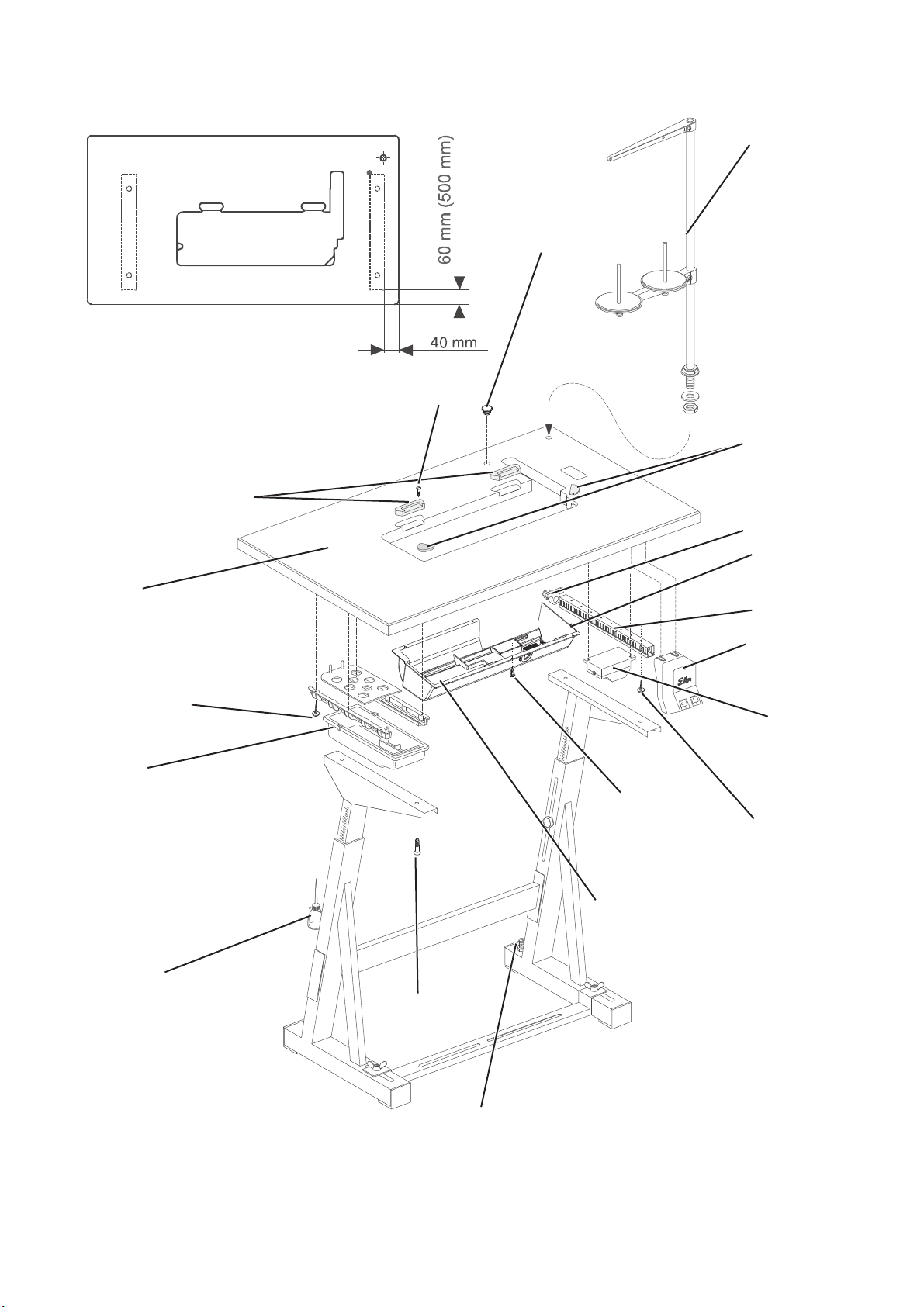

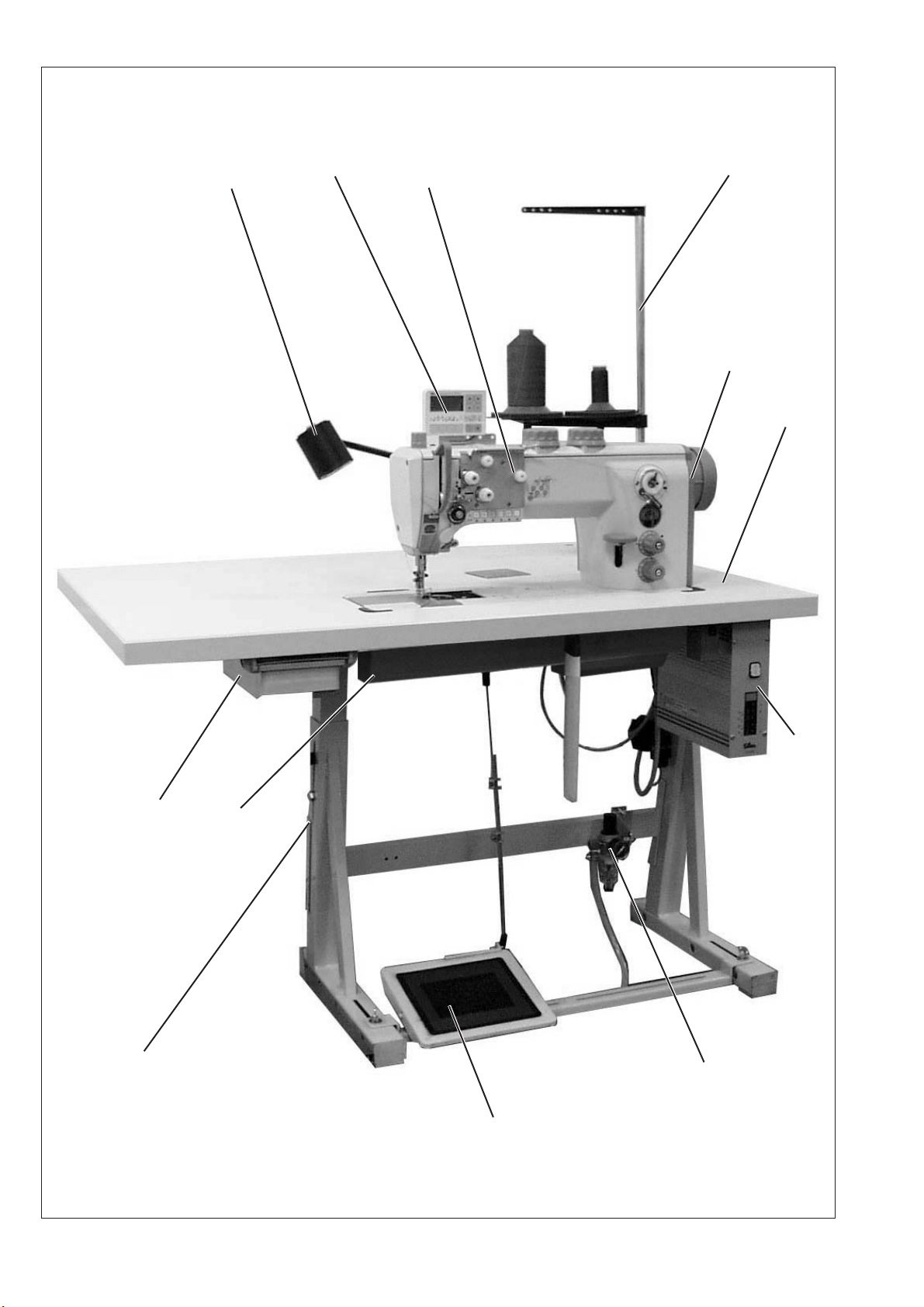

1 Scope of Delivery

What items are supplied depends on your order.

Prior to setting up, please check that all the required parts are

present.

This description refers to a special sewing machine, of which all

individual components can completely be delivered by Dürkopp Adler

AG.

–1Machine head incl. oil sump

Dürkopp Adler accessory set with:

–2Reel stand

Protection cover (not represented)

–11 Oil tray

Set of electronic parts, depending on the order, for:

Machines with direct-current actuator

–4Sewing-drive control

–10 Operating panel

–12 Cover

Machines with positioning actuators

–Main switch

–Sewing-drive

–Synchronizer

–Belt guard

Optional equipment

–7 Stand (option)

–6 Pedal and pedal linkage (option)

–3 Table top (option)

–8 Drawer (option)

–Knee lever

–Pneumatic sewing foot lifting

2. General and transport packing

Caution:

The special sewing machine must be set up by trained specialist

personnel.

If the special sewing machine you have bought is already set up, the

following transport packing must be removed:

–Safety straps and battens on the machine head, table and stand.

–Safety block and straps on the sewing drive

Observe the punch-marks of the table plate!

DIRECT DRIVE

3,5x17 (x 6)

4,5x15 (x 4)

3,5x17 (x 2)

B8x35 (x 4)

3,9x15 (x 5)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DURKOPP ADLER Macchina da cucire

DURKOPP ADLER

DURKOPP ADLER 550-8-3 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 767 - Manuale utente

DURKOPP ADLER

DURKOPP ADLER 610-10 Istruzioni operative

DURKOPP ADLER

DURKOPP ADLER 367 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 550-867 Istruzioni operative

DURKOPP ADLER

DURKOPP ADLER 745-35S Guida di riferimento

DURKOPP ADLER

DURKOPP ADLER 745-35-10 D Manuale utente

DURKOPP ADLER

DURKOPP ADLER 867 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 8967 Manuale utente

DURKOPP ADLER

DURKOPP ADLER H867 Manuale operativo

DURKOPP ADLER

DURKOPP ADLER class 743-221 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 867 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 8967 Guida alla risoluzione dei problemi

DURKOPP ADLER

DURKOPP ADLER 969 Classic Istruzioni operative

DURKOPP ADLER

DURKOPP ADLER 967 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 768 Manuale operativo

DURKOPP ADLER

DURKOPP ADLER 559 - Manuale utente

DURKOPP ADLER

DURKOPP ADLER 171 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 969 ECO Manuale utente

DURKOPP ADLER

DURKOPP ADLER 697 Manuale elenco delle parti

DURKOPP ADLER

DURKOPP ADLER 991-210-10 Series Istruzioni operative

DURKOPP ADLER

DURKOPP ADLER 8700 Manuale utente

DURKOPP ADLER

DURKOPP ADLER 512/532 Manuale utente

DURKOPP ADLER

DURKOPP ADLER M-TYPE PREMIUM Guida all'installazione

Manuali Macchina da cucire popolari di altre marche

Riccar

Riccar RL634DE Manuale utente

Singer

Singer 2517 Manuale utente

Pfaff

Pfaff 3307-1 SERIES Manuale utente

Janome

Janome Quilt Maker Pro 18 VERSA Manuale utente

Siruba

Siruba C007JP Manuale utente

Husqvarna Viking

Husqvarna Viking Designer SE Manuale utente

Singer

Singer 148-5 Manuale utente

IKEA

IKEA SY Manuale utente

Pfaff

Pfaff 571 Manuale utente

Singer

Singer 15-91 Manuale utente

Brother

Brother BB370 Manuale utente

Pegasus

Pegasus WT100 Series Manuale utente

Reliable

Reliable 7100DB Manuale utente

Pfaff

Pfaff 937 Manuale utente

Singer

Singer 6038 Manuale utente

Singer

Singer 413K Manuale utente

Pfaff

Pfaff 1471 E1 Manuale utente

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuale utente
