Eden 94152EDAMZ Manuale utente

MULTI-PATTERN SPRINKLER PLUS MISTING SYSTEM

WITH TELESCOPING TRIPOD

Step 2

Attach the Extension Tube to the tripod, then

connect the sprinkler head to the top of the

Tripod or Extension Tube (do not overtighen).

Adjust the range tabs and angle cap to change

the spray coverage(from 5° up to 360°) and

spraying angle to water just where you need.

Spray Coverage and

Distance Adjustment

Depending on your watering needs, you can manually select from the

various pattern settings:

FLAT - The at pattern will provide a at wave of water.

FAN - The fan pattern disperses water in a wide fan shape.

MIST - This pattern is useful to cool down a small area.

LARGE - This provides a larger watering spray area.

MULTI - This is a combination of the Flat, Fan and Large patterns.

MINI - Provides delicate plant watering

Spray Pattern Adjustments

FLAT

FAN

MIST MINI

LARGE MULTI

94152EDAMZ

Step 3

Use the Quick Connect to easily connect and disconnect the sprinkler from the hose.

Connect the Product Adapter to the base of the sprinkler. Attach the lockable Quick Connect

to the end of the hose, then simply snap in the hose to the sprinkler to begin using.

Premium Quick Connect

Starter Set

ts standard garden

hoses and watering tools

Note: If you are not using

the Quick Connect System,

simply connect the sprinkler

directly to the hose.

18.7”

(47.5cm)

63.7”

(162cm)

Place the tripod in the area

where you want to water.

Open the latches to release

the legs. Push down on the

tripod legs until the legs are

well seated in the ground.

Step 1

43.7”

(111cm)

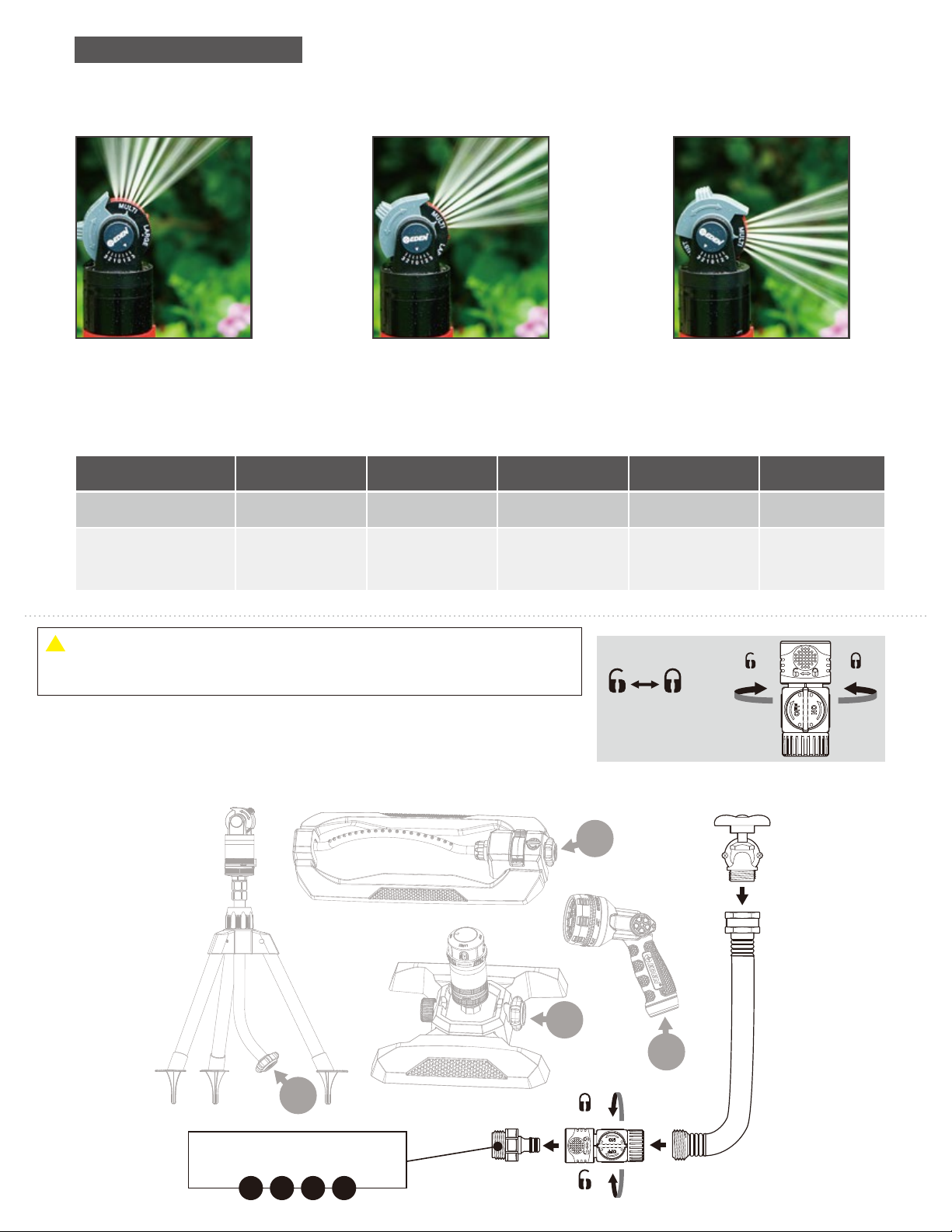

Move the angle cap to control the distance of your watering area. The higher level will create a higher arc for greater

water coverage. The lower level will reduce the watering area. Convenient indicators help you remember your settings

for next time.

Level Adjustment Indicator

HIGHER LEVEL (1-3):

Adjust the spray upwards for

maximum distance.

LOWER LEVEL (3-1):

Adjust the spray downwards

to reduce the watering area.

LEVEL (0):

Adjust the spray in between a

dispersed and concentrated

watering area.

Fan

27 ft (8.5 m)

2440 sq ft

(226 m²)

Mini

36 ft (11 m)

4090 sq ft

(380 m²)

WARNING: This product can expose you to chemicals including styrene which is

known to the State of California to cause cancer. For more information go to

www.P65Warnings.ca.gov.

94152EDAMZ

Made in Taiwan www.edengarden.com

UNLOCK LOCK

Secure twist-and-lock

mechanism prevents

accidental disconnection

A B C D

Quick and easy connections to 5/8-inch and

1/2-inch garden hoses, sprinklers, nozzles, and/or

any other garden watering tools

UNLOCK

LOCK

The Premium Quick Connect with Shut O Valve Set will simplify your watering

experience. Simply attach the connector at the end of your hose. Then connect the

adapters to your watering tools. Interchange various tools with a snap without turning

o the water as the shut o valve of the connector will stop the water ow. No more

kinking or hose twisting as the connector allows you to swivel your hose 360 degrees.

Flat

29 ft (9 m)

2730 sq ft

(250 m²)

Multi

37 ft (11.5 m)

4470 sq ft

(415 m²)

Large

39 ft (12 m )

4860 sq ft

(452 m²)

40 PSI

Radius of Spray

Coverage Area

up to
