Edge-Core ECS1100-5P Manuale utente

– 1 – E122023-CS-R02

L2 Gigabit Ethernet Web Managed PoE Switches

ECS1100-5P | ECS1100-10HP | ECS1100-28HP

L2 Gigabit Ethernet Web Managed PoE Switch

2. Rack mounting kit—2 brackets and 6 screws

3. Power cord

4. Four adhesive rubber feet

5. Documentation—Quick Start Guide (this document) and Safety

and Regulatory Information

System LEDs

Reset button

4 x 10/100/1000M RJ-45 PoE+ (30 W) ports

4. 1 x

10/100/1000M RJ-45 port

4 x 10/100/1000M RJ-45 PoE++ (90 W) ports

4 x 10/100/1000M RJ-45 PoE+ (30 W) ports

7. 2 x 100/1000M SFP ports

8 x 10/100/1000M RJ-45 PoE++ (90 W) ports

16 x 10/100/1000M RJ-45 PoE+ (30 W) ports

10. 4 x 100/1000M SFP ports

11. Grounding point

12. AC power socket

ECS1100-5P

ECS1100-10HP

5 6 7

ECS1100-28HP

8 9 10

11 12

Package Contents

Overview

1. PoE Over Budget: Red (PoE budget exceeded)

2. System: Green (OK)

3. Power: Green (OK)

4. Reset Button: Press for 10 seconds to reset to factory defaults

5. RJ-45 Ports: Green/Blinking (link/activity), Amber (PoE)

6. SFP Ports: Green/Blinking (link/activity)

System/Port LEDs & Buttons

1 2 3 5

Quick Start Guide

wifi.edge-core.com

– 2 –

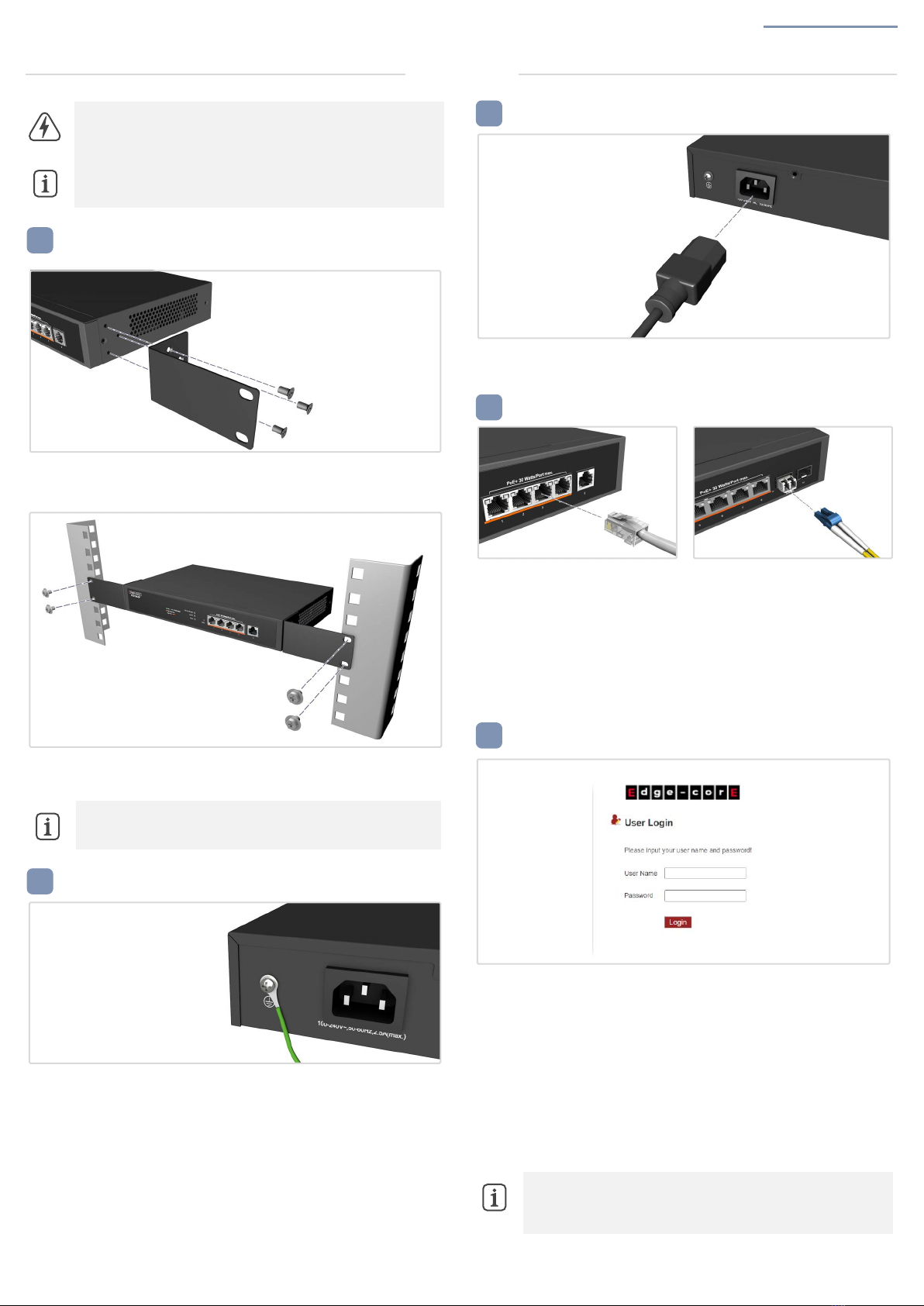

Mount the Device

Ground the Device

Connect Power

Make Network Connections

Connect to the Web User Interface

1. Connect a PC directly to one of the switch’s RJ-45 ports.

2. Set the PC IP address to be on the same subnet as the switch (that is,

the PC and switch IP addresses must both start 192.168.2.x with

subnet mask 255.255.255.0).

3. Enter the switch’s default management IP address of 192.168.2.10

into the web browser address bar.

4. Log in to the web interface using the default settings:

User Name = admin

Password = admin

Warning:

For a safe and reliable installation, use only

the accessories and screws provided with the device. Use

of other accessories and screws could result in damage to

the unit. Any damages incurred by using unapproved

accessories are not covered by the warranty.

Avertissement:

Pour une installation sûre et fiable,

utilisez uniquement les accessoires et les vis fournies avec

l’appareil. L’utilisation d’autres accessoires et vis pourrait

endommager l’appareil. Les dommages causés par

l’utilisation d’accessoires non approuvés ne sont pas

couverts par la garantie.

Note:

The drawings in this document are for illustration only

and may not match your particular model.

1. Attach the Brackets

Use the included flathead M4x8 screws to attach the brackets.

2. Mount the Device

Mount the device in the rack and secure it with rack screws.

Note:

The device can also be installed on a desktop or

shelf using the included adhesive rubber feet.

Attach a lug (not provided) to a #18 AWG minimum grounding wire

(not provided), and connect it to the grounding point on the rear panel.

Then connect the other end of the wire to rack ground.

Note:

For more information on switch configuration using

the web interface, refer to the Management Guide, which is

on the Edgecore web site, wifi.edge-core.com.

Connect an AC power source to the device.

RJ-45 PoE Ports

Connect Cat. 5e or better twisted-pair cable.

SFP Ports

Install transceivers and then connect fiber optic cabling to the

transceiver ports. The following transceivers are supported:

1000BASE-SX/LX and 1000BASE-T (RJ-45)

100BASE-BX

Installation

Quick Start Guide

– 3 –

Hardware Specifications

Size (WxDxH) ECS1100-5P and ECS1100-10HP:

294 x 180 x 44 mm (11.57 x 7.09 x 1.74 in.)

ECS1100-28HP:

440 x 260 x 44 mm (17.32 x 10.24 x 1.74 in.)

Weight ECS1100-5P: 1.44 kg (3.17 lb)

ECS1100-10HP: 1.56 kg (3.44 lb)

ECS1100-28HP: 3.54 kg (7.8 lb)

Temperature Operating: 0° C to 50° C (32° F to 121° F)

Storage: -40° C to 70° C (-40° F to 158° F)

Humidity Operating: 10% to 90% (non-condensing)

Power

Consumption

ECS1100-5P: 140 Watts maximum

ECS1100-10HP: 270 Watts maximum

ECS1100-28HP: 560 Watts maximum

PoE Budget ECS1100-5P: 120 Watts in total

ECS1100-10HP: 250 Watts in total

ECS1100-28HP: 480 Watts in total

AC Input ECS1100-5P: 100-240 VAC, 50/60Hz, 2.5 A

ECS1100-10HP: 100-240 VAC, 50/60Hz, 4 A

ECS1100-28HP: 100-240 VAC, 50-60Hz, 7.5 A

Regulatory Compliances

Emissions EN 55032 Class A

EN IEC 61000-3-2

EN 61000-3-3

FCC 47 CFR Part 15b Class A

VCCI-CISPR 32 Class A

BSMI (CNS 15936)

Immunity IEC 61000-4-2/3/4/5/6/8/11

EN 55035

Safety LVD (EN 62368-1 )

BSMI (CNS 15598-1)

Taiwan RoHS CNS 15663

Quick Start Guide

Warranty Information and Technical Support

Registering your product enables you to receive a more efficient warranty service. Be sure to register at wifi.edge-core.com.

– 4 –

L2 GE 乙太網路 PoE 交換器

ECS1100-5P | ECS1100-10HP | ECS1100-28HP

L2 GE 乙太網路 PoE 交換器

2. 機櫃安裝套件 —2 個托架和 6 支螺絲

3. 電源線

4. 四個黏性橡膠腳墊

5. 文件－

快速入門指南

（本文件）及

安全及法規資訊

系統 LED

2. 重置按鈕

3. 4 x 10/100/1000M RJ-45 PoE+ (30 W) 連接埠

4. 1 x 10/100/1000M RJ-45 連接埠

5. 4 x 10/100/1000M RJ-45 PoE++ (90 W) 連接埠

6. 4 x 10/100/1000M RJ-45 PoE+ (30 W) 連接埠

2 x 100/1000M SFP 連接埠

8. 8 x 10/100/1000M RJ-45 PoE++ (90 W) 連接埠

9. 16 x 10/100/1000M RJ-45 PoE+ (30 W) 連接埠

10. 4 x 100/1000M SFP 連接埠

11. 接地點

12. AC 電源插孔

ECS1100-5P

ECS1100-10HP

5 6 7

ECS1100-28HP

8 9 10

11 12

包裝內容物

簡介

1. PoE 超出預算：

紅燈 ( 超過 PoE 額定功率 )

2. 系統：綠燈 (正常 )

3. 電源：綠燈 (正常 )

4. 重置按鈕：按下 10 秒可重設為出廠預設值

5. RJ-45 連接埠：綠燈 /閃爍 ( 連結 /活動 )，亮黃光 (PoE 供電

模式啟動 )

6. SFP 連接埠：綠燈 /閃爍 ( 連結 /活動 )

系統/連接埠 LED 及按鈕

1 2 3 5

快速入門指南

wifi.edge-core.com

– 5 –

安裝裝置

將裝置接地

連接電源

進行網路連線

連接至網路使用者介面

將PC 直接連接至交換器的 RJ-45 連接埠之一。

2. 在與交換器相同的子網路遮罩上設定 PC IP 位址（意即 PC 和交

換器 IP 位址必須都是以 192.168.2.x 開頭，且子網路遮罩為

255.255.255.0）。

3. 將交換器的預設管理 IP 位址 192.168.2.10 輸入至網頁瀏覽器位

址列。

4. 使用預設設定值登入網路介面：

使用者名稱 = admin

密碼 = admin

警告：

為確保安全且可靠的安裝，請使用裝置隨附的配件

與螺絲。使用其他來源的配件與螺絲可能導致配件損壞。

使用未經許可配件所造成之損壞，不在保固範圍內。

附註：

本文件中的示意圖僅供參考，可能與特定型號有

所差異。

1. 安裝托架

使用內附的平頭 M4x8 螺絲安裝托架。

2. 安裝裝置

將裝置裝到機櫃中並用機櫃螺絲固定。

附註：

亦可利用內附之黏性橡膠腳墊，將此裝置安裝

在桌上或層架上。

將接線片（未提供）附接到 #18 AWG 最小接地導線（未提供），

並將其連接到後面板上的接地點。接下來，將接地線另一端連接至

機櫃接地。

附註：

如需使用網頁介面交換器配置的詳細資訊，請參

閱位於 Edgecore 網站上的

管理指南

，網址：wifi.edge-

core.com。

將AC 電源連接至裝置。

RJ-45 PoE 連接埠

連接纜線 5e 類或以上的雙絞線。

SFP 連接埠

安裝收發器，然後將光纖電纜連接至收發器連接埠。支援以下收發

器：

1000BASE-SX/LX 和1000BASE-T (RJ-45)

100BASE-BX

安裝

快速入門指南

– 6 –

硬體規格

尺寸（寬 x 深

x 高）

ECS1100-5P / ECS1100-10HP：

294 x 180 x 44 mm (11.57 x 7.09 x 1.74 in.)

ECS1100-28HP：

440 x 260 x 44 mm (17.32 x 10.24 x 1.74 in.)

重量 ECS1100-5P：1.44 kg (3.17 lb)

ECS1100-10HP：1.56 kg (3.44 lb)

ECS1100-28HP：3.54 kg (7.8 lb)

溫度操作：0° C 至 50° C (32° F 至 121° F)

儲存：-40° C 至70° C （-40° F 至158° F）

濕度操作：10% 至90% （無冷凝）

耗電量 ECS1100-5P：最大 140 瓦

ECS1100-10HP：最大 270 瓦

ECS1100-28HP：最大 560 瓦

PoE 預算 ECS1100-5P：共 120 瓦

ECS1100-10HP：共 250 瓦

ECS1100-28HP：共 480 瓦

AC 輸入 ECS1100-5P：100-240 VAC，50/60Hz，2.5 A

ECS1100-10HP：100-240 VAC，50/60Hz，4 A

ECS1100-28HP：100-240 VAC，50-60Hz，7.5 A

符合法規

輻射 EN 55032 Class A

EN IEC 61000-3-2

EN 61000-3-3

FCC 47 CFR Part 15b Class A

VCCI-CISPR 32 Class A

BSMI (CNS 15936)

電磁耐受性 IEC 61000-4-2/3/4/5/6/8/11

EN 55035

安全性 LVD (EN 62368-1 )

BSMI (CNS 15598-1)

臺灣 RoHS CNS 15663

快速入門指南

保固資訊及技術支援

註冊產品可讓您收到更有效的保固服務資訊。請前往 wifi.edge-core.com 註冊。
