Electro-Voice EVID-S5.2XB Manuale utente
EVID Surface Mount S Series - X Models
EVID-S5.2XB | EVID-S5.2XW
en | Installation manual
Table of contents
1Safety 4
1.1 Suspension 4
1.2 Notices 4
2Introduction 5
2.1 System features 5
2.2 Product information 5
2.3 Packing list 6
3Installation and wiring 7
3.1 Installing the speaker 7
3.2 U-Bracket installation options 8
3.3 Wiring 9
3.4 Transformer taps 10
3.5 Replacing the logo 11
4Troubleshooting 12
5Technical data 13
5.1 Dimensions 14
5.2 Frequency response and impedance 14
en 3
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358
Safety
Suspension
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.

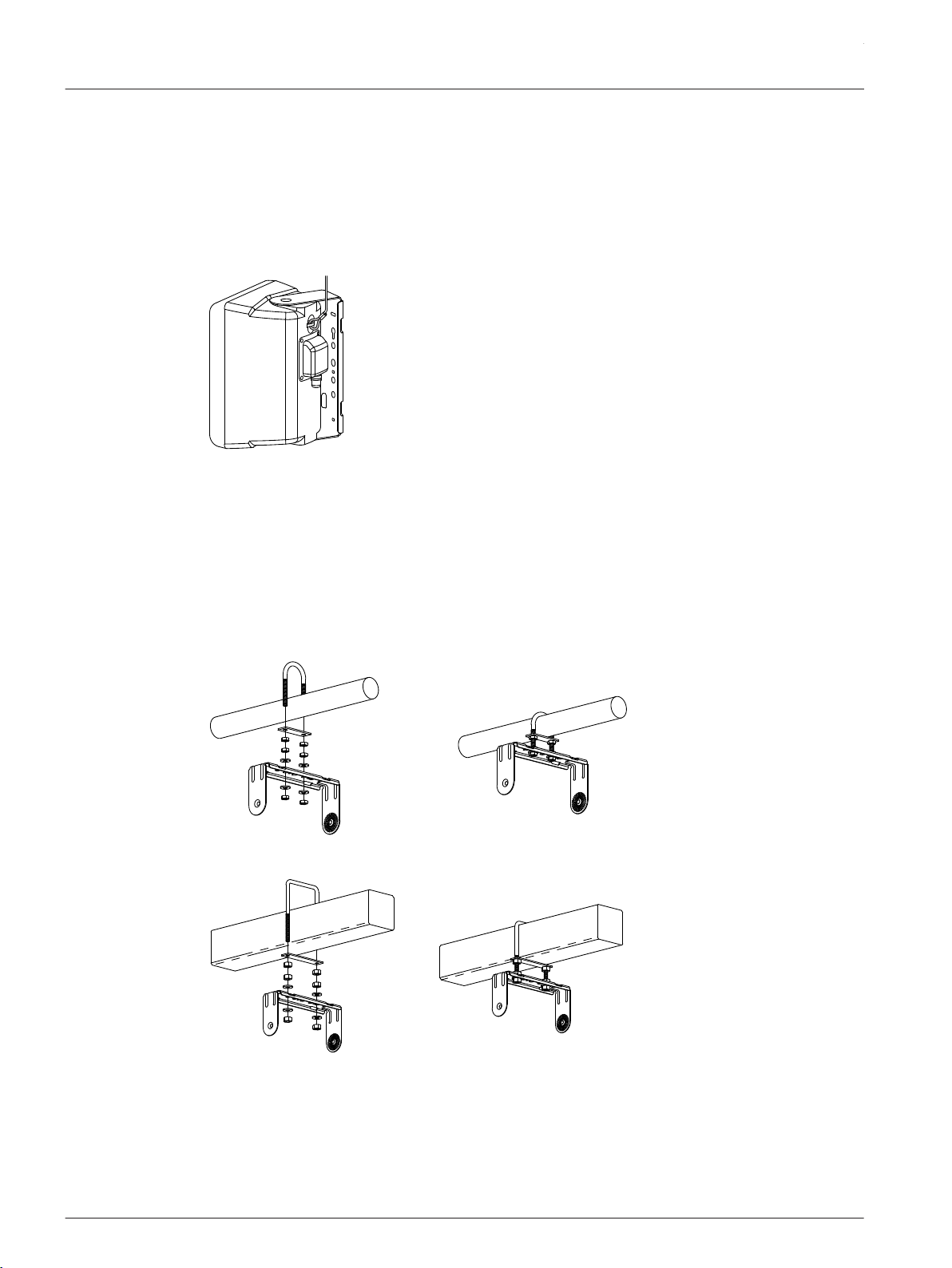

Redundant safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than 1-inch is preferable).
Figure 1.1: Redundant safety point
Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.
1
1.1
1.2
EVID Surface Mount S Series - X Models
2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice
Introduction
The EVID-S series, from Electro-Voice, is a line of compact, high-performance, two-way, full-
range surface mount speakers, with excellent wide and uniform coverage, and outstanding
performance. Their design makes these practically invisible for use in background and
foreground music, paging, and sound reinforcement applications, making EVID-S ideal for
indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs,
hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation,
sturdy weather resistance, modern and delicate look, and flexible mounting options, the EVID-
S series is the perfect solution for a wide variety of surface mount applications.
The EVID-S5.2X models are IP65 rated, designed to withstand the toughest weather
conditions.
Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.
System features
▪Carefully engineered for the toughest weather conditions (IP65)
▪Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for
extended LF performance down to 55 Hz
▪90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
▪60 W transformer with 8 Ω pass-through
Product information
Item Description
A Grille
B Safety cable loop
C Weather input cover
D Gland nut
E U-Bracket
Table 2.1: Product information
A
C
D
B
E
Figure 2.1: Product information
2
2.1
2.2
en 5
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358
Packing list
Item Quantity Component
A 2 Speakers
B 1 Allen wrench
C 4 Safety screws for the U-Brackets
D 2 U-bracket
E 2 Weather covers
F 8 Weather cover screws
G 2 Grille logos (spares)
H 1 Installation manual
Table 2.2: Components list
A (x2) BD (x2)
C (x4)
E (x2) F (x8)G (x2) H
Figure 2.2: Components list
2.3
EVID Surface Mount S Series - X Models
2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice
Installation and wiring
Installing the speaker
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the U-Bracket.
Consult an expert if you are unsure.
!
Caution!
It is the installer's responsibility to determine and use the proper mounting hardware for
the wall construction type.
Disregarding this caution could result in damage to the product and personal injuries may
occur.
Installing the U-Bracket
To install the U-Bracket, do the following:
1. Draw a level line.
2. Align screw holes on the level line.
3. Install two mounting screws to secure the U-Bracket to the wall.
Installing the speaker
To install the speaker, do the following:
1. Wire the speaker, as shown in the wiring section.
2. Insert the two screws (provided) into the U-Bracket mounting points.
Loosely tighten the two screws using the Allen wrench (provided).
3. Aim the speaker.
3
3.1
en 7
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358
4. Tighten the two screws to secure the U-Bracket to the speaker.
Ensure the speaker is secured to the U-Bracket.
Redundant safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than 1-inch is preferable).
Figure 3.1: Redundant safety point
See also
•U-Bracket installation options, page 8
•Wiring, page 9
U-Bracket installation options
Using a U-Bolt
The U-Bracket can be mounted using a standard 2-inch or 4-inch U-Bolt.
Figure 3.2: U-Bolt — 2-inch
Figure 3.3: U-Bolt — 4-inch
3.2
EVID Surface Mount S Series - X Models
2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice
Using a threaded rod
The U-Bracket can be installed to a threaded rod.
Figure 3.4: Threaded rod
Using a pole mount
The U-Bracket can be installed to a pole mount using steel band clamps.
Figure 3.5: Pole mount
Using a junction box
The U-Bracket can be installed to a junction box using a 0.25” rubber grommet (not included)
for wiring.
Figure 3.6: Junction box
See also
•Installing the speaker, page 7
Wiring
Wiring the speaker
The speaker can be wired using either 2-wires, for input only, or 4-wires, for input and parallel
output. Reference the polarity markers on the Euroblock.
To wire the speaker using the weather cover, do the following:
3.3
en 9
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358
1. Push the wire through the gland nut.
2. Wire the Euroblock connector (A).
A
B
C
A
B
C
3. Adjust the tap settings, if needed.
4. Mount the speaker, as shown in the installation section.
5. Plug the Euroblock connector into the speaker.
6. Insert the four screws into the weather cover (B).
Loosely tighten the four screws to keep the weather cover in place.
7. Tighten all four screws to secure the weather cover.
Ensure the weather cover is secure.
8. Adjust the wire length.
9. Tighten the gland nut (C).
See also
•Installing the speaker, page 7
Transformer taps
You can select the mode of operation (70 V/100 V/8 ohm) and power taps using the rotary
switch on the input panel.
Configuring the transformer settings
To configure the transformer settings, do the following:
1. Select the desired power tap by using the rotary switch on the input panel.
+
A
3.4
EVID Surface Mount S Series - X Models
2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice
