Elite Screens Ez-Frame Series Manuale utente

Elite Ez-Frame Series

Fixed Frame Projection Screen

User’s Guide

Ver. 1.2

www.elitescreens.com/ eliteinfo@elitescreens.com

Parts List

1. Frame Parts x 6 pcs (4 top frame pcs. + 2 side frame pcs)

2. Tension Rods x 6 pcs (4 top/bottom rods + 2 side rods)

3. Screen Material x 1 pc

4. Center joints x 2 pcs

5. Fix Plates x 30~60 pcs

6. Wall brackets x 4~7 pcs

7. Screws x 8 pcs

8. User Guide x 1 pcs

9. Center Support Bar x 1 pc

10. Support joiner x 2 pcs

Please make sure all parts are included in your package before proceeding to assemble your

Elite Screens fixed frame projection screen.

ASSEMBLING THE FRAME

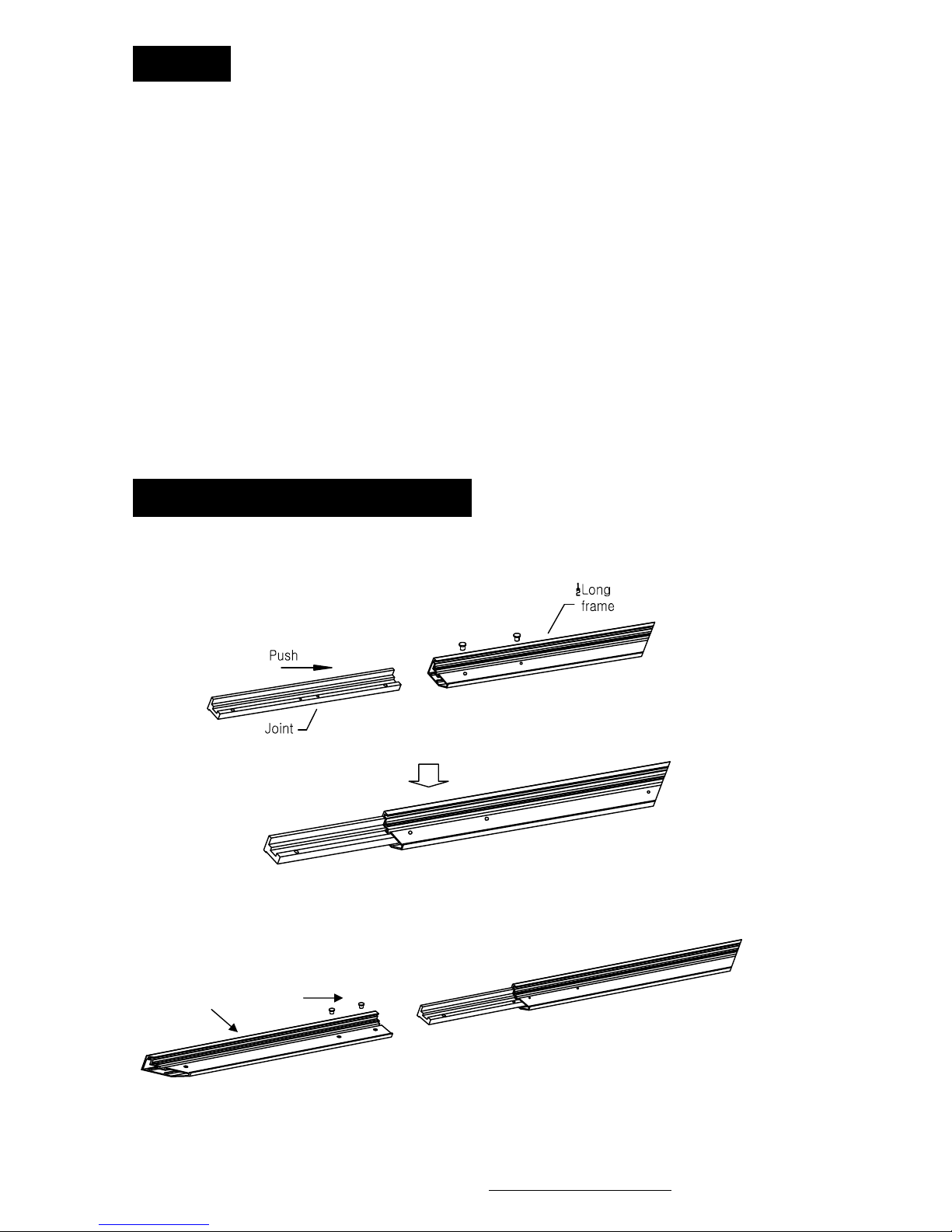

1. Insert joint connector to horizontal frame piece and then fasten it with 2 screws

2. Insert the other horizontal frame piece to the joint connector and then fasten it with 2 screws.

www.elitescreens.com/ eliteinfo@elitescreens.com

Push

1/2Long frame

www.elitescreens.com/ eliteinfo@elitescreens.com

Please do not tighten the screws completely, to make sure the frame piece lines up

correctly.

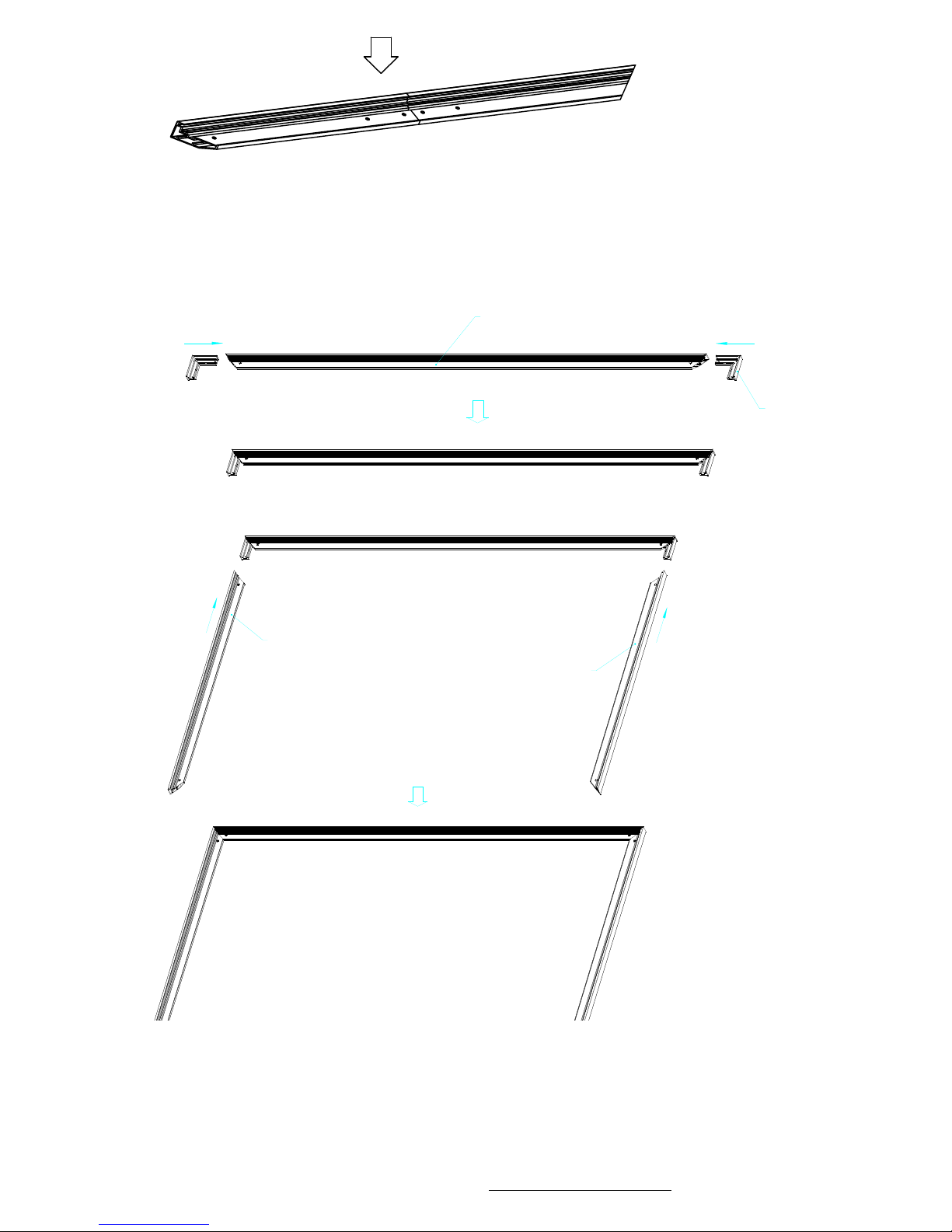

3. Insert both corner joint connectors into the long (horizontal) frame (see fig.1)

4. Join all four frame parts together following the steps showed below. (fig.2)

Long frame

Push Push

Joint

( fig.1)

Push Push

Short frame

Push Push

( fig.2)

Insert the exposed ends of the joint connectors

into the short (vertical) frame and align the four

corners so that they meet at perfect right angles

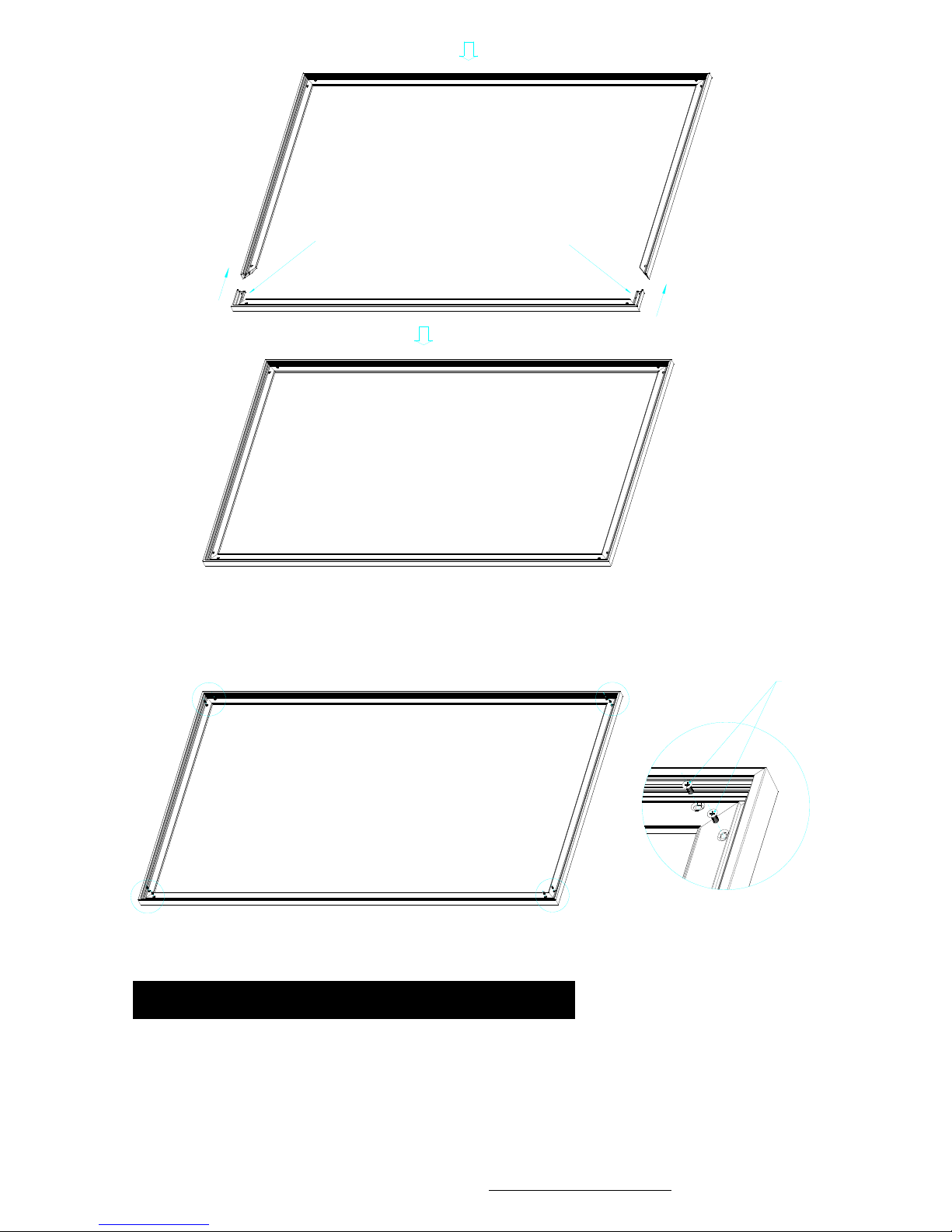

5. After making sure that all four corners join at right angles to form a perfect rectangle, fasten the

four angles together by using the (x8) joint screws included. (see fig.3)

6. Lay out the screen and tension rods on a clean and dry surface. Pass the screen

tension rods through the sleeves according to their corresponding lengths on each

edge of the screen as seen below. (see fig.4)

Screw

( fig.3)

Attaching the screen material to the frame

www.elitescreens.com/ eliteinfo@elitescreens.com

1. Lay out the screen and tension rods on a clean and dry surface. Insert the screen tension rods

through the sleeves according to their corresponding lengths on each edge of the screen as seen

below. (see fig.4)

Tension Rod (Horizontal) x 4

Tension Rod (Vertical) x 2

Screen

www.elitescreens.com/ eliteinfo@elitescreens.com

Tension Rod (horizontal)

Push

Tension Rod (Vertical)

Note: Please follow the next instructions carefully to assure the screen material is

properly installed on the frame.

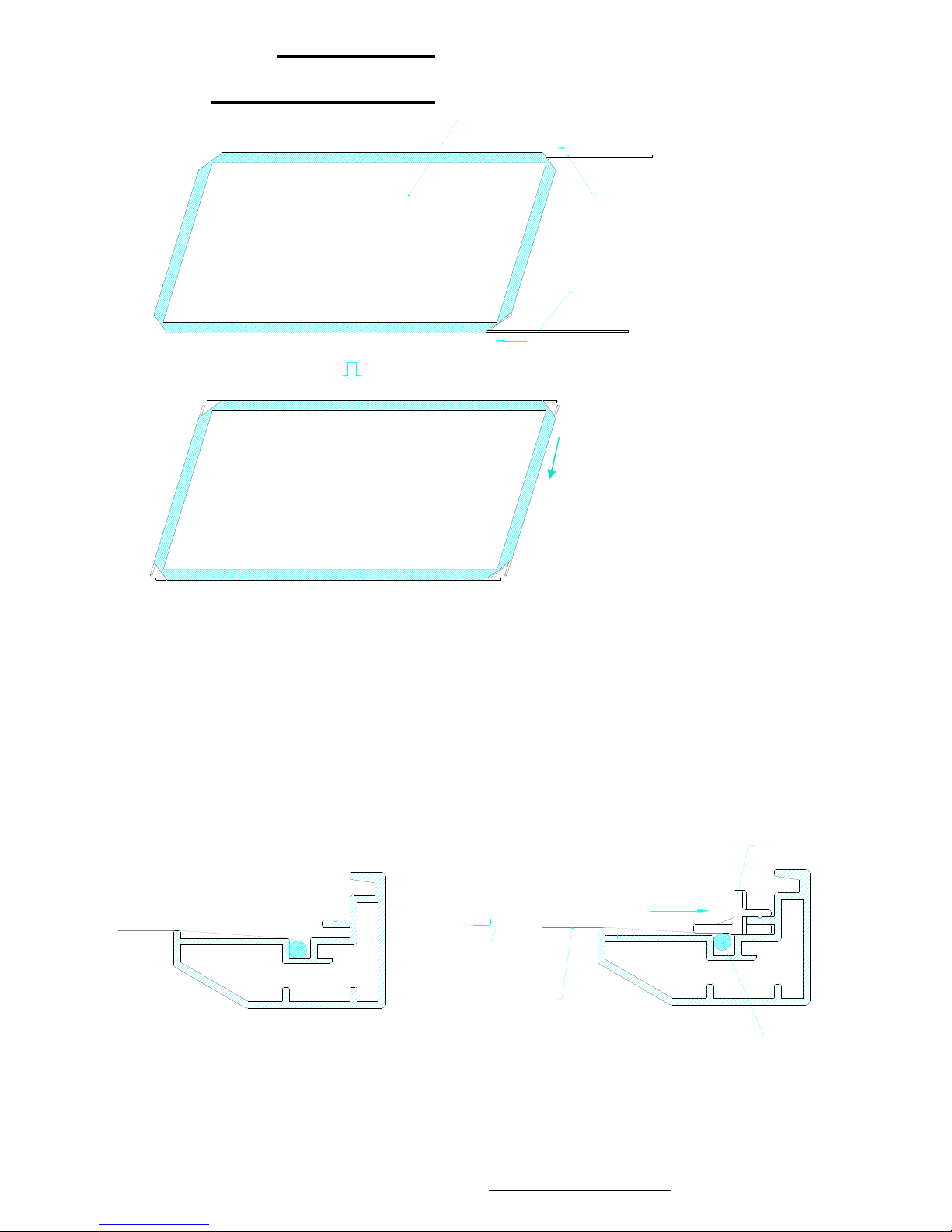

2. Place the screen material on the back of the built frame and slip the tension rods into the grooves

running along each side on the back of the frame on all four corner and clip on the fix plates to the

back of the frame to secure the rods into place creating tension for a tight and flat surface

(see fig. 5 & fig. 6)

Push

( fig.5)

Viewing surface

(Front of screen) Steel rod

fix plate

Tension Rod

(

. 5

)

(

. 6

)

St od

Push

eel r

St odeel r

Push

Rod

( fig.4)

Attaching the Fix Plates___

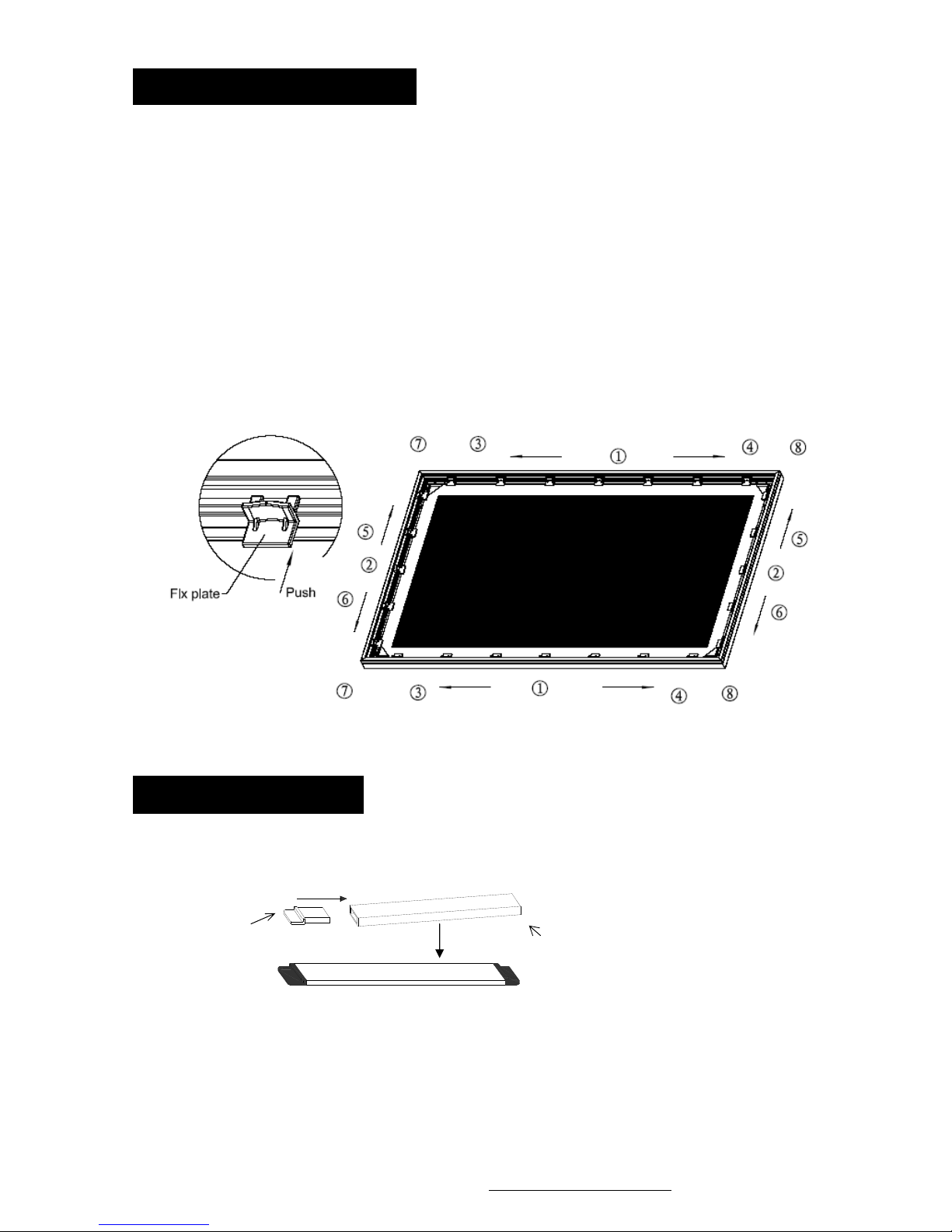

1. Make sure that the material and frame are both laying face down on a clean, dry and

non-abrasive surface.

2. Center the material inside the frame.

Please note the material will be noticeably smaller because stretching the material is required to

create a sufficient amount of tension for perfect material flatness.

3. Start in the center of the long horizontal edge and then alternate with the short sides as shown in

the diagram (fig.7). Numbers 1-8 indicate the recommended order that you should attach your fix

plates per section for an even tension distribution.

www.elitescreens.com/ eliteinfo@elitescreens.com

Center Support Bard

1. Insert the support joiner into each side of the center support bar to complete assembly.

support joiner

Centersupportbar

(Fig. 7)

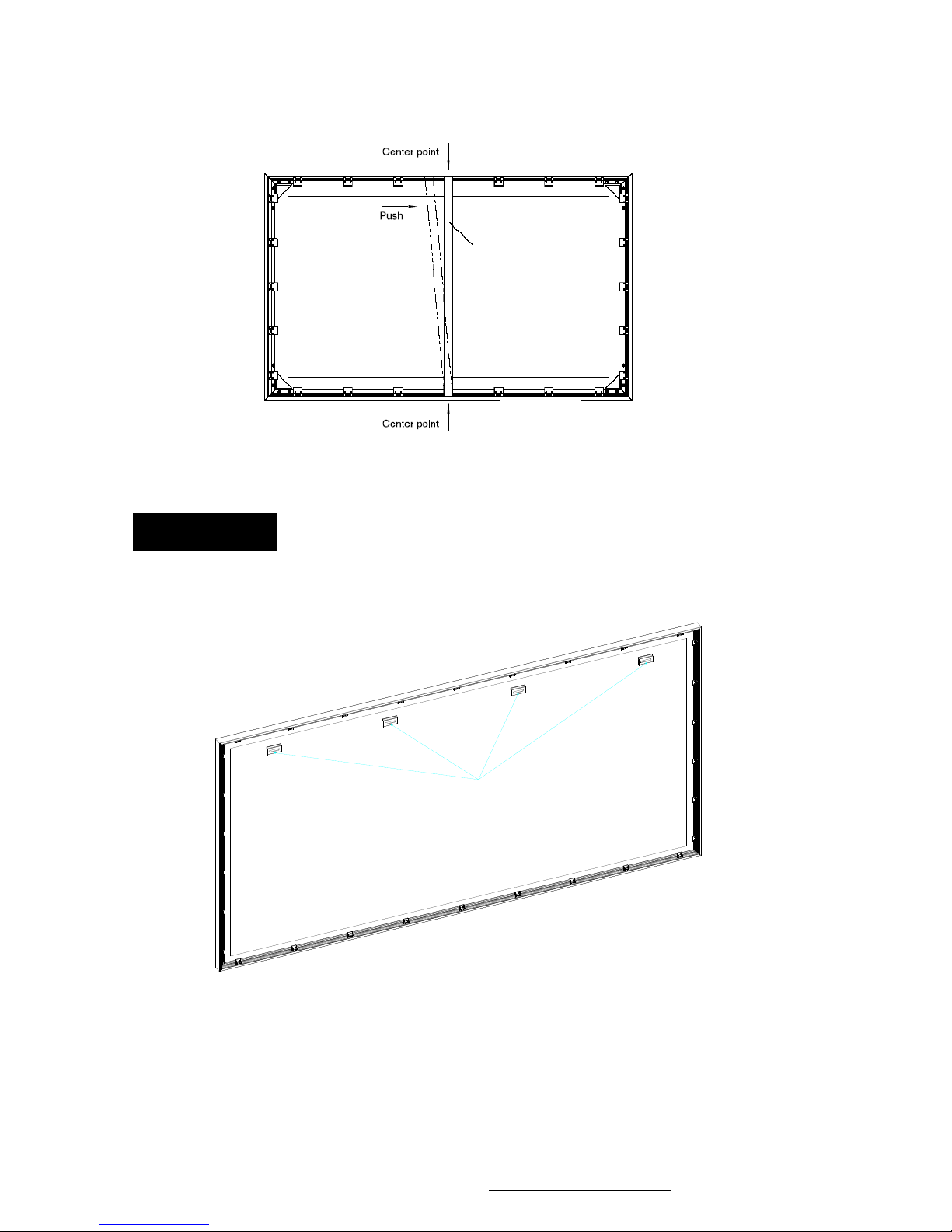

2. Insert the Center Support Bar into the groove on the back of the frame with the bottom end near

the approximate center point of the frame and place it in at an angle so that both ends of the bar are

in alignment with the groove. (see Fig. 8 below for details).

3. Slide the top end of the bar into the top center point location to complete center support bar

installation. This will provide added stability to your frame and added tension to the material.

Center Support Bar

(Fig. 8)

Installationd

www.elitescreens.com/ eliteinfo@elitescreens.com

small wall bracket

4pcs

( fig.7)

Method 1 (smaller than 135" diagonals)

(

. 8

)

www.elitescreens.com/ eliteinfo@elitescreens.com

CAUTION

small wall bracket

7pcs

Position the screen with the

attached surface onto the top

wall bracket as shown in (fig.8).

Push down at the center of the

bottom frame rail to hook onto

the lower wall bracket

( fig.8) 2

OVERALL

HEIGHT - 1/4"

OVERALL

HEIGHT

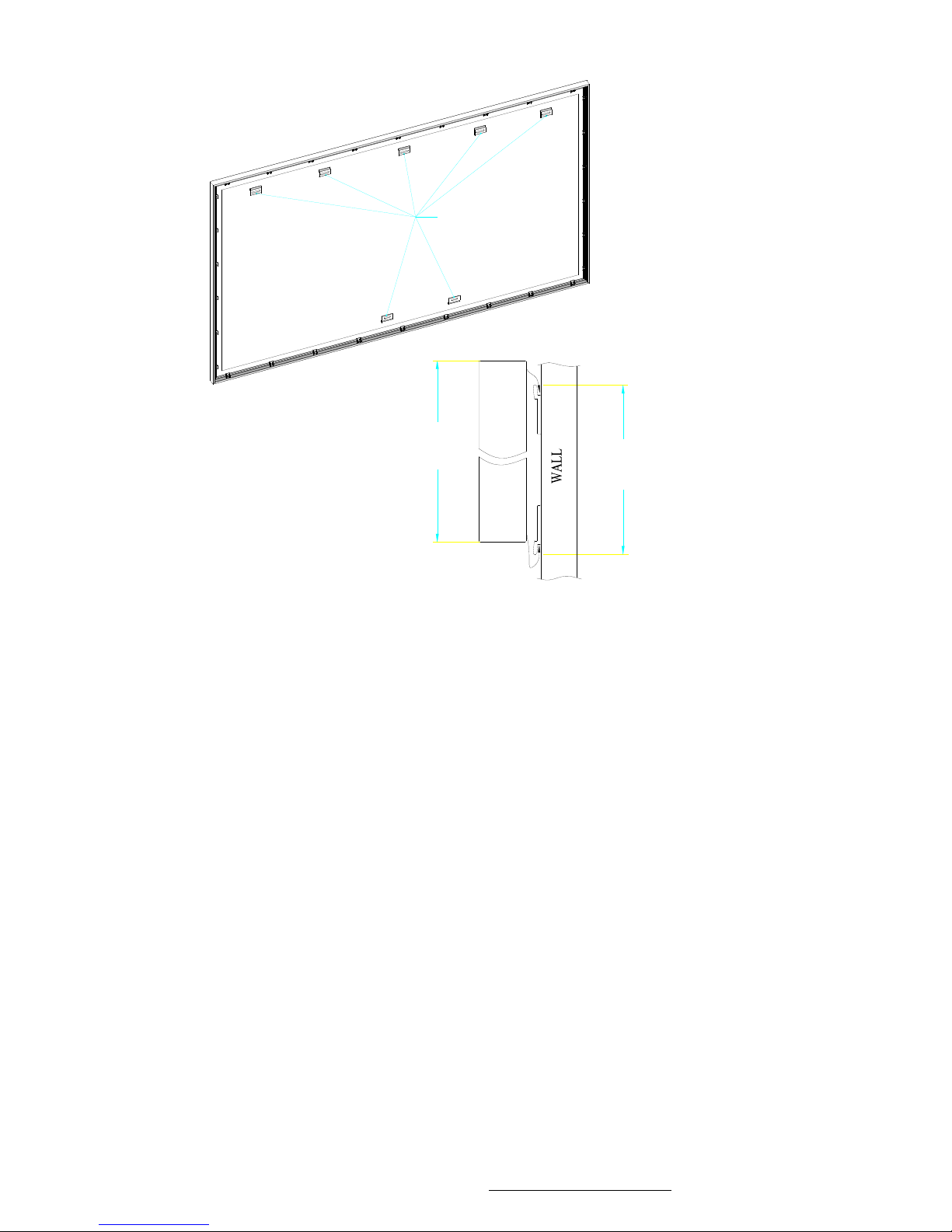

Method 2 (larger than 135" diagonals)

(

. 9

)

Please follow these instructions carefully to ensure proper maintenance and safety

with your EZ-Frame Screen

1. When hanging the screen up, please make sure that no other objects such as power switches,

outlets, furniture, ladders, windows, etc. occupy the space designated for your Fixed-Frame screen.

2. Regardless if the screen is hung on or installed into the wall, make sure that the proper mounting

anchors are used and that the weight is supported appropriately by a strong and structurally sound

surface just as any large and heavy picture frame should.

(Please consult a home improvement specialist for the best advice on installation)

3. Frame parts are made of high quality velour-surfaced aluminum and should be handled with care.

4. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or

any other impurities.

5. When cleaning, use a damp soft cloth with warm water to remove any marks on the frame or

screen surface.

6. Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.

7. In order to avoid damaging the screen, avoid touching it directly with your fingers, tools or any

other sharp or abrasive objects.

8. Spare Parts should be placed out of reach of small children in accordance with household safety

guidelines.

www.elitescreens.com/ eliteinfo@elitescreens.com

WARNING

•The projection screen frame is made of high-quality aluminum alloy and should be

handled with care.

•Use a soft cloth with warm water to remove any spots on the screen surface.

•To avoid damaging the screen material, never attempt to use any solutions, chemicals or

abrasive cleaners on the screen itself and never attempt to touch screen with your

fingers or sharp/abrasive objects.

Warranty Policy

•Two (2) year warranty on parts and labor from defects in workmanship from purchase date as follows

(except for refurbished units as specified below):

•Refurbished units carry a 90-day parts and labor warranty.

•Demo units or open box items are “AS IS” items and do not carry a warranty.

•Each party will be responsible for one way shipping during the warranty return/exchange.

•DOA (Defective onArrival): Must be reported within 7 business days of receipt.An RMA (Return

MerchandiseAuthorization) number must be issued in order to process a replacement. Elite Screens will

replace the DOA(Defective onArrival) unit with a brand new replacement *(see exceptions below) after the

DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a

new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported

after the 7-day grace period, the item must be shipped to us for warranty repair.

•Missing Parts must be reported within the 7-day (DOA) grace period. If reported after 7 days, customer

will be only be responsible for shipping and handling fees up to 30 days. If reported after 30 days of receipt,

customer is responsible for cost of the parts and shipping & handling fees.

•Please DO NOT return any unauthorized items to Elite Screens, as they will be refused at shipper’s

expense. The RMA number must be included on the outside label of your shipping box and shipping

documents. Our warehouse is not authorized to accept returns without an RMAnumber on the shipping label.

RMA numbers are valid for 45 days from the date of issue.

*A new or refurbished replacement will be sent out to the customer depending on the type of purchase (new or

refurbished) or based on stock availability.

For Warranty and Service requests please fill out a RMA /Service Form at:

http://www.elitescreens.com/service_form.htm.

Please Visit this link for full Warranty information:

http://www.elitescreens.com/service.htm

For Customer Service and Technical questions, please contact Elite Screens at:

Telephone:(877)-511-1211 Fax:(562)-483-8498

www.elitescreens.com/ eliteinfo@elitescreens.com

US & Canada Tech Support & Warranty Claim

Please contact us at [email protected] or call +1 877-511-1211 #3 Service

Europe Tech Support & Warranty Claim

Please contact us at [email protected] or call +49-(0) 40-30392958

Asia or China Tech Support & Warranty Claim

Please contact us at [email protected] or call +86-(0) 755-8461-7989

Taiwan Tech Support & Warranty Claim

Please contact us at [email protected] or call +886-(02)2747-8979

America: Elite Screens Inc

16410 Manning Way, Cerritos, CA 90703 USA

Tel: 877-511-1211 Fax: 562-483-8498

[email protected] www.elitescreens.com

Europe: Elite Screens GmbH

Elite Screens Europe GmbH

Lübecker Straße,122087 Hamburg, Germany

Tel: +49-40-30392494 Fax: +49-40-49219200

[email protected] www.elitescreens.eu

Asia: Elite Screens China Ltd.

Longxi Duimianling Industry Zone Longcheng

Longgang District, ShenZhen GuangDong, China

Tel: +86-(0)755-8461-7989 Fax: +86-(0)755-8461-7669

[email protected].cn www.elitescreens.com.cn

Taiwan:

Elite Screens Taiwan Corp.

1F. No. 38 Alley 22 Lane 66 Sec. 5 Nanjing E. Rd. Songshan Distrit. Taipei City 105, Taiwan

Tel: +886-(02)2747-8979 Fax: +886-(02)2747-8978

[email protected].tw www.elitscreens.com.tw

Email contacts:

Latin America Contact:

erik.garcia@elitescreens.com

East Asia Contact:

[email protected]

India Contact:

info.india@elitescreens.com

Japan Contact:

info.japan@elitescreens.com
