EMCIS VA-100 Manuale utente

V A – 1 0 0

USER MANUAL

MANUAL

V A – 1 0 0

Ver. 0.9

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

Notice

Copy or reproduction of this document is strictly prohibited by the copyright law.

Warranty

If a malfunction occurs within 1 year after shipment due to a manufacturing

fault, EMCIS Co., Ltd will repair the instrument free of charge. However,

any situation must be not included among below conditions to get

warranty.

1. If t

he defect is out of the scope of the warranty conditions in the

manual.

If the defect is based on wrong use, unauthorized modification or user

equipment repair.

3. If the defect is due to unreasonable use and the normal range of use.

4. If the defect is caused by natural disasters such as fire, flood or

earthquake.

5. If the defect is based on defective parts or the like.

EMCIS shall not be liable for defects in equipment caused by

unforeseeable or exceptional circumstances caused by user’s negligence.

SAFETY NOTICE

CAUTION

Risk of hazard which cause fire or serious damage to the instrument or

other equipment, do not proceed until suitable conditions are met.

WARNING

Risk of hazard which cause injury to human body or danger to life. If the

WARING appears on th

e instrument, do not proceed until suitable

conditions are met.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

TABLE OF CONTENTS

1. PREPARATIONS ........................................................................................................................ 4

1.1. Configurations .................................................................................................................... 4

1.2. Power Conditions ............................................................................................................... 5

1.3. Working Conditions ........................................................................................................... 6

1.3.1. Setup ......................................................................................................................................................................... 6

1.3.2. Cleaning .................................................................................................................................................................. 6

1.3.3. Storage ..................................................................................................................................................................... 6

1.3.4. Transportation ...................................................................................................................................................... 6

1.4. Safety Notes ........................................................................................................................ 6

1.5. PC Software Installation ................................................................................................... 7

1.5.1. System Satisfactions ....................................................................................................................................... 7

1.5.2. Software Installation. ....................................................................................................................................... 7

1.5.3. Drive Installation. ............................................................................................................................................... 7

2. FUNCTIONS ................................................................................................................................. 8

2.1. Devices ................................................................................................................................. 8

2.1.1. Front panel............................................................................................................................................................. 8

2.1.2. Real Panel. ............................................................................................................................................................. 8

2.1.3. Safety/Alarm Indication. ................................................................................................................................. 9

2.2. Software ............................................................................................................................... 9

2.2.1. Initializing & Connecting State ................................................................................................................... 9

2.2.2. EMI Mode ............................................................................................................................................................. 10

2.2.3. Thermal Mode .................................................................................................................................................... 16

3. OPERATION ............................................................................................................................... 19

3.1. Device ................................................................................................................................. 19

3.1.1. Power ON/OFF .................................................................................................................................................. 19

3.1.2. Indications of Sensor Recognition & Data. ....................................................................................... 20

3.2. Software ............................................................................................................................. 21

3.2.1. Connection .......................................................................................................................................................... 21

3.2.2. EMI Measurement Mode .............................................................................................................................. 22

3.2.3. THERMAL Measurement Mode ................................................................................................................ 27

3.2.4. Save Data & Picture. ...................................................................................................................................... 30

3.2.5. Load Data ............................................................................................................................................................. 33

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

1. PREPARATIONS

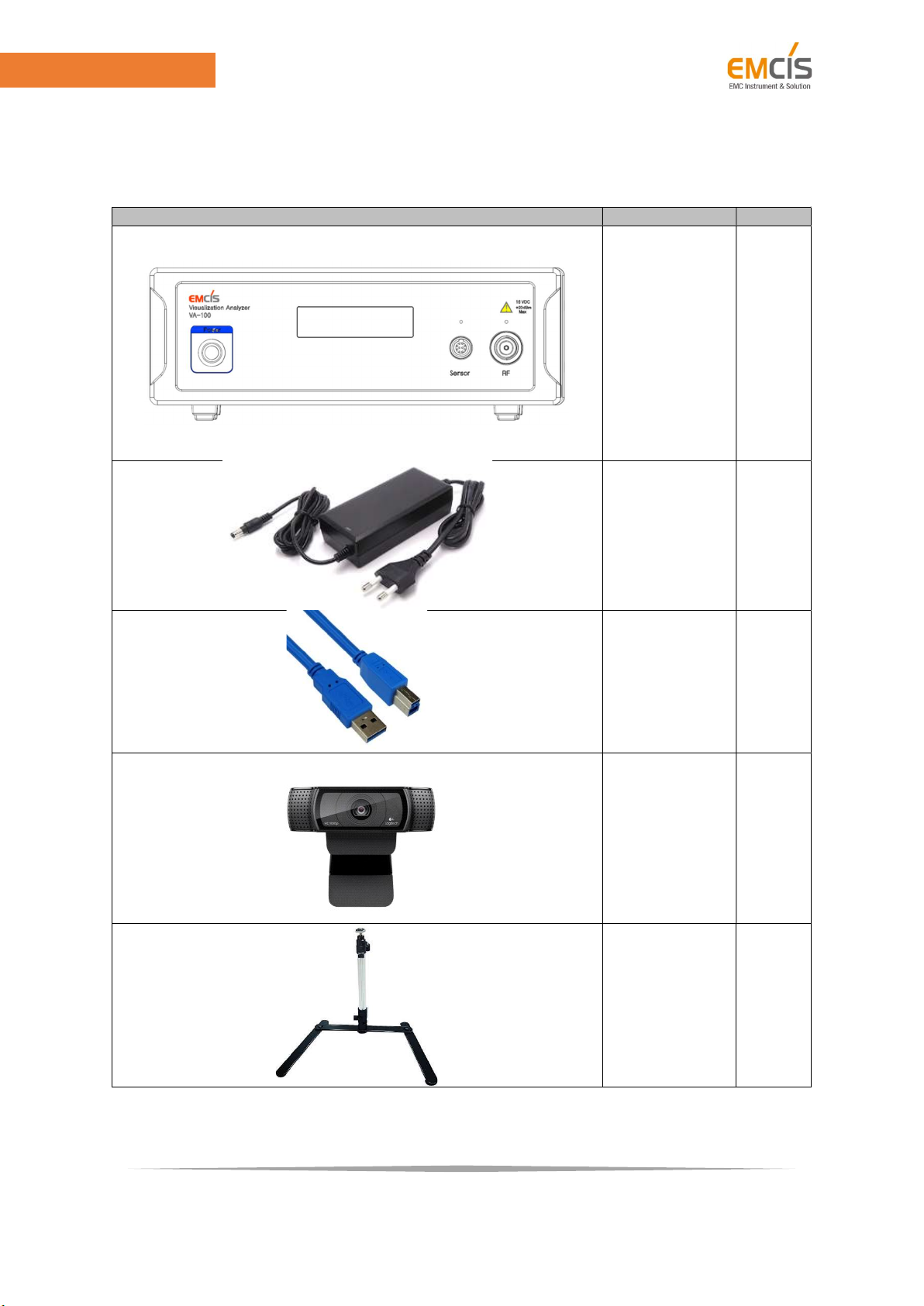

1.1. Configurations

Picture Products Quantity

VA-100

body 1

DC power

adopter 1

USB 3.0

A-B cable 1

USB Web

camera 1

Web camera

stand 1

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

- Probe kit 1 set

VA-100

Software

VA-100

Manual

1.2. Power Conditions

The power must be satisfied with the conditions.

- Voltage : 5 VDC

- Current : 5 A

CAUTION Use only the DC adaptor which provided from EMCIS.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

1.3. Working Conditions

1.3.1. Setup

The allowed places to use the device for long time are the following conditions.

- Room temperature

- Low vibration

- No direct sunlight

- No active gas surrounding

WARNING Forbid working conditions that the used device on low temperature for long time is

used on room temperature. Please wait to supply the power until the device is

normal condition.

1.3.2. Cleaning

Clean only the external case with dry tissue or wet tissue.

WARNING Remove all line from the equipment before cleaning to avoid the electronic shock.

1.3.3. Storage

The avoided keeping conditions are as below.

- Where exposed to direct sunlight or dusty conditions.

- Where it can be exposed to active gas (thinner or benzene)

- Where it can be exposed to high temperature more than 50°C and high humidity more than 90%

conditions.

The recommended keeping conditions are as below.

- Temperature : -20°C ~ 50°C

- Humidity : 20% ~ 80% RH

1.3.4. Transportation

Avoid shock or vibration during transportation.

1.4. Safety Notes

WARNING Read essentially the following contents before operating

- Don’t touch any lines with wet hand.

- When use the multi outlet or extension cable, check the rated capacity [Voltage/Ampere] of them.

- Don’t powerfully remove the power cable.

- Don’t bend the power cable by force or place weighty thing on the power cable.

- Don’t dust collects on the power cable or plug.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

- Don’t place any bowl of water or chemical near the device.

- Be careful about dropping the device.

- Don’t personally disassemble to repair or any reasons.

Only authorized worker by EMCIS or EMCIS professional worker can be allowed.

1.5. PC Software Installation

The USB including the software will be provided with the device. Therefore, user has to install it by

yourself. If need the software installation due to loss, let us know.

1.5.1. System Satisfactions

- Limited Specifications

Items Specifications Note

OS Windows 7/8/10 – 32Bit and 64Bit

(64-bit recommended) -

Processor 3rd generation or newer Intel dual/quad core i-series

processors -

RAM 8GB -

Interface USB 3.0 -

- Recommended specifications

Items Specifications Note

OS Windows 7/8/10 – 32Bit and 64Bit

(64-bit recommended) -

Processor 3rd generation or newer Intel desktop quad-core i-series

processors -

RAM 8GB -

Interface USB 3.0 -

Graphics OpenGL 3.0 capable graphics processor -

1.5.2. Software Installation.

Install the provided installation file (VA-100_Setup.exe) from EMCIS. Recommend that the

installation path will be following basically provided path. The executable file will be appeared on the

start menu and wallpaper after installation.

1.5.3. Drive Installation.

In case of the situation the computer doesn’t recognize the device, Install the provided drive

installation files. The installation file where [(C:) → program file → emcis → va-100 → drivers 32

bit.exe or 64 bit.exe].

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

2. Functions

2.1. Devices

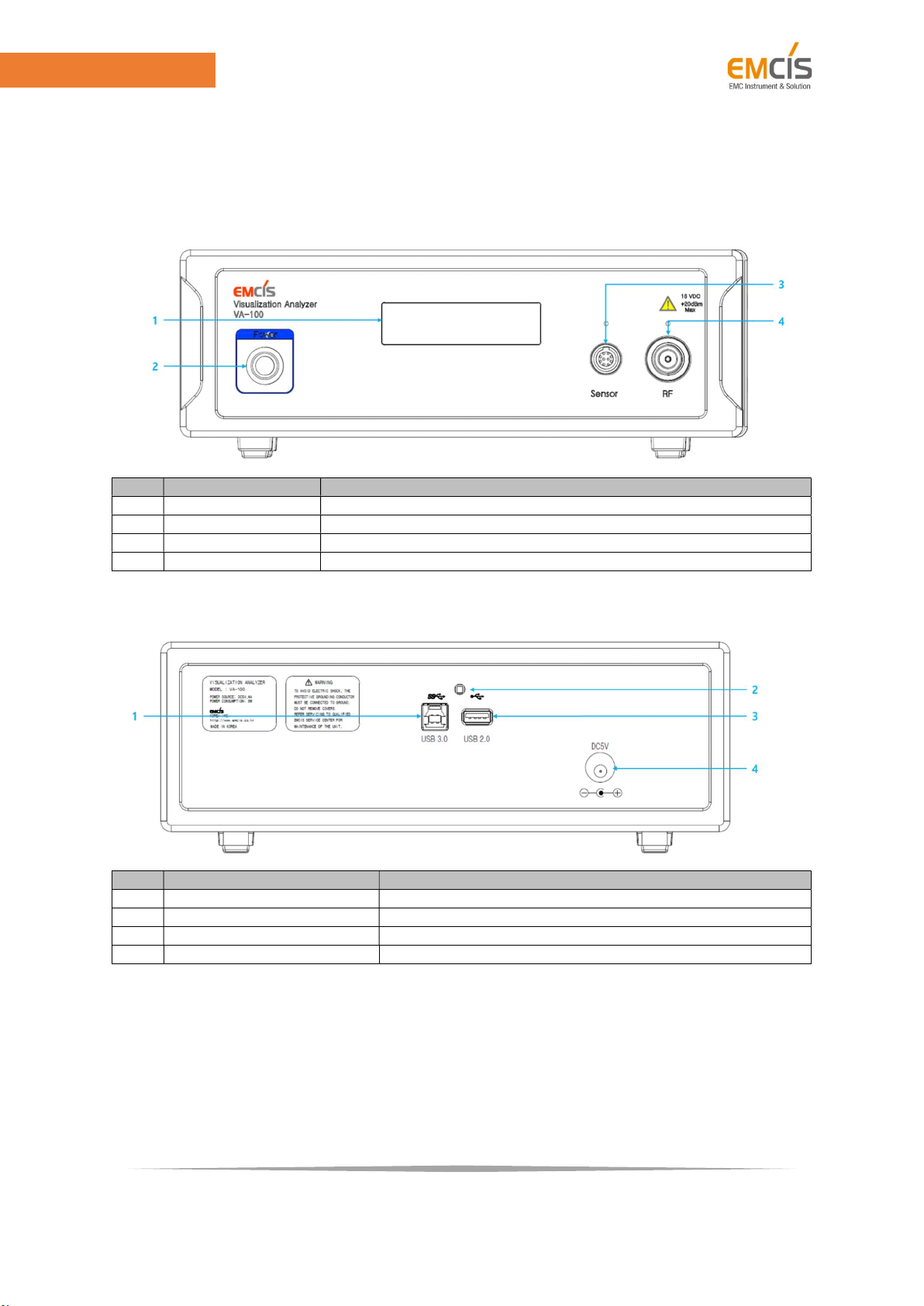

2.1.1. Front panel.

No Name Descriptions

1 LCD Display Show current state and information.

2 Power switch On/Off switch of the device.

3 Sensor connector Sensor signal input connector. (Thermal probe)

4 RF connector RF signal input connector. (EMI probe)

2.1.2. Real Panel.

No Name Descriptions

1 USB 3.0 Socket For connecting with PC.

2 Firmware button In case of firmware update, it is used.

3 USB 2.0 Socket For connecting with USB web-cam.

4 DC Power socket For DC power.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

2.1.3. Safety/Alarm Indication.

Confirm essentially as below to use the device correctly for prevention of any danger or property

damage.

Indication Description

Picture Name

WARNING The indication as picture means that must be careful.

2.2. Software

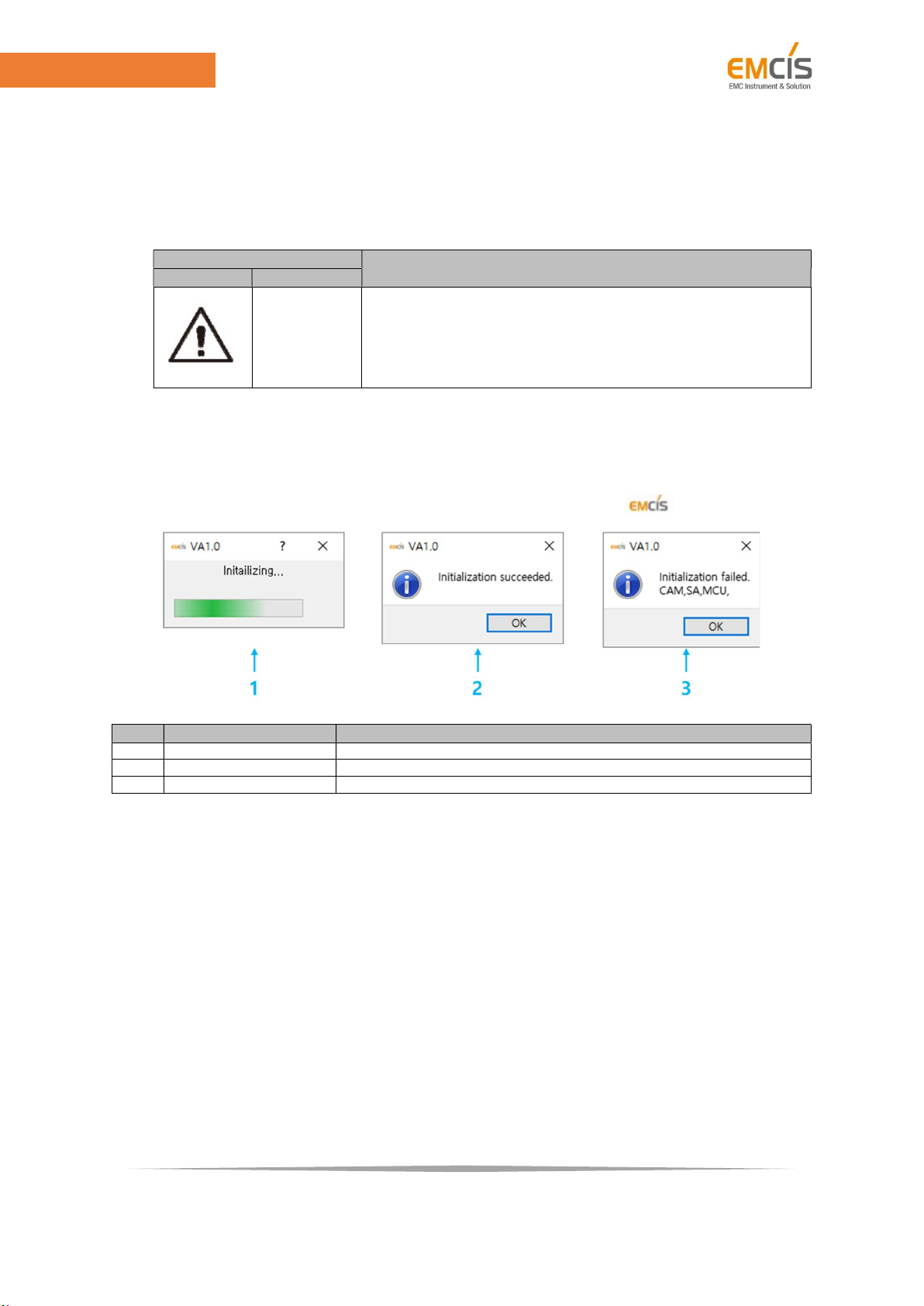

2.2.1. Initializing & Connecting State

Windows will be appeared as below after running the Executable file(icon ).

No Name Descriptions

1 Initialization Be initializing.

2 Success Succeeded initialization.

3 Failure Failed initialization.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com

V A – 1 0 0

USER MANUAL

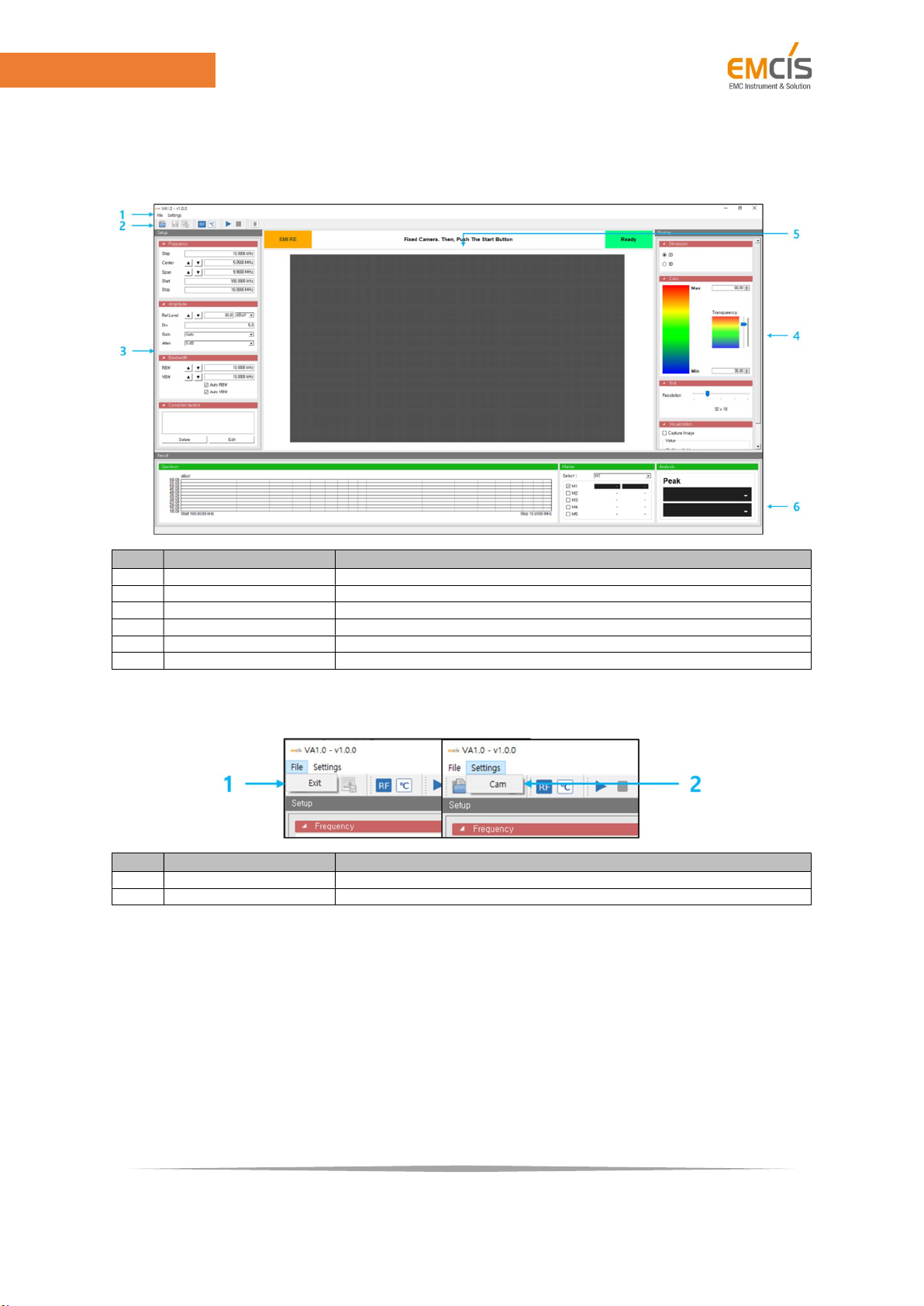

2.2.2. EMI Mode

- Display Window

No Name Description

1 Menu It means system setting.

2 Tool It means save / measurement tools.

3 Measurement set It means measurement setting such as frequency, amplitude, bandwidth.

4 Display set It means display setting such as 2D/3D, color, grid, visualization.

5 Measurement display It shows image and results of EUT.

6 Results It shows specific data of results.

- Menu

No Name Description

1 Exit End of the program.

2 Cam Setting the camera.

Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com
