Quick Start Guide
00825-0100-3157, Rev AC
February 2022
Rosemount™ 1057
Triple Channel Transmitter
Safety information
For information on specifications, programming, and calibration see the Rosemount 1057 Three-Input
Intelligent Analyzer Reference Manual.
Your instrument purchase from Emerson is one of the finest available for your particular application.
These instruments have been designed and tested to meet many national and international standards.
Experience indicates that its performance is directly related to the quality of the installation and
knowledge of the user in operating and maintaining the instrument. To ensure its continued operation
to the design specifications, personnel should read this Quick Start Guide thoroughly before
proceeding with installation, commissioning, operation, and maintenance of this instrument. If this
equipment is used in a manner not specified by the manufacturer, the protection provided by it against
hazards may be impaired.
WARNING
Read safety messages before proceeding.
WARNING
Failure to follow the proper instructions may cause any one of the following situations to occur: loss of
life, personal injury, property damage, damage to this instrument, and warranty invalidation.
WARNING
Follow installation guidelines.
Failure to follow these installation guidelines could result in death or serious injury. If this equipment is
used in a manner not specified by the manufacturer, the protection it provides against hazards may be
impaired.
Install equipment as specified in this document.
Ensure that only qualified personnel perform the installation.
Inform and educate your personnel in the proper installation, operation, and maintenance of the
product.
Follow appropriate local and national codes.
If you do not understand any of the instructions, contact your Emerson representative for
clarification.
Quick Start Guide February 2022
2 Emerson.com/Rosemount
WARNING
Electrical shock
Installation and servicing of this product may expose personnel to dangerous voltages.
Electrical installation must be in accordance with the National Electrical Code (ANSI/National Fire
Protection Agency-70) and/or any other national or local codes.
The equipment is protected throughout by double insulation.
Disconnect main power, wired to separate power source, before servicing.
Ensure that all equipment doors are closed and protective covers are in place, except when
maintenance is being performed by qualified personnel.
Signal wiring must be rated at least 240 V.
Non-metallic cable strain reliefs do not provide grounding between conduit connections. Use
grounding type bushings and jumper wires.
Make sure that the instrument is connected and properly grounded through a three-wire power
source.
Proper use and configuration is the operator's responsibility.
NOTICE
Ensure that you have received the correct model and options from your purchase order. Verify that this
Quick Start Guide covers your model and options. If it does not, call the Emerson Customer Care
Center at +1 800 999 9307 to request the correct Quick Start Guide.
NOTICE
Use only factory documented components for repair. Tampering or unauthorized substitution of parts
and procedures can affect the performance and cause unsafe operation of your process.
Contents
First steps.....................................................................................................................................5
General installation information.................................................................................................12
Wiring........................................................................................................................................ 13
Navigating the display................................................................................................................19
Start up transmitter....................................................................................................................25
Approvals...................................................................................................................................28
Product certifications................................................................................................................. 29
EU Declaration of Conformity.....................................................................................................31
China RoHS table........................................................................................................................33
February 2022 Quick Start Guide
Quick Start Guide 3
Quick Start Guide February 2022
4 Emerson.com/Rosemount
1 First steps
1.1 Unpack and inspect
Procedure
1. Inspect the shipping container. If it is damaged, contact the shipper
immediately for instructions.
2. If there is no apparent damage, unpack the container. Be sure all
items shown on the packing list are present. If items are missing,
notify Emerson immediately.
1.2 Dimensional drawings
Panel mounting
Note
The front panel is hinged at the bottom. The panel swings down for easy
access to the wiring locations. The operator is responsible for the panel
mounting seal integrity.
Figure 1-1: Panel mount, front view
February 2022 Quick Start Guide
Quick Start Guide 5
Figure 1-2: Panel mount, side view
A. Panel mount gasket
B. Four mounting brackets and screws provided with transmitter
C. Panels supplied by others. Maximum thickness: 0.375 in (9.52 mm)
Quick Start Guide February 2022
6 Emerson.com/Rosemount
Figure 1-3: Panel mount, bottom view
A. Conduit openings
Figure 1-4: Panel cut-out
A. Maximum radius
February 2022 Quick Start Guide
Quick Start Guide 7
Wall mounting
Figure 1-5: Wall Mount, front view
A. Four cover screws
Quick Start Guide February 2022
8 Emerson.com/Rosemount
Figure 1-6: Wall mount, side view
February 2022 Quick Start Guide
Quick Start Guide 9
Pipe mounting

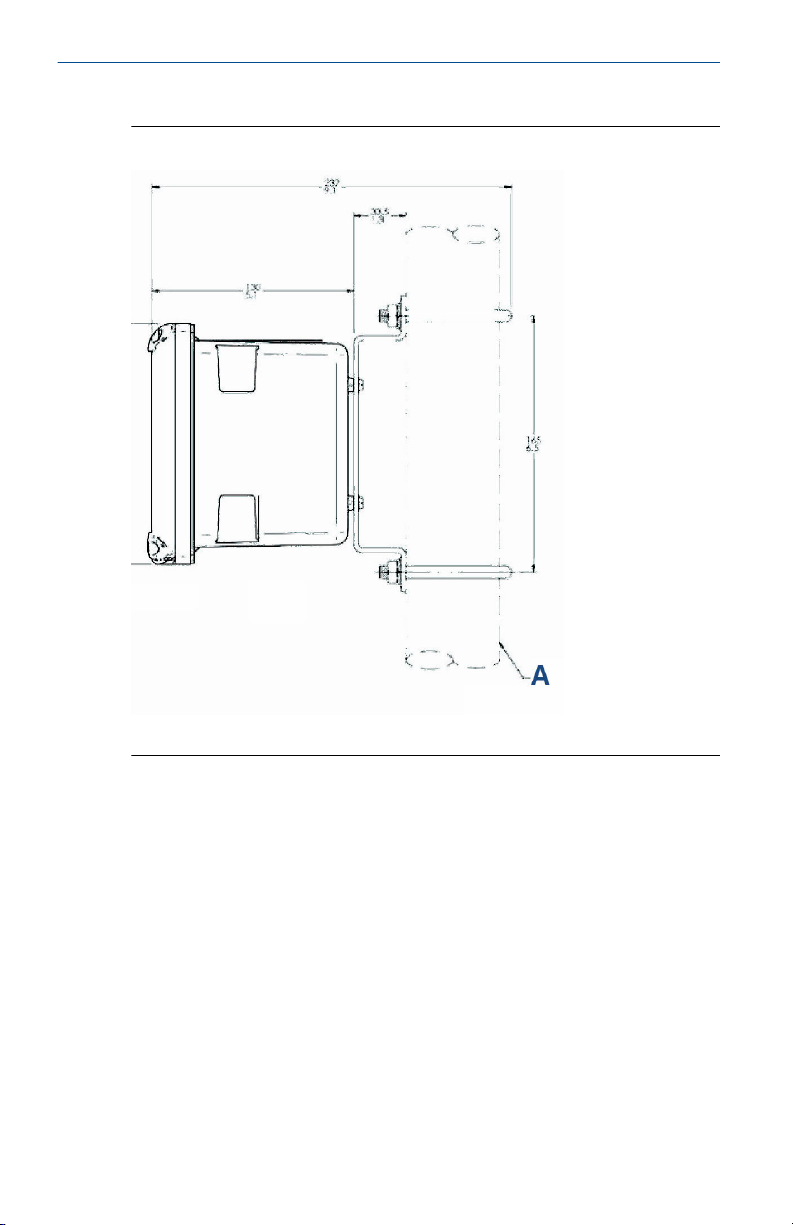

Figure 1-7: Pipe mount, side view
A. 2 in (51 mm) pipe supplied by customer
Quick Start Guide February 2022
10 Emerson.com/Rosemount
