Quick Start Guide

00825-0600-4101, Rev DB

September2023

Rosemount™ 2051 Pressure

Transmitter and Rosemount 2051CF

Series Flow Meter

with FOUNDATION™ Fieldbus Protocol

Contents

About this guide .......................................................................................................................... 3

System readiness......................................................................................................................... 5

Mount the transmitter.................................................................................................................7

Tagging....................................................................................................................................... 14

Rotate housing........................................................................................................................... 15

Set the switches......................................................................................................................... 16

Wire, ground, and power up.................................................................................................... 18

Configuration............................................................................................................................. 21

Zero trim the transmitter..........................................................................................................29

Rosemount 2051 product certifications..................................................................................30

Quick Start Guide September2023

2 Rosemount 2051 and 2051CF

1 About this guide

This guide provides basic guidelines for Rosemount 2051 Pressure

Transmitters. It does not provide instructions for configuration,

diagnostics, maintenance, service, troubleshooting, explosionproof,

flameproof, or intrinsically safe (I.S.) installations. Refer to the

Rosemount 2051 Pressure Transmitter Reference Manual for

more instructions. This guide is also available electronically at

Emerson.com.

1.1 Safety messages

WARNING

Explosions could result in death or serious injury.

Installation of these transmitters in an explosive environment must

be in accordance with the appropriate local, national, and

international standards, codes, and practices. Review the approvals

section of the Rosemount 2051 Reference Manual for any restrictions

associated with a safe installation.

In an explosionproof/flameproof installation, do not remove the

transmitter covers when power is applied to the transmitter.

Process leaks could result in death or serious injury.

To avoid process leaks, only use the O-ring designed to seal with the

corresponding flange adapter.

Electrical shock could cause death or serious injury.

Avoid contact with the leads and terminals. High voltage that may be

present on leads can cause electrical shock.

Conduit/cable entries

Unless marked, the conduit/cable entries in the housing use a ½–14

NPT thread form. Entries marked M20 are M20×1.5 thread form. On

devices with multiple conduit entries, all entries will have the same

thread form. Only use plugs, adapters, glands, or conduit with a

compatible thread form when closing these entries.

September2023 Quick Start Guide

Quick Start Guide 3

WARNING

Physical access

Unauthorized personnel may potentially cause significant damage to

and/or misconfiguration of end users’ equipment. This could be

intentional or unintentional and needs to be protected against.

Physical security is an important part of any security program and

fundamental in protecting your system. Restrict physical access by

unauthorized personnel to protect end users’ assets. This is true for

all systems used within the facility.

Quick Start Guide September2023

4 Rosemount 2051 and 2051CF

2 System readiness

Note

Before installing the transmitter, confirm the correct device driver is

loaded on the host systems.

2.1 Confirm correct device driver

•Verify the correct device driver (DD/DTM™) is loaded on your

systems to ensure proper communications.

•Download the correct device driver at your host vendor download

site, Emerson.com/DeviceInstallKits, or FieldCommGroup.org.

2.1.1 Device revisions and drivers

Table 2-1 provides the information necessary to ensure you have the

correct device driver and documentation for your device.

Table 2-1: Rosemount 2051 FOUNDATION™ Fieldbus device revisions and files

Device

revision

(1)

Host Device

driver

(DD)(2)

Obtain at Device driver

(DTM)

Reference

document

2 All DD4: DD Rev

FieldComm

Group

Emerson.com 00809-0200-41

01,

Rev BA or

newer

All DD5: DD Rev

FieldComm

Group

Emerson AMS Device

Manager V

10.5 or

higher: DD

Rev 2

Emerson.com

Emerson AMS Device

Manager V 8

to 10.5: DD

Rev 1

Emerson.com

Emerson 375/475: DD

Rev 2

475 Field

Communicator

1 All DD4: DD Rev

FieldComm

Group

Emerson.com 00809-0200-41

01,

Rev BA

All DD5: NA N/A

Emerson AMS Device

Manager V 8

or higher:

DD Rev 2

Emerson.com

September2023 Quick Start Guide

Quick Start Guide 5

Table 2-1: Rosemount 2051 FOUNDATION™ Fieldbus device revisions and

files

(continued)

Device

revision

(1)

Host Device

driver

(DD)(2)

Obtain at Device driver

(DTM)

Reference

document

Emerson 375/475: DD

Rev 2

475 Field

Communicator

(1) FOUNDATIONFieldbus® device revision can be read using a FOUNDATION Fieldbus

capable configuration tool.

(2) Device driver file names use device and DD revision. To access functionality, the

correct device driver must be installed on your control and asset management

hosts and on your configuration tools.

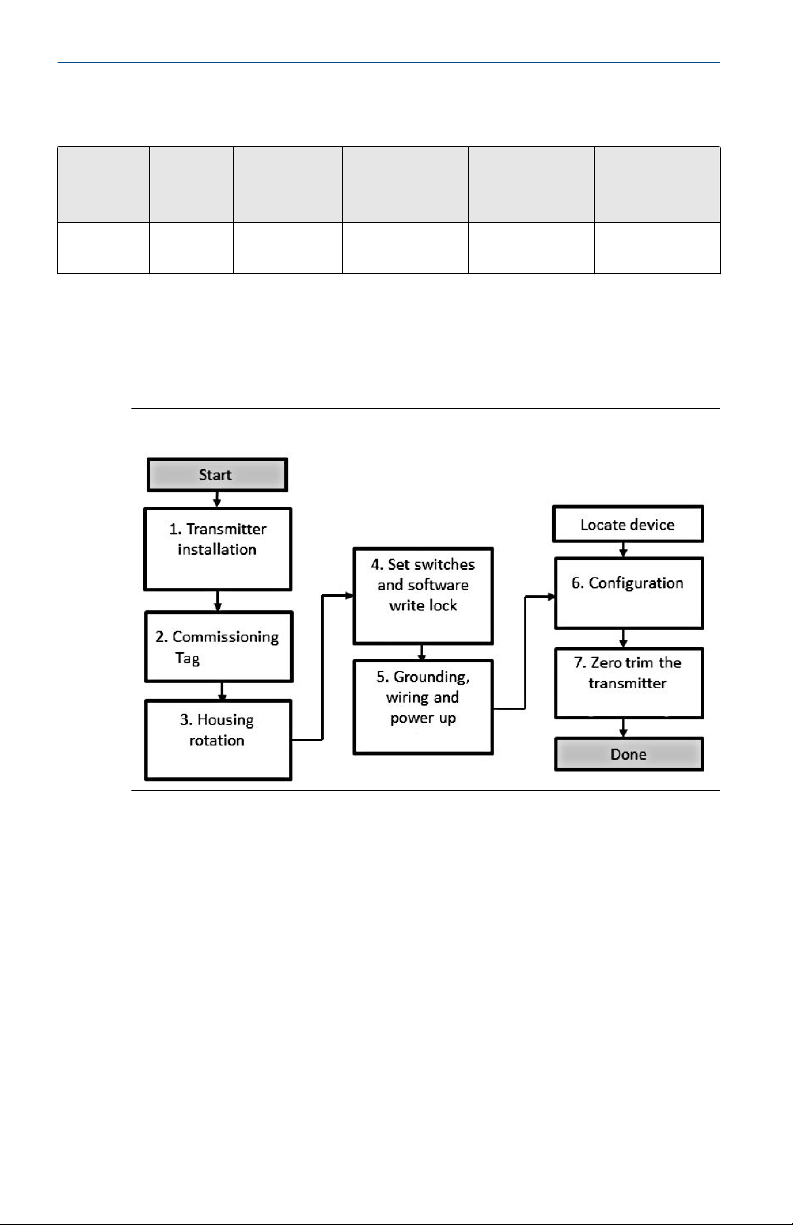

Figure 2-1: Installation flowchart

Quick Start Guide September2023

6 Rosemount 2051 and 2051CF

3 Mount the transmitter

3.1 Liquid applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Mount the transmitter so the drain/vent valves are oriented

upward.

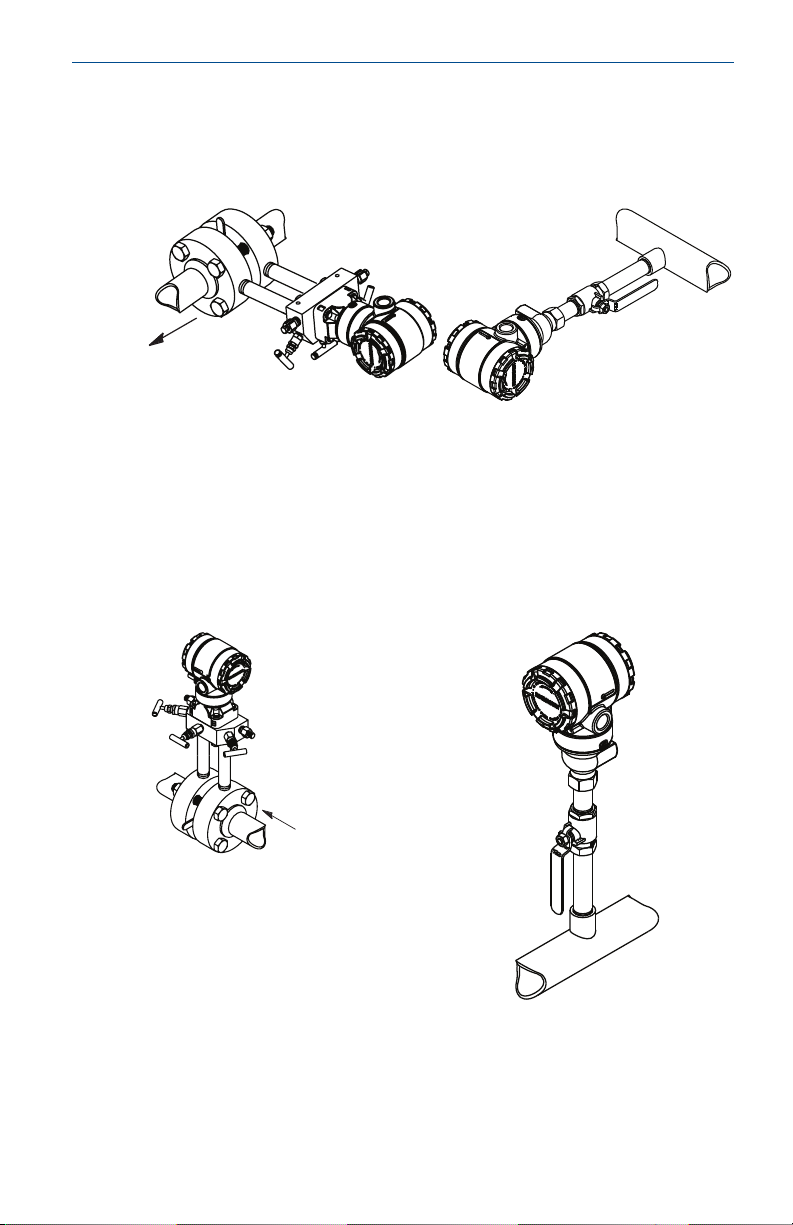

3.2 Gas applications

Procedure

1. Place taps on the top or side of the line.

2. Mount beside or above the taps.

September2023 Quick Start Guide

Quick Start Guide 7

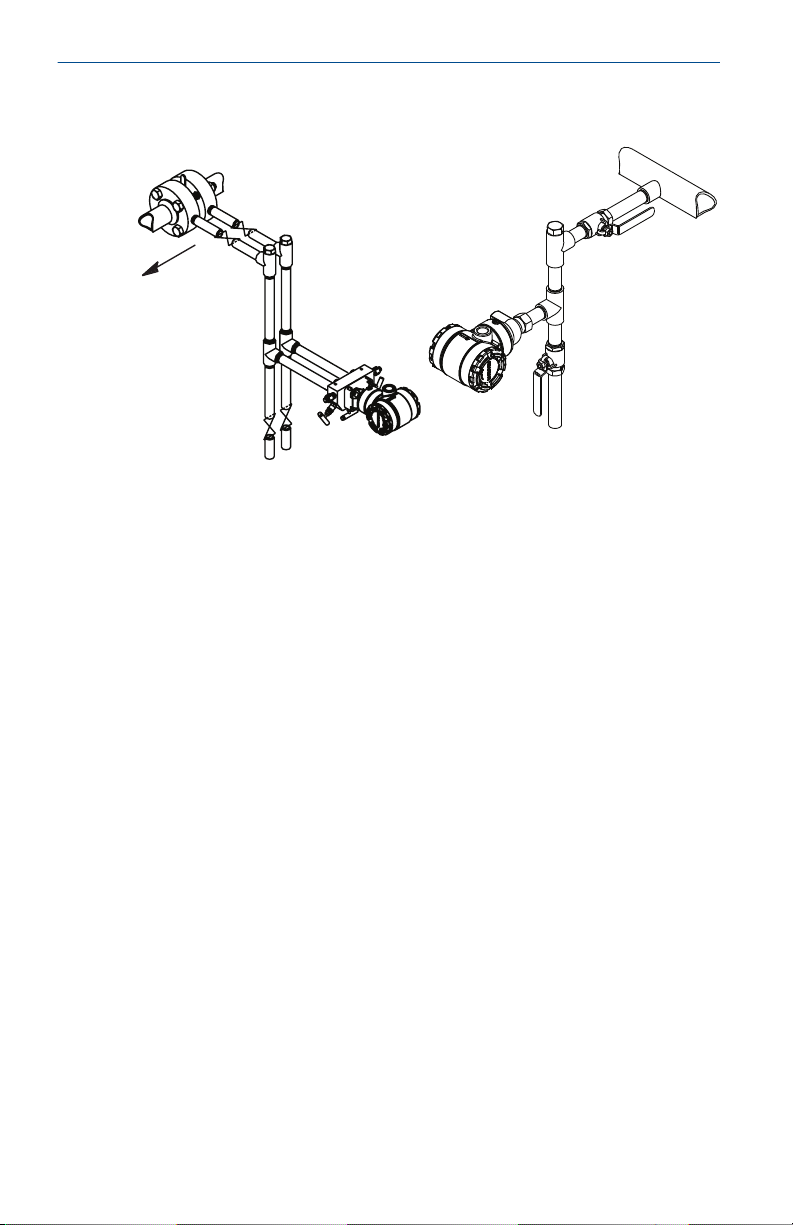

3.3 Steam applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Fill impulse lines with water.

Quick Start Guide September2023

8 Rosemount 2051 and 2051CF

3.4 Panel and pipe mounting

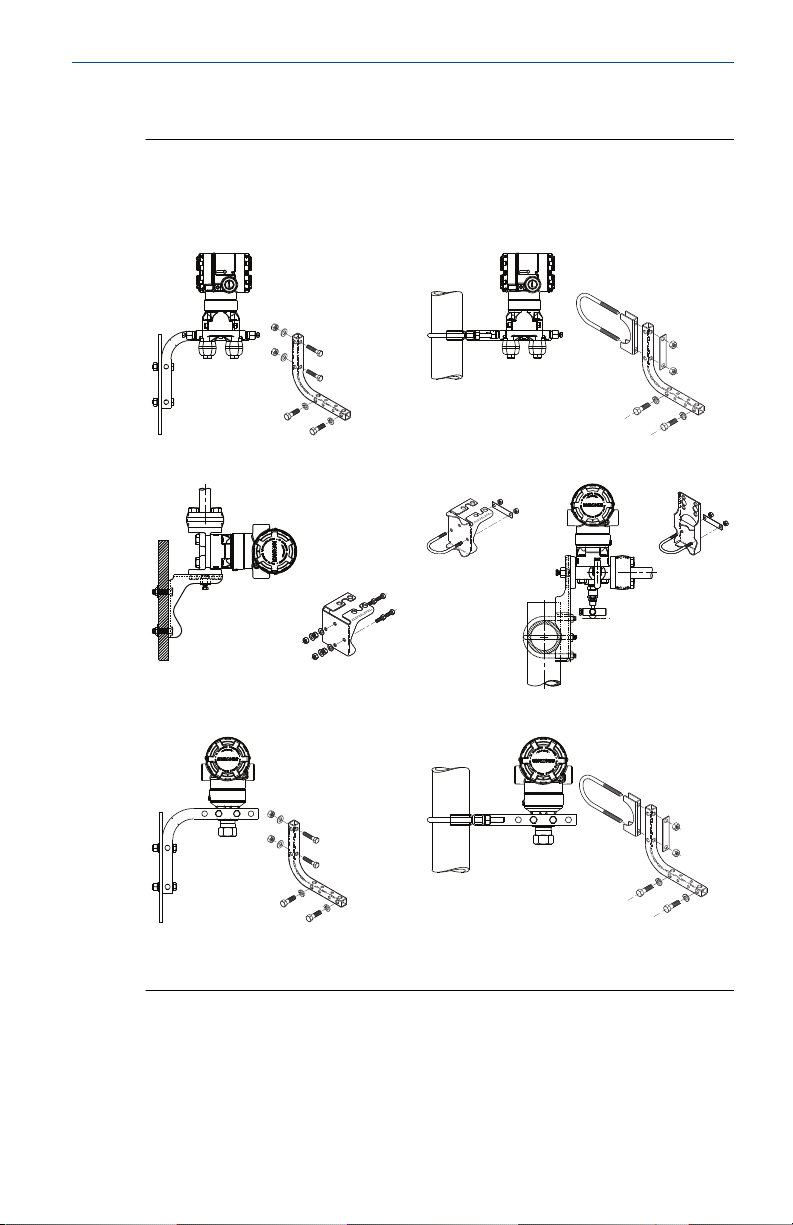

Figure 3-1: Panel and pipe mounting

Panel mount(1) Pipe mount

Coplanar flange

Traditional flange



Rosemount 2051T

(1) 5/16 × 1½ panel bolts are customer supplied.

3.5 Install bolts

If the transmitter installation requires assembly of the process

flanges, manifolds, or flange adapters, follow the assembly

guidelines to ensure a tight seal for optimal performance

September2023 Quick Start Guide

Quick Start Guide 9

characteristics of the transmitters. Use only bolts supplied with the

transmitter or sold by Emerson as spare parts. Figure 3-2 illustrates

common transmitter assemblies with the bolt length required for

proper transmitter assembly.

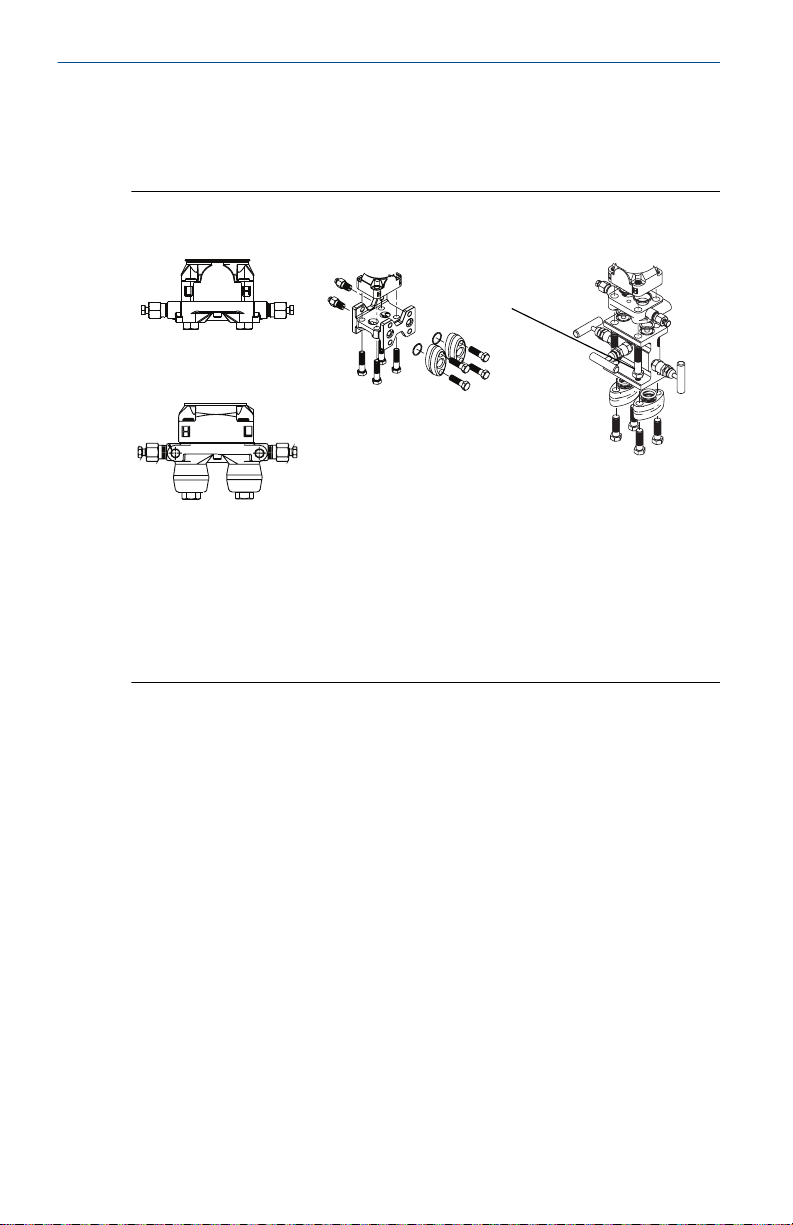

Figure 3-2: Common transmitter assemblies

4 × 1.75-in.

(44 mm)

4 × 1.75-in.

(44 mm)

4 × 2.25-in.

(57 mm)

4 ×1.75-in.

(44 mm) 4 ×1.50-in.

(38 mm)

4 × 2.88-in.

(73 mm)

A. Transmitter with coplanar flange

B. Transmitter with coplanar flange and optional flange adapters

C. Transmitter with traditional flange and optional flange adapters

D. Transmitter with coplanar flange and optional manifold and

flange adapters

Bolts are typically carbon steel (CS) or stainless steel (SST). Confirm

the material by viewing the markings on the head of the bolt and

referencing Table 3-1. If bolt material is not shown in Table 3-1,

contact a local Emerson representative for more information.

Carbon steel bolts do not require lubrication, and the stainless steel

bolts are coated with a lubricant to ease installation. However, do not

apply any additional lubricant when installing either type of bolt.

Procedure

1. Tighten the bolts by hand.

2. Torque the bolts to the initial torque value using a crossing

pattern.

See Table 3-1 for initial torque value.

3. Torque the bolts to the final torque value using the same

crossing pattern.

See Table 3-1 for final torque value.

Quick Start Guide September2023

10 Rosemount 2051 and 2051CF
