Quick Start Guide

00825-0600-4101, Rev AA

October 2014

Note

Before installing the transmitter, confirm the correct device driver is loaded on the host

systems. See “System readiness” on page 3.

Rosemount 2051 Pressure Transmitter

Rosemount 2051CF Series Flowmeter

Transmitter

with FOUNDATION™ fieldbus protocol

2051_FF_Rev2.fm Page 1 Wednesday, November 19, 2014 9:25 AM

October 2014

Quick Start Guide

NOTICE

This installation guide provides basic guidelines for Rosemount 2051 transmitters. It does not

provide instructions for configuration, diagnostics, maintenance, service, troubleshooting,

Explosion-Proof, Flame-Proof, or intrinsically safe (I.S.) installations. Refer to the 2051 reference

manual (document number 00809-0200-4101) for more instruction. This manual is also

available electronically on www.emersonprocess.com/rosemount.

Explosions could result in death or serious injury.

Installation of this transmitter in an explosive environment must be in accordance with the

appropriate local, national, and international standards, codes, and practices. Please review the

approvals section of the 2051 reference manual for any restrictions associated with a safe

installation.

In an Explosion-proof/Flameproof installation, do not remove the transmitter covers when

power is applied to the unit.

Process leaks may cause harm or result in death.

To avoid process leaks, only use the o-ring designed to seal with the corresponding flange

adapter.

Electrical shock can result in death or serious injury.

Avoid contact with the leads and the terminals. High voltage that may be present on leads can

cause electrical shock.

Conduit/cable entries

Unless marked, the conduit/cable entries in the transmitter housing use a 1/2-14 NPT thread

form. Only use plugs, adapters, glands, or conduit with a compatible thread form when

closing these entries.

Contents

System readiness . . . . . . . . . . . . . . . page 3

Confirm correct device driver . . . . page 3

Transmitter installation . . . . . . . . . page 4

Tagging . . . . . . . . . . . . . . . . . . . . . . . page 8

Housing rotation . . . . . . . . . . . . . . . page 9

Set the switches . . . . . . . . . . . . . . . page 10

Wire, ground, and power up . . . . . page 11

Configure . . . . . . . . . . . . . . . . . . . . . page 13

Zero trim the transmitter . . . . . . . page 19

Product Certifications . . . . . . . . . . page 20

2051_FF_Rev2.fm Page 2 Wednesday, November 19, 2014 9:25 AM

Quick Start Guide

October 2014

System readiness

Confirm correct device driver

Verify the correct device driver (DD/DTM™) is loaded on your systems to

ensure proper communications.

Download the correct device driver at your host vendor download site,

www.emersonprocess.com or www.fieldbus.org.

Rosemount 2051 device revisions and drivers

Table 1 provides the information necessary to ensure you have the correct device

driver and documentation for your device.

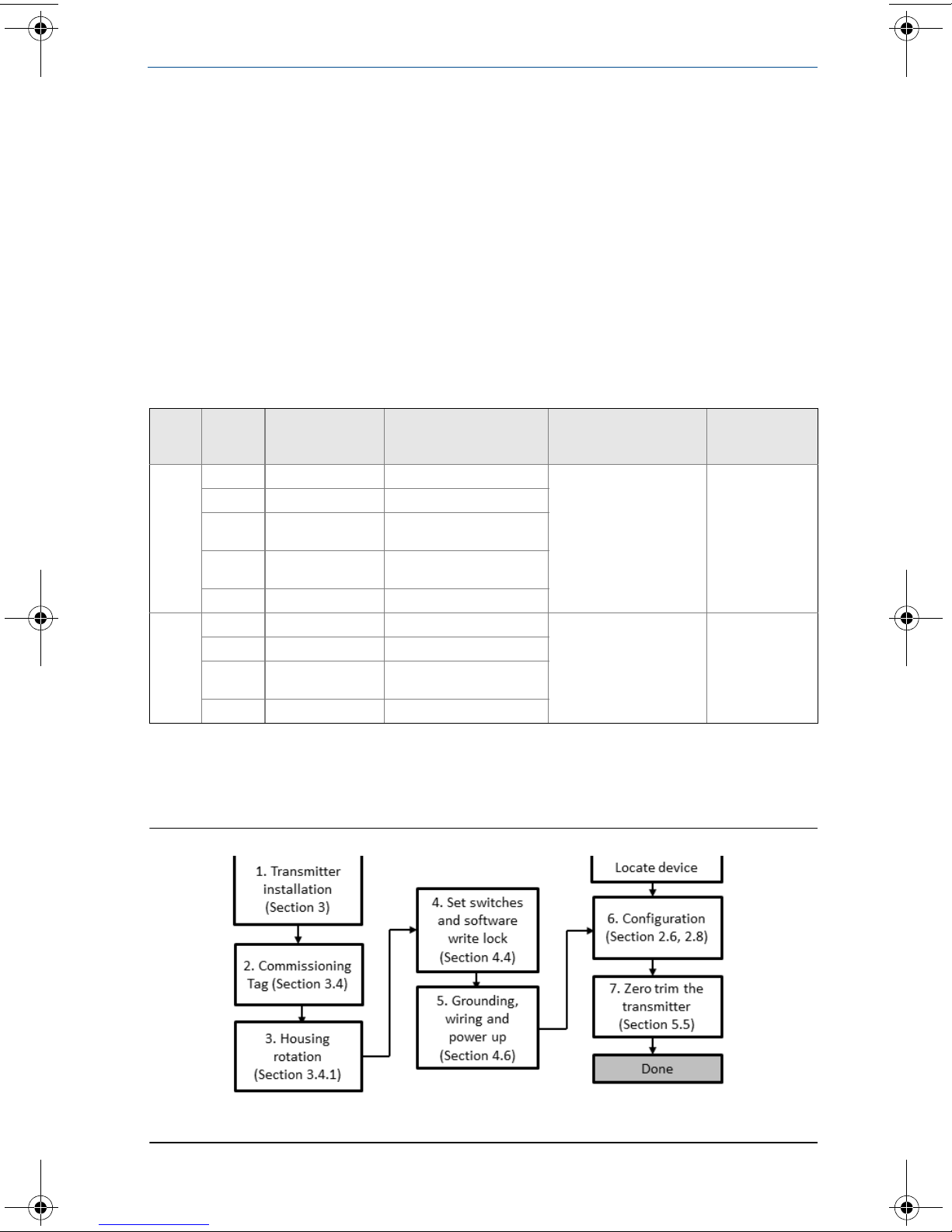

Table 1. Rosemount 2051 FOUNDATION fieldbus Device Revisions and Files

Figure 1. Installation Flowchart

Device

revision

(1)

1. FOUNDATION fieldbus device revision can be read using a FOUNDATION fieldbus capable configuration tool.

Host Device driver

(DD)(2)

2.Device driver file names use device and DD revision. To access functionality, the correct device driver must be installed

on your control and asset management hosts, and on your configuration tools.

Obtain at Device driver (DTM) Manual document

number

All DD4: DD Rev 1 www.fieldbus.org

www.emersonprocess.com 00809-0200-4101

Rev. BA or newer

All DD5: DD Rev 1 www.fieldbus.org

Emerson AMS V 10.5 or higher:

DD Rev 2 www.emersonprocess.com

Emerson AMS V 8 to 10.5:

DD Rev 1 www.emersonprocess.com

Emerson 375 / 475: DD Rev 2 www.fieldcommunicator.com

All DD4: DD Rev 4 www.fieldbus.org

www.emersonprocess.com 00809-0200-4101

Rev. AA

All DD5: NA N/A

Emerson AMS Rev 8 or higher:

DD Rev 2 www.emersonprocess.com

Emerson 375 / 475: DD Rev 2 www.fieldcommunicator.com

2051_FF_Rev2.fm Page 3 Wednesday, November 19, 2014 9:25 AM

October 2014

Quick Start Guide

Transmitter installation

Step 1: Mount the transmitter

Liquid applications Coplanar In-Line

1. Place taps to the side of the

line.

2. Mount beside or below the

taps.

3. Mount the transmitter so

that the drain/vent valves are

oriented upward.

Gas applications Coplanar In-Line

1. Place taps in the top or side of

the line.

2. Mount beside or above the

taps.

Steam applications Coplanar In-Line

1. Place taps to the side of the

line.

2. Mount beside or below the

taps.

3. Fill impulse lines with water.

2051_FF_Rev2.fm Page 4 Wednesday, November 19, 2014 9:25 AM

Quick Start Guide

October 2014

Figure 2. Panel and pipe mounting

Bolting considerations

If the transmitter installation requires assembly of the process flanges, manifolds,

or flange adapters, follow the assembly guidelines to ensure a tight seal for

optimal performance characteristics of the transmitters. Use only bolts supplied

with the transmitter or sold by Emerson as spare parts. Figure 3 on page 6 illustrates

common transmitter assemblies with the bolt length required for proper

transmitter assembly.

Panel mount(1)

1.5/16 x 1 1/2 Panel Bolts are customer supplied.

Pipe mount

Coplanar flange

Traditional flange

Rosemount 2051T

2051_FF_Rev2.fm Page 5 Wednesday, November 19, 2014 9:25 AM

October 2014

Quick Start Guide

Figure 3. Common Transmitter Assemblies

A. Transmitter with Coplanar Flange

B. Transmitter with Coplanar Flange and Optional Flange Adapters

C. Transmitter with Traditional Flange and Optional Flange Adapters

D. Transmitter with Coplanar Flange and Optional Manifold and Flange Adapters

Bolts are typically carbon steel or stainless steel. Confirm the material by viewing

the markings on the head of the bolt and referencing Table 2 on page 7. If bolt

material is not shown in Table 2, contact a local Emerson Process Management

representative for more information.

Carbon steel bolts do not require lubrication and the stainless steel bolts are

coated with a lubricant to ease installation. However, no additional lubricant

should be applied when installing either type of bolt.

Use the following bolt installation procedure:

1. Finger tighten the bolts.

2. Torque the bolts to the initial torque value using a crossing pattern. See Table 2

for initial torque value.

3. Torque the bolts to the final torque value using the same crossing pattern. See

Table 2 for final torque value.

4. Verify the flange bolts are protruding through the sensor module bolt holes

before applying pressure.

4 x 1.75-in. (44 mm)

4 x 2.88-in. (73 mm)

4 x 1.75-in. (44 mm) 4 x 1.50-in. (38 mm)

4 x 1.75-in. (44 mm)

4 x 2.25-in. (57 mm)

2051_FF_Rev2.fm Page 6 Wednesday, November 19, 2014 9:25 AM

Quick Start Guide

October 2014

Table 2. Torque Values for the Flange and Flange Adapter Bolts

O-rings with flange adapters

Bolt material Head markings Initial torque Final torque

Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.

Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.

Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious

injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is

designed for its specific flange adapter, as shown below.

Figure 4. O-ring Location

A. Flange Adapter

B. O-ring

C. PTFE Based

D. Elastomer

B7M

316

STM

316

B8M

Rosemount 3051S / 3051 / 2051 / 3001 / 3095

Rosemount 1151

2051_FF_Rev2.fm Page 7 Wednesday, November 19, 2014 9:25 AM

October 2014

Quick Start Guide

Whenever the flanges or adapters are removed, visually inspect the o-rings.

Replace them if there are any signs of damage, such as nicks or cuts. If you replace

the o-rings, re-torque the flange bolts and alignment screws after installation to

compensate for seating of the PTFE o-ring.

Inline gage transmitter orientation

The low side pressure port (atmospheric reference) on the inline gage transmitter

is located in the neck of the transmitter, behind the housing. The vent path is

360° around the transmitter between the housing and sensor. (See Figure 5.)

Keep the vent path free of any obstruction, including but not limited to paint,

dust, and lubrication by mounting the transmitter so that fluids can drain away.

Figure 5. Inline Gage Low Side Pressure Port

A. Pressure port location

Step 2: Tagging

Commissioning (paper) tag

To identify which device is at a particular location use the removable tag provided

with the transmitter. Ensure the physical device tag (PD Tag field) is properly

entered in both places on the removable commissioning tag and tear off the

bottom portion for each transmitter.

Note

The device description loaded in the host system must be at the same revision as this

device, see “System readiness” on page 3.

2051_FF_Rev2.fm Page 8 Wednesday, November 19, 2014 9:25 AM

Quick Start Guide

October 2014

Figure 6. Commissioning Tag

A. Device revision

Note

The device description loaded in the host system must be at the same revision as this device. The

device description can be downloaded from the host system website or www.rosemount.com by

selecting Download Device Drivers under Product Quick Links. You can also visit www.fieldbus.org

and select End User Resources.

Step 3: Housing rotation

To improve field access to wiring or to better view the optional LCD display:

Figure 7. Housing Rotation

A. Housing rotation set screw (5/64-inch)

1. Loosen the housing rotation set screw.

2. First rotate the housing clockwise to the desired location.

Commissioning Tag

DEVICE ID:

001151AC00010001440-12169809172

DEVICE REVISION: 2.1

PHYSICAL DEVICE TAG

DEVICE ID:

001151AC00010001440-12169809172

DEVICE REVISION: 2.1

S / N :

PHYSICAL DEVICE TAG

Device Barcode

Commissioning Tag

DEVICE ID:

0011512051010001440-12169809172

DEVICE REVISION: 1.1

PHYSICAL DEVICE TAG

DEVICE ID:

0011512051010001440 -12169809172

DEVICE REVISION: 1.1

S / N :

PHYSICAL DEVICE TAG

Device Barcode

2051_FF_Rev2.fm Page 9 Wednesday, November 19, 2014 9:25 AM

October 2014

Quick Start Guide

3. If the desired location cannot be achieved due to thread limit, rotate the

housing counter clockwise to the desired location (up to 360° from thread

limit).

4. Re-tighten the housing rotation set screw to no more than 7 in-lbs when

desired location is reached.

Step 4: Set the switches

Set Simulate and Security switch configuration before installation as shown in

Figure 8.

The simulate switch enables or disables simulated alerts and simulated AI

Block status and values. The default simulate switch position is enabled.

The Security switch allows (unlocked symbol) or prevents (locked symbol)

any configuration of the transmitter.

- Default security is off (unlocked symbol).

- The security switch can be enabled or disabled in software.

Use the following procedure to change the switch configuration:

1. If the transmitter is installed, secure the loop, and remove power.

2. Remove the housing cover opposite the field terminal side. Do not remove the

instrument cover in explosive atmospheres when the circuit is live.

3. Slide the security and simulate switches into the preferred position.

4. Replace the housing cover.

Note

It is recommended the cover be tightened until there is no gap between the cover and housing.

Figure 8. Simulate and Security Switches

A. Simulate disabled position

B. Simulate switch

C. Simulate enabled position (default)

D. Security locked position

E. Security switch

F. Security unlocked position (default)

2051_FF_Rev2.fm Page 10 Wednesday, November 19, 2014 9:25 AM

Altri manuali per Rosemount 2051

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Emerson Trasmettitore

Emerson

Emerson PT5N Series Manuale utente

Emerson

Emerson Rosemount Oxymitter 4000 Manuale utente

Emerson

Emerson Rosemount 3408 Manuale utente

Emerson

Emerson Micro Motion 5700 Manuale utente

Emerson

Emerson Rosemount 3051 Manuale utente

Emerson

Emerson Rosemount 3051HT Manuale utente

Emerson

Emerson Rosemount 3051S Series Manuale utente

Emerson

Emerson Rosemount 2051G Manuale utente

Emerson

Emerson Rosemount 5600 Series Manuale operativo

Emerson

Emerson Rosemount 3051S Series Manuale utente

Emerson

Emerson Rosemount 1208 Manuale utente

Emerson

Emerson Rosemount 8732EM Manuale utente

Emerson

Emerson Rosemount MultiVariable 4088A Manuale utente

Emerson

Emerson Rosemount 1408A Manuale utente

Emerson

Emerson Rosemount 1151 Manuale utente

Emerson

Emerson CSI 9420 Manuale utente

Emerson

Emerson Rosemount 2051 Wireless Series Manuale utente

Emerson

Emerson Rosemount 2051CF series Manuale utente

Emerson

Emerson Rosemount 3051S Series Guida alla configurazione

Emerson

Emerson Micro Motion 5700 Manuale utente

Emerson

Emerson wirelessHART Rosemount Series Manuale utente

Emerson

Emerson Rosemount 3051S Series Manuale utente

Emerson

Emerson Micro Motion 5700 Guida rapida

Emerson

Emerson Rosemount 3101 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
