Epson Stylus Pro 3880 Graphic Arts Edition Manuale di programmazione

Epson Professional Imaging

Color Management Guide

Printing With Epson Premium ICC Profiles

system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without the prior written permission of Seiko

Epson Corporation. The information contained herein is designed only for use with this

Epson product. Epson is not responsible for any use of this information as applied to other

equipment.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this

product or third parties for damages, losses, costs, or expenses incurred by purchaser or

third parties as a result of: accident, misuse, or abuse of this product or unauthorized

modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the

use of any options or any consumable products other than those designated as Original

Epson Products or Epson Approved Products by Seiko Epson Corporation.

Responsible Use of Copyrighted Materials

Epson encourages each user to be responsible and respectful of the copyright laws when

using any Epson product. While some countries’ laws permit limited copying or reuse of

copyrighted material in certain circumstances, those circumstances may not be as broad as

some people assume. Contact your legal advisor for any questions regarding copyright law.

Trademarks

Epson and Epson Stylus are registered trademarks, and Epson Exceed Your Vision is a

registered logomark of Seiko Epson Corporation.

General Notice: Other product names used herein are for identification purposes only and

may be trademarks of their respective owners. Epson disclaims any and all rights in those

marks.

This information is subject to change without notice.

Print With Adobe Photoshop 3

Introduction

For the most precise color in your prints, you can use profiles designed specifically

for your printer model and paper type. Basic profiles are installed with your

printer driver, and you may also have downloaded Premium ICC profiles from

Epson when you installed your printer software.

To print using Premium ICC profiles with Adobe®Photoshop®CS3, CS4, or

Adobe Photoshop Lightroom®, follow the instructions in these sections for your

operating system:

■“Windows 7, Windows Vista, and Windows XP” below

■“Mac OS X 10.6 and 10.5” on page 15

■“Mac OS X 10.4.11” on page 25

Windows 7, Windows Vista, and

Windows XP

Follow the instructions in these sections:

■“Print With Adobe Photoshop” below

■“Print With Adobe Photoshop Lightroom” on page 9

Print With Adobe Photoshop

First set up your color management environment in Photoshop and assign a

profile to your image. Then select your print settings and print (the steps show

Photoshop CS4 screens).

Note:

Assigning a profile to your image doesn’t alter it, only the interpretation of it by your

software and how it appears on your monitor and in a printout. This is the best way to

improve the color balance and contrast in your image.

4Print With Adobe Photoshop

Set Up the Photoshop Environment

1. Open Photoshop.

2. Select Edit > Color Settings.

3. Select North America Prepress 2 from the Settings menu to set Adobe RGB

(1998) as the RGB working space and activate profile messages.

4. Click OK.

Follow the steps in the next section to open the photo you want to print and

assign a profile to it.

Assign a Profile to Your Photo

1. Open the photo you want to print.

2. If you see an Embedded Profile Mismatch message, select Use the

embedded profile and click OK.

If you see a Missing Profile message, select Assign working RGB: Adobe

RGB (1998) and click OK. When your image appears, evaluate the color

balance and contrast as displayed on your monitor. If it looks incorrect, select

Edit > Assign Profile.

Print With Adobe Photoshop 5

Select one of the following as the Profile setting:

■A different RGB working space (or Profile), such as ColorMatch RGB or

sRGB IEC61966-2.1

■A scanner profile for your scanner

■A camera profile for your digital camera

Also click the Preview box so you can see the effects of your profile choice on

the screen.

Tip:

This is most effective when your monitor is calibrated using a hardware device

such as the X-Rite®i1Display 2.

3. Click OK.

4. Select File > Page Setup.

5. Select the Size of your paper, the Source you’ll use to load it, and the correct

Orientation for your photo.

6. Click OK.

7. Select File, then select Print or Print with Preview.

6Print With Adobe Photoshop

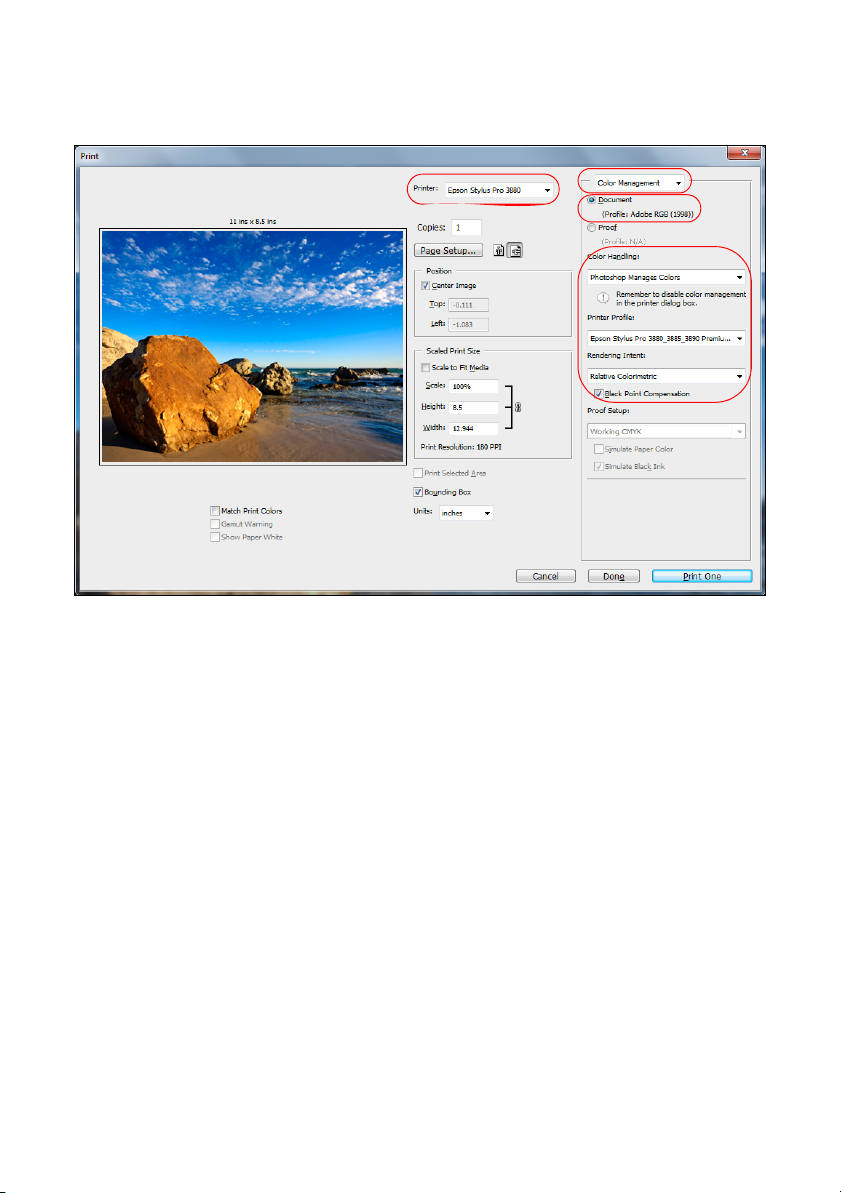

8. Select your Epson professional printer in the Printer list, then select Color

Management.

9. Under Color Management, select Document.

10. Under Color Handling, select Photoshop Manages Colors.

11. Under Printer Profile, select a profile for your printer and the paper you’ll

use. If you’re printing with Epson Premium ICC profiles, select the profile

that also matches the print quality you want to use.

Note:

Epson Premium ICC profiles can be identified with the suffix “.icc,” for example,

“SPR2880 PrmSmGls Photo.icc.”

Print With Adobe Photoshop 7

12. For the Rendering Intent, select Relative Colorimetric.

Note:

If your image contains very saturated colors, select Perceptual. This reduces the

color saturation so that the colors fit within the printer’s color gamut.

13. Select the Black Point Compensation checkbox.

14. Click the Print button.

Follow the steps in the next section to select print settings to match the profile and

print.

Print Your Color-Managed Photo

1. Make sure your Epson professional printer is selected, then click the

Preferences or Properties button.

2. Select the Source and Media Type settings for the paper you’ll use for the

print.

3. Select Quality Options as the Print Quality setting.

You see a window like this one:

4. If you are using an Epson Premium ICC profile, set the Print Quality setting

to match your profile.

5. Turn off the High Speed and Edge Smoothing options, if they are

available, then click OK to close the Quality Options window.

8Print With Adobe Photoshop

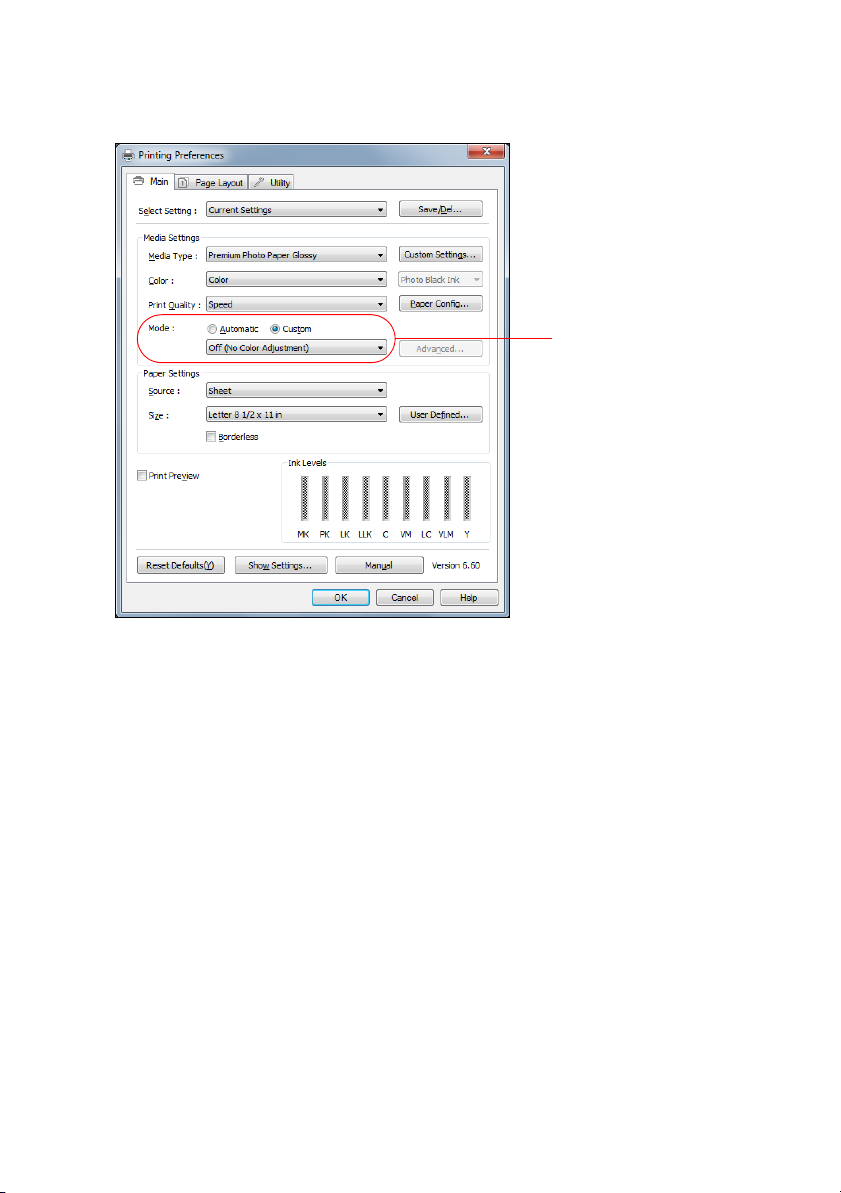

6. Select Custom as the Mode setting, then choose Off (No Color Adjustment)

in the drop-down menu.

Note:

Make sure that you select Off (No Color Adjustment). If you don’t, the printer

driver will apply additional correction to the image, producing inaccurate results.

7. Click OK or Print to print.

If you get unexpected results, see “Solve Color Management Problems” on

page 37.

IMPORTANT:

Select Off (No Color

Adjustment)

Print With Adobe Photoshop Lightroom 9

Print With Adobe Photoshop Lightroom

First select your printer and page setup options in Lightroom. Then set the color

management options, select print settings, and print.

Select Color Management Options

1. Open Lightroom.

2. Select the photo you want to print.

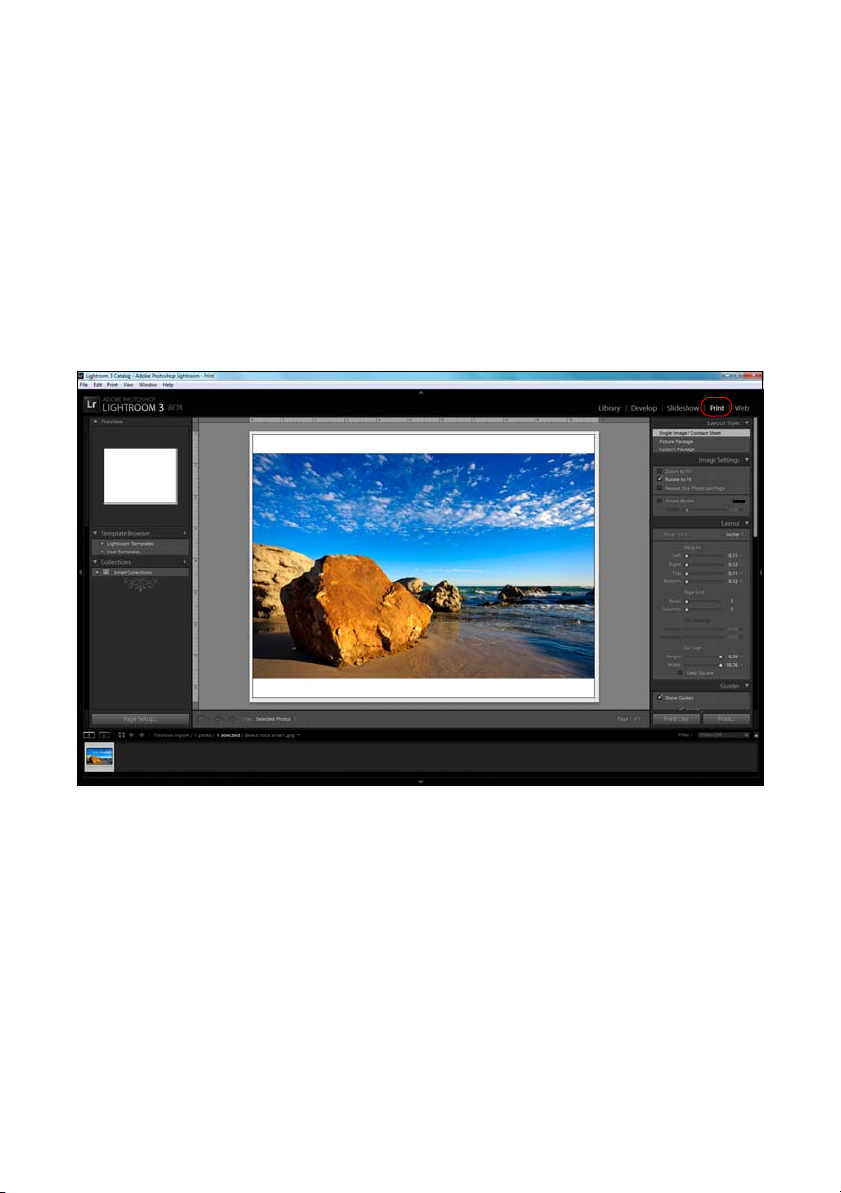

3. Select the Print module, and click the Page Setup button.

4. Make sure your Epson professional printer is selected.

10 Print With Adobe Photoshop Lightroom

5. Select the Size of your paper, the Source you’ll use to load it, and the correct

Orientation for your photo.

6. Click OK.

7. Scroll down to the Print Job panel in Lightroom.

8. Under Color Management in the Print Job panel, select Other as the

Profile setting.
