ESAB AristoMig 4004i Pulse Manuale utente

Aristo®

Instruction manual

0463 431 001 GB 20160218 Valid for: serial no. 551-xxx-xxx

Mig4004iPulse

TABLE OF CONTENTS

0463 431 001 © ESAB AB 2016

1 SAFETY ................................................................................................................ 4

1.1 Meaning of symbols.............................................................................................4

1.2 Safety precautions ...............................................................................................4

2 INTRODUCTION................................................................................................... 7

2.1 Equipment............................................................................................................. 7

3 TECHNICAL DATA ............................................................................................... 8

4 INSTALLATION................................................................................................... 10

4.1 Location .............................................................................................................. 10

4.2 Lifting instruction............................................................................................... 10

4.3 Mains supply ...................................................................................................... 10

5 OPERATION ....................................................................................................... 14

5.1 Connections and control devices.....................................................................14

5.2 Symbols .............................................................................................................. 15

5.3 Connection of welding and return cable..........................................................15

5.4 Turning the power source on/off ......................................................................15

5.5 Fan control.......................................................................................................... 15

5.6 Thermal protection.............................................................................................15

5.7 VRD (Voltage Reducing Device) .......................................................................16

5.8 Remote control unit ...........................................................................................16

5.9 MIG/MAG and self shielded cored wire welding .............................................16

6 MAINTENANCE.................................................................................................. 17

6.1 Inspection and cleaning ....................................................................................17

6.2 Welding torch ..................................................................................................... 17

7 TROUBLESHOOTING ........................................................................................ 18

8 ORDERING OF SPARE PARTS ......................................................................... 19

DIAGRAM ..................................................................................................................20

ORDERING NUMBERS.............................................................................................21

SPARE PARTS LIST..................................................................................................22

ACCESSORIES .........................................................................................................23

Rights reserved to alter specifications without notice.

1 SAFETY

0463 431 001 -4- © ESAB AB 2016

1 SAFETY

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!

Means immediate hazards which, if not avoided, will result in immediate,

serious personal injury or loss of life.

WARNING!

Means potential hazards which could result in personal injury or loss of

life.

CAUTION!

Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual

and follow all labels, employer´s safety practices and

Material Safety Data Sheets (MSDSs).

1.2 Safety precautions

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety

precautions must meet the requirements that apply to this type of equipment. The following

recommendations should be observed in addition to the standard regulations that apply to

the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the

equipment. Incorrect operation of the equipment may lead to hazardous situations which can

result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

○ its operation

○ location of emergency stops

○ its function

○ relevant safety precautions

○ welding and cutting or other applicable operation of the equipment

2. The operator must ensure that:

○ no unauthorised person is stationed within the working area of the equipment when it

is started up

○ no-one is unprotected when the arc is struck or work is started with the equipment

3. The workplace must:

○ be suitable for the purpose

○ be free from drafts

1 SAFETY

0463 431 001 -5- © ESAB AB 2016

4. Personal safety equipment:

○ Always wear recommended personal safety equipment, such as safety glasses,

flame-proof clothing, safety gloves

○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could

become trapped or cause burns

5. General precautions:

○ Make sure the return cable is connected securely

○ Work on high voltage equipment may only be carried out by a qualified electrician

○ Appropriate fire extinguishing equipment must be clearly marked and close at hand

○ Lubrication and maintenance must not be carried out on the equipment during

operation

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions

when welding and cutting.

ELECTRIC SHOCK - Can kill

• Install and ground the unit in accordance with instruction manual

• Do not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing

• Insulate yourself from work and ground.

• Ensure your working position is safe

ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health

• Welders having pacemakers should consult their physician before welding.

EMF may interfere with some pacemakers.

• Exposure to EMF may have other health effects which are unknown.

• Welders should use the following procedures to minimize exposure to EMF:

○ Route the electrode and work cables together on the same side of your

body. Secure them with tape when possible. Do not place your body

between the torch and work cables. Never coil the torch or work cable

around your body. Keep welding power source and cables as far away

from your body as possible.

○ Connect the work cable to the workpiece as close as possible to the area

being welded.

FUMES AND GASES - Can be dangerous to health

• Keep your head out of the fumes

• Use ventilation, extraction at the arc, or both, to take fumes and gases away

from your breathing zone and the general area

ARC RAYS - Can injure eyes and burn skin

• Protect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing

• Protect bystanders with suitable screens or curtains

NOISE - Excessive noise can damage hearing

Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY

0463 431 001 -6- © ESAB AB 2016

MOVING PARTS - Can cause injuries

• Keep all doors, panels and covers closed and securely in place. Have only

qualified people remove covers for maintenance and troubleshooting as

necessary. Reinstall panels or covers and close doors when service is

finished and before starting engine.

• Stop engine before installing or connecting unit.

• Keep hands, hair, loose clothing and tools away from moving parts.

FIRE HAZARD

• Sparks (spatter) can cause fire. Make sure therefore that there are no

inflammable materials nearby

• Do not use on closed containers.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION!

This product is solely intended for arc welding.

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Class A equipment is not intended for use in residential

locations where the electrical power is provided by the

public low-voltage supply system. There may be potential

difficulties in ensuring electromagnetic compatibility of

class A equipment in those locations, due to conducted

as well as radiated disturbances.

NOTE!

Dispose of electronic equipment at the recycling

facility!

In observance of European Directive 2012/19/EC on

Waste Electrical and Electronic Equipment and its

implementation in accordance with national law, electrical

and/or electronic equipment that has reached the end of

its life must be disposed of at a recycling facility.

As the person responsible for the equipment, it is your

responsibility to obtain information on approved collection

stations.

For further information contact the nearest ESAB dealer.

ESAB can provide you with all necessary welding protection and accessories.

2 INTRODUCTION

0463 431 001 -7- © ESAB AB 2016

2 INTRODUCTION

The Mig 4004i Pulse combined with U6 or U82offer a complete multi-process package

supporting MMA, TIG, MIG/MAG and pulse MIG.

The power source is intended for use with the wire feed unit Aristo® Feed 3004/4804 or

Aristo® YardFeed 2000 and the cooling unit COOL 1. Aristo® Feed 3004/4804 is available

with two operational solutions, the Aristo® U6 panel and the Aristo® U82pendant. Aristo®

YardFeed 2000 is available with the Aristo® U6 panel.

ESAB's accessories for the product can be found in the "ACCESSORIES" chapter of

this manual.

2.1 Equipment

The power source is supplied with:

• 5 m return cable with earth clamp

• instruction manual for the welding power source

3 TECHNICAL DATA

0463 431 001 -8- © ESAB AB 2016

3 TECHNICAL DATA

Mig 4004i Pulse

Mains voltage 380-460V, ±10%, 3~ 50/60 Hz

Mains supply Sscmin 5.8 MVA

Primary current Imax 19 A

No-load power 99 W

Setting range (DC)

MIG/MAG 16 A / 14.8 V - 400 A / 34 V

MMA 16 A / 20.6 V - 400 A / 36 V

TIG 4 A / 10.2 V - 400 A / 26 V

Permissible load at MIG/MAG

60 % duty cycle 400 A / 34.0 V

100% duty cycle 300 A / 29.0 V

Permissible load at MMA

60 % duty cycle 400 A / 36.0 V

100% duty cycle 300 A / 32.0 V

Permissible load at TIG

60 % duty cycle 400 A / 26.0 V

100% duty cycle 300 A / 22.0 V

Power factor at maximum current 0.95

Efficiency at maximum current 89.5 %

Open circuit voltage 55 V

Operating temperature -10 to 40°C (14 to 104°F)

Transport temperature -20 to 55°C (-4 to 131°F)

Constant sound pressure when idling <70 dB (A)

Dimensions l×w×h 445 × 250 × 380 mm (24.0 × 9.8 × 15”)

Weight 45 kg (96 lbs)

Insulation class H

Enclosure class IP 23

Application classification

Mains supply, Ssc min

Minimum short circuit power on the network in accordance with IEC 61000-3-12.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or

cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration

by solid objects or water.

Equipment marked IP23 is intended for indoor and outdoor use.

3 TECHNICAL DATA

0463 431 001 -9- © ESAB AB 2016

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

4 INSTALLATION

0463 431 001 - 10 - © ESAB AB 2016

4 INSTALLATION

The installation must be carried out by a professional.

CAUTION!

This product is intended for industrial use. In a domestic environment this product

may cause radio interference. It is the user's responsibility to take adequate

precautions.

4.1 Location

Position the welding power source such way that its cooling air inlets and outlets are not

obstructed.

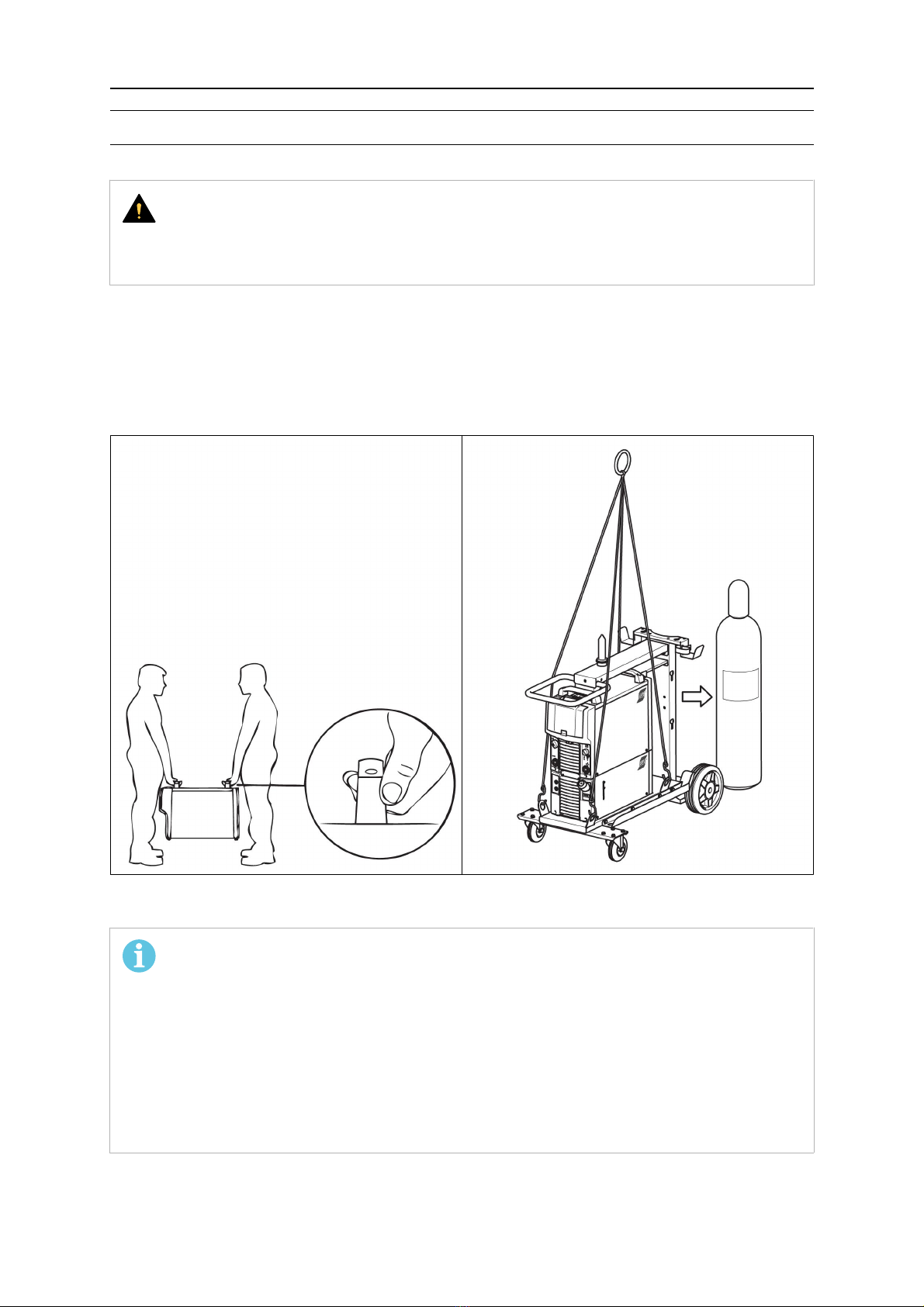

4.2 Lifting instruction

4.3 Mains supply

NOTE!

Mains supply requirements

This equipment complies with IEC 61000-3-12 provided that the short-circuit

power is greater than or equal to Sscmin at the interface point between the user's

supply and the public system. It is the responsibility of the installer or user of the

equipment to ensure, by consultation with the distribution network operator if

necessary, that the equipment is connected only to a supply with a short-circuit

power greater than or equal to Sscmin. Refer to the technical data in the

TECHNICAL DATA chapter.

Indice

Altri manuali ESAB Sistema di saldatura

ESAB

ESAB LHI 825 Guida

ESAB

ESAB Caddy Arc 251i Manuale utente

ESAB

ESAB Origo Arc 406 Manuale utente

ESAB

ESAB PowerCut 400 Manuale utente

ESAB

ESAB Versotrac EWT 1000 Manuale utente

ESAB

ESAB Fabricator EM 401i Manuale utente

ESAB

ESAB CIGWELD WeldSkill 185LCD Manuale utente

ESAB

ESAB TAF 801 Manuale utente

ESAB

ESAB WeldCloud Mobile Manuale utente

ESAB

ESAB Origo Tig 3001i Manuale utente

ESAB

ESAB MobileFeed 201 AVS Manuale utente

ESAB

ESAB RS 400 Manuale utente

ESAB

ESAB Origo Mig C170 3ph Manuale utente

ESAB

ESAB Fabricator 181i Manuale utente

ESAB

ESAB Powercut 900 Manuale utente

ESAB

ESAB Aristo WeldCloud Mig U5000i Manuale utente

ESAB

ESAB ESABMig 325 Manuale utente

ESAB

ESAB Feed L302 Origo M08 Manuale utente

ESAB

ESAB ET 180iP Manuale utente

ESAB

ESAB Aristo Mig 5000iw WeldCloud Manuale utente

ESAB

ESAB Caddyt Tig 150i Manuale utente

ESAB

ESAB Origo Mig 4002c Manuale utente

ESAB

ESAB Railtrac BV2000 Manuale utente

ESAB

ESAB LTR 160 Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuale utente
