ETC ColorSource PAR v1.7 Manuale utente

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Corpora te He adquarters nMiddleton, WI, USA |+1 608 831 4116

Globa l Offices nLondon, UK |Rome, IT |Holzkirchen, DE |Paris, FR |Hong Kong

Web etcconnect.com |Support support.etcconnect.com

Trademark and patent info: etcconnect.com/ip |Product information and specifications

subject to change. ETCintends this document to be provided in its entirety.

7412M2100-1.7 Rev E Released 2021-11

Overview

The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red,

green, blue, and lime) color system to provide a rich, bright light.

The ColorSource PAR is available in both original and Deep Blue variants. The

Deep Blue uses an array that offers richer, more saturated blues and stronger

magentas in exchange for the more jewel-toned blues like sky or turquoise.

For more information, see the ETC website at etcconnect.com.

The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for

use in emergency lighting systems when used with the ETC DMX Emergency

Bypass Controller (DEBC).

Note:

Features described in this document require the latest version

of software. For information on updating fixture software, see Update

the Fixture Software on page11.

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Safety

For professional use only. Read the entire manual before using this

equipment.

WARNING:

•

Risk of eye injury. Do not stare directly into the light.

•

Do not mount the fixture on or near a flammable surface.

•

When the fixture is mounted, the axis between the yoke

attachment points must be parallel to the ground. Mounting

the fixture in a non-parallel orientation risks property

damage or bodily injury.

•

Disconnect the fixture from power and DMX and allow it to

cool before installing accessories or performing any cleaning

and maintenance.

AVERTISSEMENT :

•

Risque de lésion oculaire. Ne fixez pas directement la

lumière.

•

Ne pas installer le projecteur sur ou à côté d’une surface

inflammable.

•

Lorsque le luminaire est accroché, l'axe entre les points de

fixation de la lyre doit être parallèle au sol. Le montage du

luminaire dans une orientation non parallèle risque de

causer des dommages matériels ou corporels.

•

Débranchez le projecteur de son alimentation et du DMX et

laissez-le refroidir avant d’installer des accessoires ou

d’effectuer un nettoyage ou un entretien.

WARNING: The ColorSourcePAR is a Directly Controlled

Luminaire suitable for use in emergency lighting applications in

accordance with 2017 National Electrical Code section 700.24

when used with an ETC DMX Emergency Bypass Controller.

Equipment intended for this purpose must be properly selected,

installed, and maintained so that facility conformance can be

obtained. Installation and servicing shall be performed by

qualified service personnel.

ColorSource PAR Page 2 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

WARNING: RISK OF ELECTRIC SHOCK! The light source in this

luminaire is not user-replaceable, and must be replaced only by a

qualified technician. Contact ETC Customer Support for

assistance.

AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La

source lumineuse de ce projecteur n'est pas remplaçable par

l'utilisateur et ne doit être remplacée seulement par un

technicien qualifié. Contactez le service client ETC pour obtenir de

l’assistance.

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be

followed including the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

•

Do not use outdoors.

•

Do not let power supply cords touch hot

surfaces.

•

Do not mount near gas or electric heaters.

•

Equipment should be mounted in locations

and at heights where it will not readily be

subjected to tampering by unauthorized

personnel.

•

The use of accessory

equipment not

recommended by the

manufacturer may cause an

unsafe condition.

•

Do not use this equipment

for other than intended

use.

SAVE THESE INSTRUCTIONS

ColorSource PAR Page 3 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

The luminaire must be installed at

least 0.1m (4.0in) away from all

lighted objects.

Le luminaire doit être installé à au

moins 0,1m (4,0po) de tout objet

éclairé.

Do not mount the fixture on or

near a flammable surface.

Ne pas installer le projecteur sur ou

à côté d’une surface inflammable.

Risk of electric shock Risque de décharge éléctrique

Do not stare at the operating light

source.

Ne pas regarder la source de lumière

lorsqu’elle fonctionne.

This product should not be

discarded as unsorted waste but

must be sent to separate collection

facilities for recovery and recycling.

Ce produit ne doit pas être jeté avec

les déchets ménagers mais doit être

déposé dans une collecte de déchets

électroniques ou dans un point de

collecte.

Protective earth (ground) Protection Classe I Mise à la terre

Emergency Lighting Considerations

Luminaires that are used in emergency lighting applications must provide a

minimum illumination level over the identified means of egress path in

accordance with the Life Safety Code®, NFPA 101. A luminaire that is intended

to serve this purpose must be mounted at a height where it will not readily be

subjected to tampering by unauthorized personnel and where the minimum

required illumination level over the egress path can be achieved. The ETC

DMX Emergency Bypass Controller that is driving the luminaire upon loss of

utility power must be programmed to drive the ColorSource PAR to full

illumination.

ColorSource PAR Page 4 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Installation

Mounting

The ColorSource PAR ships with a standard yoke for mounting with a clamp.

An expandable floor stand yoke is available as an optional accessory. Contact

your local dealer for more information.

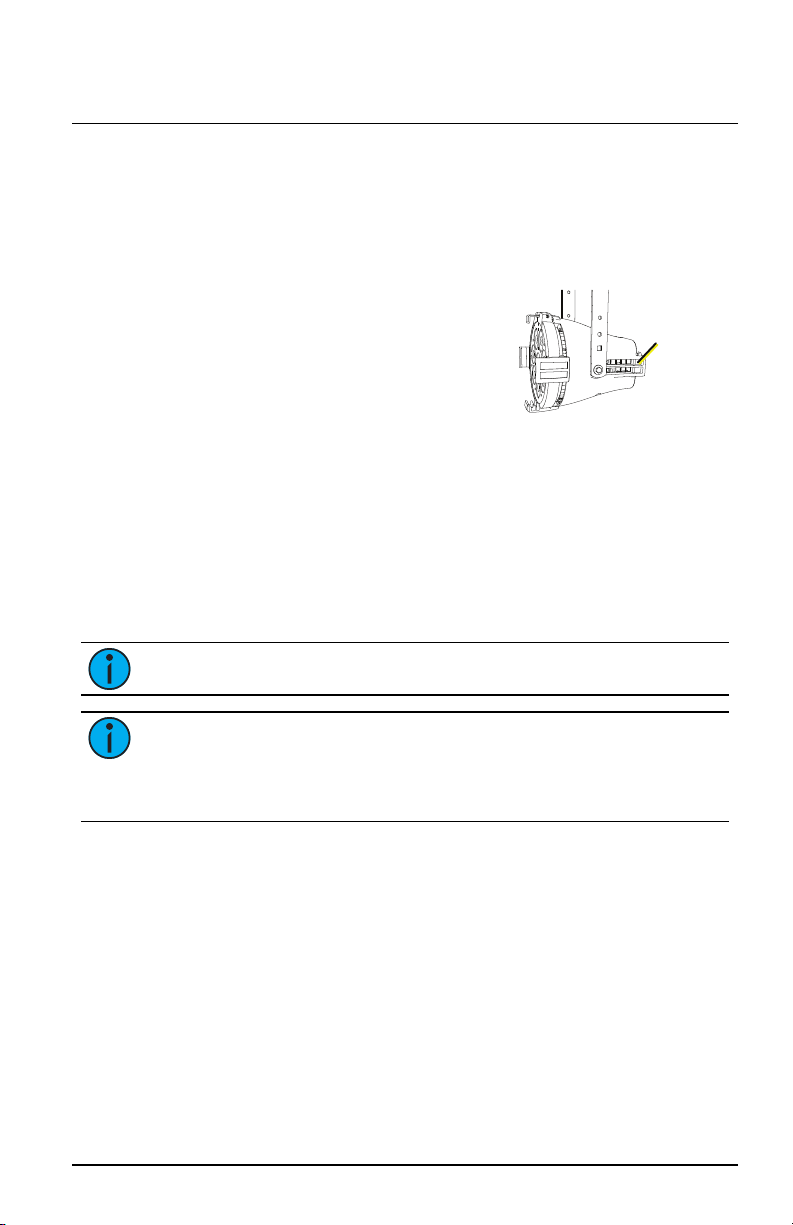

Safety cable

attachment

loop

Safety Cable

A safety cable (or other approved safety device)

must be attached to the fixture. Attachment

loops are on the rear of the fixture. Leave as little

slack as possible in the safety cable to avoid

catching the yoke of the fixture.

Connectors

•

Power: Two powerCON®connectors for power in and thru

•

Data (DMX512/RDM): Two five-pin XLR connectors OR two

RJ45connectors for data in and thru

Conversion cables are available from ETC. Please contact your ETC customer

service representative and request part number W6538 for RJ45 to female

XLR or part number W6539 for RJ45 to male XLR.

Note:

This fixture is not Ethernet/data network compatible.

Note:

The ColorSource PAR is not self terminating. You must

terminate the last fixture in line with a 120 Ohm resistor. To purchase

a terminator, please contact ETC customer service and request part

number N4086 (RJ45 terminator) or SGE1507 (XLR terminator).

Set Up the Fixture

1. Plug the power cord into the powerCON In connector on the rear of the

fixture.

2. Make any power-thru cable connections prior to applying a power

source.

3. Make any DMX connections, and if the fixture is the last in a DMX line,

terminate the fixture. See

Connectors above

4. Plug the power cord into the power source.

ColorSource PAR Page 5 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Power thruPower in

Data in Data thru

Mode Up and Down

User interface

Power Up

Press any button to wake the display. The display shows the DMX address.

See

Set the DMXAddress below

You can press the Mode button to access the Presets/Sequences menu. See

Play Presets and Sequences on page9

Adjust the Tilt

The fixture can be tilted up and down and rotated (panned) as needed.

1. Loosen, but do not remove the yoke locking knob.

2. Tilt the fixture to the desired angle.

3. Tighten the yoke locking knob.

Set the DMXAddress

1. Press any button to wake the display. The display shows the DMX

address.

2. Use the Up and Down buttons to select the DMX address for the fixture.

You can also use RDM for DMX addressing. See

RDM Values on page14

ColorSource PAR Page 6 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Change the DMXControl Mode

You can set the DMX control mode for the fixture to one of four available

mode options.

1. Press any button to wake the display. The display shows the DMX

address.

2. Press and hold the Mode button for 3 seconds. The display shows the

current DMX control mode.

3. Press the Up button or Down button to change the DMX control mode.

•

5ch: 5-channel mode (intensity, red, green, blue, and strobe). This is

the default mode.

•

dir: Direct emitter control (intensity, red, green, blue, indigo, lime, and

strobe).

•

1ch: 1-channel mode controls the intensity of preset 1 (defaults to

3200K White).

•

rgb: RGB mode (red, green, and blue).

4. Press the Mode button to confirm your selection.

The display will automatically return to the DMX address after 10 seconds of

inactivity, and edits to the DMX control mode will not be saved. This cancels

unsaved changes.

DMXControl Channels

DMX

Channel

5ch

(5 channel)

dir

(Direct)

1ch

(1 Channel)

rgb

(RGB)

1 Intensity Intensity Intensity Red

2 Red Red Green

3 Green Green Blue

4 Blue Blue/Indigo*

5 Strobe** Lime

6 Strobe**

*Original ColorSource PAR fixture uses blue in channel 4; Deep Blue fixture uses indigo in

channel 4.

**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate

from 1 per second up to 33 per second.

ColorSource PAR Page 7 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Data Loss Behavior

When DMX data is lost, the fixture does one of the following actions:

•

If you selected a preset or sequence, that preset or sequence

automatically plays.

•

If no preset or sequence is active in the background, the fixture goes

dark and the DMXstart address flashes on the user interface.

Lock the User Interface

After you have set up the fixture, you can lock the user interface to prevent

additional changes.

1. Press and hold the Up button and Down button simultaneously for

3seconds. The display will show Loc to indicate that the user interface is

locked.

2. To unlock the user interface, press and hold the Up button and Down

button simultaneously for 3 seconds.

ColorSource PAR Page 8 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Play Presets and Sequences

The fixture has twelve factory-configured presets and five factory-configured

sequences. When you play a preset or sequence on a fixture:

•

The same preset number or sequence number plays on any connected

fixtures that are not receiving DMX.

•

If you power down the fixture, the preset or sequence resumes when

you power it on again.

You can re-record presets and sequences through an RDM device or manually

on the fixture. See

Re-record Presets on the next page

1. Press the Mode button to activate the Presets/Sequences menu. The last

active preset or sequence plays automatically. (If DMX data is present, the

current preset or sequence plays in the background and DMX data

continues to take priority.)

2. Press the Up button or Down button as needed to scroll through the

available presets and sequences.

3. To stop the selected preset or sequence, press the Mode button a second

time. The display will revert to show the DMX start address.

Pre-configuredPresets

Preset Name

1 3200 K White

2 5600 K White

3 Red

4 Green

5 Blue

6 Cyan

Preset Name

7 Magenta

8 Yellow

9 Orange

10 Light Yellow

11 Light Blue

12 Light Pink

Pre-configuredSequences

Sequence Name

1 Rainbow Fast

2 Rainbow Slow

3 Warm Colors Fast

4 Cool Colors Fast

5 Random

ColorSource PAR Page 9 of 16 ETC

ETC Installation Guide

ColorSource PAR v1.7/v3.0

Re-record Presets

1. Using DMX, set the desired levels for the new preset.

2. Press the Mode button to access the Presets/Sequences menu.

3. Press the Up button or Down button to navigate to the preset number

that you want to re-record.

4. Press and hold the Mode button for 3 seconds to confirm the preset

selection. The user interface will show a 3-second countdown. The preset

number blinks once to confirm that the preset has been recorded.

Note:

When the fixture is in Direct mode (dir) or 1-channel mode

(1ch), you cannot re-record presets.

When you re-record presets with the fixture in RGB mode (rgb), the

intensity is set to full and the strobe is turned off.

See Change the DMXControl Mode on page7.

Adjust the Intensity of Presets

1. Ensure that DMX data is not present.

2. Press the Mode button to access thePresets/Sequences menu, and then

press the Up button or Down button to select the preset that you want to

edit.

3. Press and hold the Mode button for 3 seconds. The display shows L:

followed by either an intensity level from 0–99 or FL for full.

4. Press the Up button or Down button to change the intensity level of the

preset in real time.

5. Press the Mode button to confirm your selection and return to

thePresets/Sequences menu.

The display will automatically return to thePresets/Sequences menu after

10seconds of inactivity, and edits to the preset intensity will not be saved.

ColorSource PAR Page 10 of 16 ETC

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ETC Attrezzatura per DJ

ETC

ETC Source 4WRD II Manuale utente

ETC

ETC Source Four Zoom CE Manuale utente

ETC

ETC ColorSource PAR Manuale utente

ETC

ETC Element Manuale utente

ETC

ETC ColorSource Spot Pearl v1.7 Manuale utente

ETC

ETC Source Four LED Series Manuale utente

ETC

ETC ColorSource Spot Manuale utente

ETC

ETC Source Four LED Series Manuale utente

ETC

ETC High End Systems SolaPix 19 Manuale utente

ETC

ETC ColorSource Spot jr v2.0 Manuale utente

ETC

ETC Prodigy FlyPipe Studio Manuale utente

ETC

ETC Source Four jr Manuale utente

ETC

ETC Releve Spot Istruzioni per il montaggio

ETC

ETC Source Four Zoom Manuale utente

ETC

ETC Desire series Manuale utente

ETC

ETC Desire series Guida alla configurazione

ETC

ETC Source Four Mini LED Manuale utente

ETC

ETC Desire XTI Series Manuale utente

ETC

ETC fos/4 Series Manuale utente

ETC

ETC ColorSource Fresnel V Manuale utente

ETC

ETC ColorSource Spot V 1.0 Manuale utente

ETC

ETC Source 4WRD Manuale utente

ETC

ETC Source Four jr Manuale utente

ETC

ETC Source Four LED Series Manuale utente

Manuali Attrezzatura per DJ popolari di altre marche

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuale del proprietario

Chauvet

Chauvet OVATION E-930VW Manuale utente

Zumtobel

Zumtobel APHRODITE Home Manuale utente

Snow Masters

Snow Masters Zig Oscillator Manuale utente

EuroLite

EuroLite 50530554 Manuale utente

Beamz

Beamz BUV243 Manuale utente

thomann

thomann Stairville DJ Lase 40-G MK-III Manuale utente

Eagletone

Eagletone 6 Eyes Flower Manuale utente

EuroLite

EuroLite FLD-1508 Manuale utente

Technical Pro

Technical Pro LG8xSEA Manuale utente

JB Systems

JB Systems Lounge Laser DMX Manuale utente

Lightmaxx

Lightmaxx Vega Halo 90 Manuale utente

Elation

Elation FUZE WASH Z350 Manuale utente

Maverick

Maverick MK3 WASH Manuale utente

Infinity

Infinity TF-260C7 Fresnel Manuale utente

Chauvet

Chauvet EVE E-50Z Manuale utente

Eliminator Lighting

Eliminator Lighting E 138 Manuale utente

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuale utente
