Extech Instruments 403125 Manuale utente

User's Guide

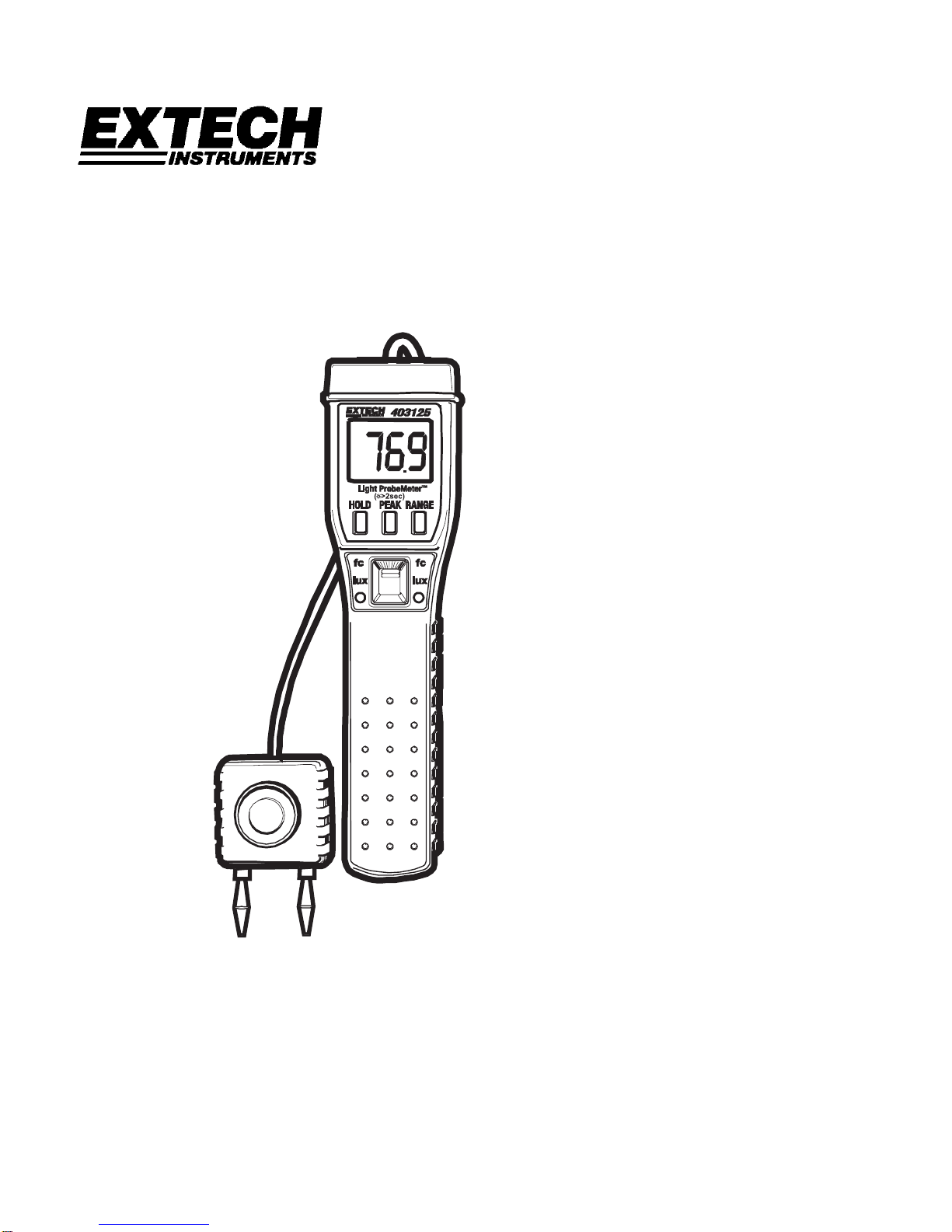

Digital Light Meter

Model 403125

403125 V3.1 9/062

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects

in parts and workmanship for one year from date of shipment (a six month limited warranty

applies to sensors and cables). If it should become necessary to return the instrument for

service during or beyond the warranty period, contact the Customer Service Department at

(781) 890-7440 ext. 210 for authorization or visit our website www.extech.com for contact

information. A Return Authorization (RA) number must be issued before any product is

returned to Extech. The sender is responsible for shipping charges, freight, insurance and

proper packaging to prevent damage in transit. This warranty does not apply to defects

resulting from action of the user such as misuse, improper wiring, operation outside of

specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific

purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set

forth above is inclusive and no other warranty, whether written or oral, is expressed or

implied.

Introduction

Congratulations on your purchase of the Extech 403125 Digital Light Meter. This

portable, compact light meter provides lux and fc measurements. This meter includes a

backlit LCD display and offers PEAK HOLD and DATA HOLD functionality. This meter is

shipped fully tested and calibrated and, with proper use, will provide years of reliable

service.

Safety Instructions

It is recommended that the user read and understand the safety and operational

instructions before using the light meter. Please read the following WARNINGS:

•To avoid electrical shock do not operate this meter in wet or damp conditions.

•Do not immerse the meter in liquid. For cleaning instructions, refer to the

maintenance section of this manual.

•To avoid injury and fire hazard, do not use this meter in potentially explosive

environments.

•To avoid eye injury, wear eye protection if there is the possibility of exposure

to high intensity light rays.

•Cover the sensor head when not in use. This will extend the life of the photo-

diode employed in the sensor head.

403125 V3.1 9/063

Specifications

General Specifications

Display 3 ½ digit backlit LCD display (reads 0 to 1999)

Over range indication OL (over load) is displayed

Measurement rate 2.5 readings per second (nominal)

Battery power Four (4) 1.5V ‘AAA’ batteries

Battery life 200 hours typical

Low battery indication Battery symbol is displayed when the battery power drops

below the operating voltage

Operating conditions 32 to 122oF (0 to 50oC) < 70% Relative Humidity

Storage conditions -4 to 140oF (-20 to 60oC) < 80% Relative Humidity (with

batteries removed)

Analog output 0.1mVDC per display digit

Dimensions 6.7 x 1.7 x 1.6" (170 x 44 x 40mm)

Weight Approx. 7.76 oz. (220g) with batteries

Electrical Specifications

Ranges 20, 200, 2000, 20,000 fc and lux (note that the 20,000 range is

displayed in the x10 mode, meaning that the display must be

multiplied by 10).

Resolution 0.01 lux/fc maximum

Accuracy 20, 200 ranges: ± (5% of reading + 10 digits)

2000, 20,000 ranges: ± (3% of reading + 10 digits)

Accuracy note: Stated accuracy for ± 9oF at 73oF (±5oC at

23oC) < 70% Relative Humidity

Spectral response CIE photopic

Note: The CIE photopic curve is an international standard for

the color response of the average human eye. The CIE

standard illuminant ‘A’ is defined as a gas-filled Tungsten-

filament lamp operating at a correlated color temperature of

2856K.

Peak Hold response 50ms minimum response time for the measurement of a light

pulse

Acceptance angle f ’2< 2% cosine corrected (150o)

Units conversion 10.764 fc = 1 lux (lumens/meter2)

0.0929 lux = 1 fc (lumens/foot2)

Temperature Coefficient 0.056 times the specified accuracy per oF (< 64.4oF or >

82.4oF)

0.1 times the specified accuracy per oC (< 18oC or > 28oC)

403125 V3.1 9/064

Meter Description

1. LCD display

2. Pushbuttons:

•Backlight and PEAK button – Momentarily press this button to

activate/deactivate the Peak Hold function. The PMAX display icon will appear.

In the Peak Hold mode of operation, only the highest reading will be displayed.

Press and hold this button for 2 seconds to switch on the backlight. Press and

hold this button again for 2 seconds to turn the backlight off.

•RANGE button – Press to select the

desired lux or fc range. Each press of the

RANGE button selects a new range. The

available ranges are 20, 200, 2000, and

20,000 lux or foot candles. Displays in

the 20,000 range must be multiplied by

10.

•HOLD button – Press to freeze the

displayed value (the Hicon will switch

on). Press again to exit the Data Hold

mode.

3. Sensor cable – Connects sensor to meter

4. Sensor (sensor cover not shown)

5. Sensor mounting plugs - Fits into docking

jacks at top of meter

6. Docking jacks – Sensor can be attached here

for storage or while measuring.

7. Function switch – Three positions OFF, LUX,

and FC

8. Handle and battery compartment (rear)

9. Analog output jack

403125 V3.1 9/065

Operation

1. Set the function switch to the desired unit of measure; lux or fc.

2. Remove the light sensor cover.

3. Hold the sensor head steady or place it in a secure area and allow the sensor to collect

light. The light must encompass the entire sensor dome. Ensure that the user does not

cast a shadow on the sensor dome. The sensor is connected to the meter by a 4’

(1.5m) cable. While measuring, the sensor can be kept docked on the meter (as it is

shipped) or it may be disconnected and used remotely.

4. Read the illuminance value on the display. If the approximate magnitude of the light is

not known, step through the ranges using the RANGE button until a measurement is

displayed. If x10 appears on the LCD, the meter is in the 20,000 range and the reading

must be multiplied by 10. The OL (overload) icon appears if readings are out of range.

5. While taking a measurement, press the HOLD button to freeze a displayed reading.

Press HOLD again to release the displayed reading. The Hicon will appear on the

display when the meter is in the HOLD mode.

6. If it is desired to know only the highest reading of a given measurement period, press

the PEAK button at the start of a measurement period. The PMAX display icon will

switch on in the PEAK mode and the display will only show the highest reading.

Momentarily press the PEAK button again to exit the PEAK mode.

7. Press and hold the PEAK button for seconds to activate the display backlight. Press

and hold the PEAK hold button again for 2 seconds to switch the backlighting off.

8. Cover the sensor when not in use.

Measurement Considerations

1. For best results, repeat measurements several times to ensure that the light source

has remained stable.

2. Avoid flexing the cable excessively at either end.

3. The Inverse Square Law: The law states that the illuminance Eat a point on a surface

varies directly with the intensity Iof a point source, and inversely for the square of the

distance dbetween the source and the point. If the surface at the point is perpendicular

to the direction of the incident light, the law is expressed as E = I / d2.

4. Cosine Law: The law states that the illuminance on any surface varies with the cosine

of the angle of incidence. The angle of incidence θ is the angle of the surface plane

and the direction of the incident light. The inverse-square law and the cosine law can

be combined as follows: E = (I cos θ) / d2.

403125 V3.1 9/066

CIE Photopic Curve

Analog Output

The meter can be connected to a chart recorder or other analog recording device via the

output jack at the bottom of the meter. A mono (two wire) 2.5mm plug and cable (not

supplied) are required. The analog output is 0.1mVDC per display digit.

403125 V3.1 9/067

Maintenance

Battery Replacement

When the battery power falls below the operating voltage, the battery symbol appears on

the display. If the battery symbol appears on the LCD or if the LCD does not switch on

when the meter is turned on, replace the batteries as follows:

1. Remove the Phillips screw on the back of the meter.

2. Open the battery compartment.

3. Replace the four (4) ‘AAA’ 1.5V batteries observing polarity.

4. Replace the battery compartment cover and secure the compartment screw.

Cleaning

Use only a lightly damp cloth to clean the meter. Do not use abrasives, solvents, or harsh

detergents. Keep the plastic sensor dome clean and free from scratches; it may be

cleaned with a soft cloth and isopropyl alcohol.

Typical Light Levels (for general reference only)

Foot candles Lux Typical Light Levels

> 10000 > 107600 Sunlight

1000 to 10000 10760 to 107600 Operating Room

100 to 1000 1076 to 10760

Assembly (fine)

Football stadium

Emergency room

Drafting table

10 to 100 107 to 1076

Overcast day

Assembly (general)

Classroom

Casual reading

Shipping area

Stairwell

Auditorium

1 to 10 10.7 to 107

ATM machine

Storage room

Building entrance

Parking lot

0 to 1 0 to 10.7 Highway

Full moon

403125 V3.1 9/068



Support line (781) 890-7440

Technical support: Extension 200; E-mail: [email protected]

Repair & Returns: Extension 210; E-mail: repair@extech.com

Product specifications subject to change without notice

For the latest version of this User’s Guide, Software updates, and other

up-to-the-minute product information, visit our website: www.extech.com

Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech also

provides NIST certification for most products. Call the Customer Service Department for

information on calibration services available for this product. Extech recommends that

annual calibrations be performed to verify meter performance and accuracy.
