USER GUIDE

Heavy Duty CFM-CMM Thermo-Anemometer

With built-in non-contact IR Thermometer and Laser Pointer

Model HD300

HD300-EU-EN V2.2 07/13

Introduction

Congratulations on your purchase of the Extech HD300 CFM Thermo-Anemometer. This

handheld meter measures and displays air velocity, air flow (volume), temperature of air, and

surface temperature (using the built-in non-contact IR thermometer). This meter is shipped fully

tested and calibrated and, with proper use, will provide years of reliable service.

Features

CFM/CMM Thermo-Anemometer with built-in non-contact IR Thermometer measures remote

surfaces to 500°C (932°F) with a 30:1 distance to spot ratio and Laser pointer.

Simultaneous display of Air Flow or Air Velocity plus ambient temperature.

Eight (8) memory locations permit the user to store multiple air duct AREA values for fast and

easy recall.

Twenty (20) reading average for Air Flow or Air Velocity.

Large backlit LCD display.

3% velocity accuracy via low friction 72mm (2.83”) ball-bearing vane wheel on a 120cm (3.9’)

cable.

Data Hold and Max/Min/Avg.

Auto Power OFF (can be disengaged).

Safety

Use extreme caution when the laser pointer beam is on

Do not point the beam toward anyone's eye or allow the beam to strike

the eye from a reflective surface

Do not use the laser near explosive gases or in other potentially

explosive areas

HD300-EU-EN V2.2 07/13

Meter Description

1. LED display for Air Velocity, Air Flow, Probe

Temperature, and remote surface temperature. Units

of measurement and user alerts are also displayed on

the LCD.

2. Vane Sensor. Hold the sensor in the flow of air to take

a reading.

3. IR sensor: Non-contact temperature measurement for

remote surfaces.

4. Laser Pointer: Helps the user aim the IR sensor.

5. Battery access: Cover on rear panel

6. PC interface jack: Use the supplied cable to connect

meter to a PC

7. Upper Keypad (brief descriptions below):

IRT: Press and hold to measure remote surface temperature. Release to hold the

temperature value on the display.

MAX/MIN (for air temperature measurements): Used to record and store the highest

and lowest readings for temperature measurements made by the vane probe.

AVG: Used to obtain Average for multi-point measurements in either FLOW or

VELOCITY modes. Up to twenty (20) points can be averaged.

HOLD (for air temperature measurements): Press to freeze the displayed

temperature reading measured by the probe. Press again to unlock the display. Press

and hold for 2 seconds to activate the LCD backlight. Press and hold again for 2

seconds to turn the backlight off.

8. Lower Keypad

On/Off button : Press to turn the meter ON or OFF

MAX/MIN (for air velocity and air flow): Press to record and store the highest,

lowest and continuous moving average readings for single point measurements. This

button also functions as the decimal positioning tool in the AREA mode.

C-F UNITS : Press to select the mode of operation and unit of measure. In FLOW

mode, the meter displays air volume. In VELOCITY mode, the meter displays air speed.

This button also functions as the UP arrow button in AREA mode.

AREA / NEXT: Press and hold to enter the AREA mode. The NEXT function allows the

user to save AREA values to any of eight memory locations. This button is also used to

clear stored readings in the MAX/MIN/AVG modes.

HOLD (for air velocity and air flow measurements) Backlight: Press to freeze the

displayed air velocity or air flow reading. Press again to unlock display. This button also

functions as the right arrow button in the AREA mode.

NOTE: Battery Compartment and Tripod Mount are located on the reverse side of the meter

HD300-EU-EN V2.2 07/13

Operation

Air Velocity Measurements

1. Connect the sensor to the sensor input jack on top of the

meter.

2. Turn ON the meter using the on-off button.

3. Select the VELOCITY function using the UNITS button.

Press the button repeatedly until the LCD displays VEL.

4. Press and hold the UNITS button for 2 seconds (until two

tones are heard) to change the temperature units from °C

to °F or from °F to °C. The LCD will reflect the selection.

5. Select the desired air velocity units using the UNITS

button. The LCD will reflect the selection.

6. Place the sensor in the air current to be measured with the

arrow on the inlet side of the vane (see diagram).

7. View the air velocity and temperature readings on the LCD

Display.

Air Flow (Volume) Measurements (CFM / CMM)

1. Connect the sensor to the sensor input jack on top of the meter.

2. Turn on the meter using the on-off button.

3. Select the FLOW mode using the UNITS button. Press the button repeatedly until the LCD

displays FLOW CFM (cubic feet per minute) or FLOW CMM (cubic meters per minute) as

desired.

4. Measure the dimensions of the duct or vent in question and calculate the area in square feet or

square meters

Note: If the dimensional measurements are made in inches (or cm), convert them feet (or meters)

before calculating the square area.

5. To begin entering the area in m2or ft2press and hold the AREA button for approx. 2 seconds

(until two tones are heard).

6. Momentarily press the NEXT button to select the desired memory location to store the area

value (there are eight locations).

7. Use the button to change the value of the flashing digit, use the button to select

another digit, and use the button to move the decimal point.

8. Press and hold the AREA button for approx. 2 seconds (until two tones are heard) to save the

area value in memory.

9. Place the sensor in the air current to be measured with the symbol on the inlet side of the

vane.

10. View the air flow and temperature readings on the LCD Display.

11. If the CFM or CMM reading exceeds 9999, the display will show the X10 or X100 multiplier in

the lower right hand corner of the LCD indicating that the displayed value must be multiplied by

10 or 100 to arrive at the correct flow measurement value.

airflow

Arrow

Side view of Vane

HD300-EU-EN V2.2 07/13

Non-contact IR Surface Temperature Measurements

The built-in IR sensor can remotely measure the temperature of just about any surface. The Laser

pointer allows the user to aim accurately when taking remote measurements.

1. Turn ON the meter using the on-off button.

2. The IR sensor is located at the top of the meter.

3. Point the sensor toward the surface to be measured.

4. Press and hold the IRT button to begin measuring the surface

temperature of a desired target. IR TEMP and will appear on

the display. The laser pointer will switch on to help aim the meter.

5. The measured IR surface temperature will appear on the LCD.

The temperature displayed is the temperature of the area within

the spot.

6. When the IRT button is released, the laser pointer will switch off

and the reading will freeze (data hold) on the display for

approximately 7 seconds.

7. After the 7 second hold time the meter returns to the Air

Velocity/Flow and Air Temperature mode.

WARNING: Do not directly view or direct the laser pointer at an eye. Low power visible lasers

do not normally present a hazard, but may present some potential for hazard if viewed directly for

extended periods of time.

Data Hold

1. The HOLD button in the upper keypad area freezes the displayed vane temperature reading.

Press again to unlock the display.

2. The HOLD button in the lower keypad area freezes the displayed air velocity or air flow

measurements. Press again to unlock the display.

3. The HOLD indicator will appear on the LCD when the display is in Data Hold mode.

HD300-EU-EN V2.2 07/13

MIN-MAX-AVG Recording Modes

The HD300 has several MIN-MAX-AVG modes described separately below. MIN-MAX-AVG

functions are available for all measurements made with the vane sensor (air velocity, air flow, and

air temperature).

Continuous Moving Average

In the Continuous Moving Average mode the meter displays the continuous average of the

measured readings for up to a 10 hour period.

1. Turn the meter ON.

2. Place the sensor in the air stream.

3. Press the MAX-MIN button in the lower keypad area for air velocity / flow.

4. Press the MAX-MIN button in the upper keypad area for air temperature.

5. The meter will begin averaging readings once per second.

Single Point Min-Max-Avg

In the Single Point Average Mode the meter takes a reading once per second and stores the

highest, lowest, and average readings.

1. Turn the meter ON.

2. Place the sensor in the air stream.

3. Press the MAX-MIN button (lower keypad area for air velocity/flow; upper keypad

area for air temperature) to enter the REC mode and display only the highest reading

(display will show REC MAX).

4. Press again to view the MIN value (display will show REC MIN). Now the display will

show only the lowest reading.

5. Press again to view the AVG value (display will show REC AVG).

6. To return to normal operation mode, press and hold the MAX-MIN button until two

tones are heard.

Multi-point Average

In the Multi-Point Average Mode the meter averages up to 20 Air Velocity readings.

1. Turn the meter ON.

2. Press and hold the AVG button for 2 seconds (until two beeps are heard). A ‘0’ will

display in the upper right hand corner of the LCD and ‘AVG’ will appear on the

bottom of the LCD.

3. Place the sensor in the air stream under test.

4. Press the AVG button momentarily to capture the reading (a single tone will be

heard) and the HOLD and AVG icons will appear on the bottom of the LCD. The ‘0’

that was displayed previously will increment to ‘1’. This number will increment with

each successive press of the AVG button.

5. Take more readings (up to a maximum of 20) in the same fashion as described in

step 4.

6. The LCD will display the average of all the readings taken since the multi-point mode

was accessed in step 2.

7. To return to normal operation, press and hold the AVG button for 2 seconds (until

two tones are heard).

8. To clear the stored readings after exiting the Multi-point Average mode, press the

AREA button once.

HD300-EU-EN V2.2 07/13

Battery Replacement

When the battery icon appears on the LCD, the 9V battery must be replaced.

1. The battery compartment is located on the rear of the meter.

2. Press in and down on the arrow located above the tilt stand hinge.

3. Replace the 9V battery and the battery cover

You, as the end user, are legally bound (EU Battery ordinance) to return all used

batteries, disposal in the household garbage is prohibited! You can hand over your

used batteries / accumulators at collection points in your community or wherever batteries /

accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

Auto Power OFF override

The HD300 is programmed to turn off automatically after idling for 15 minutes. This is designed to

save battery life in the event the meter is left ON inadvertently. (Note: When the meter is in the

“CFF/CMM” or “Average” mode, Auto Power Off is disabled.)

To over-ride this feature:

1. Turn the meter OFF

2. Turn the meter ON while holding down the IRT button.

3. Release the button when appears in the display.

4. The meter will now remain ON until the user manually turns if OFF.

5. The next time the meter is turned OFF the Auto Power OFF function will be re-activated.

USB PC Interface and Software

The HD300 is equipped with a communication jack on its upper left side. The supplied

communications cable connects to this jack and to a USB port on a PC. The supplied software

allows the user to view and save readings to the PC. Instructions for use and features are detailed

in the supplied software HELP utility.

HD300-EU-EN V2.2 07/13

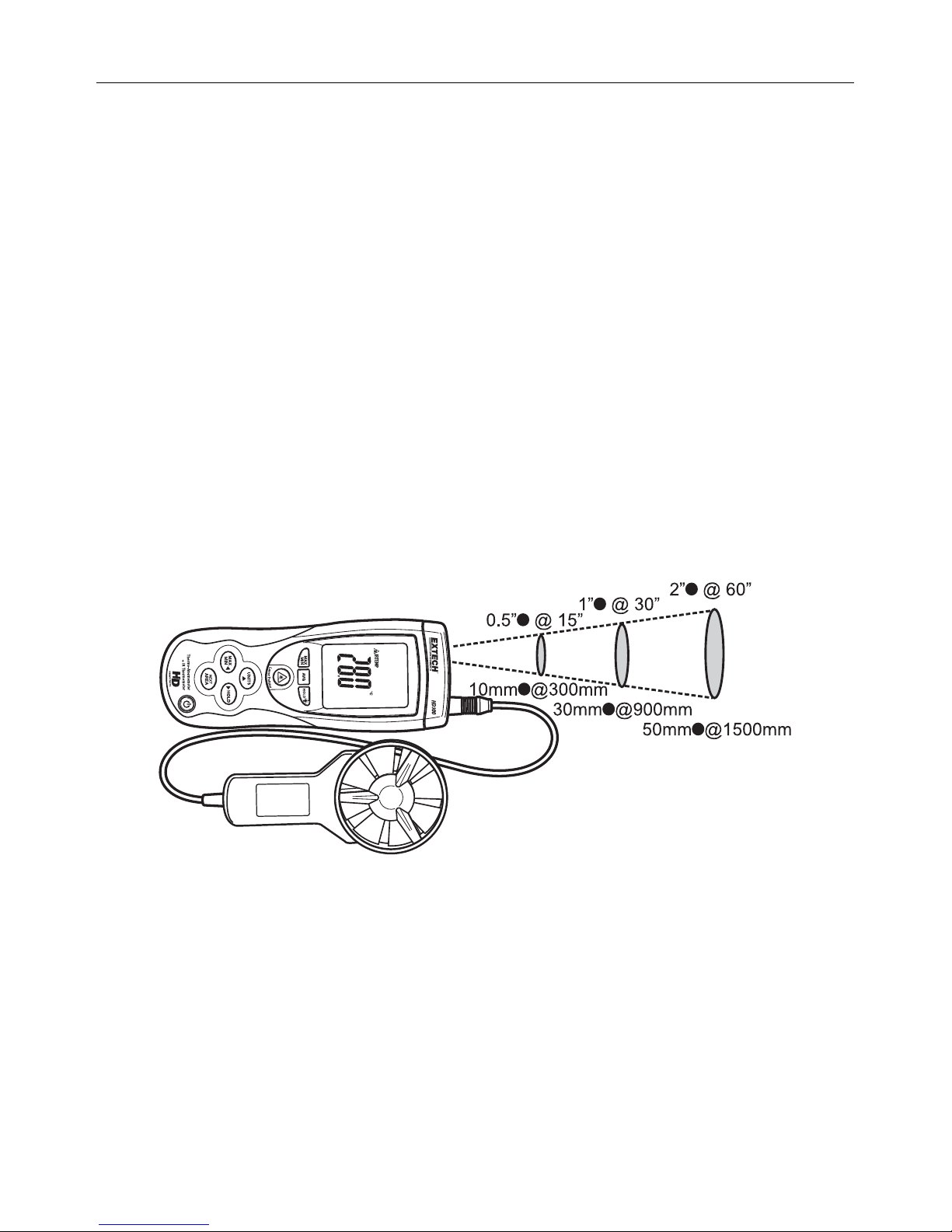

IR Theory

IR thermometers measure the surface temperature of an object. The meter’s optics sense emitted,

reflected, & transmitted energy that is collected and focused onto the meter’s detector. The meter’s

circuitry translates this information into an LCD reading.

InfraRed Measurement Considerations

When taking IR measurements the meter automatically compensates for ambient temperature

changes. Note that it may take up to 30 minutes to adjust to extremely wide ambient changes.

Low temperature measurements quickly followed by high temperature measurements may

require several minutes to stabilize as a result of the IR sensor cooling process.

If the surface of the object under test is covered with frost, oil, grime, etc., clean before taking

measurements.

If an object's surface is highly reflective apply masking tape or flat black paint before measuring.

Steam, dust, smoke, etc. can obstruct measurements.

To find a hot spot, aim the meter outside the area of interest then scan across (in an up and

down motion) until the hot spot is located.

IR measurements cannot be made through glass.

IR Field of View

Ensure that the desired target is larger than the spot size. As the distance from an object increases,

the spot size of the area measured by the meter becomes larger. The meter’s field of view ratio is

30:1, meaning that if the meter is 30 inches (cm) from the target, the diameter (spot) of the object

under test must be at least 1 inch (cm). Refer below to the field of view diagram.

Emissivity

Most organic materials and painted or oxidized surfaces have an emissivity of 0.95. Inaccurate

readings will result when measuring shiny or polished surfaces. To compensate, cover the surface

under test with masking tape or flat black paint. Allow time for the tape to reach the same

temperature as the material underneath then measure the temperature of the tape or the painted

surface.

HD300-EU-EN V2.2 07/13

Thermal Emissivity Table for Common Materials

Material Emissivity Material Emissivity

Asphalt 0.90 to 0.98 Cloth (black) 0.98

Concrete 0.94 Human skin 0.98

Cement 0.96 Leather 0.75 to 0.80

Sand 0.90 Charcoal (powder) 0.96

Earth 0.92 to 0.96 Lacquer 0.80 to 0.95

Water 0.67 Lacquer (matt) 0.97

Ice 0.96 to 0.98 Rubber (black) 0.94

Snow 0.83 Plastic 0.85 to 0.95

Glass 0.85 to 1.00 Timber 0.90

Ceramic 0.90 to 0.94 Paper 0.70 to 0.94

Marble 0.94 Chromium oxides 0.81

Plaster 0.80 to 0.90 Copper Oxides 0.78

Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82

Brick 0.93 to 0.96 Textiles 0.90

HD300-EU-EN V2.2 07/13

Useful Equations and Conversions

AREA equation for rectangular or square ducts

Area equation for circular ducts

Cubic equations

NOTE: Measurements made in inches

must be converted to feet or meters before using the above formulae.

Unit of Measure Conversion Table

m/s ft/min knots km/h MPH

1 m/s 1196.87 1.944 3.6 2.24

1 ft/min 0.00508 10.00987 0.01829 0.01138

1 knot 0.5144 101.27 11.8519 1.1523

1 km/h 0.2778 54.69 0.54 10.6222

1 MPH 0.4464 87.89 0.8679 1.6071 1

Width (W)

Height (H)

Area (A) = Width (W) x Height (H)

CFM (ft3/min) = Air Velocity (ft/min) x Area (ft2)

CMM (m3/min) = Air Velocity (m/sec) x Area (m2) x 60

Radius Area (A) = xr2

Where = 3.14 and r2= radius x radius

Indice

Altri manuali Extech Instruments Strumento di misura

Extech Instruments

Extech Instruments PH220 Manuale utente

Extech Instruments

Extech Instruments SL510 Manuale utente

Extech Instruments

Extech Instruments 381295 Manuale utente

Extech Instruments

Extech Instruments SP505 Manuale utente

Extech Instruments

Extech Instruments SDL470-NISTL Manuale utente

Extech Instruments

Extech Instruments 451112 Manuale utente

Extech Instruments

Extech Instruments HDV7C-A2-39-HD-1 Manuale utente

Extech Instruments

Extech Instruments DT200 Manuale utente

Extech Instruments

Extech Instruments LT40 Manuale utente

Extech Instruments

Extech Instruments DT40M Manuale utente

Extech Instruments

Extech Instruments MO210 Manuale utente

Extech Instruments

Extech Instruments RH390 Manuale utente

Extech Instruments

Extech Instruments EasyView EA33 Manuale utente

Extech Instruments

Extech Instruments CO250 Manuale utente

Extech Instruments

Extech Instruments 407355-NIST Manuale utente

Extech Instruments

Extech Instruments 407703A Manuale utente

Extech Instruments

Extech Instruments RH520 Manuale utente

Extech Instruments

Extech Instruments 407764 Manuale utente

Extech Instruments

Extech Instruments CO200 Manuale utente

Extech Instruments

Extech Instruments HD300-NISTL Manuale utente

Extech Instruments

Extech Instruments 407412 Manuale utente

Extech Instruments

Extech Instruments SDL300 Manuale utente

Extech Instruments

Extech Instruments RH390 Manuale utente

Extech Instruments

Extech Instruments TKG100 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
